150 Ton Low Profile Hydraulic Cylinder, Single Acting, 2″ Stroke

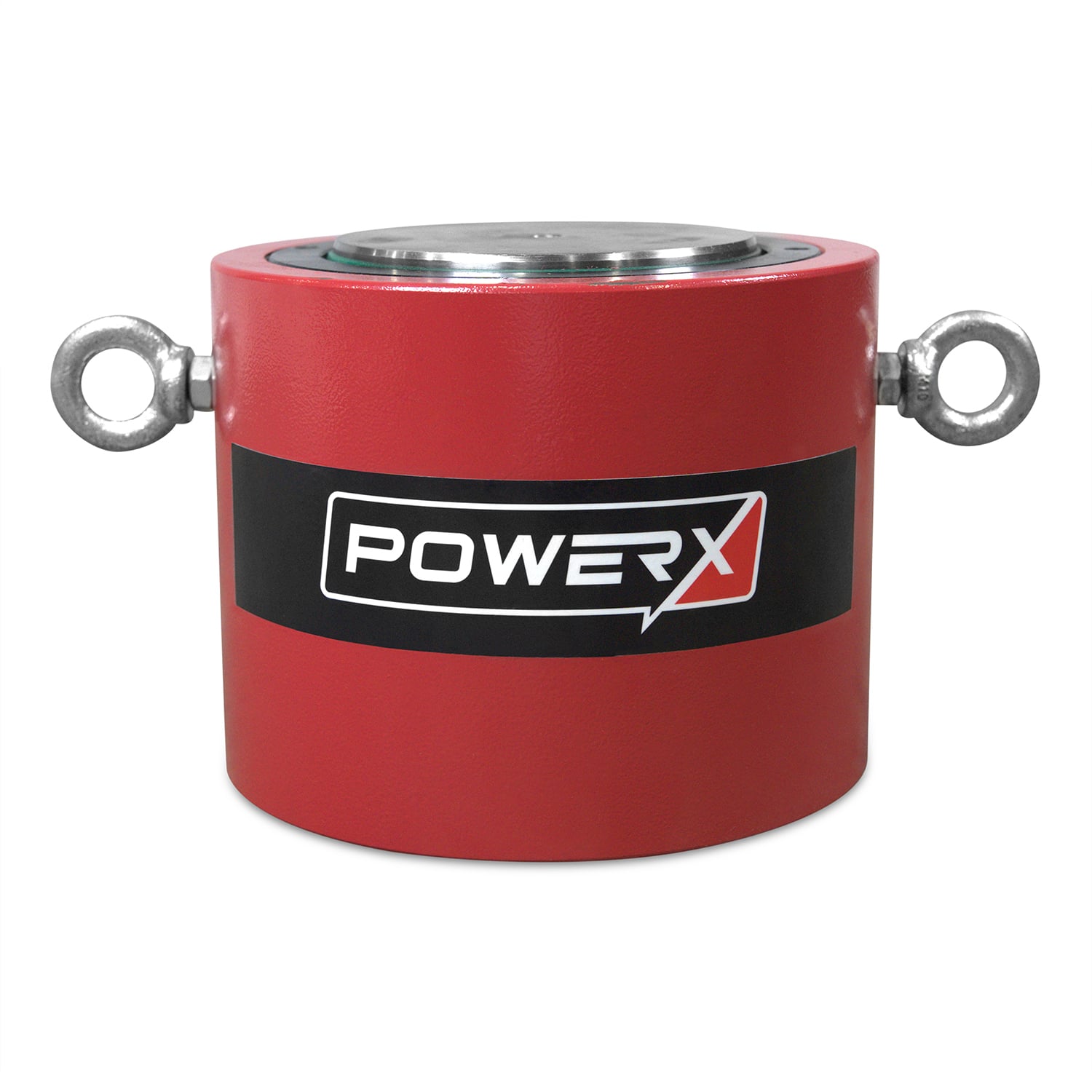

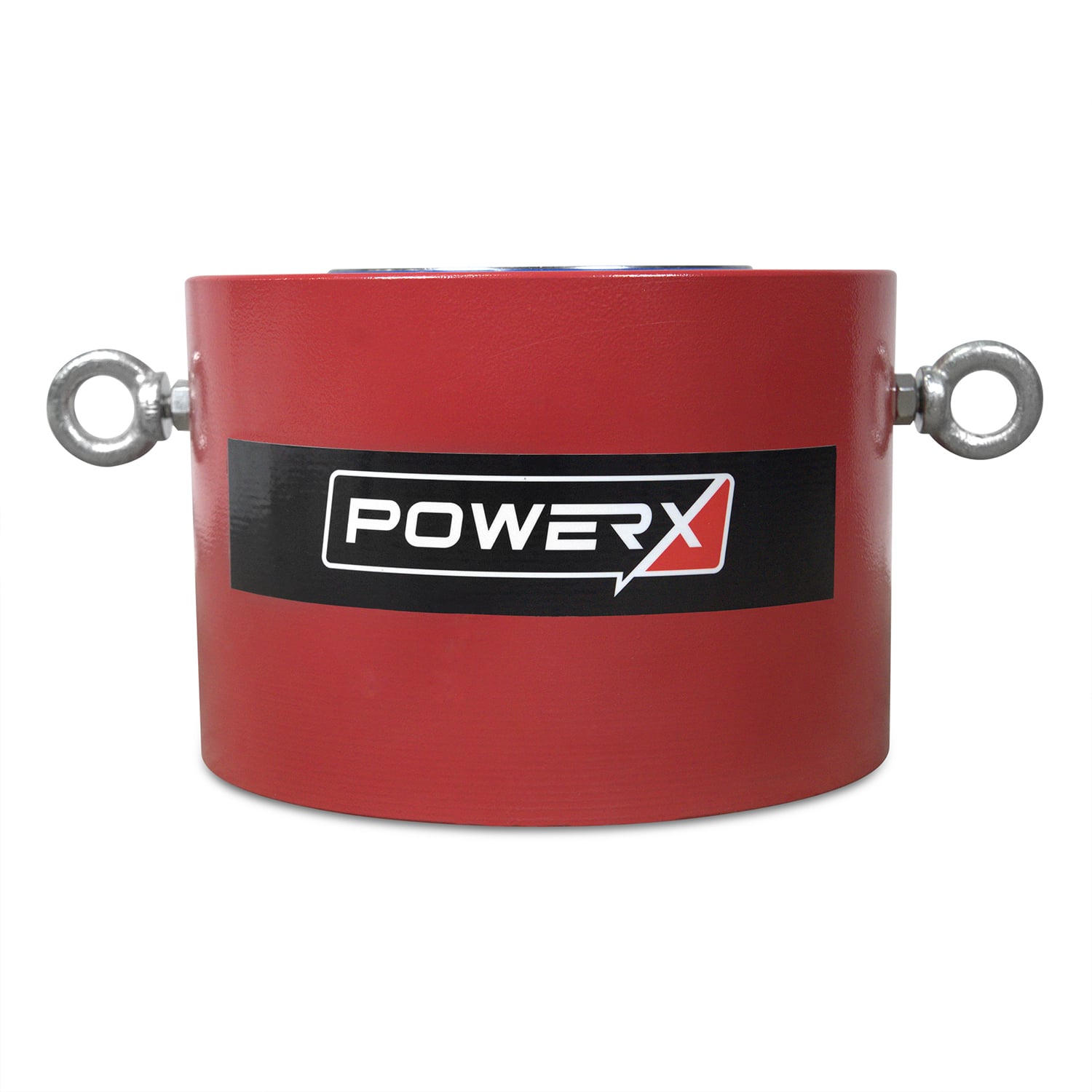

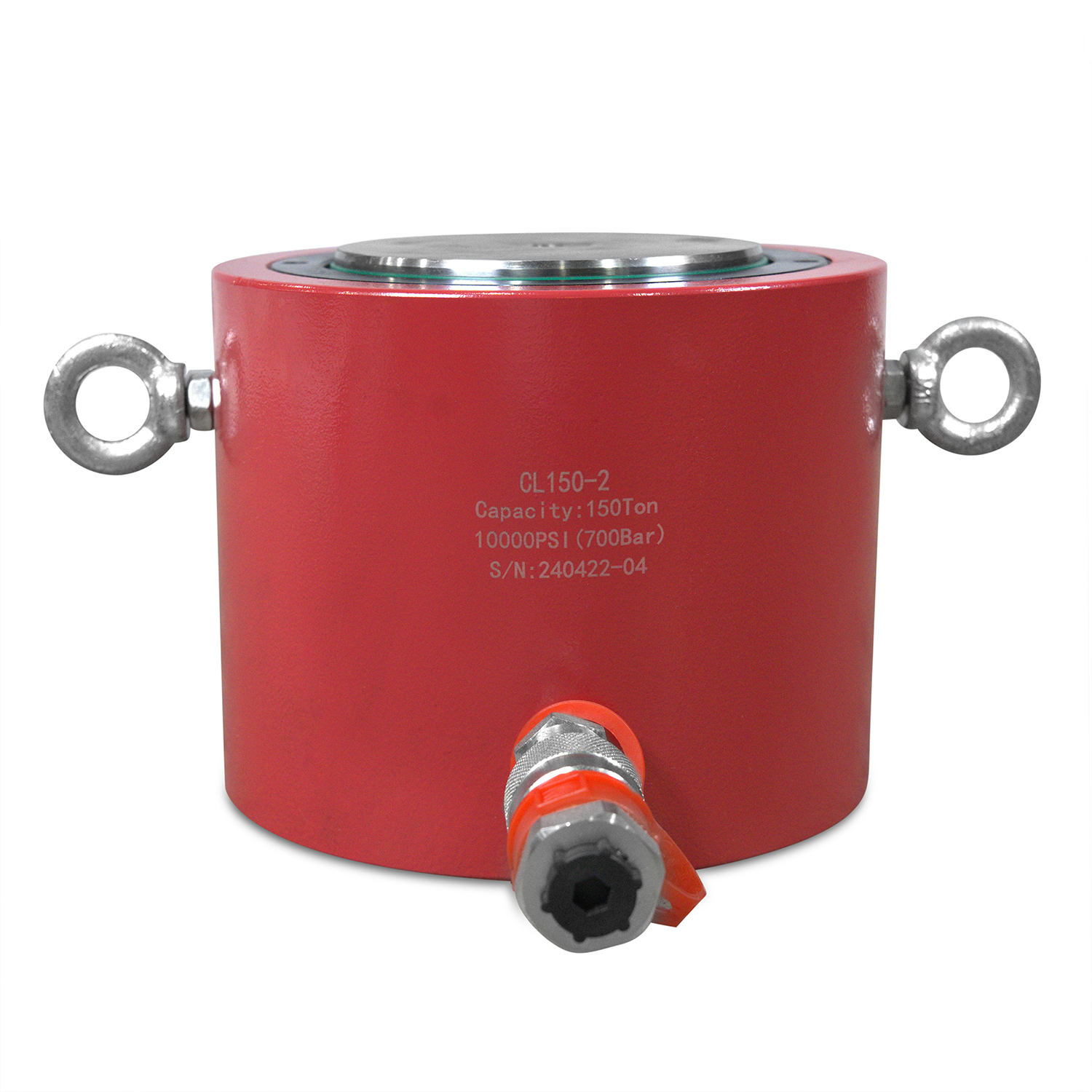

CL150-2 Low Profile Hydraulic Cylinder – 150 Ton, 2.36 Inch Stroke, Load Return – PowerX CL-Series

When clearance is tight but lifting power can’t be compromised, the PowerX CL150-2 delivers a massive 150-ton capacity in a compact, low-profile design. Rated for 10,000 PSI (700 bar), this load-return hydraulic cylinder provides reliable, controlled force for lifting, pushing, and pressing heavy loads in demanding industrial, construction, and maintenance applications.

Built for strength and precision, the CL150-2 10,000 PSI Low Profile Cylinder features a high-strength steel body engineered to handle extreme pressure and heavy side-loads without distortion. Its precision-machined chrome-plated piston ensures smooth operation and long seal life, while the load-return mechanism uses the weight of the load itself to retract the piston—ideal for controlled, stable lifting operations.

Designed for durability and ease of integration, every PowerX CL-Series cylinder includes collar threads and base mounting holes for secure setup, plus a 3/8” NPTF high-flow coupler with dust caps for quick, leak-free connection to PowerX hydraulic pumps and power units. A roll-burnished cylinder interior enhances sealing efficiency, extending the working life of the unit under repetitive, high-load use.

Compact in height but unmatched in strength, the PowerX CL150-2 Low Profile Cylinder delivers high tonnage performance in spaces where standard high-pressure hydraulic cylinders can’t fit, making it the professional’s choice for construction sites, steel fabrication, heavy-equipment maintenance, and industrial lifting tasks.

Features:

• Load return design for controlled piston retraction
• High-strength steel construction for durability under extreme loads
• Compact, low-profile design ideal for tight-space lifting
• Collar threads and base mounting holes for secure positioning
• 3/8” NPTF high-flow coupler with dust caps for leak-free connections
• Roll-burnished cylinder walls extend seal life and reliability
• Durable finish and ANSI B30.1 compliant

Performance:

• Capacity: 150 Tons
• Stroke: 2.36″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 73.54 in³
• Effective Area: 31.16 in²
• Operation Type: Single Acting, Load Return

Dimensions:

• Collapsed Height: 6.38″
• Extended Height: 8.74″
• Outside Diameter: 8.07″
• Bore Diameter: 6.30″
• Rod Diameter: 5.00″
• Weight: 88 lbs

Thread & Port Details:

• Port Type: 3/8″ NPTF High-Flow Port
• Mounting Holes: Base mounting holes included for secure setup
• Return Type: Load Return
• Pressure Connection: Compatible with all standard 10,000 PSI hydraulic systems
