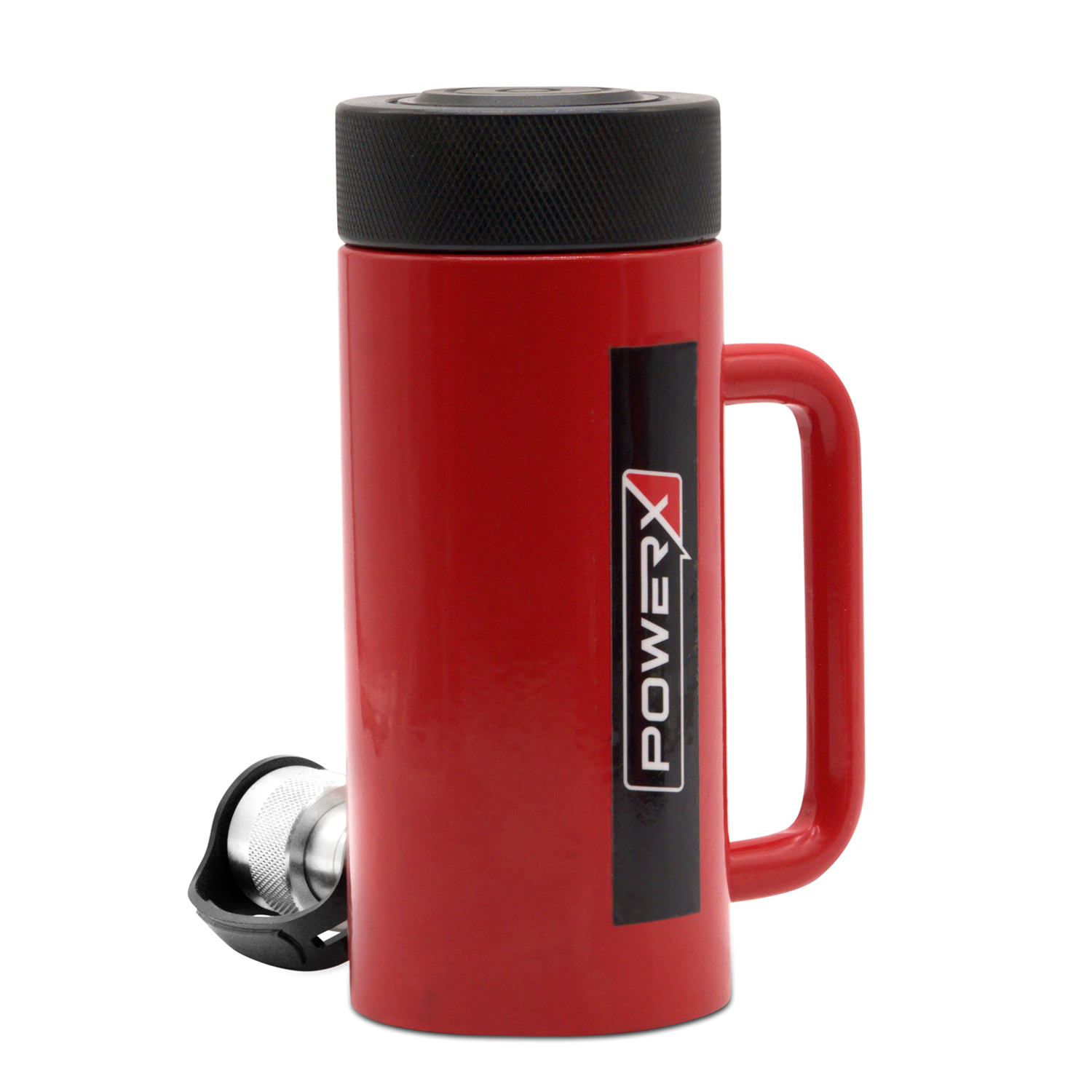

20 Ton Lock Nut Cylinder, Single Acting, 4″ Stroke

Call for availability: 414-988-6202

20 Ton Single Acting Lock Nut Cylinder 4″ Stroke

Mechanical lock to support load. Overflow port prevents piston from being overextended.
Safety lock nut for mechanical load holding.
Overflow port functions as a stroke limiter.
High strength alloy steel for durability.
Chrome plated piston resists wear and corrosion.
Baked enamel finish for increased corrosion resistance.
3/8″ NPTF port with high-flow coupler and dust cap.
Durable exterior finish and ANSI B30.1 compliant.
Each cylinder has a flat grooved saddle; tilt saddle is available on request.
10–200 ton cylinders are spring return; 250 ton and above are load return.

Weight	20 lbs
Dimensions	6 × 8.25 × 4 in
