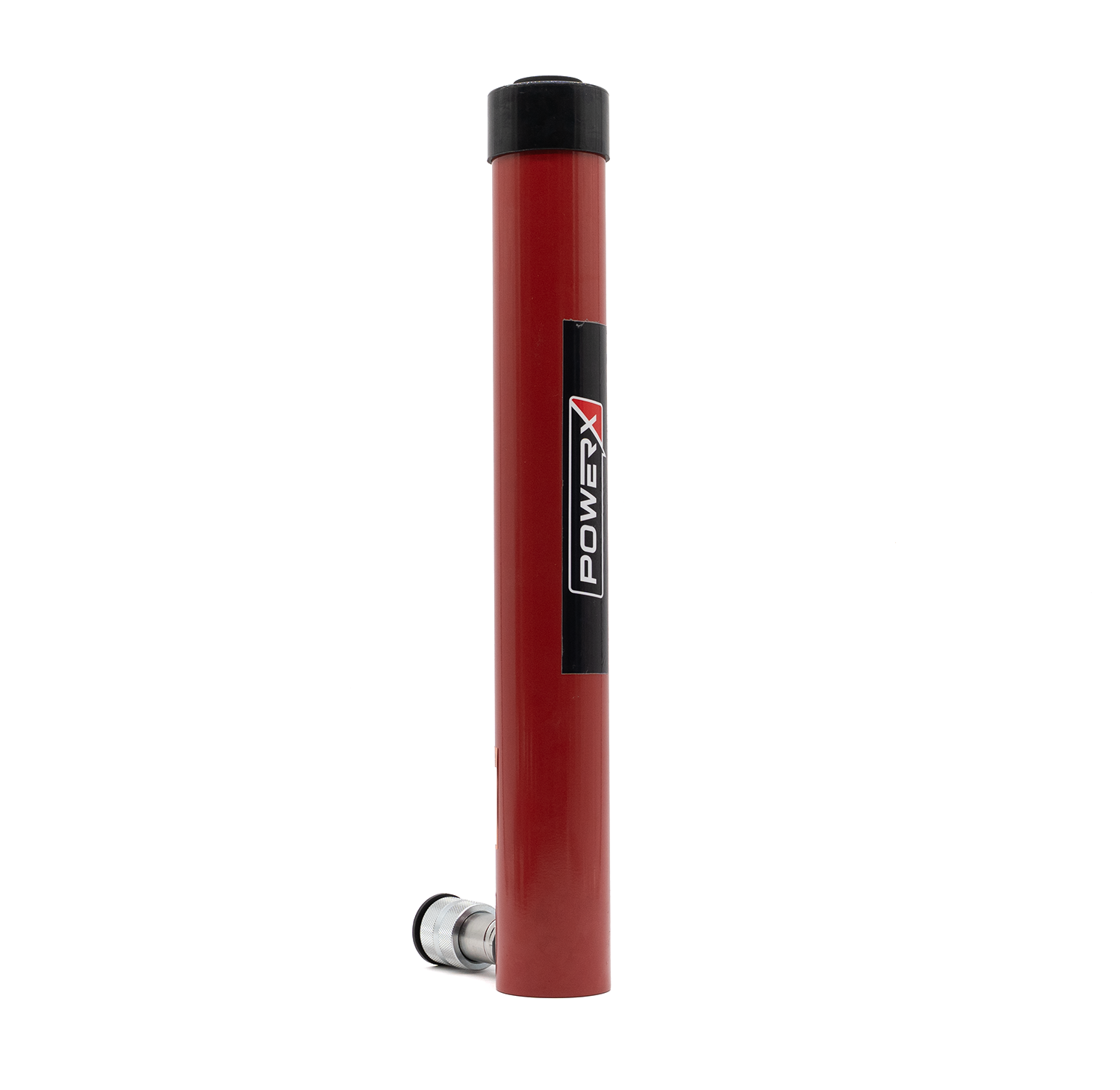

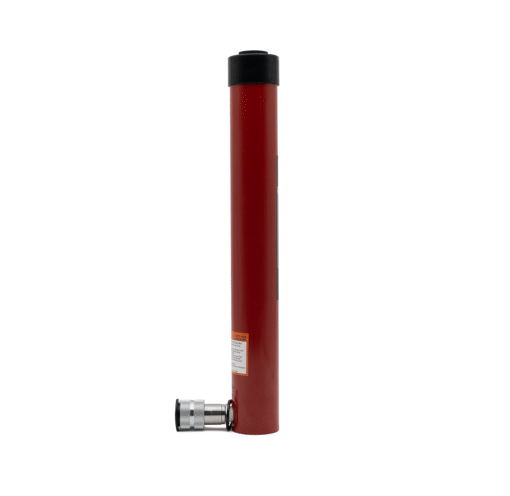

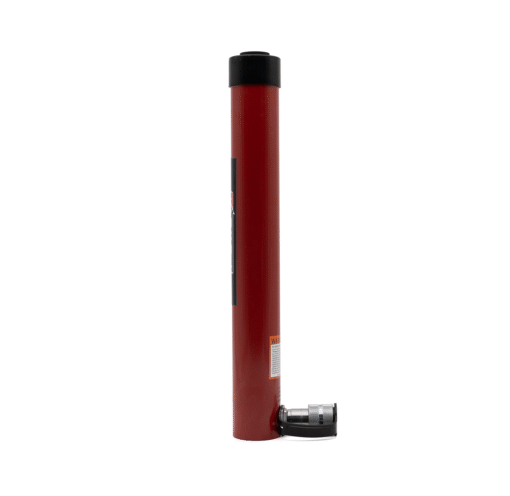

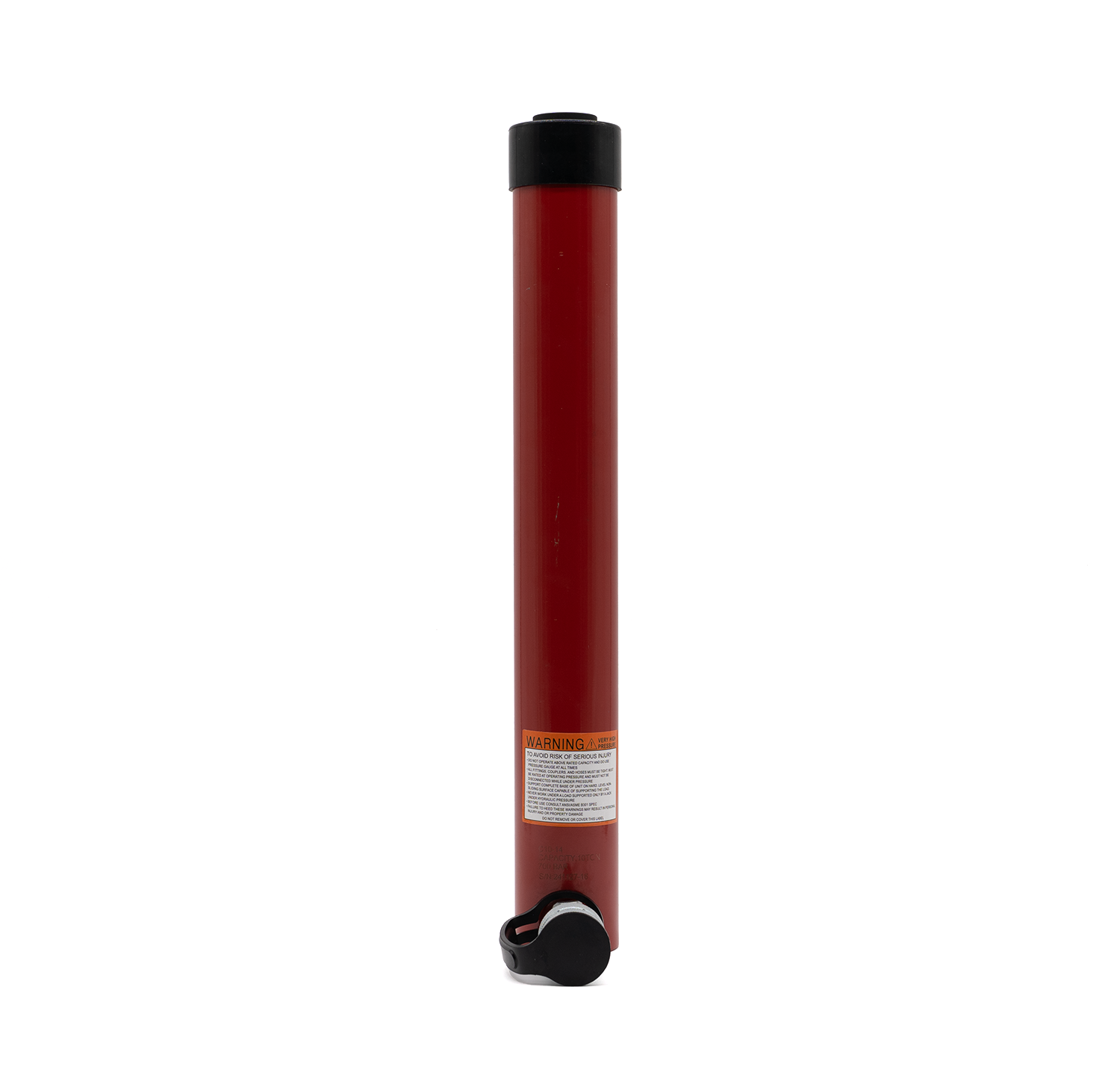

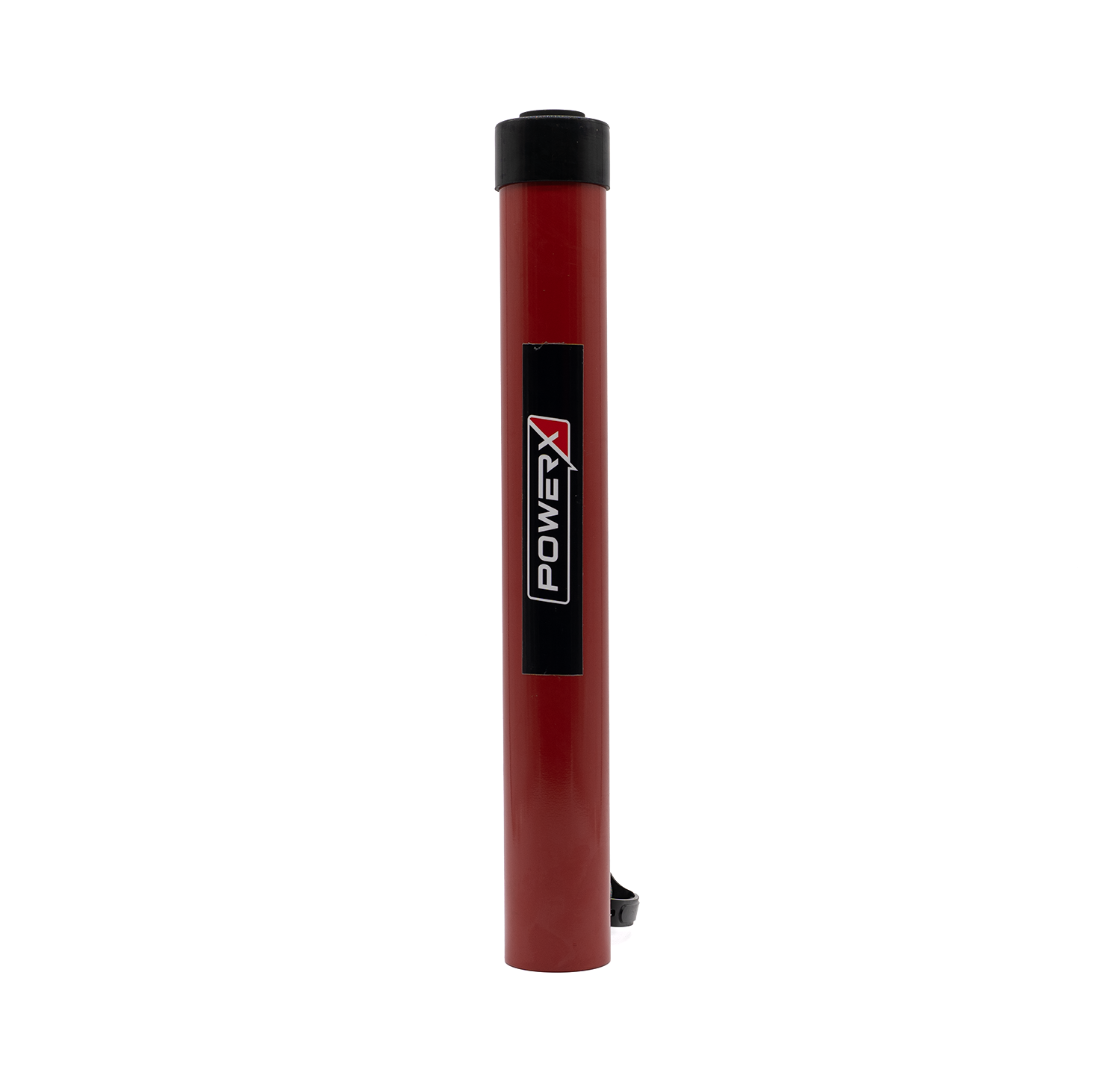

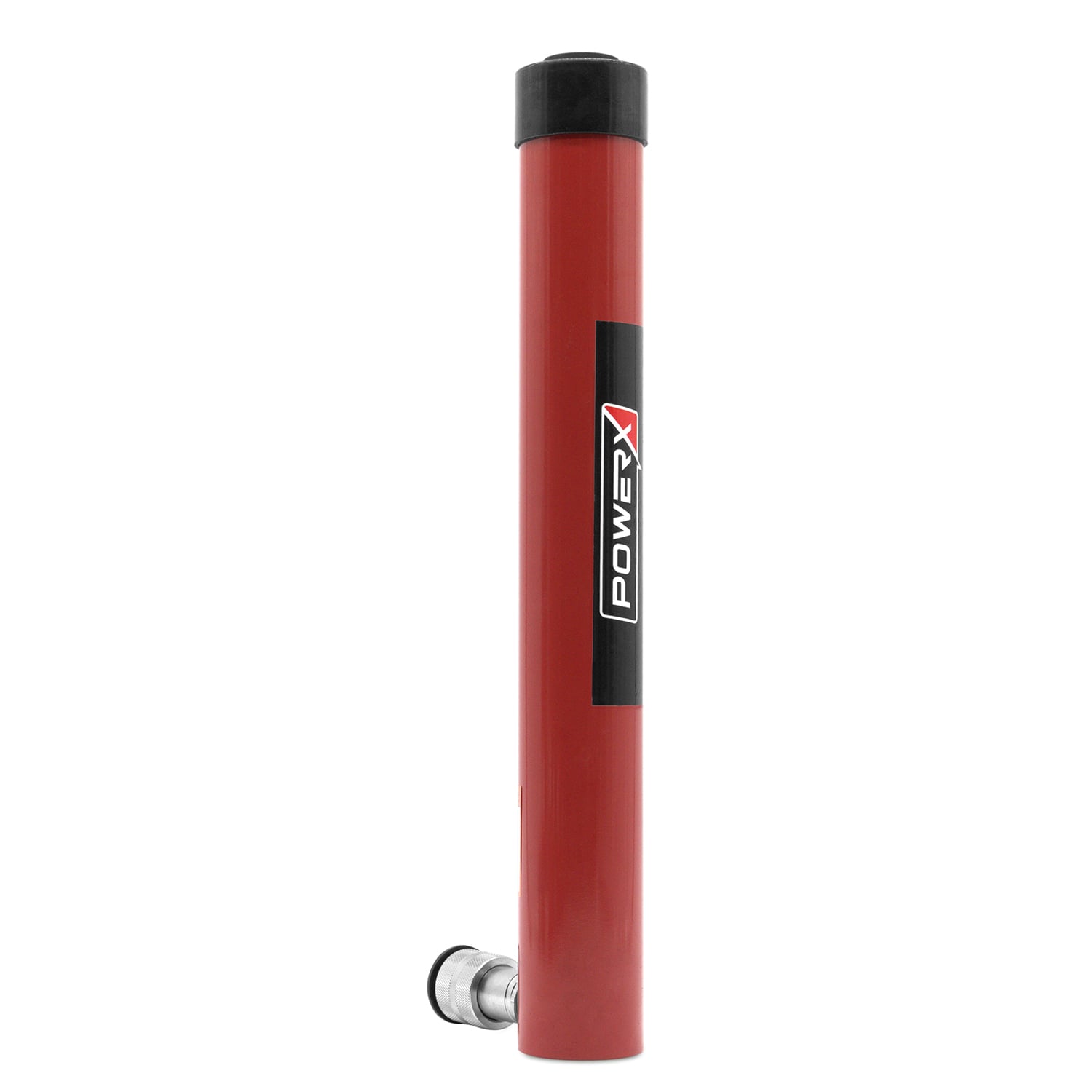

10 Ton High-Pressure Hydraulic Cylinder, Single Acting, 14″ Stroke, General Purpose

10 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 14″ Stroke

Built for the toughest jobs, the PowerX C10-14 delivers reliable 10,000 PSI performance in a compact, high-pressure hydraulic ram designed for pushing, lifting, or holding heavy loads. This single acting hydraulic cylinder (also known as a lifting jack or ram) provides smooth, controlled force for general-purpose industrial, maintenance, and construction applications.

Engineered with heavy-duty steel construction and a precision chrome-plated rod plunger, it’s built to handle continuous use under extreme conditions. The spring return design ensures fast retraction, while the roll-burnished cylinder walls extend seal life for long-term dependability. Equipped with collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with dust caps, this hydraulic jack is field-ready and ANSI B30.1 compliant.

Ideal for workshops, construction sites, shipyards, steel mills, mines, docks, maintenance crews, heavy-equipment repair and more! The Single Acting 10 Ton 14 Stroke Cylinder works best wherever strength, precision, and reliability matter most.

Power this cylinder with our high-pressure hydraulic pumps or power units, like the Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 10 Tons
• Stroke: 14″
• Oil Capacity: 31.40 in3
• Effective Area: 2.24 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 17.72″
• Extended Height: 31.75″
• Outside Diameter: 2.25″
• Bolt Circle: 1.56″
• Thread Depth: 0.5″

Thread & Port Details:

• Collar Thread: 2-1/4”–14
• Thread Length: 1.13″
• Base to Advance Port: 0.75″
• Rod Internal Thread: 1”–8
• Rod Thread Length: 0.75″
• Thread: 5/16”–18

Component Sizes:

• Rod Diameter: 1.5″
• Bore Diameter: 1.69″
• Saddle Diameter: 1.5″
