10 Ton High-Pressure Hydraulic Cylinder, Single Acting, 2″ Stroke, General Purpose

10 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 2″ Stroke

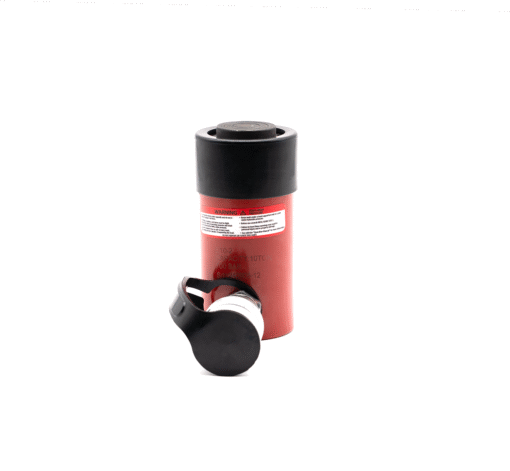

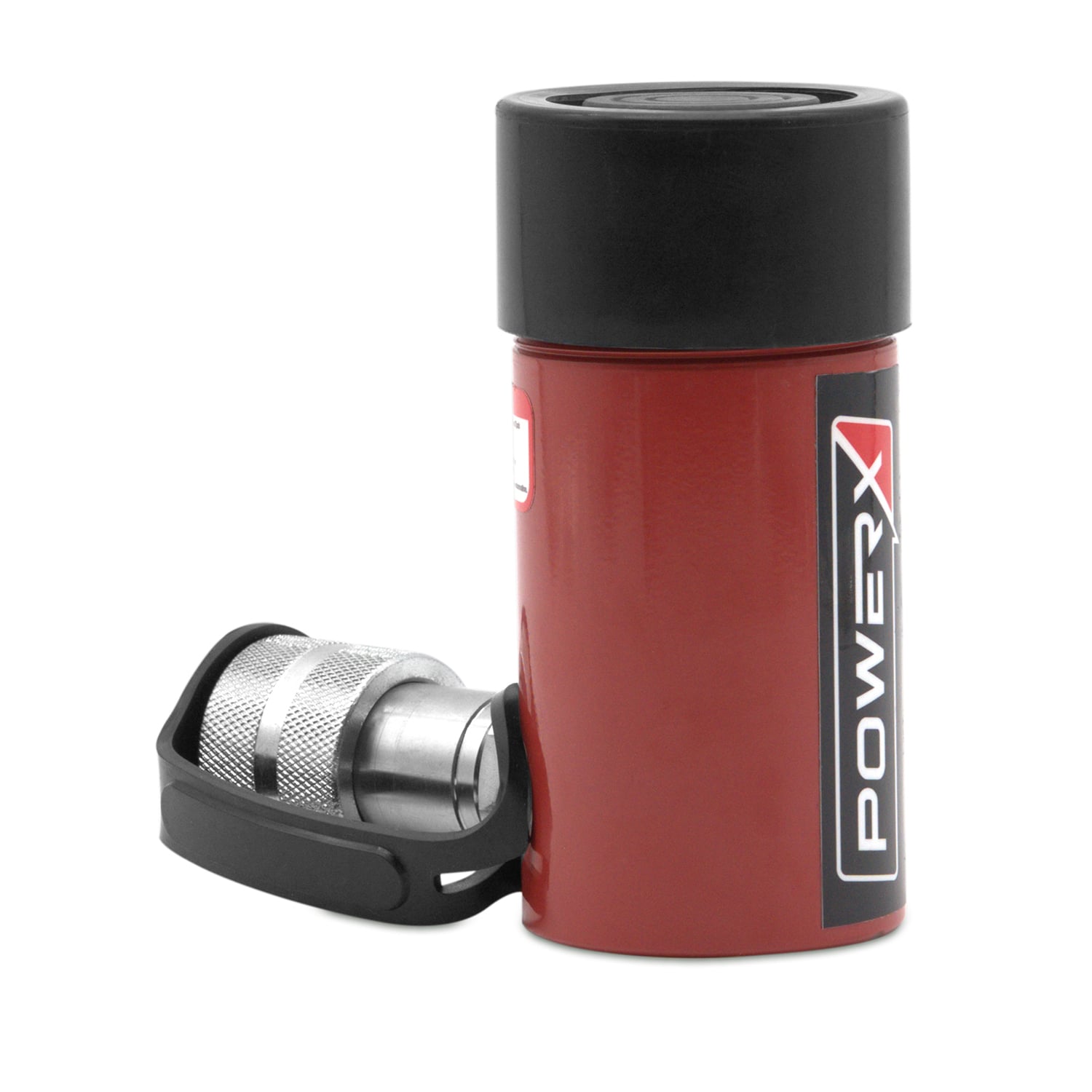

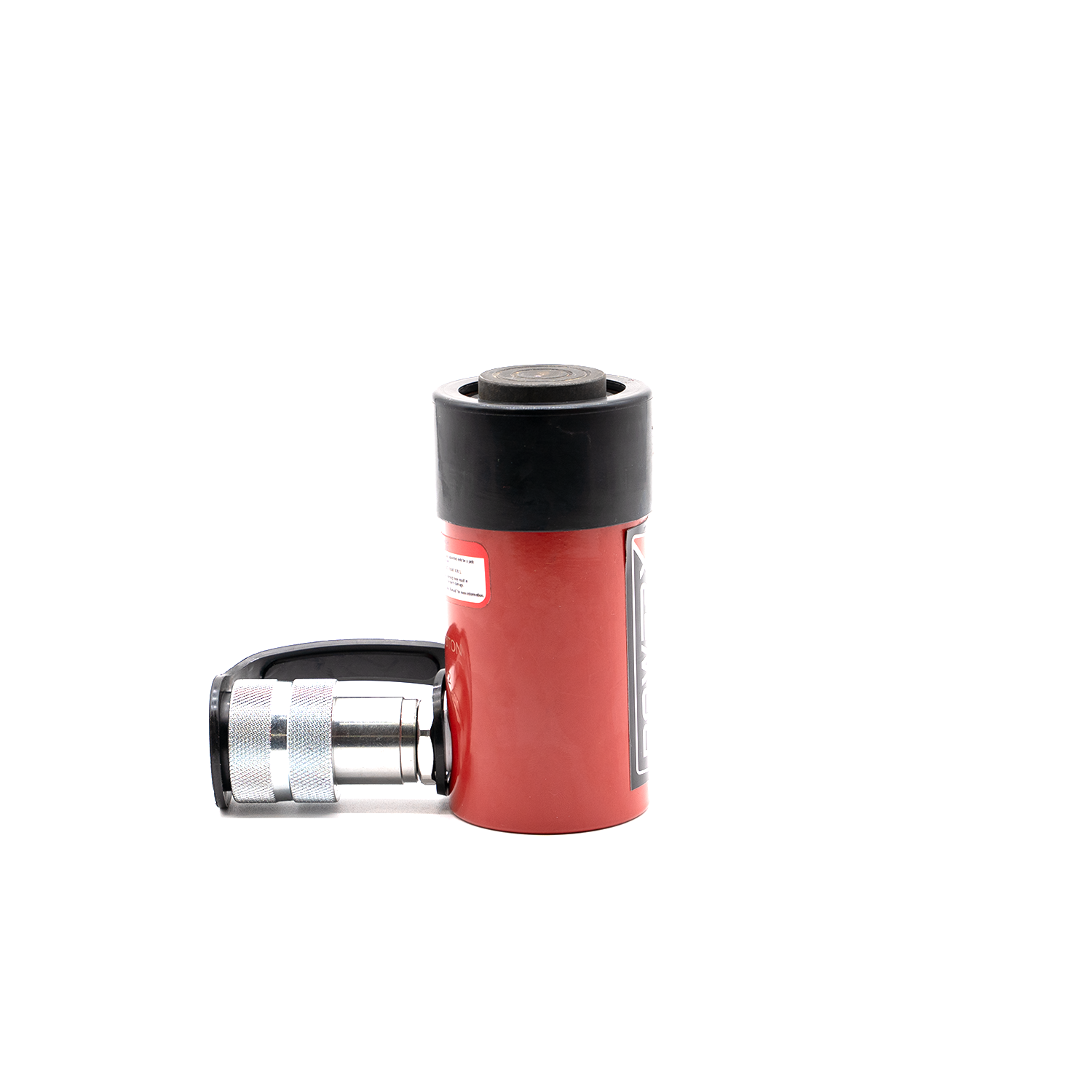

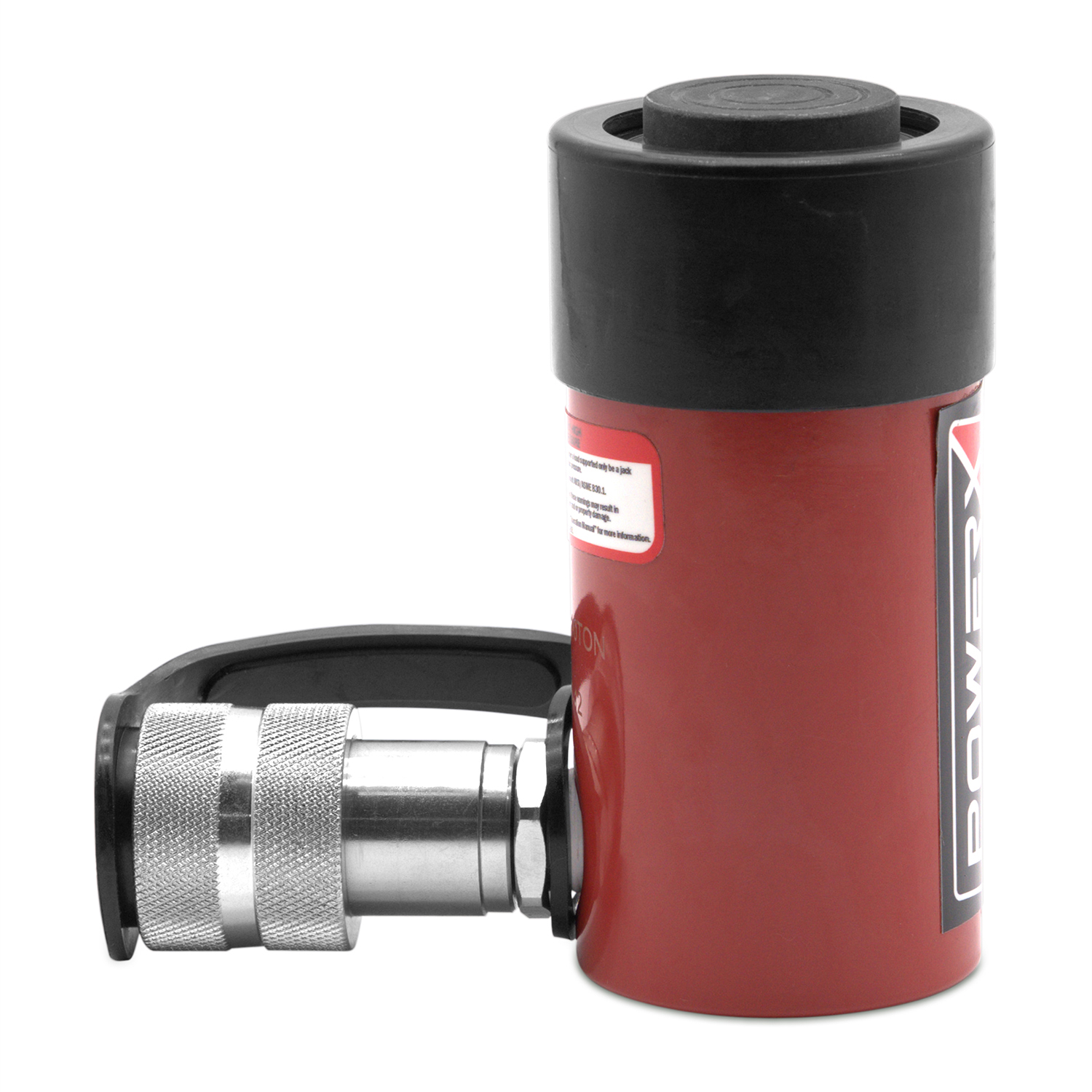

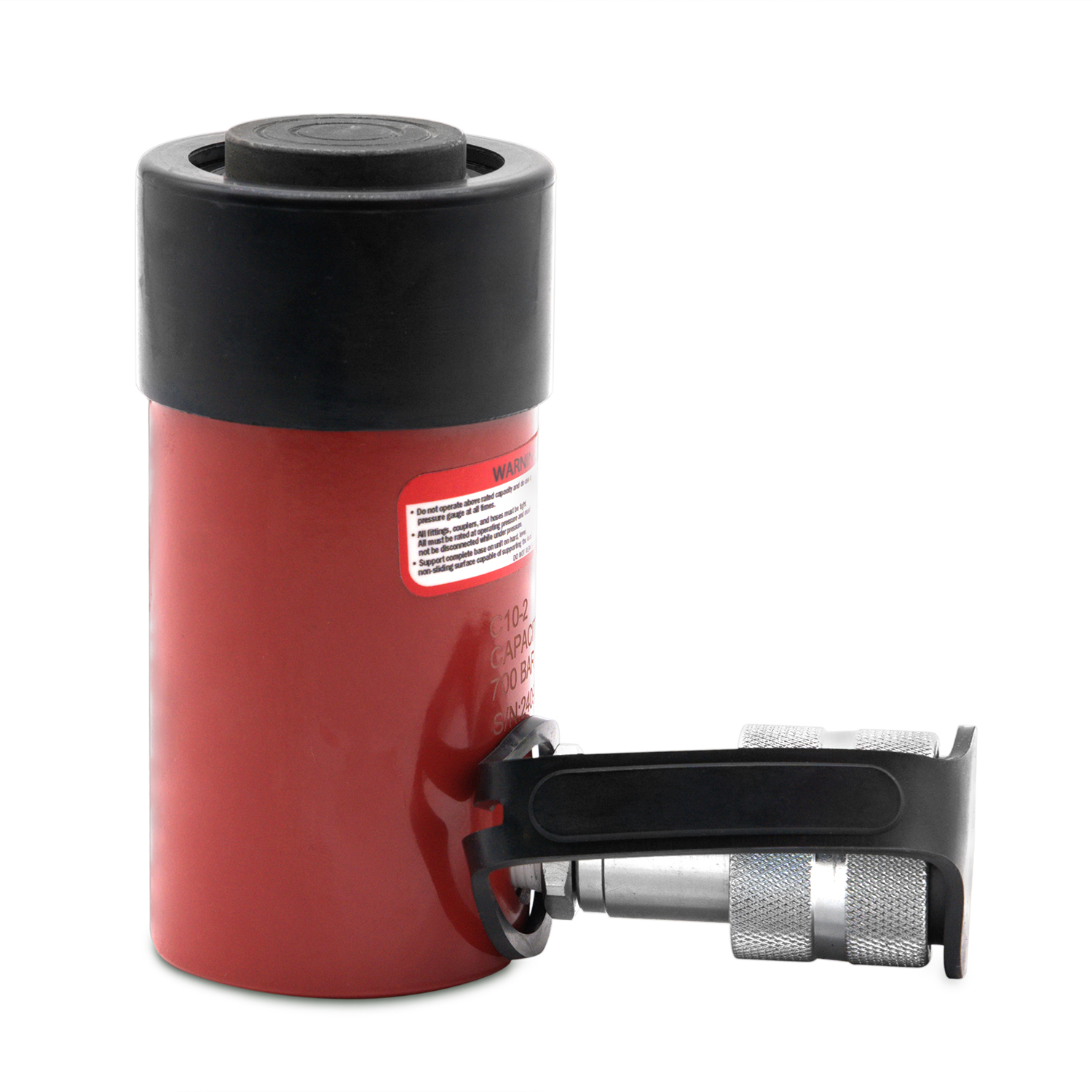

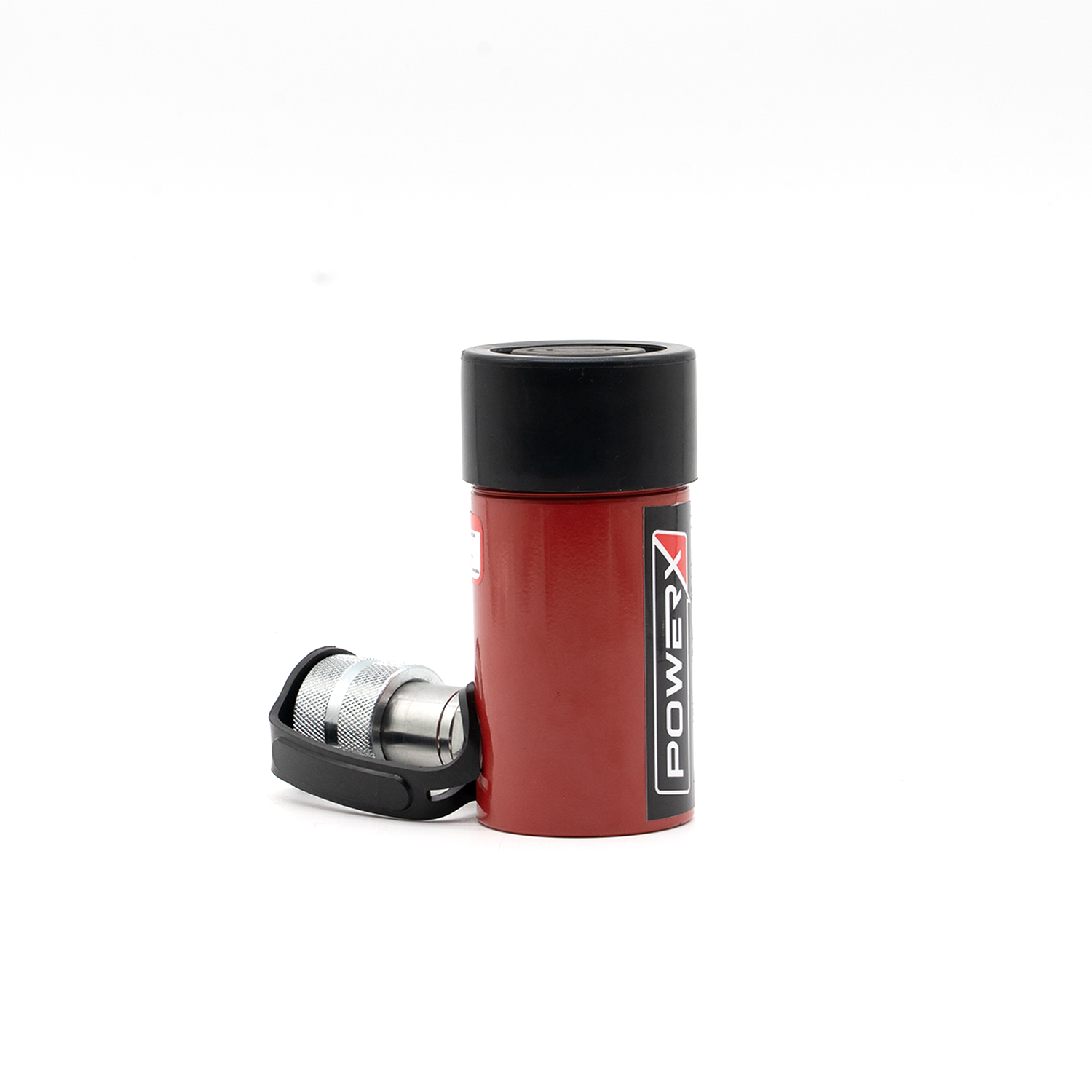

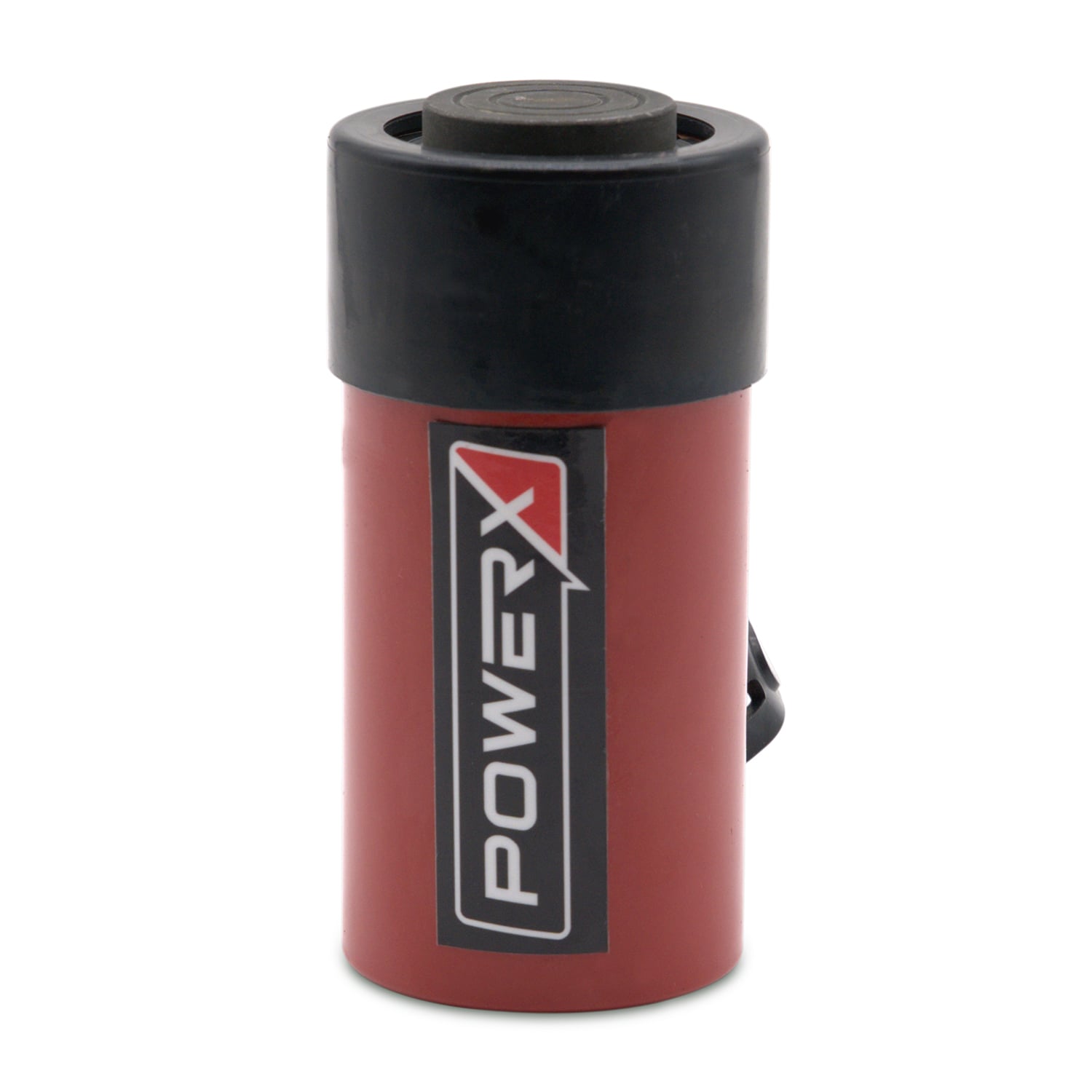

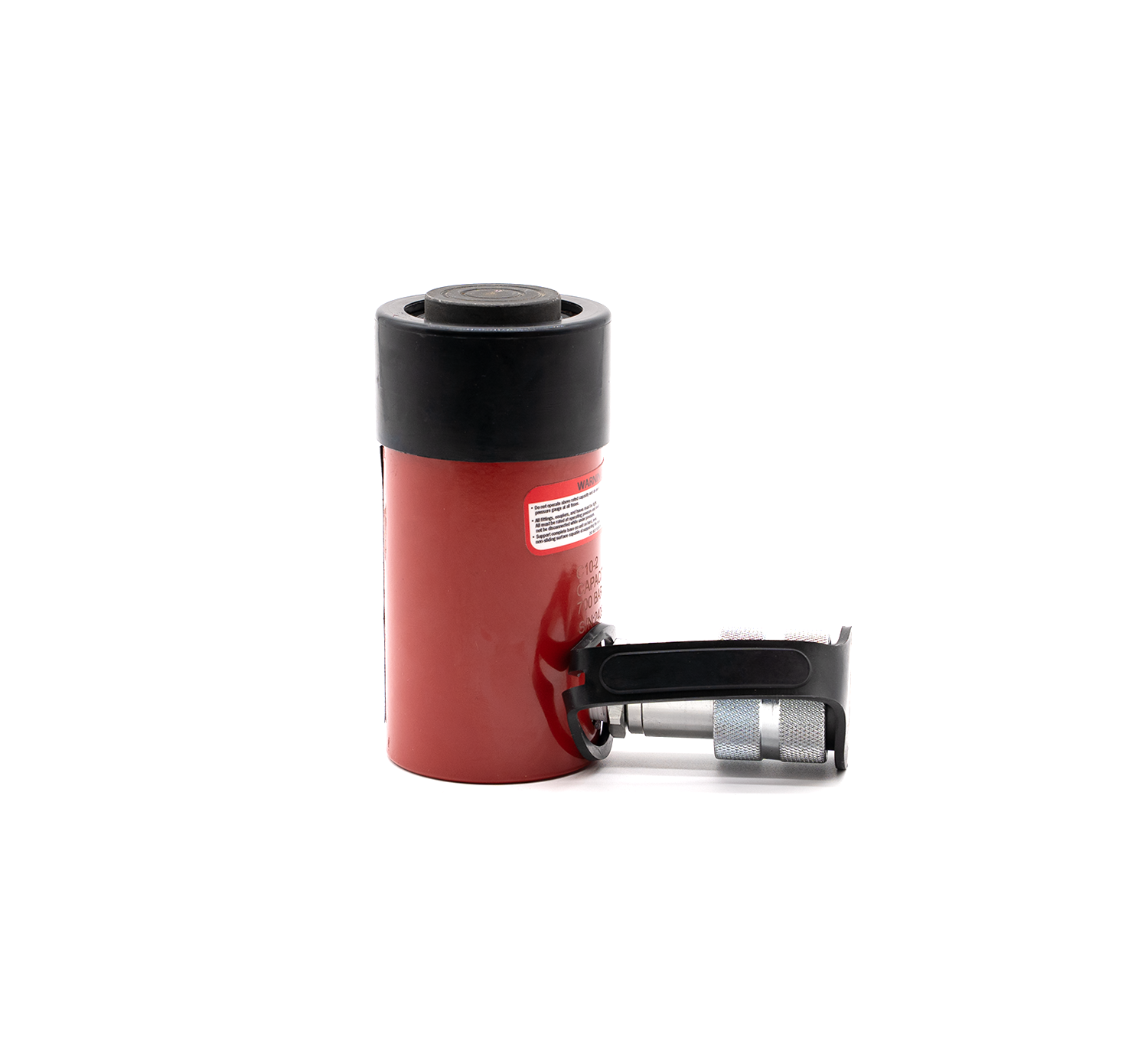

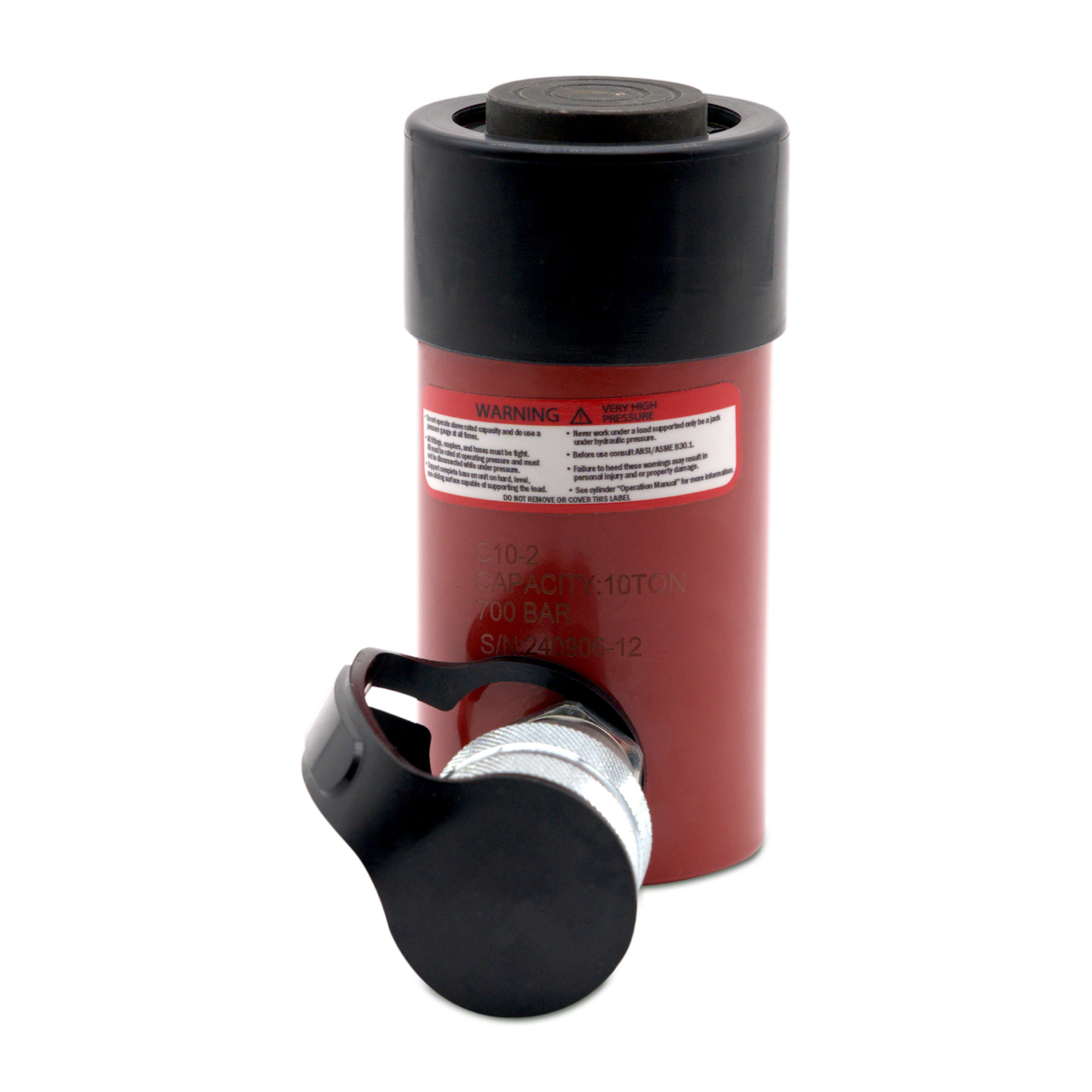

Compact, powerful, and built for precision, the PowerX C10-2 10 Ton High-Pressure Hydraulic Cylinder, Single Acting, 2″ Stroke, General Purpose delivers reliable 10,000 PSI performance in a rugged single-acting hydraulic ram designed for lifting, pushing, or holding heavy loads where space is limited. Its short 2-inch stroke provides fast, controlled movement. ideal for jobs requiring high force in tight working areas.

Constructed from heavy-duty steel with a precision chrome-plated rod plunger, the C10-2 ram is built to withstand continuous use under demanding conditions. The spring return design allows quick retraction, while roll-burnished cylinder walls help extend seal life and ensure long-term reliability. Equipped with collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with dust caps, this cylinder is field-ready and ANSI B30.1 compliant.

Perfect for industrial maintenance, construction sites, heavy-equipment repair, steel mills, and shipyards, the PowerX C10-2 jack provides exceptional power and control where it matters most.

Pair it with our high-pressure Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps for complete system compatibility and performance.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 10 Tons
• Stroke: 2″
• Oil Capacity: 4.75 in3
• Effective Area: 2.24 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 4.86″
• Extended Height: 6.91″
• Outside Diameter: 2.25″
• Bolt Circle: 1.56″
• Thread Depth: 0.5″

Thread & Port Details:

• Collar Thread: 2-1/4”–14
• Thread Length: 1.13″
• Base to Advance Port: 0.75″
• Rod Internal Thread: 1”–8
• Rod Thread Length: 0.75″
• Thread: 5/16”–18

Component Sizes:

• Rod Diameter: 1.5″
• Bore Diameter: 1.69″
• Saddle Diameter: 1.5″
