10 Ton High-Pressure Hydraulic Cylinder, Single Acting, 4″ Stroke, General Purpose
$574.95
10 Ton High-Pressure Hydraulic Cylinder, Single Acting, 4″ Stroke, General Purpose
In stock
SKU: C10-4 Categories: Hydraulic Cylinders, Hydraulic Single Acting Cylinders

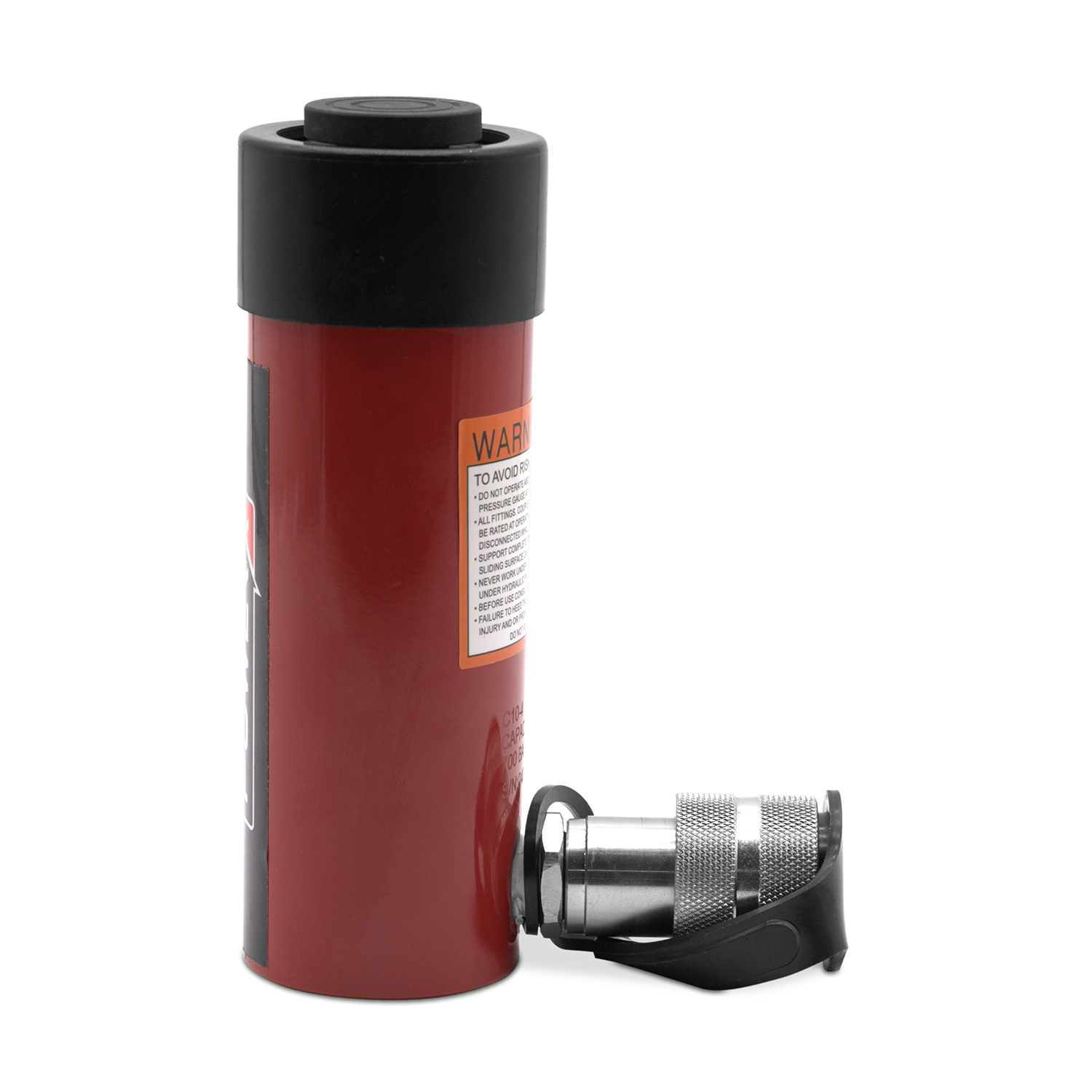

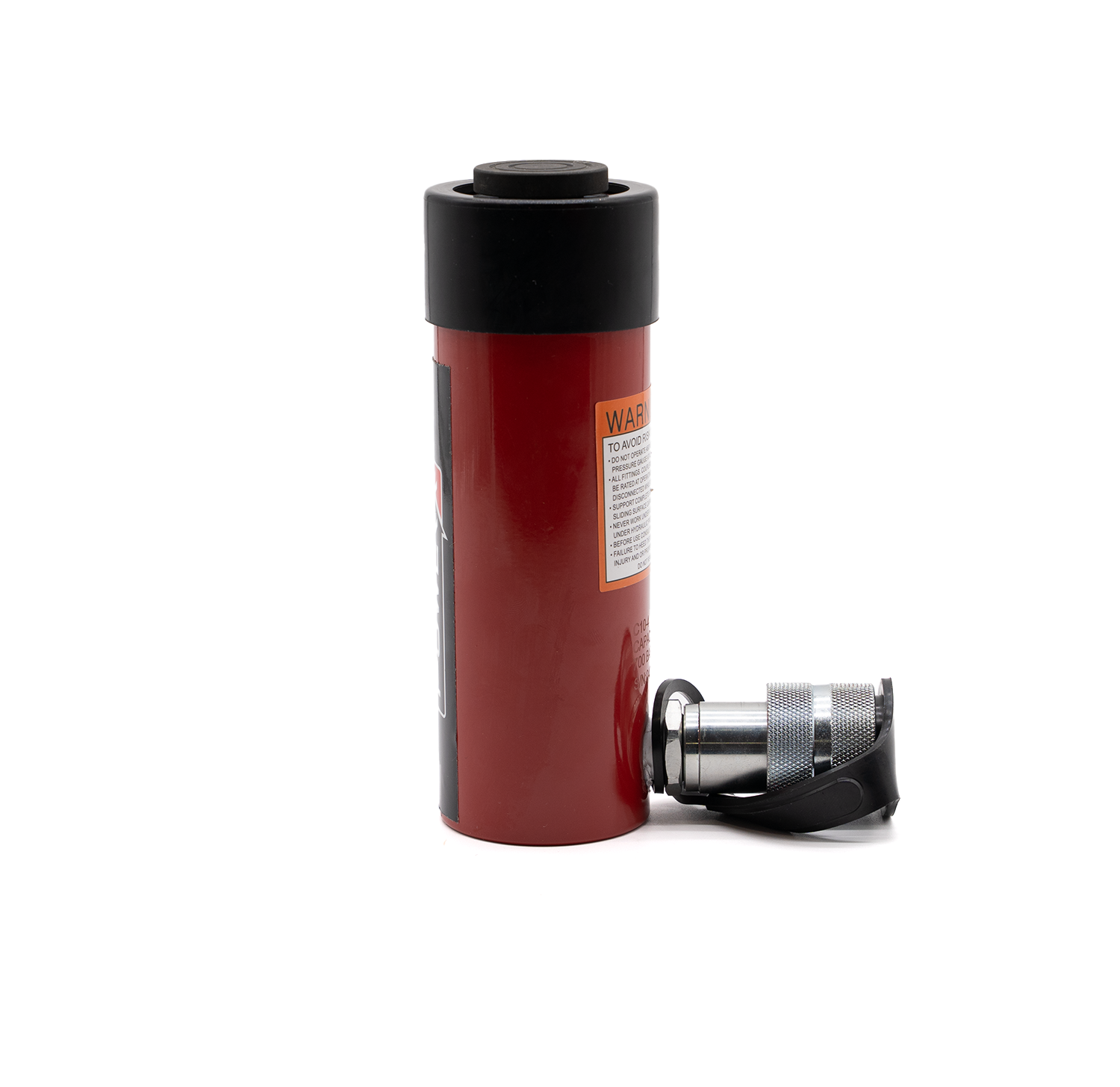

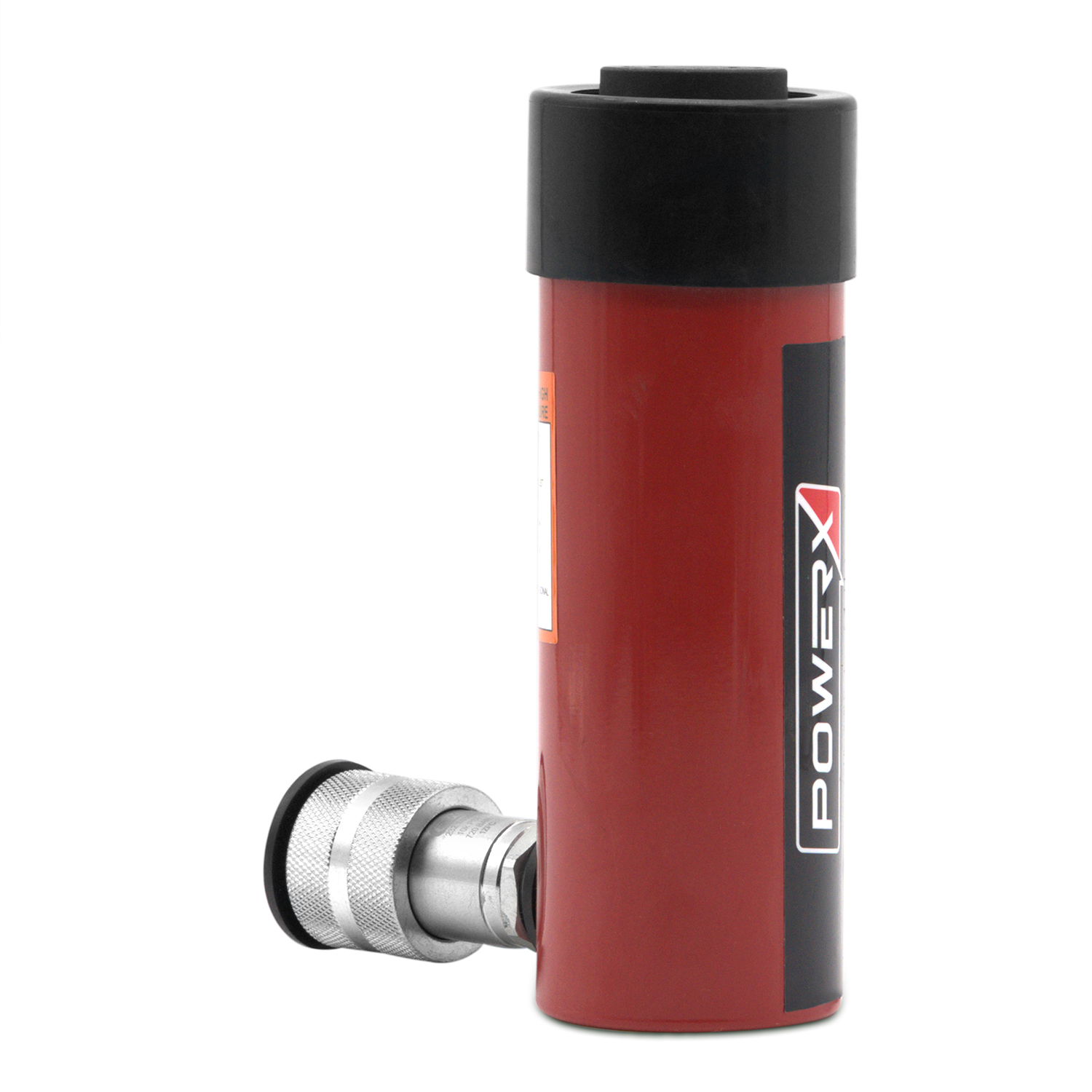

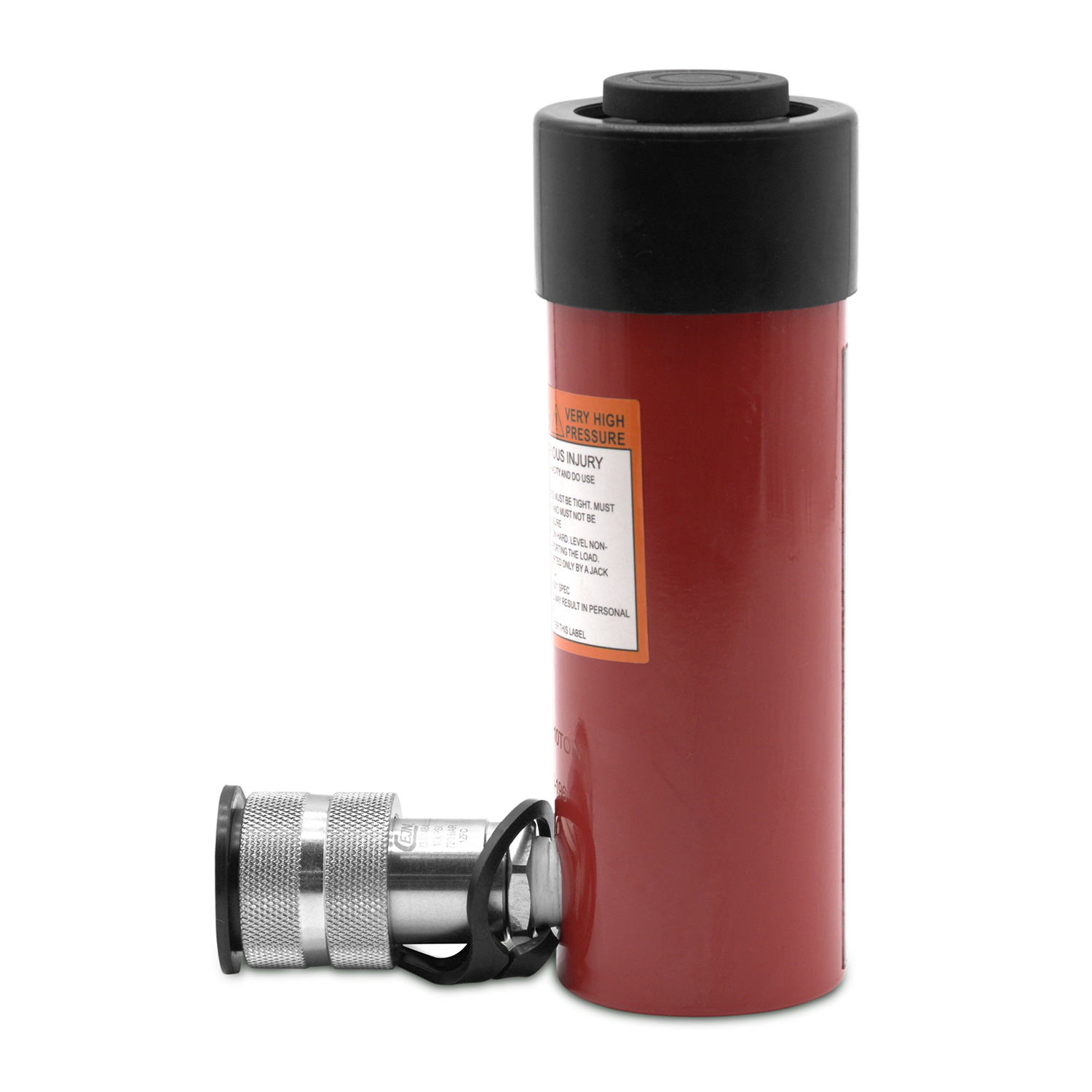

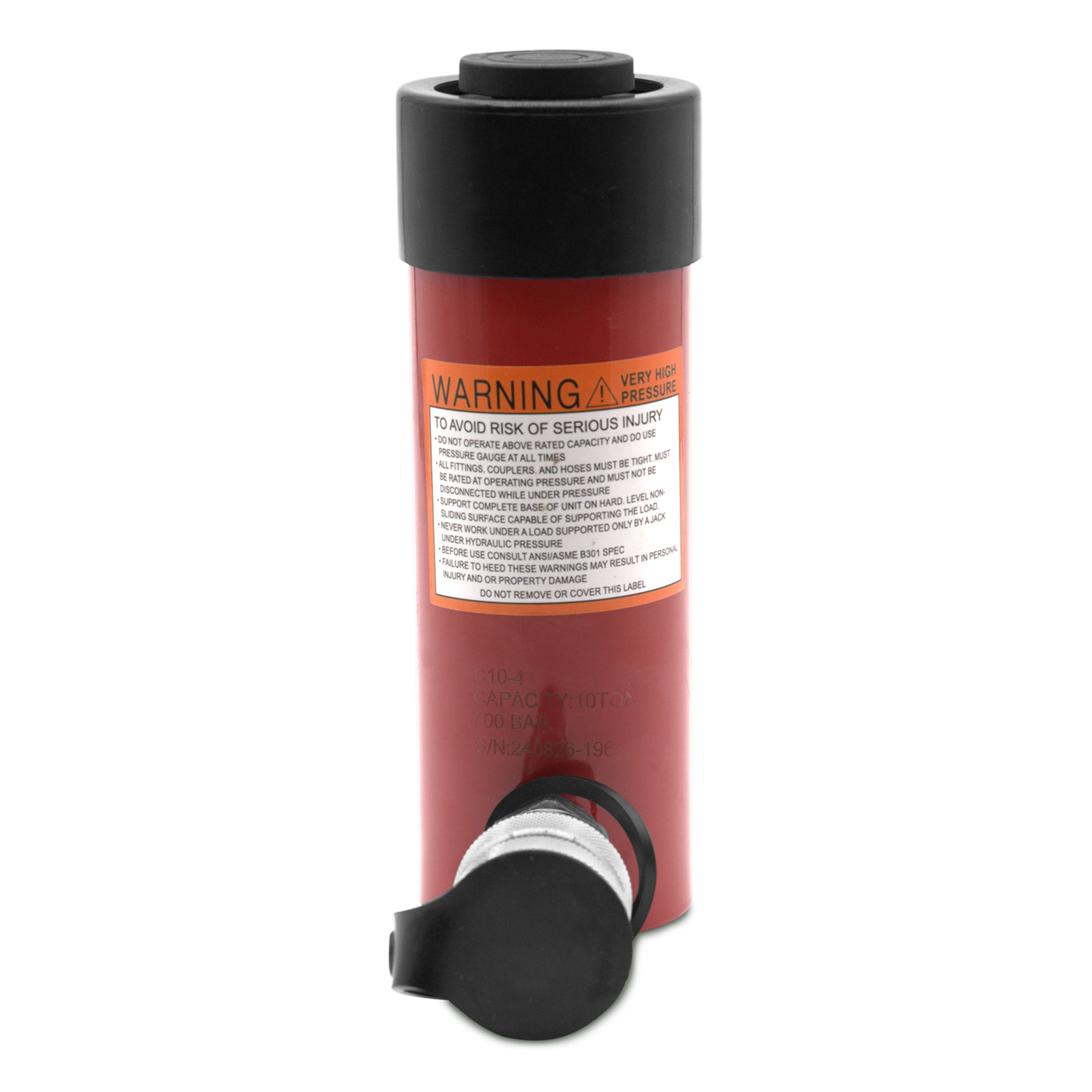

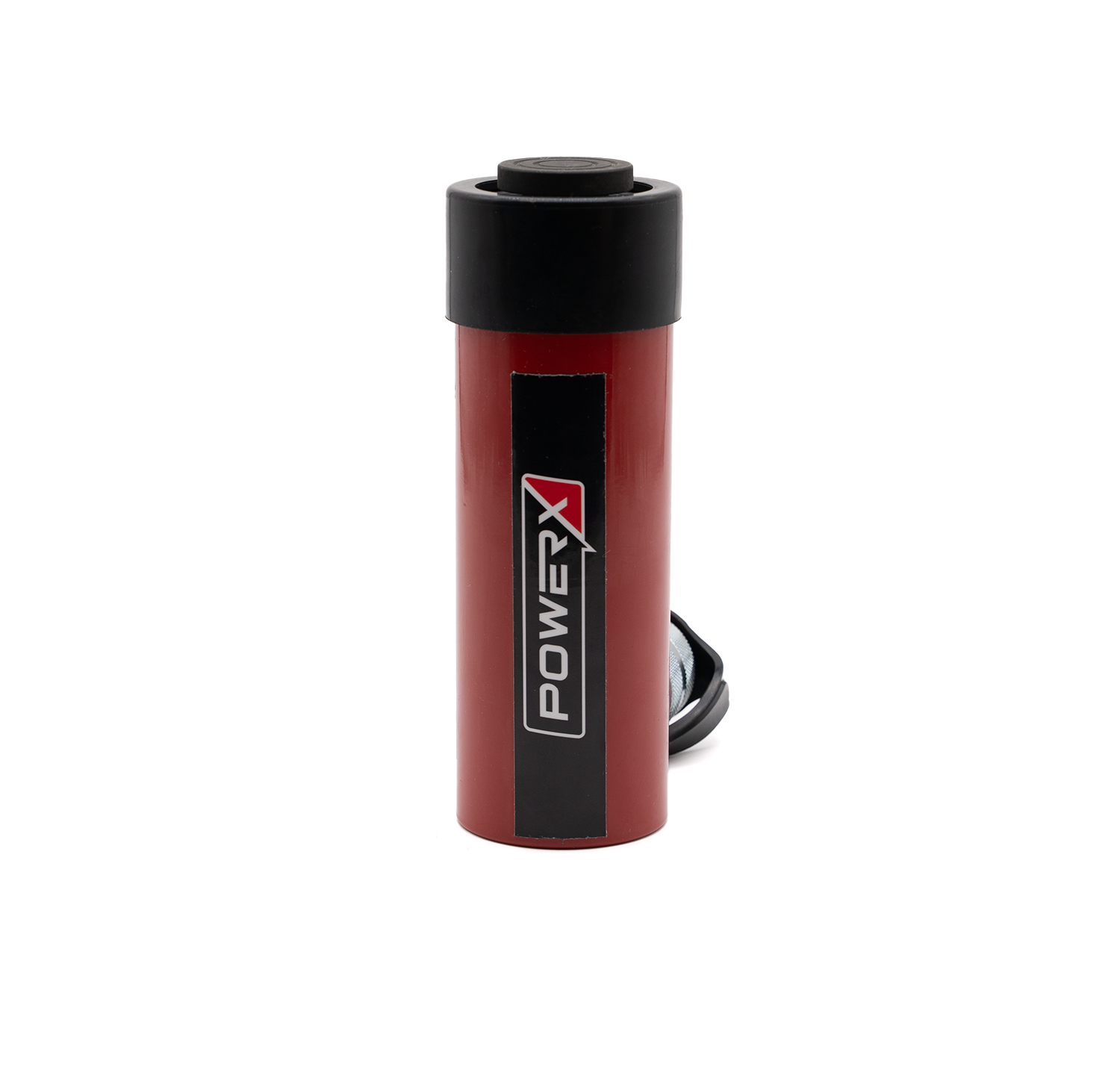

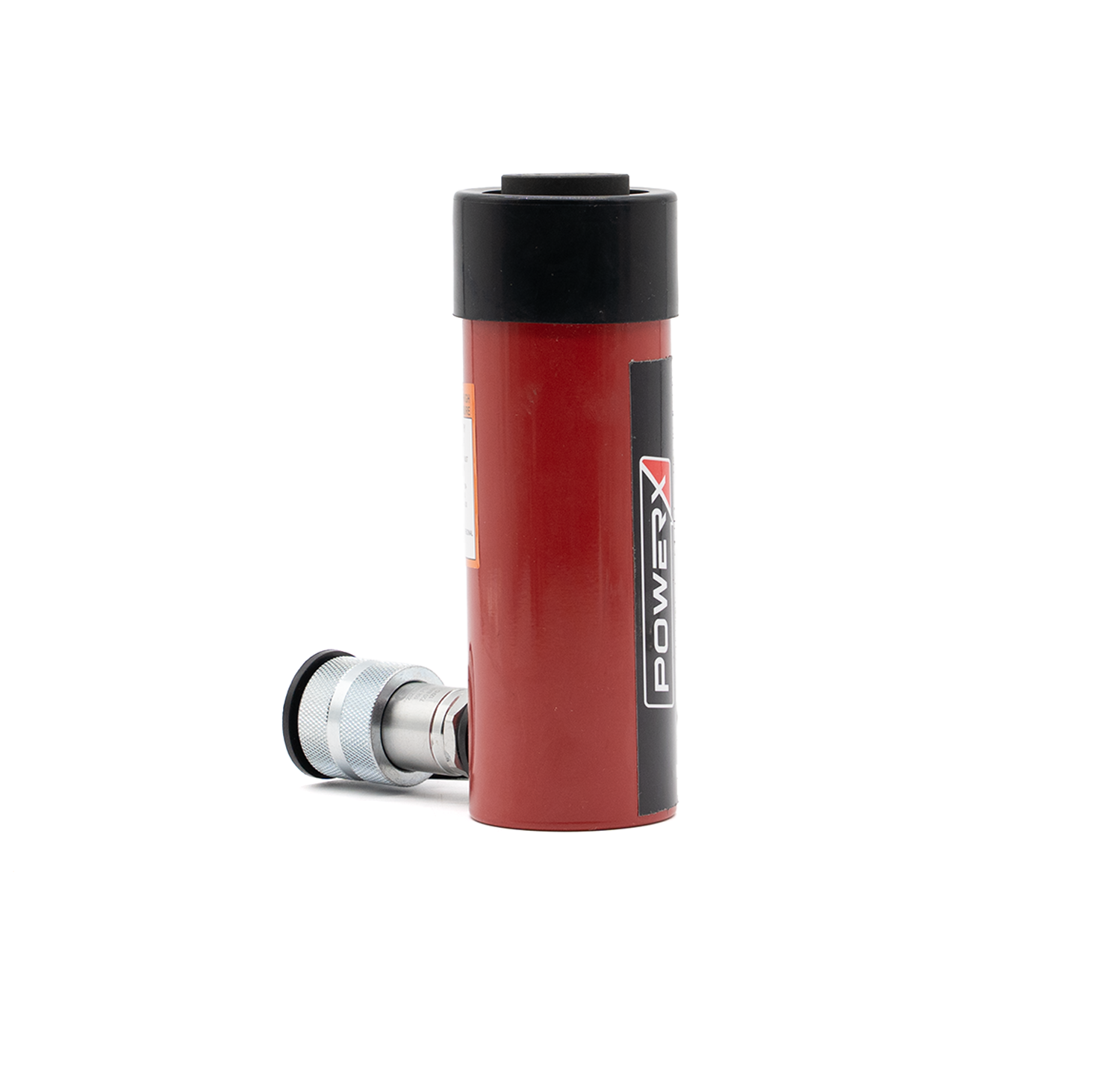

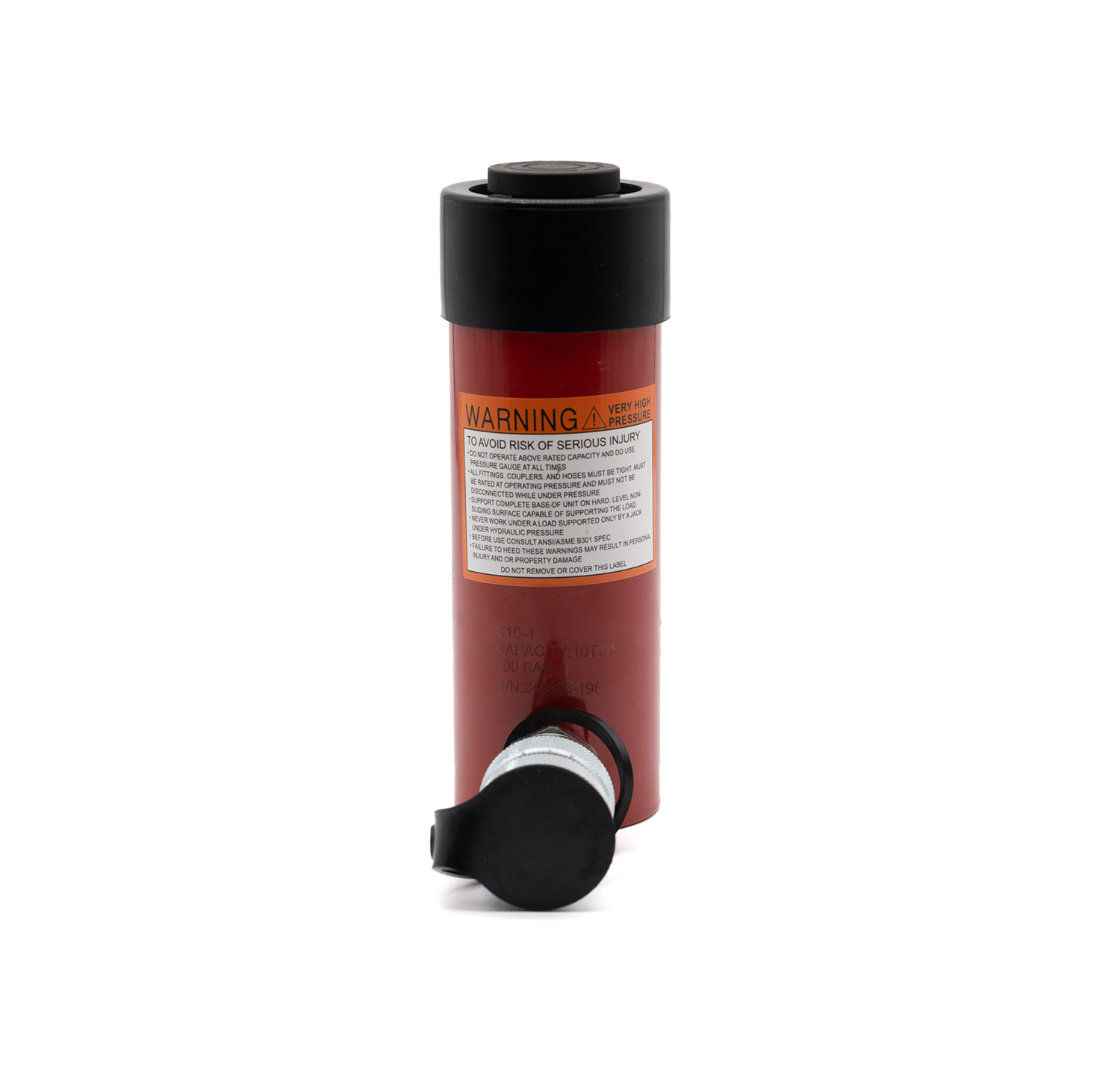

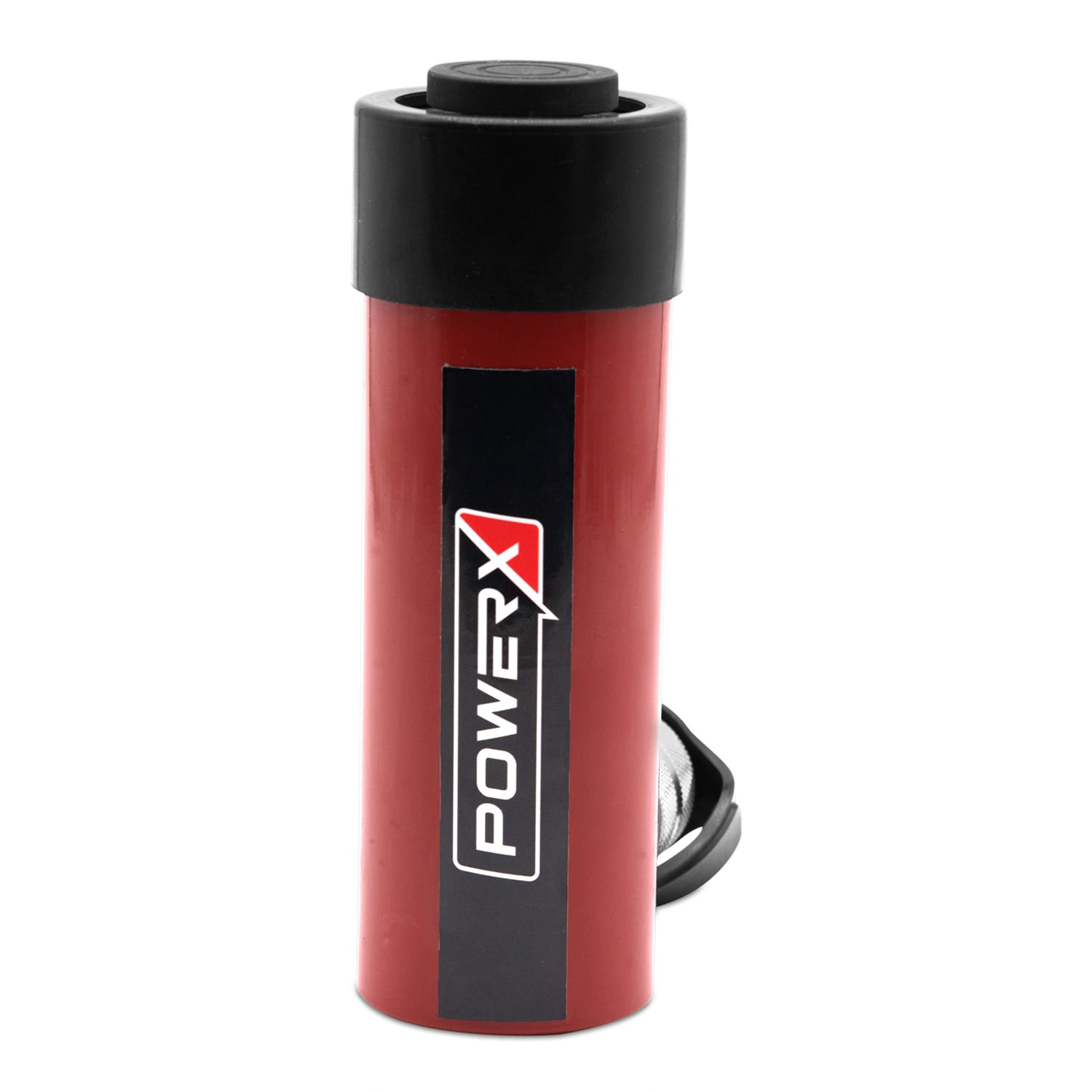

10 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 4″ Stroke
Compact, powerful, and built for precision, the PowerX C10-4 delivers 10,000 PSI performance in a short-stroke, high-pressure hydraulic ram engineered for pushing, lifting, or holding heavy loads. This single acting hydraulic cylinder, often called a lifting jack or ram, provides smooth, controlled force for general-purpose industrial, maintenance, and construction applications where space is limited but strength is essential.
Manufactured from heavy-duty steel with a precision chrome-plated rod plunger, the C10-4 is built to withstand demanding, repetitive use. Its spring-return design enables quick retraction, while roll-burnished cylinder walls enhance seal life and efficiency. Featuring collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with protective dust caps, this hydraulic jack is field-ready and ANSI B30.1 compliant.
Perfect for workshops, equipment service bays, fabrication shops, and tight-clearance lifting applications, the PowerX C10-4 delivers dependable force where compact power and reliability matter most.
Pair this cylinder with any PowerX high-pressure hydraulic pump or power unit, including our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps. Add a complete lifting system that performs under pressure.
Features:
- Single Acting with heavy duty spring return
- Steel construction and chrome plated rod plungers
- Collar threads with protection cover & base mounting holes
- 3/8” NPTF high flow coupler with dust caps
- Durable exterior finish and ANSI B30.1 compliant
- Roll burnished for extended seal life
- Rated at 10,000 psi (700 bar).
Performance:
- Capacity: 10 Tons
- Stroke: 4″
- Oil Capacity: 9.23 in3
- Effective Area: 2.24 in2
- Pressure Rating: 10,000 PSI
Dimensions:
- Collapsed Height: 6.85″
- Extended Height: 10.88″
- Outside Diameter: 2.25″
- Bolt Circle: 1.56″
- Thread Depth: 0.5″
Thread & Port Details:
- Collar Thread: 2-1/4”–14
- Thread Length: 1.13″
- Base to Advance Port: 0.75″
- Rod Internal Thread: 1”–8
- Rod Thread Length: 0.75″
- Thread: 5/16”–18
Component Sizes
- Rod Diameter: 1.5″
- Bore Diameter: 1.69″
- Saddle Diameter: 1.5″
Need help choosing the right hydraulic cylinder for your lifting application?
Check out our in-depth guide on How to Select a Hydraulic Cylinder, Jack, or Ram for Lifting Applications — covering tonnage, stroke length, cylinder types, and safety considerations to help you pick the perfect fit for your job.
Don’t see the exact cylinder you need?
PowerX offers fully customizable high-pressure hydraulic cylinders for every industry. Use our Custom Cylinder Configurator Tool to request a quote tailored to your construction, mining, industrial, transportation, mobile equipment, or oil & gas application today.
| Weight | 6.5 lbs |
|---|---|
| Dimensions | 8.75 × 5.5 × 3 in |
| Capacity (Tons) | |
| Stroke (in) | 4 |
| Minimum Height (in) | 6.85 |
| Maximum Height (in) | 10.88 |
Cross Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| PowerX | C10-4 |
| BVA | H1004 |
| Ram-Pac | RC-10-SA-4 |
| Simplex | R104 |
| Power Team | C104C |
| Enerpac | RC-104 |
