15 Ton High-Pressure Hydraulic Cylinder, Single Acting, 2″ Stroke, General Purpose

15 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 2″ Stroke

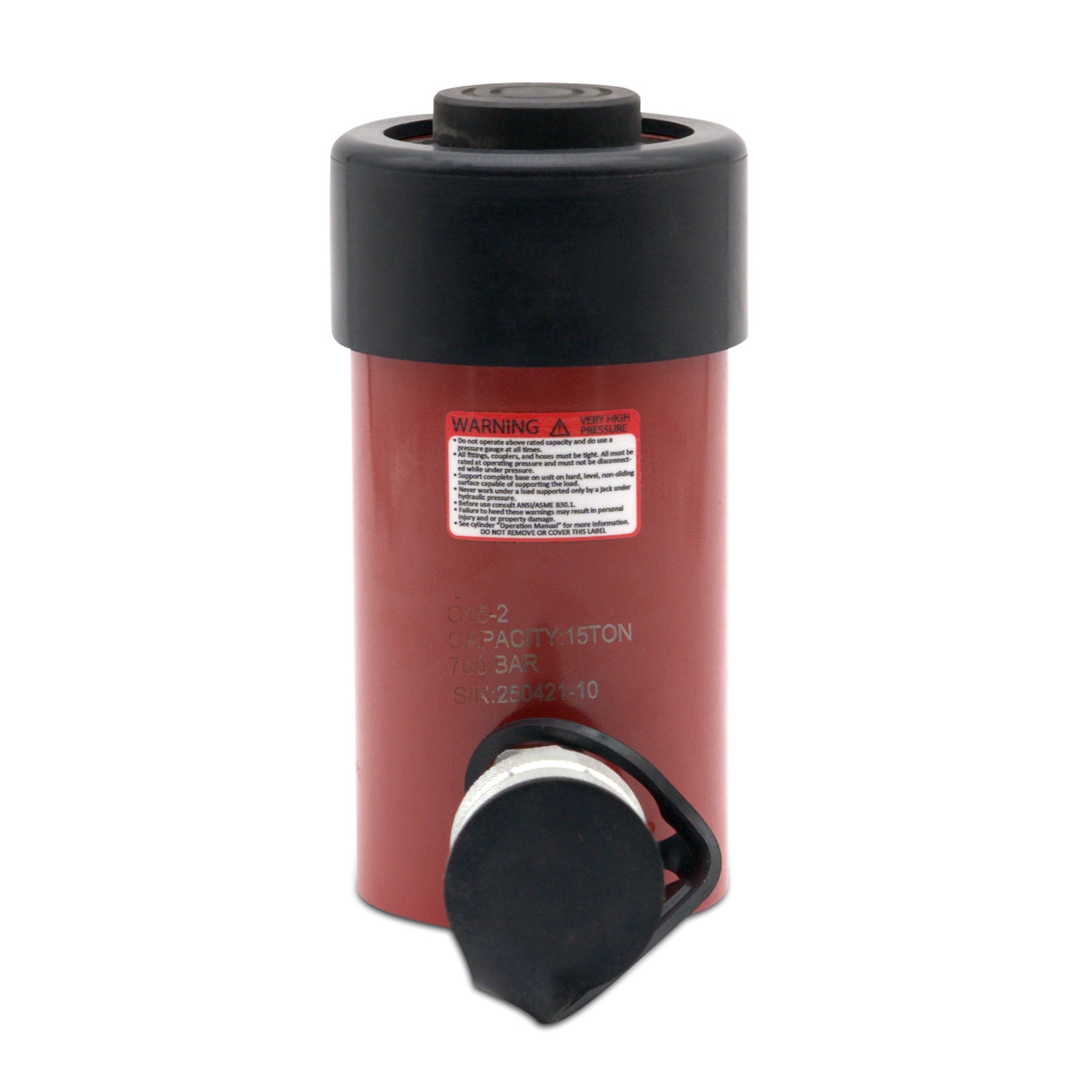

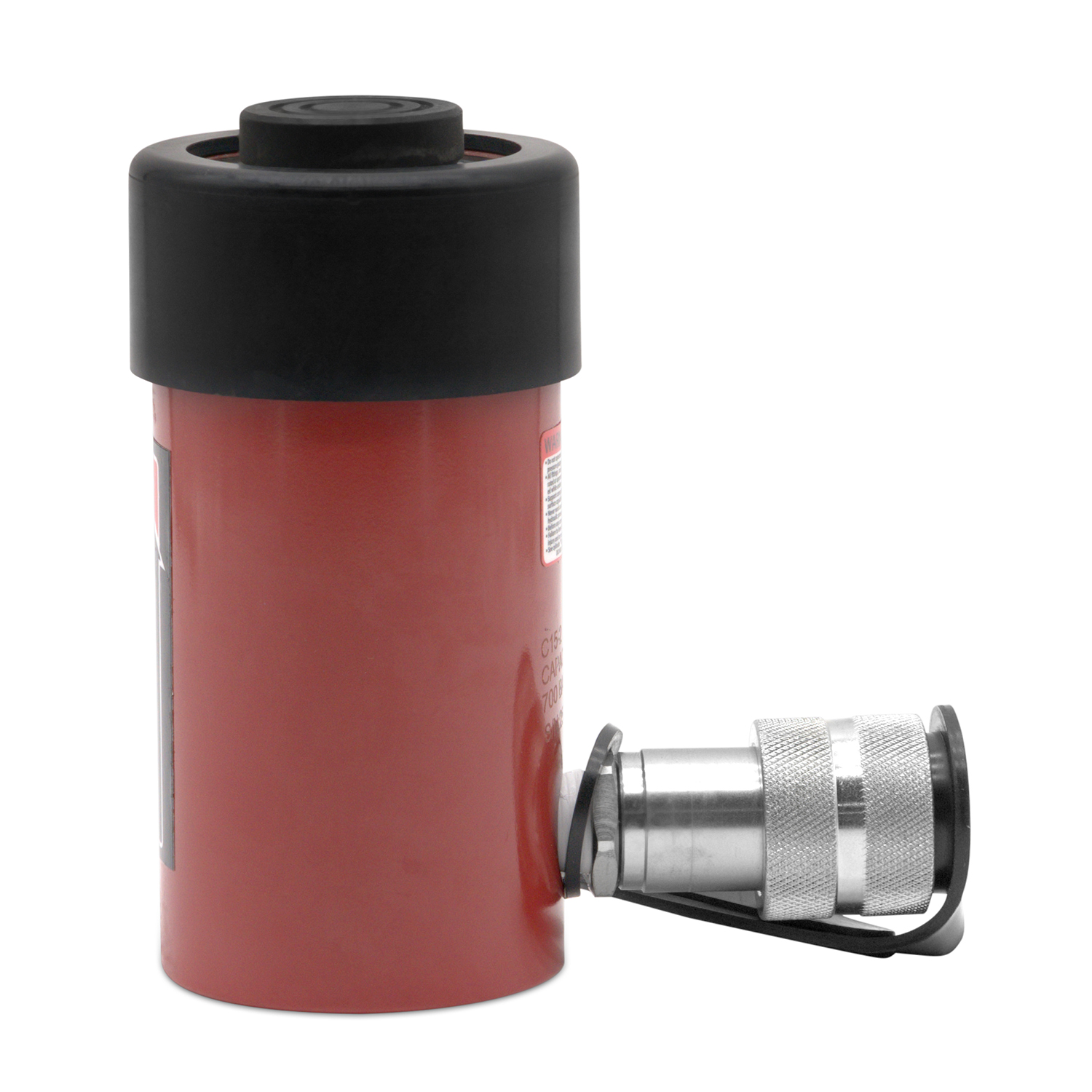

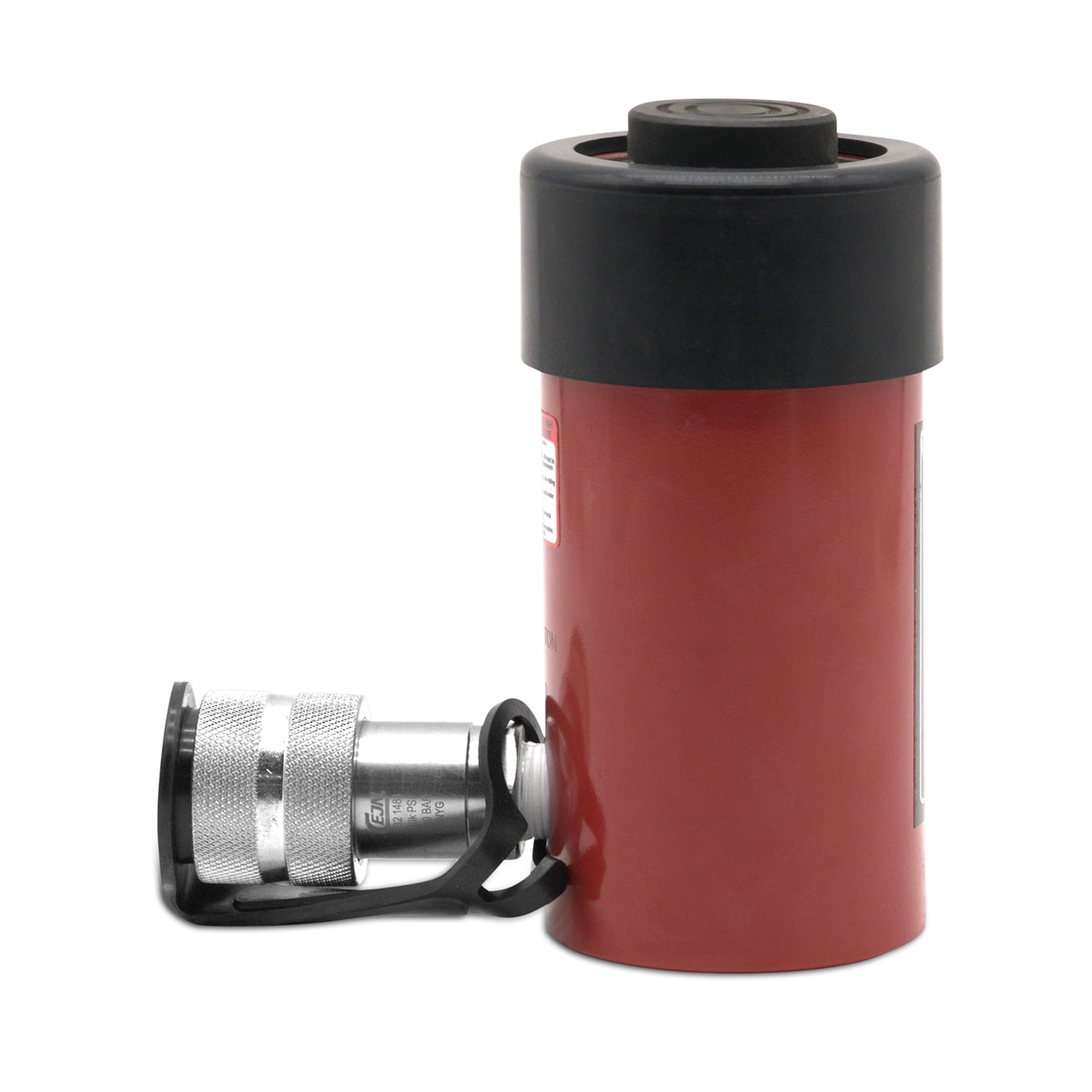

Compact yet powerful, the PowerX C15-2 15 Ton High-Pressure Hydraulic Cylinder, Single Acting, 2″ Stroke, General Purpose delivers 15 tons of lifting force at 10,000 PSI, making it the go-to high-pressure hydraulic ram for tight spaces and heavy loads. This single-acting hydraulic cylinder (also known as a lifting jack or ram) provides precise, controlled force for bending, pushing, lifting, and holding in demanding industrial, maintenance, and construction environments.

Built from heavy-duty steel and equipped with a precision chrome-plated plunger, the C15-2 10,000 PSI ram is designed for consistent performance under extreme conditions. Its spring return system enables quick retraction, while roll-burnished cylinder walls extend seal life for long-term durability. With collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with dust caps, this cylinder is field-ready and fully ANSI B30.1 compliant.

Ideal for machine shops, construction sites, mining operations, and heavy-equipment repair—the PowerX C15-2 high-pressure hydraulic jack delivers dependable strength, speed, and precision wherever compact power is needed.

Pair it with our high-pressure Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for optimal performance and control.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 15 Tons
• Stroke: 2″
• Oil Capacity: 6.28 in3
• Effective Area: 3.14 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 5.88″
• Extended Height: 7.88″
• Outside Diameter: 2.75″
• Bolt Circle: 1.88″
• Thread Depth: 0.5″

Thread & Port Details:

• Collar Thread: 2-3/4”–16
• Thread Length: 1.19″
• Base to Advance Port: 0.98″
• Rod Internal Thread: 1”–8
• Rod Thread Length: 1″
• Thread: 3/8”–16

Component Sizes:

• Rod Diameter: 1.63″
• Bore Diameter: 2″
• Saddle Diameter: 1.57″
