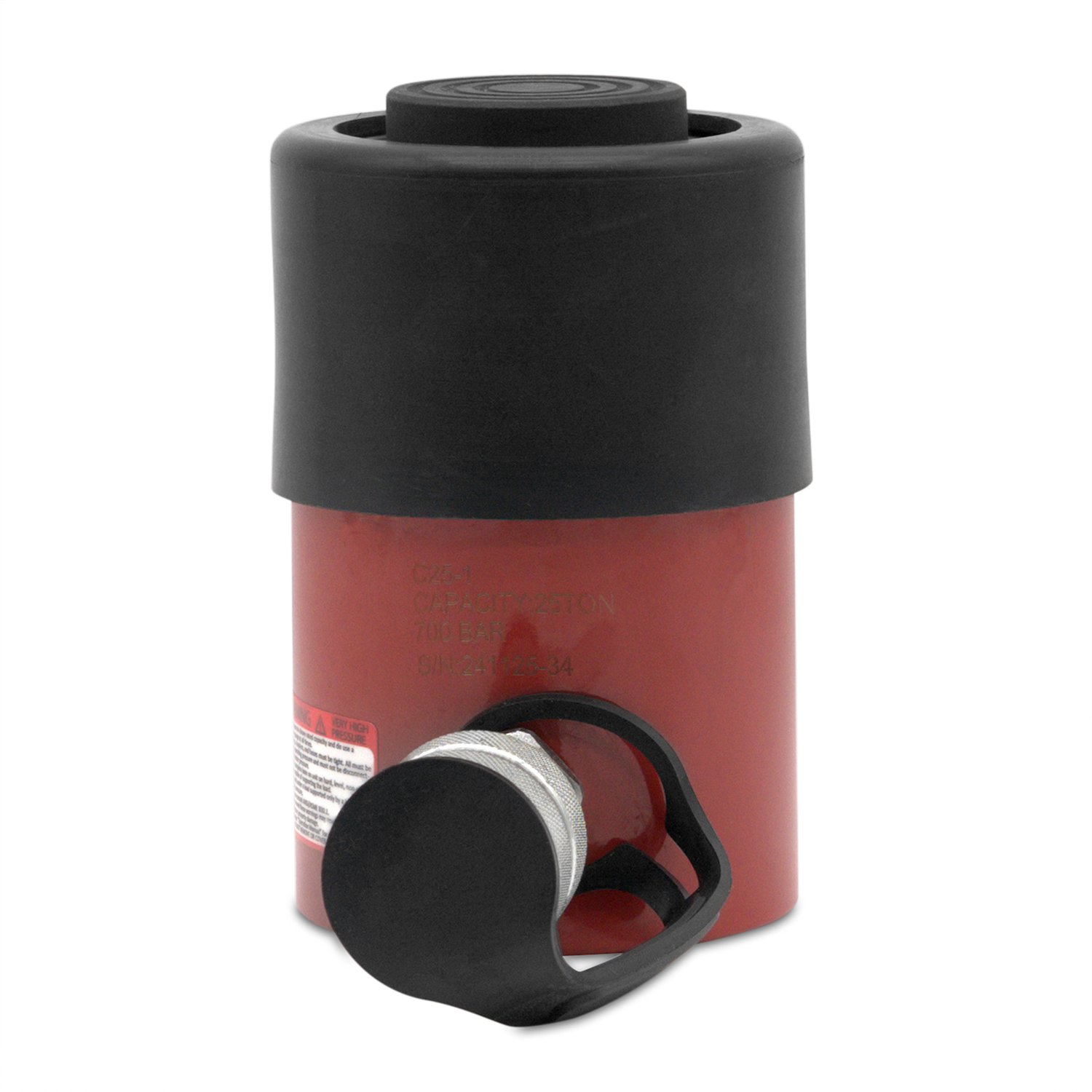

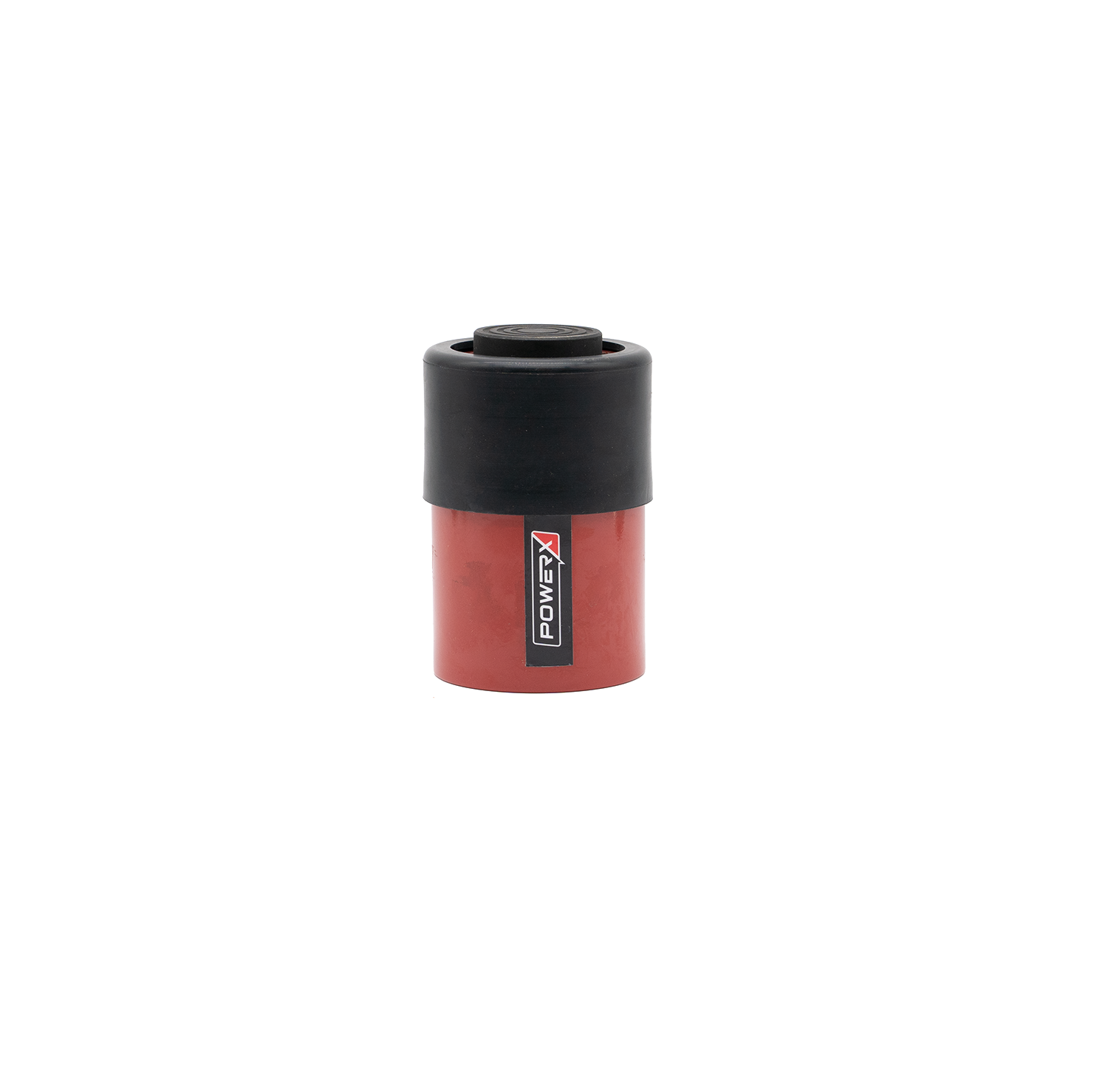

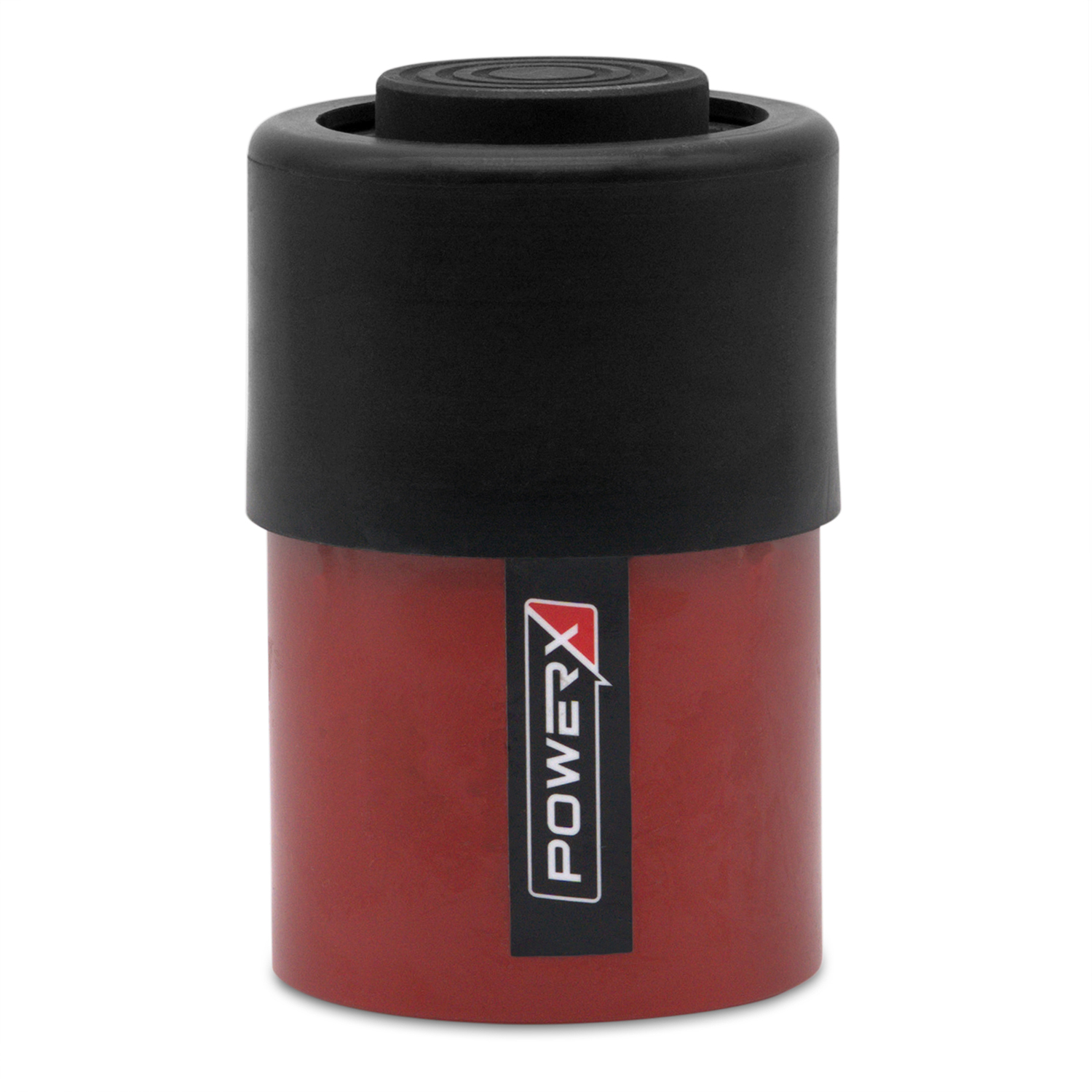

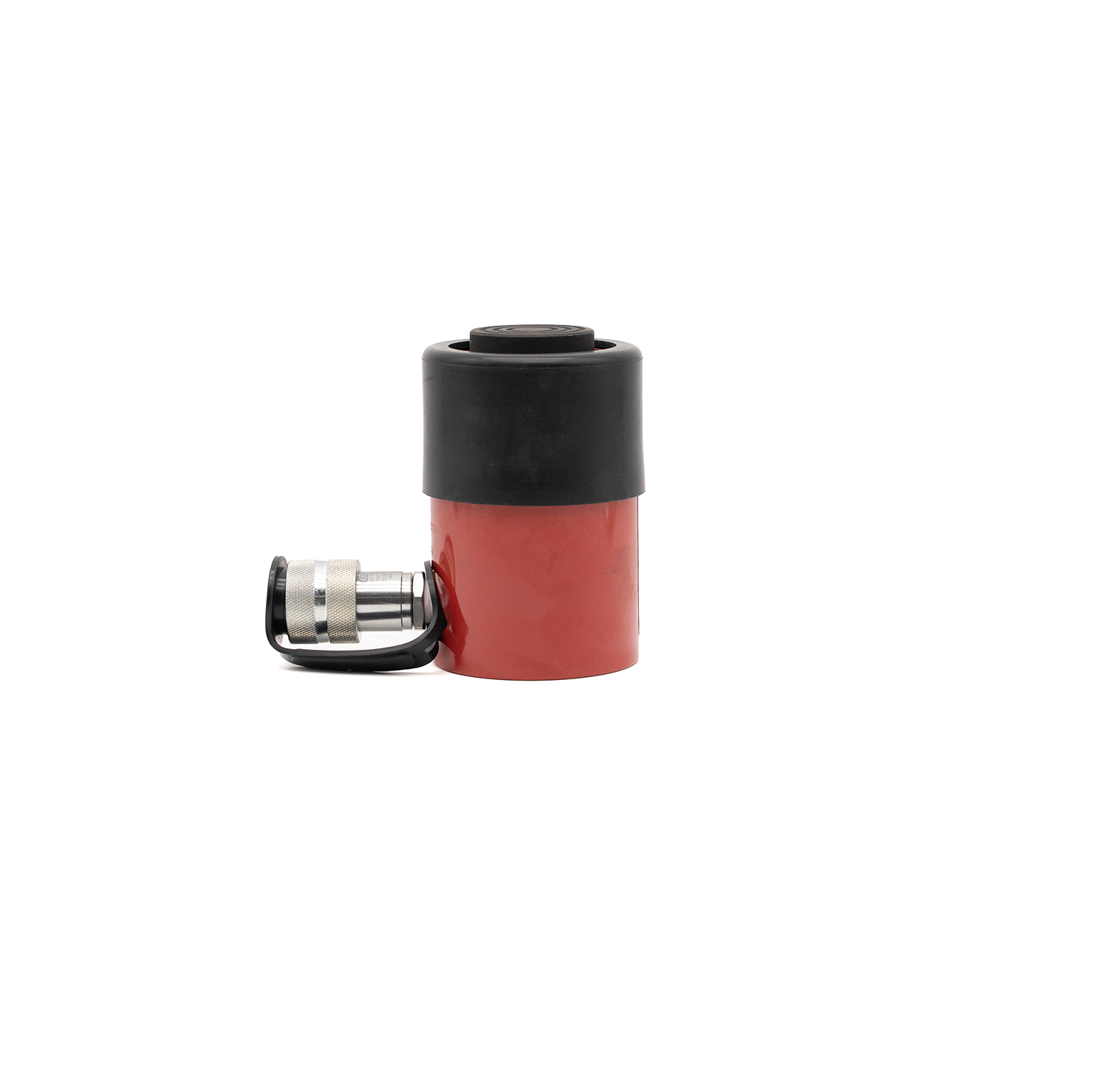

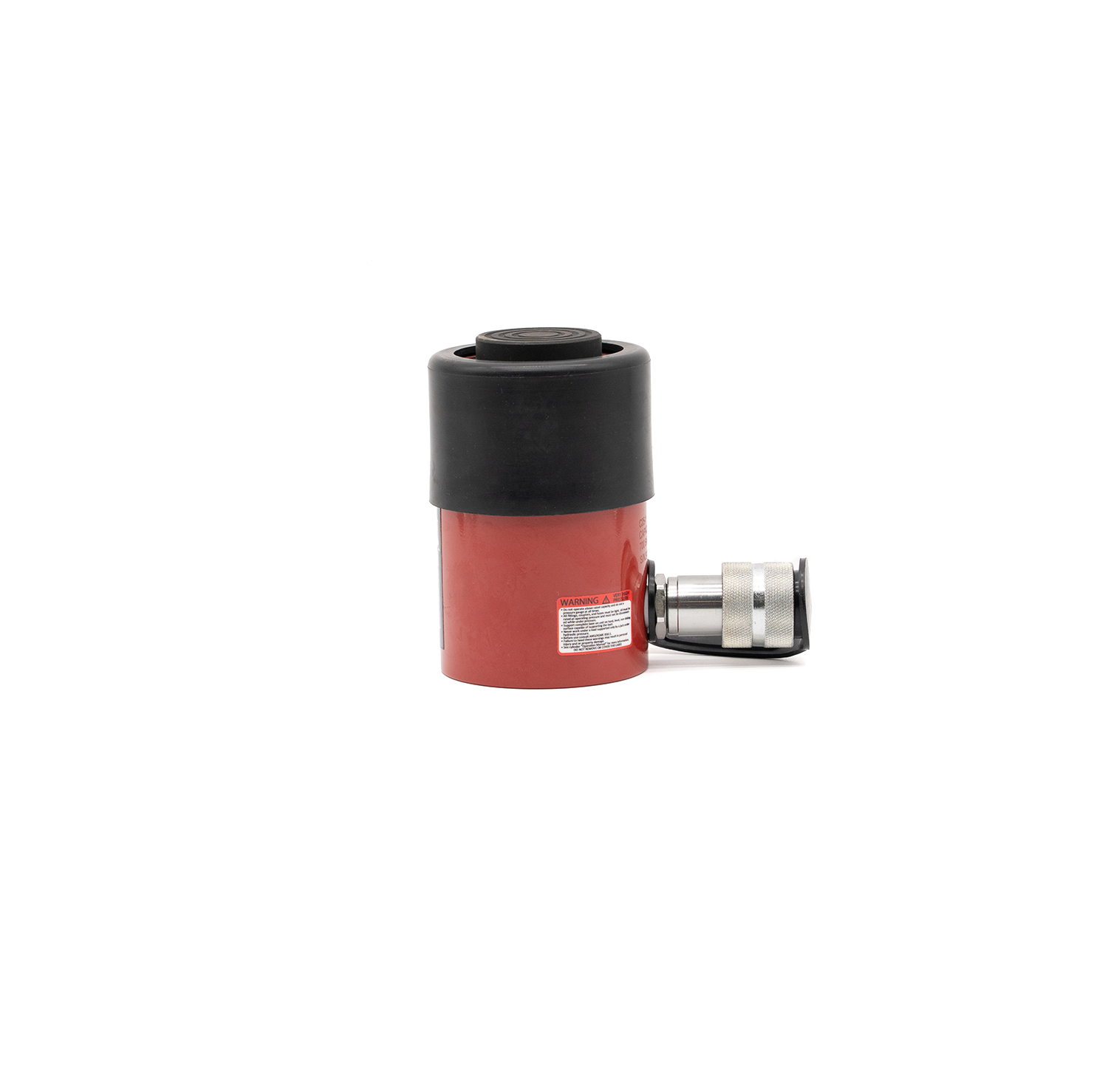

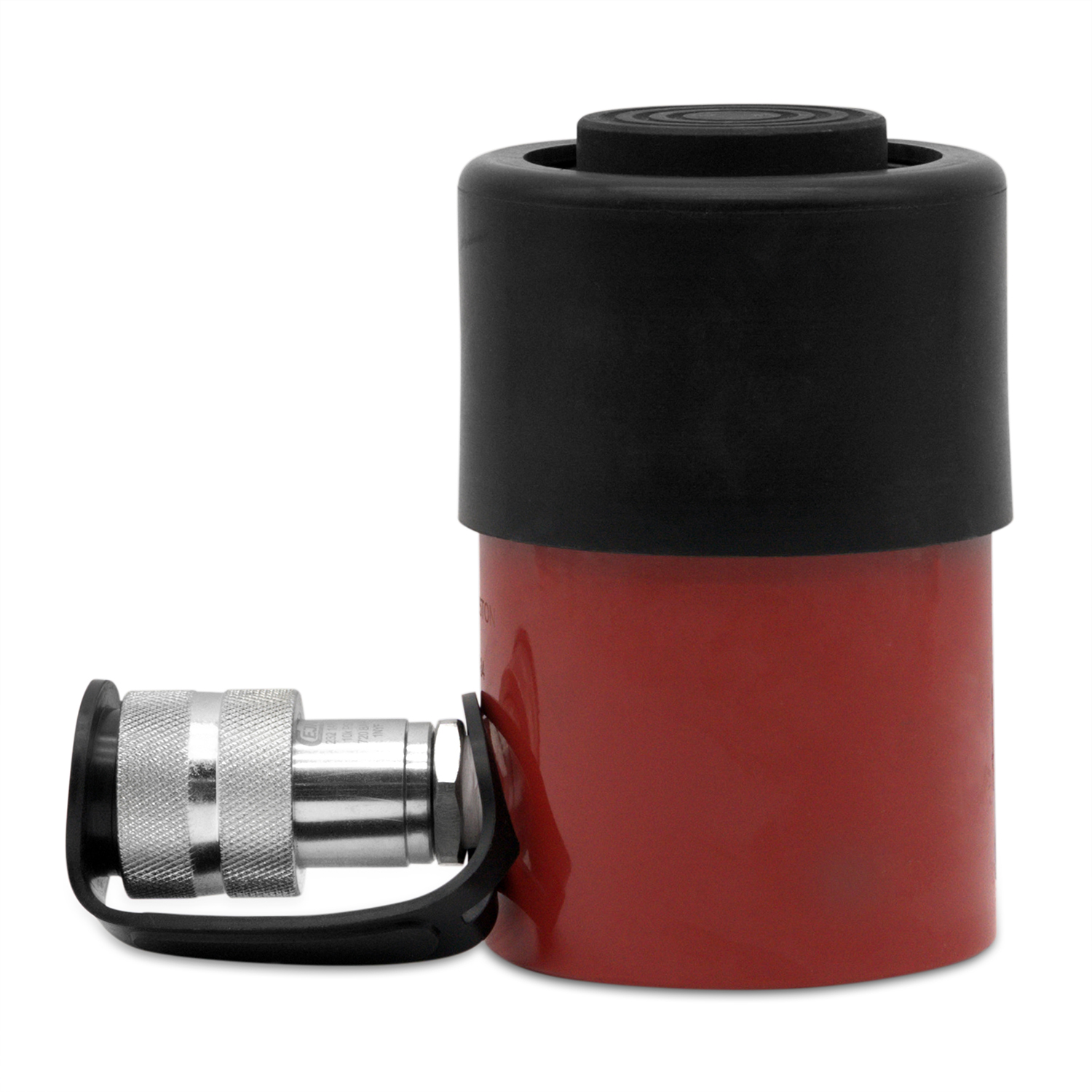

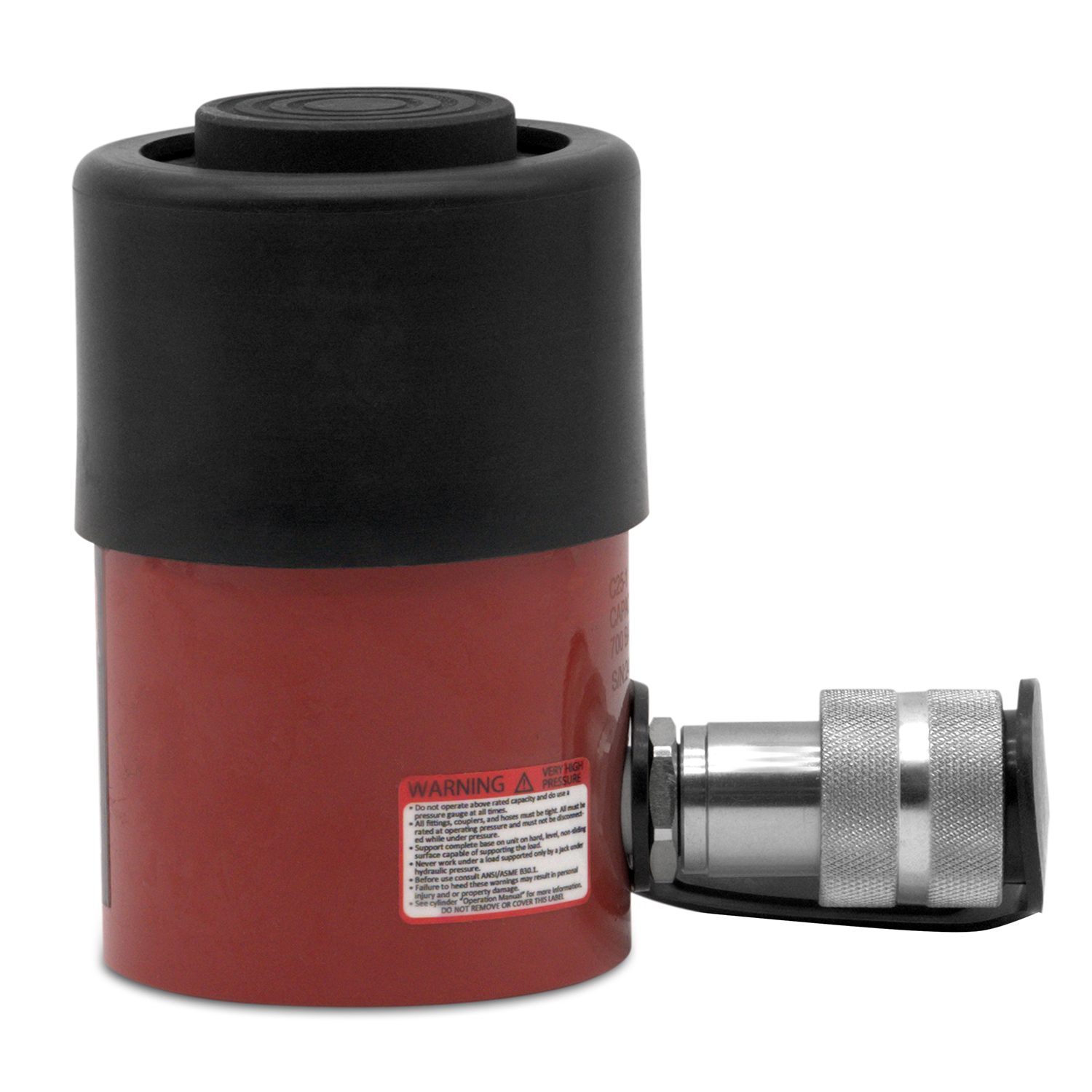

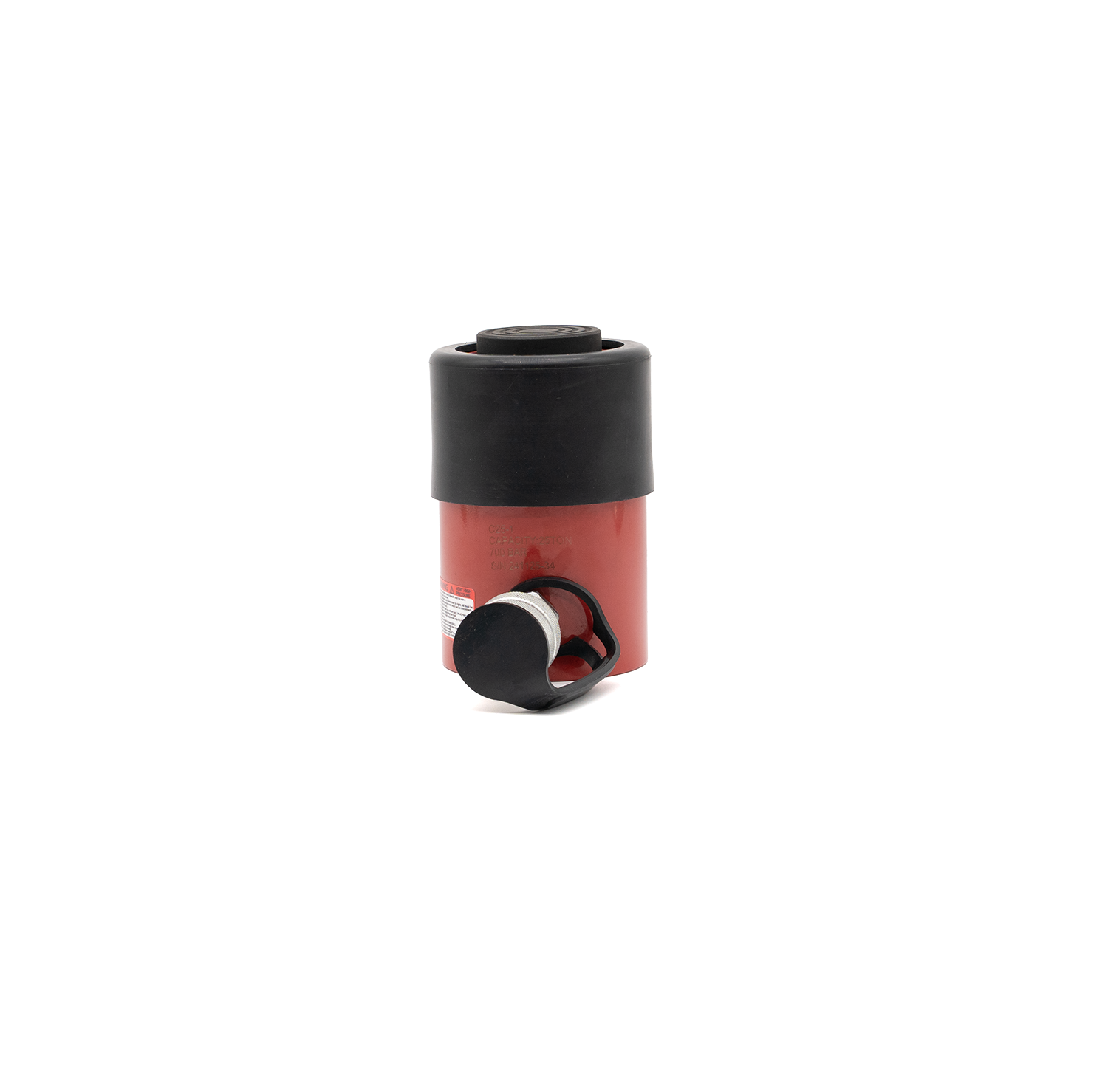

25 Ton High-Pressure Hydraulic Cylinder, Single Acting, 1″ Stroke, General Purpose

25 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 1″ Stroke

Small stroke, massive force! The PowerX C25-1 delivers up to 25 tons of lifting power at 10,000 PSI, making it a compact, high-pressure hydraulic ram built for pushing, pressing, and holding heavy loads in the toughest environments. This single acting hydraulic cylinder (also known as a hydraulic jack or ram) provides smooth, controlled performance for industrial, construction, and maintenance applications requiring short, precise movement.

Crafted from heavy-duty steel and fitted with a precision chrome-plated rod plunger, the C25-1 is engineered to handle repetitive, high-force applications with reliability. Its spring return design ensures quick retraction after use, while roll-burnished cylinder walls extend seal life and maintain consistent performance under pressure. Featuring collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with protective dust caps, this hydraulic jack is ANSI B30.1 compliant and built for long-term industrial service.

Ideal for pressing, aligning, or lifting heavy components in steel fabrication, manufacturing, construction, mining, and heavy-equipment repair, the PowerX C25-1 delivers powerful performance in a short-stroke design where precision and strength are critical.

Pair this 25 ton single acting cylinder with any PowerX high-pressure hydraulic pump or power unit, including our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps, for a complete, high-efficiency lifting or pressing setup that performs flawlessly under load.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 25 Tons
• Stroke: 1″
• Oil Capacity: 5.25 in3
• Effective Area: 5.16 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 5.4″
• Extended Height: 6.44″
• Outside Diameter: 3.35″
• Bolt Circle: 2.31″
• Thread Depth: 0.75″

Thread & Port Details:

• Collar Thread: 3-5/16”–12
• Thread Length: 1.94″
• Base to Advance Port: 1″
• Rod Internal Thread: 1-/2”–16
• Rod Thread Length: 1″
• Thread: 1/2”–13

Component Sizes:

• Rod Diameter: 2.25″
• Bore Diameter: 2.56″
• Saddle Diameter: 2″
