25 Ton High-Pressure Hydraulic Cylinder, Single Acting, 10″ Stroke, General Purpose

25 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 10″ Stroke

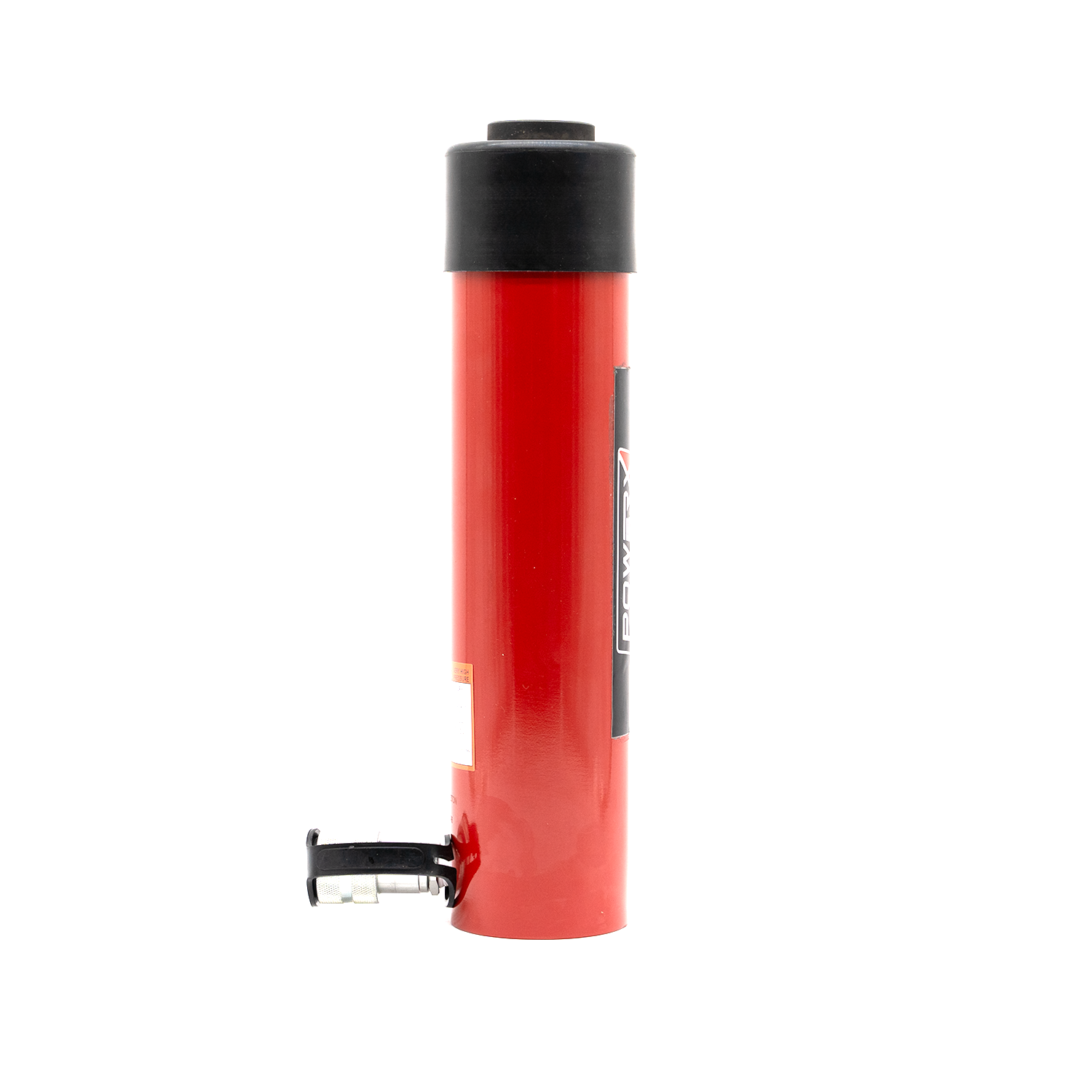

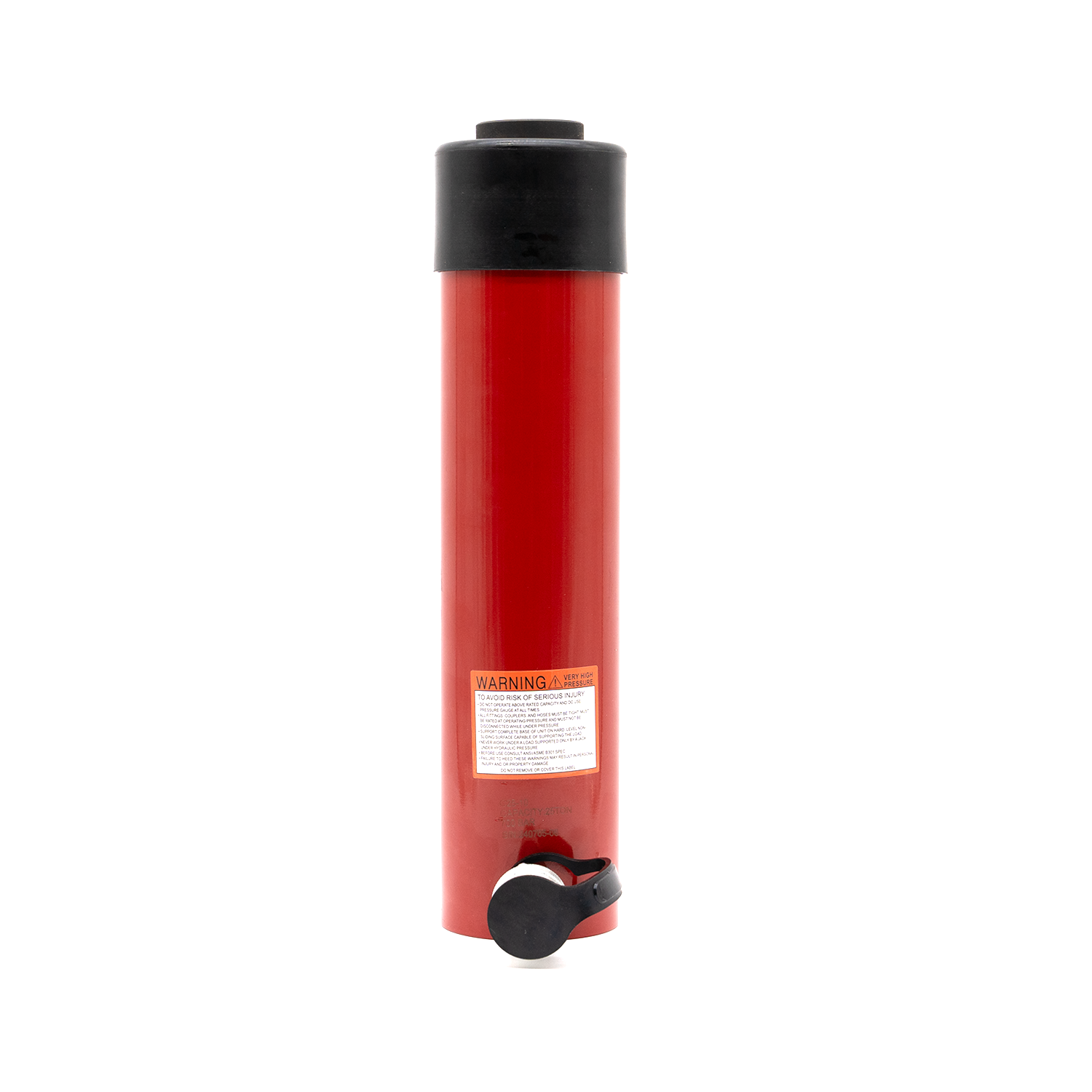

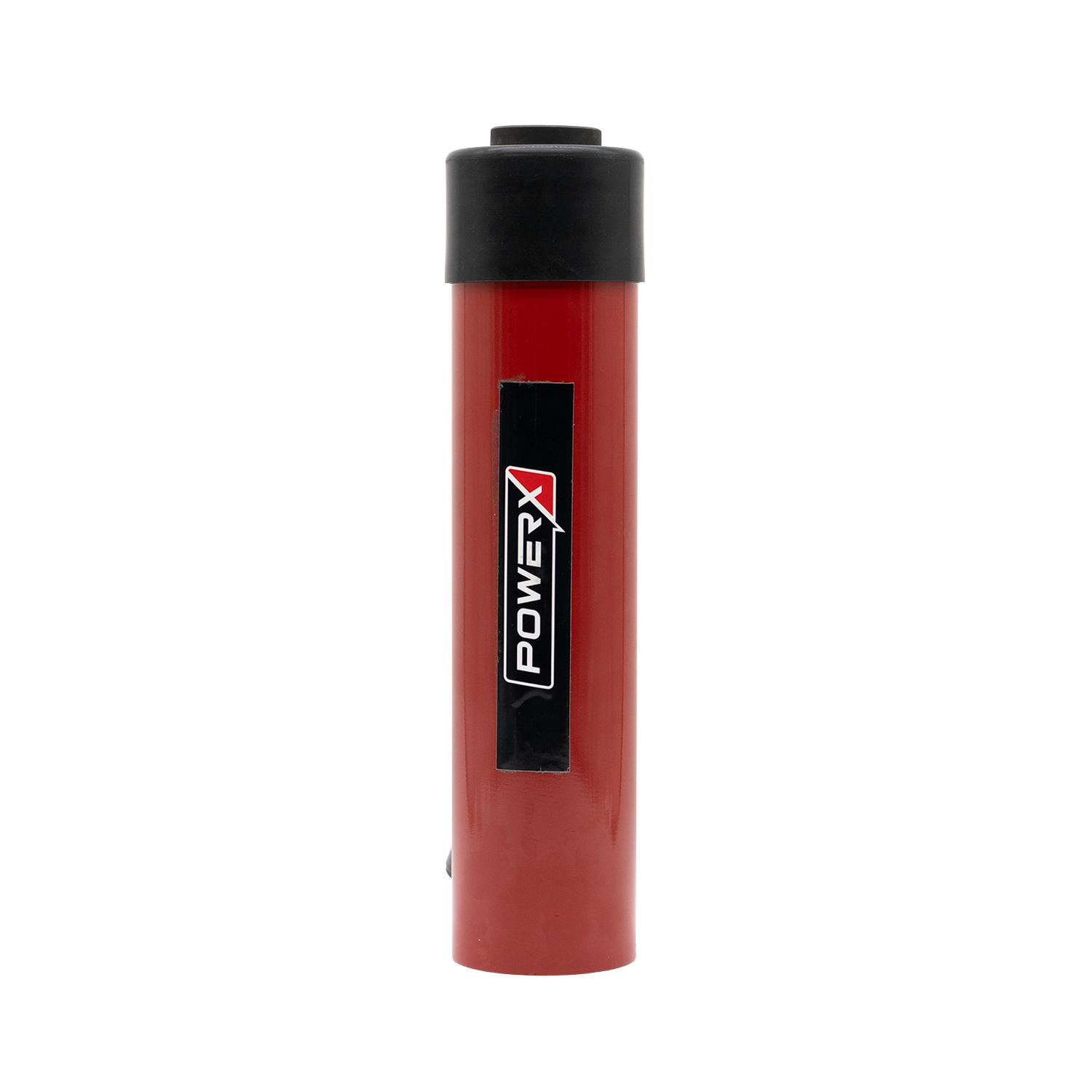

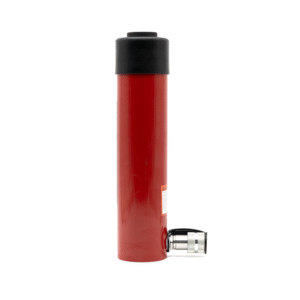

Built for serious lifting power, the PowerX C25-10 25 Ton High-Pressure Hydraulic Cylinder, Single Acting, 10″ Stroke, General Purpose delivers a massive 25 tons of force at 10,000 PSI, combining strength and precision in a compact, single-acting hydraulic ram. Designed for heavy-duty applications like pressing, lifting, pushing, or holding large loads, this 10-inch stroke cylinder offers the perfect balance of reach, control, and raw performance.

Engineered with rugged steel construction and a precision chrome-plated plunger, the C25-10 jack is built to endure the toughest industrial, construction, and maintenance conditions. The spring return system ensures quick retraction, while roll-burnished cylinder walls reduce wear and extend seal life for lasting dependability. With collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with dust caps, this hydraulic jack is ready for the field and fully ANSI B30.1 compliant.

Ideal for use in shipyards, steel mills, mining operations, construction sites, and heavy-equipment repair, the PowerX C25-10 ram provides unmatched strength, safety, and precision for demanding lifting tasks.

Pair this jack with our high-pressure Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps for maximum performance and control.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 25 Tons
• Stroke: 10″
• Oil Capacity: 52.86 in3
• Effective Area: 5.16 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 14.8″
• Extended Height: 24.78″
• Outside Diameter: 3.35″
• Bolt Circle: 2.31″
• Thread Depth: 0.75″

Thread & Port Details:

• Collar Thread: 3-5/16”–12
• Thread Length: 1.94″
• Base to Advance Port: 1″
• Rod Internal Thread: 1-1/2”–16
• Rod Thread Length: 1″
• Thread: 1/2”–13

Component Sizes:

• Rod Diameter: 2.25″
• Bore Diameter: 2.56″
• Saddle Diameter: 2″

Not sure which cylinder is right for your lift?

Check out our detailed guide, How to Select a Hydraulic Cylinder/ Jack / Ram for Lifting Applications, where we break down how to choose the correct tonnage, stroke, cylinder type, and safety factors for your project.

Can’t find the exact model you need?

PowerX offers fully customizable Hydraulic Cylinders built to your specifications. Use our Custom Cylinder Configurator Tool to request a quote for your construction, mining, industrial, transportation, mobile equipment and oil & gas application today.
