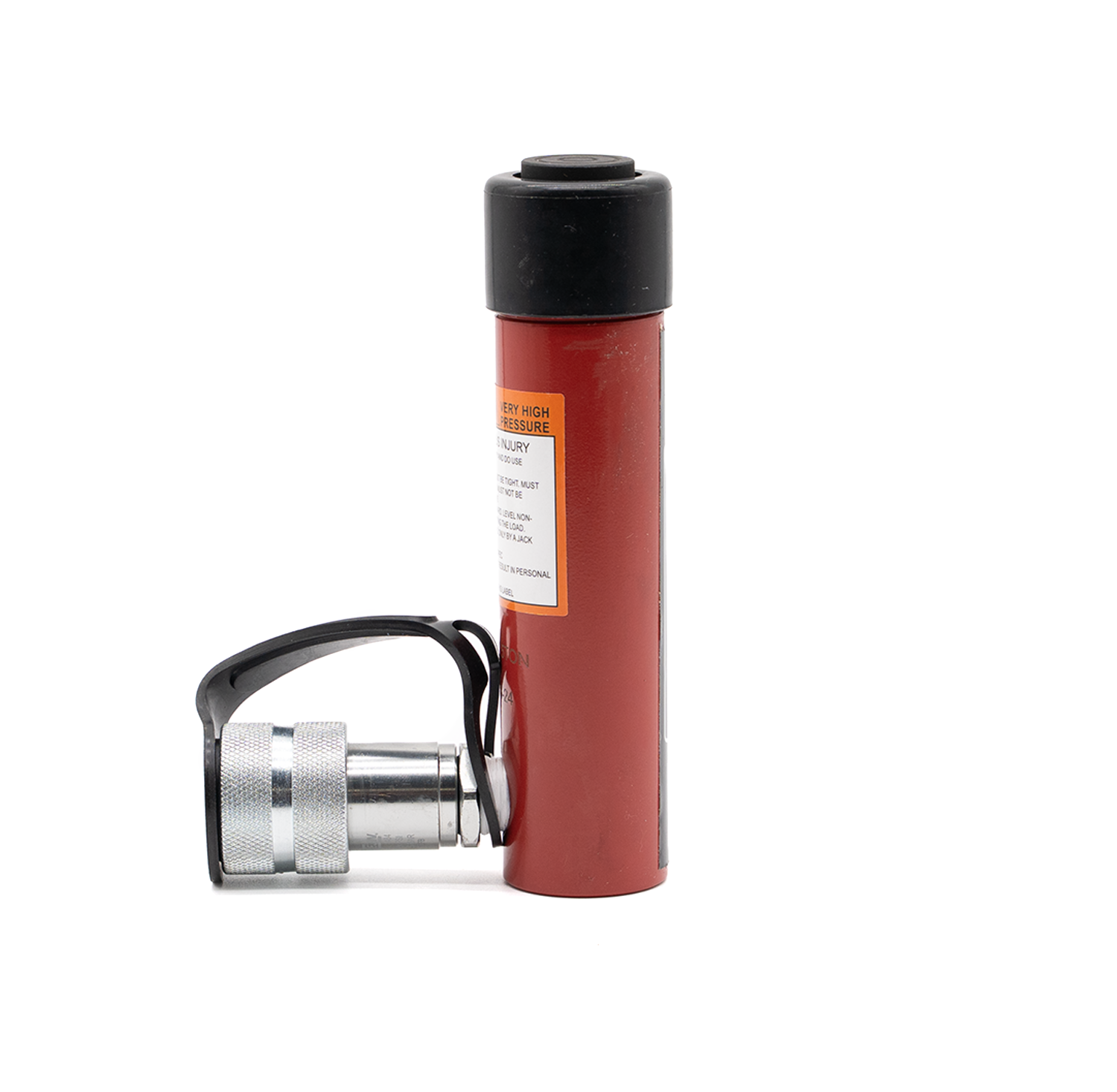

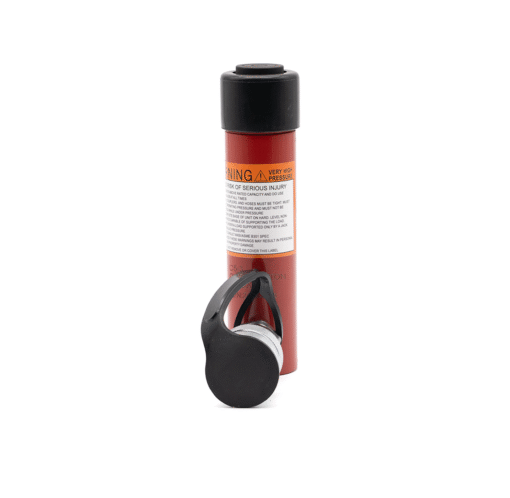

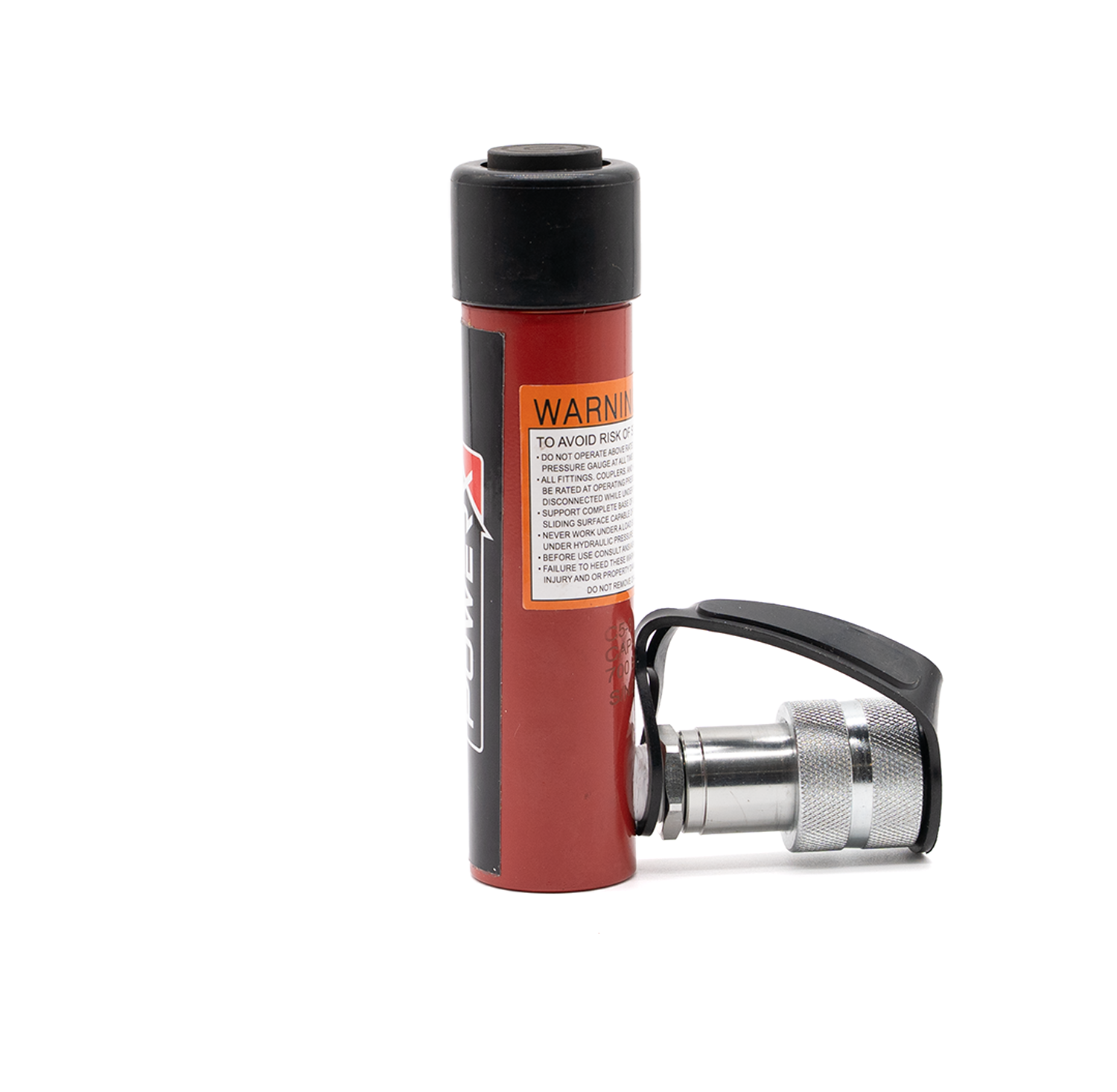

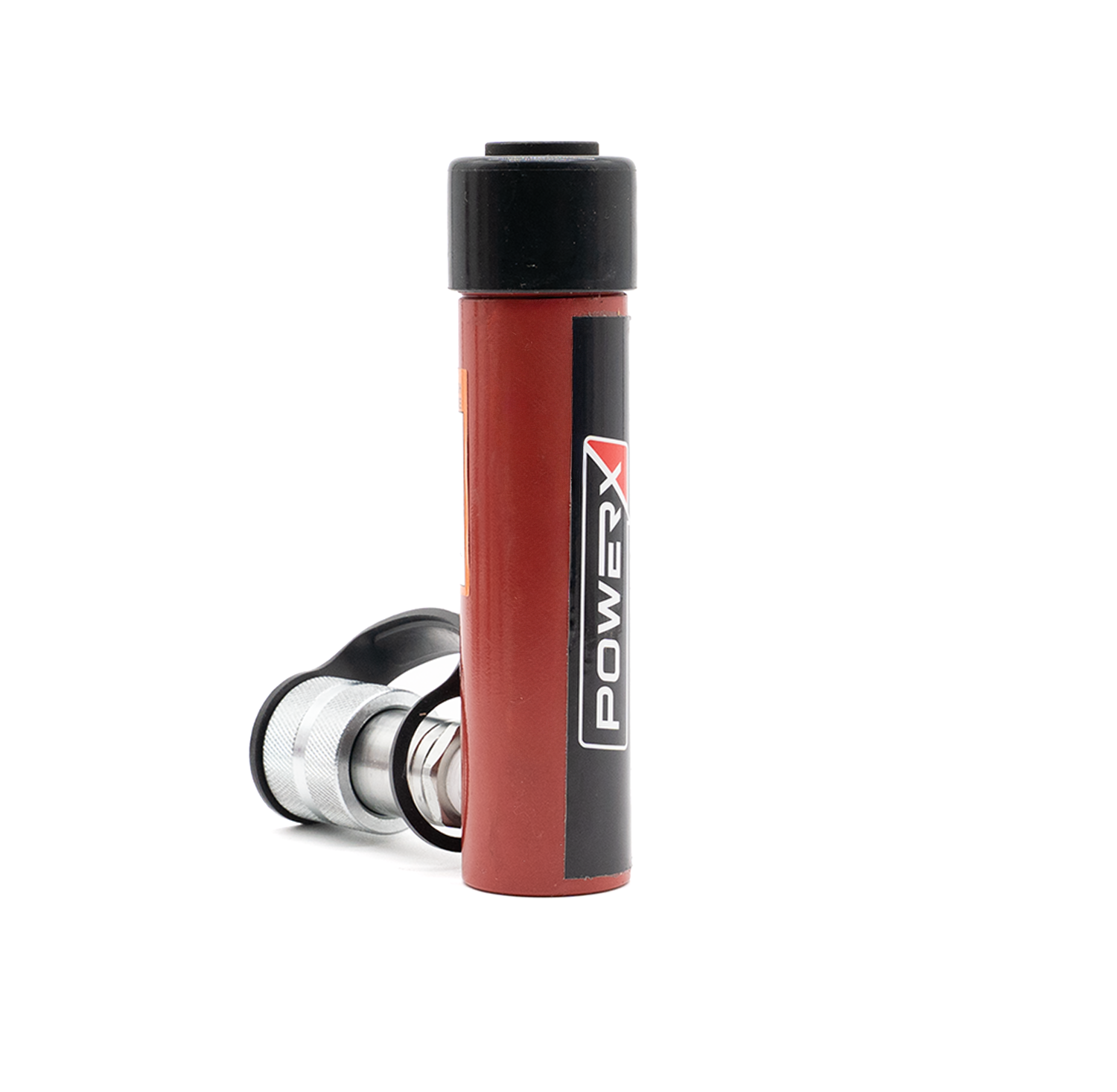

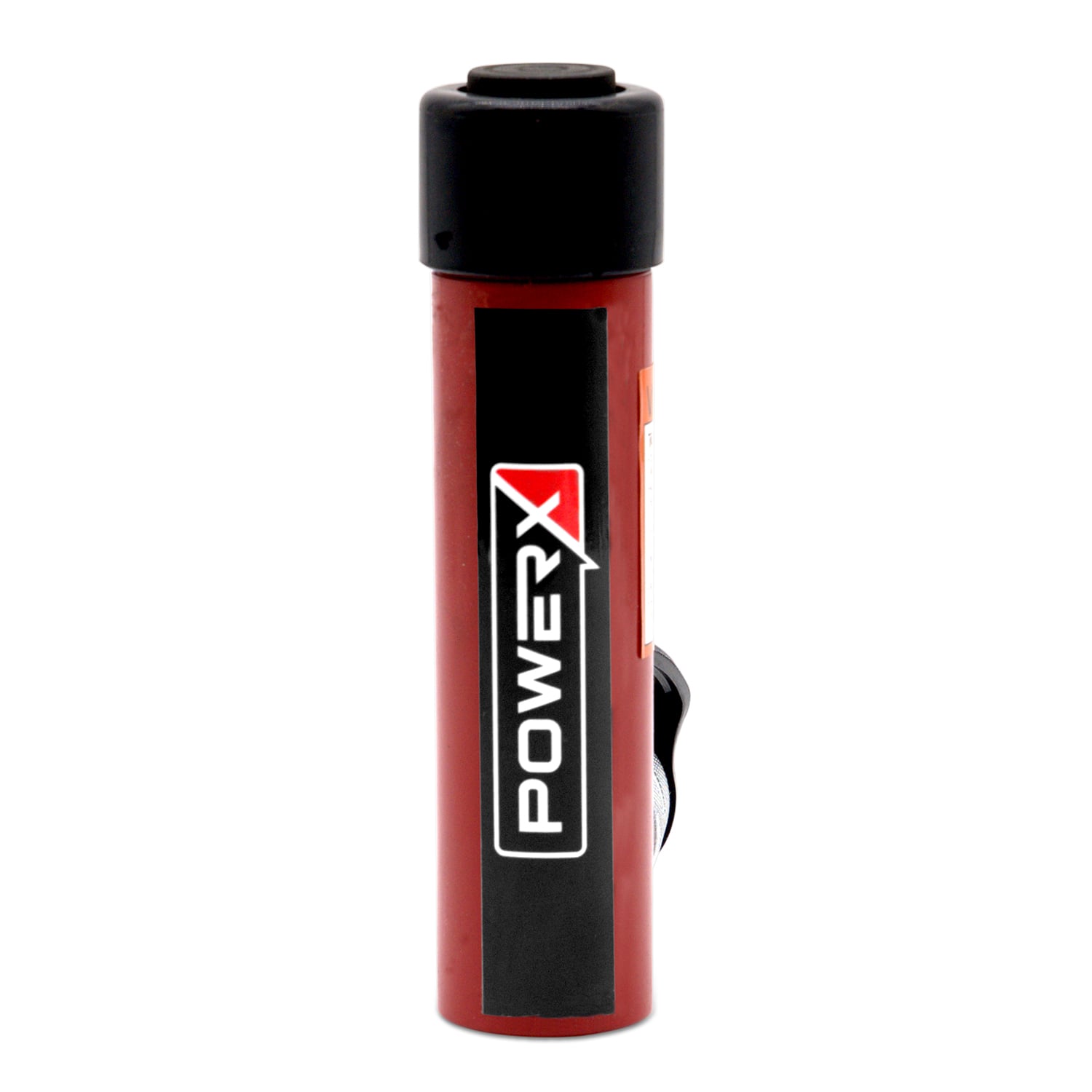

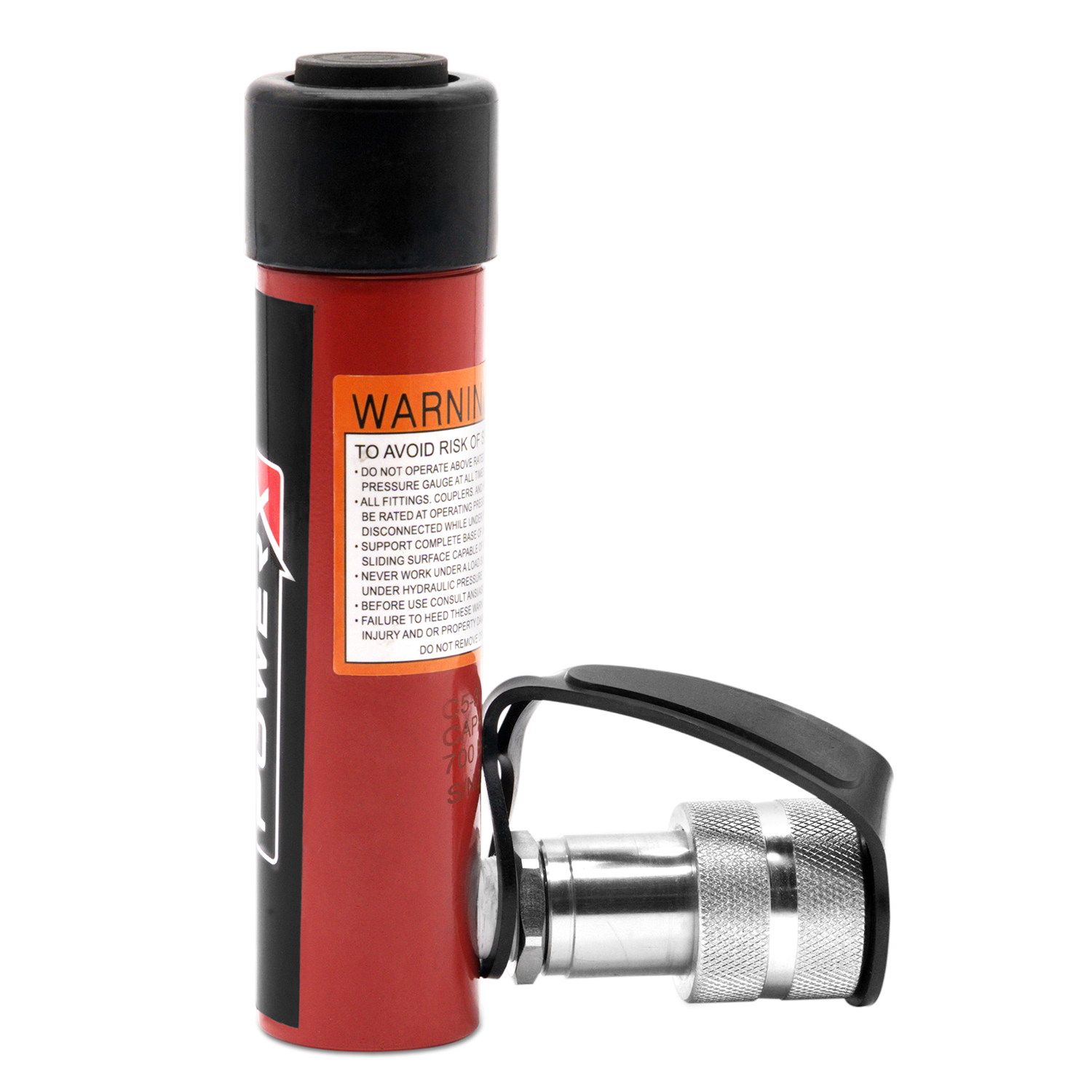

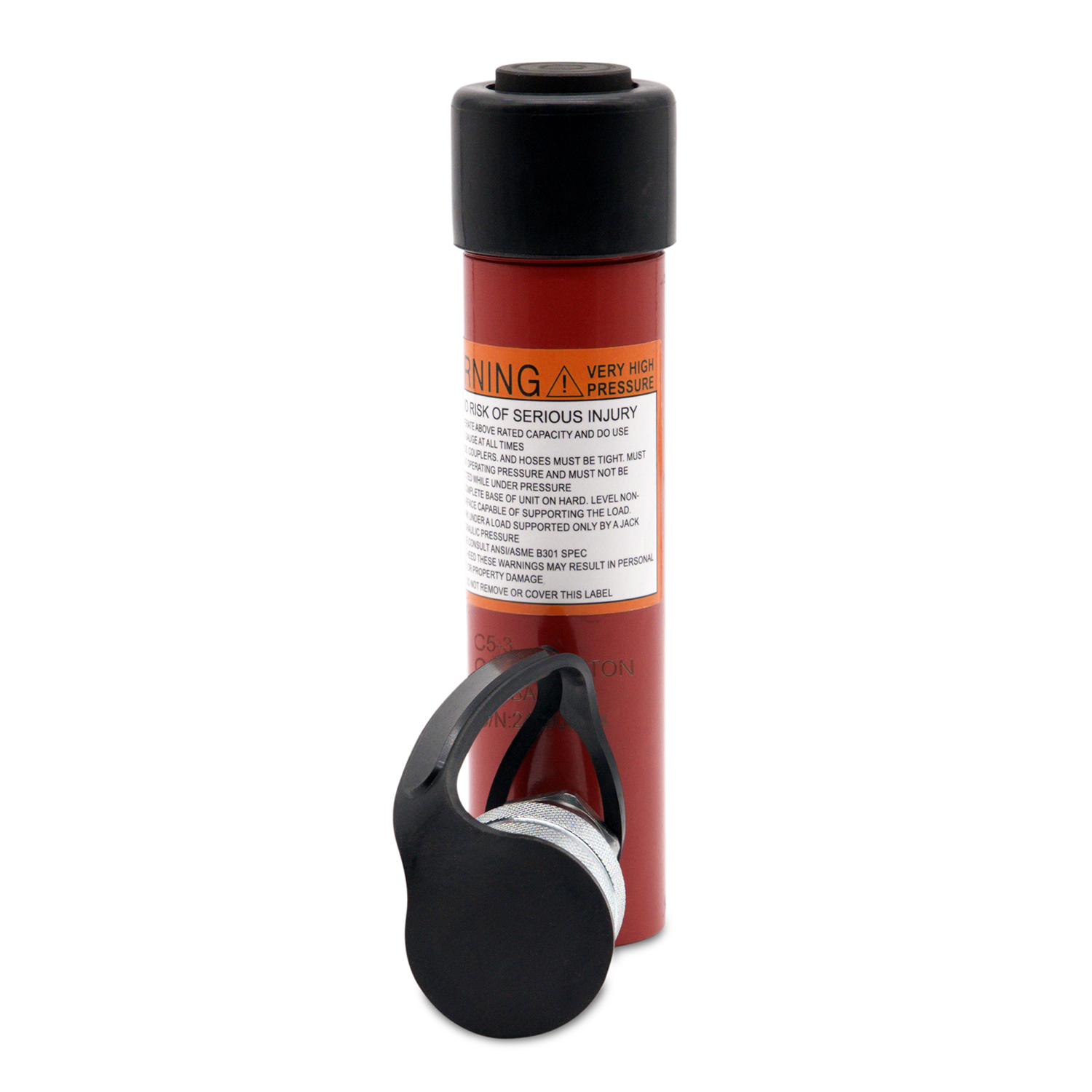

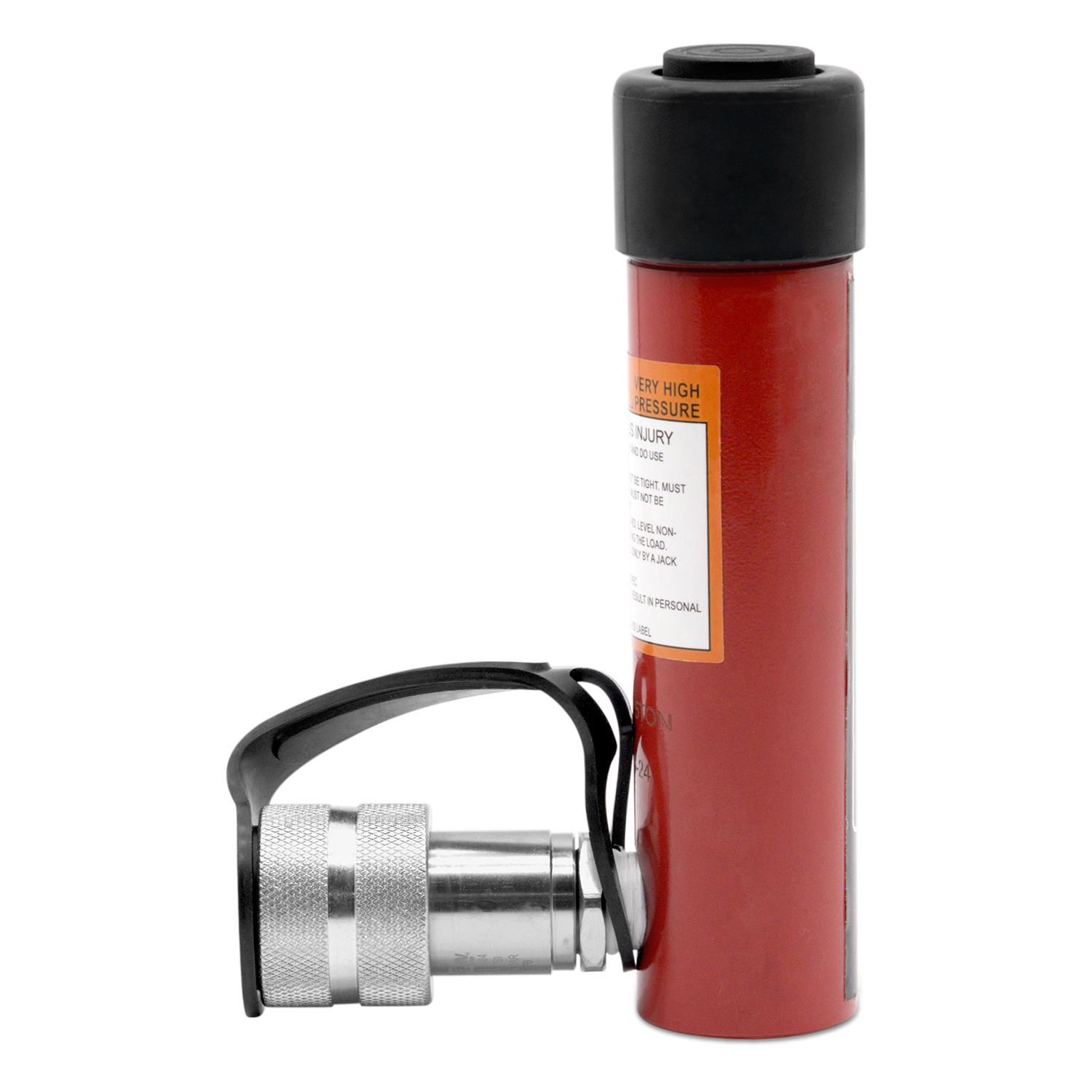

5 Ton High-Pressure Hydraulic Cylinder, Single Acting, 3″ Stroke, General Purpose

5 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 3″ Stroke

Small in size, big on performance — the PowerX C5-3 delivers reliable 10,000 PSI force in a compact, high-pressure hydraulic ram engineered for pushing, lifting, and holding applications where space is tight but power can’t be compromised. This single acting hydraulic cylinder (also called a hydraulic jack or ram) provides smooth, controlled movement for industrial, maintenance, and construction use.

Built from heavy-duty steel and featuring a precision chrome-plated rod plunger, the C5-3 is designed for repeated use in demanding environments. The spring return mechanism allows quick retraction after load release, while roll-burnished cylinder walls extend seal life and maintain performance under pressure. Outfitted with collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with protective dust caps, this hydraulic jack is ANSI B30.1 compliant and ready for on-site performance.

Ideal for tight-clearance lifting, pressing, or positioning tasks in machine shops, manufacturing plants, maintenance crews, and mobile equipment repair, the PowerX C5-3 delivers precise control and dependable strength in a short-stroke package.

Pair this 5 ton single acting cylinder with any PowerX high-pressure hydraulic pump or power unit, including our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps, for a complete, high-efficiency system built to perform where compact power is essential.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 5 Tons
• Stroke: 3″
• Oil Capacity: 2.98 in3
• Effective Area: 0.99 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 6.5″
• Extended Height: 9.5″
• Outside Diameter: 1.5″
• Bolt Circle: 1″
• Thread Depth: 0.56″

Thread & Port Details:

• Collar Thread: 1-1/2”–16
• Thread Length: 1.13″
• Base to Advance Port: 0.75″
• Rod Internal Thread: 3/4”–16
• Rod Thread Length: 0.56″
• Thread: 1/4”–20

Component Sizes:

• Rod Diameter: 1″
• Bore Diameter: 1.13″
• Saddle Diameter: 1″
