5 Ton High-Pressure Hydraulic Cylinder, Single Acting, 9″ Stroke, General Purpose

5 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 9″ Stroke

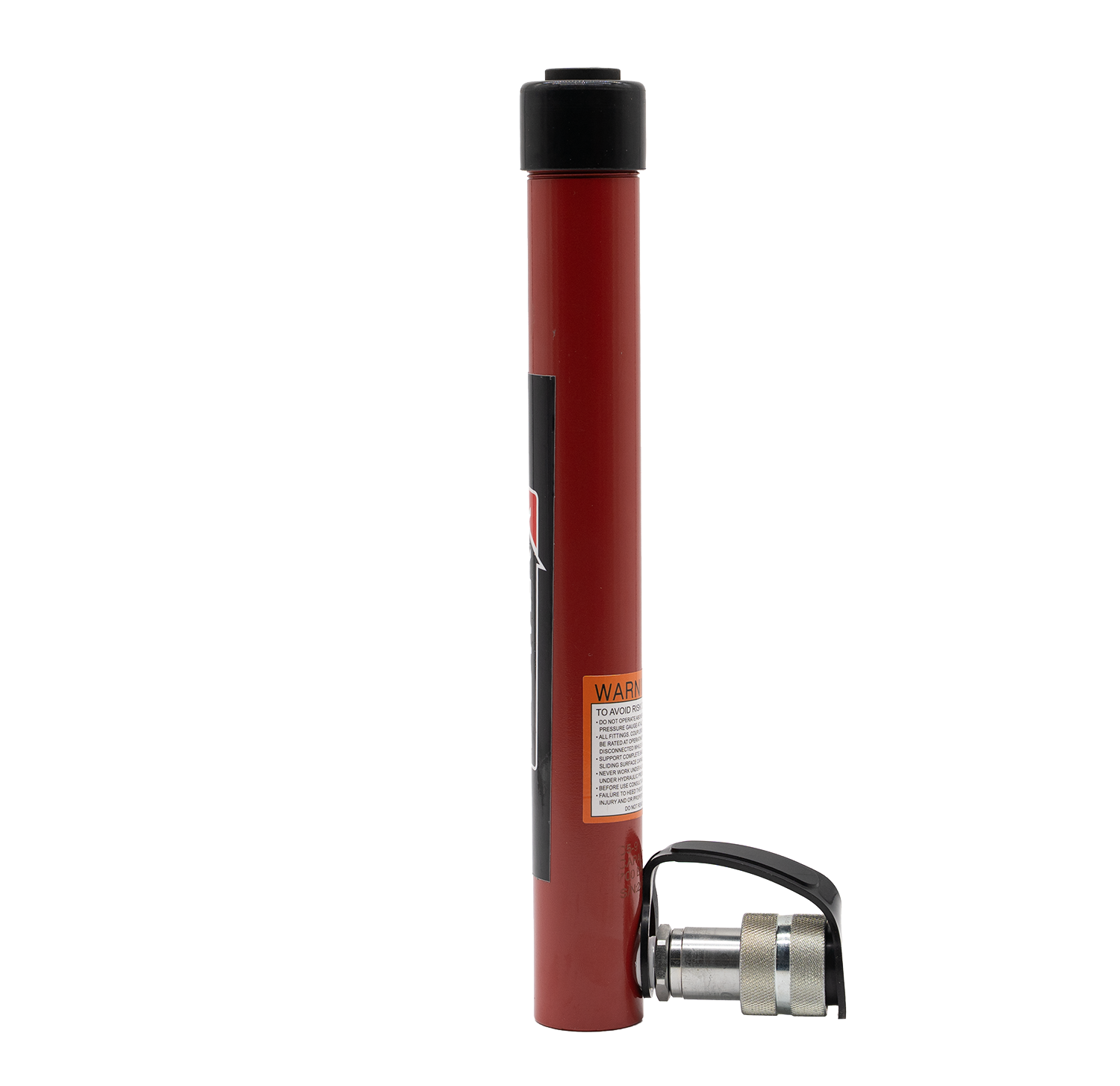

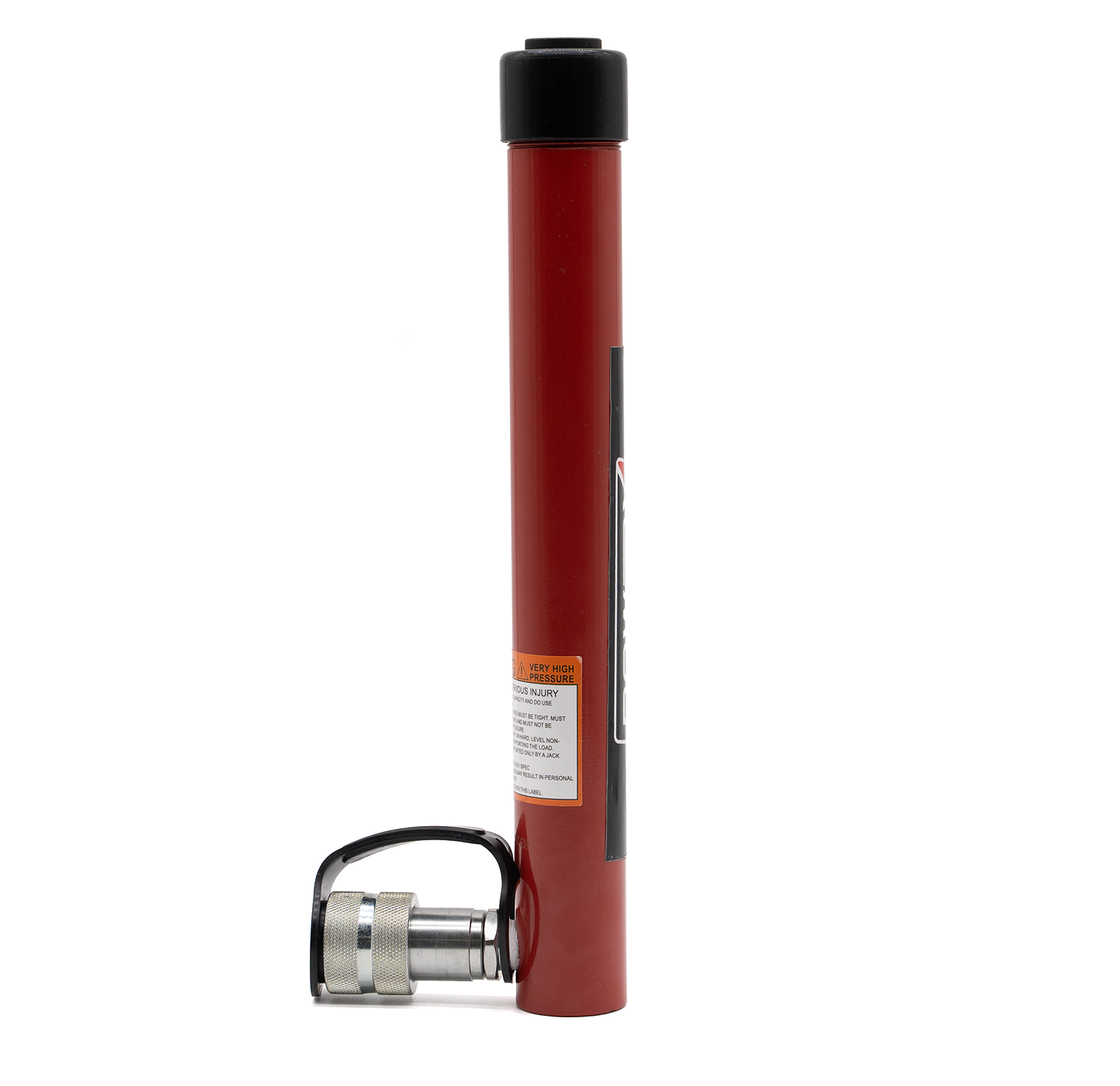

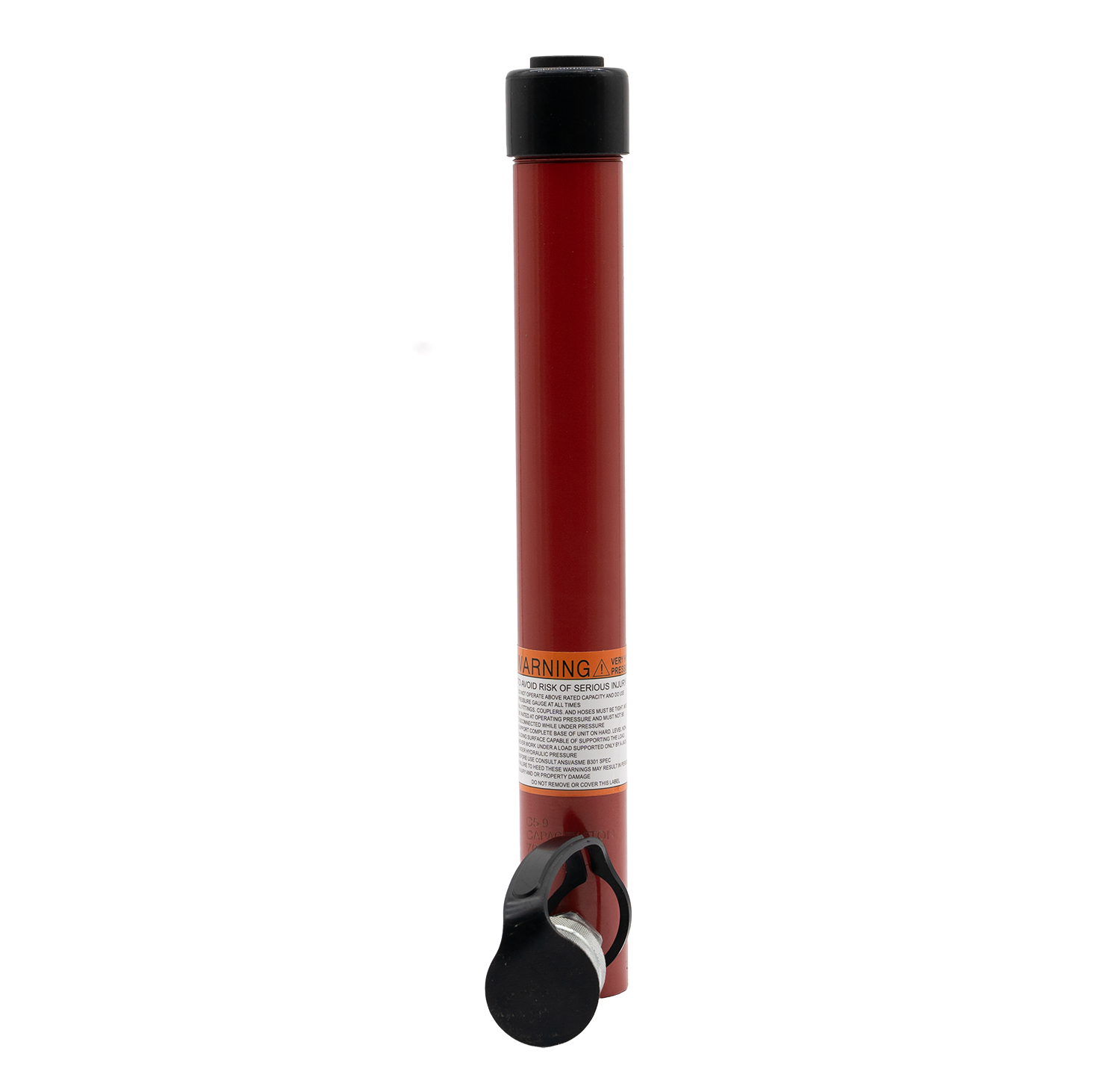

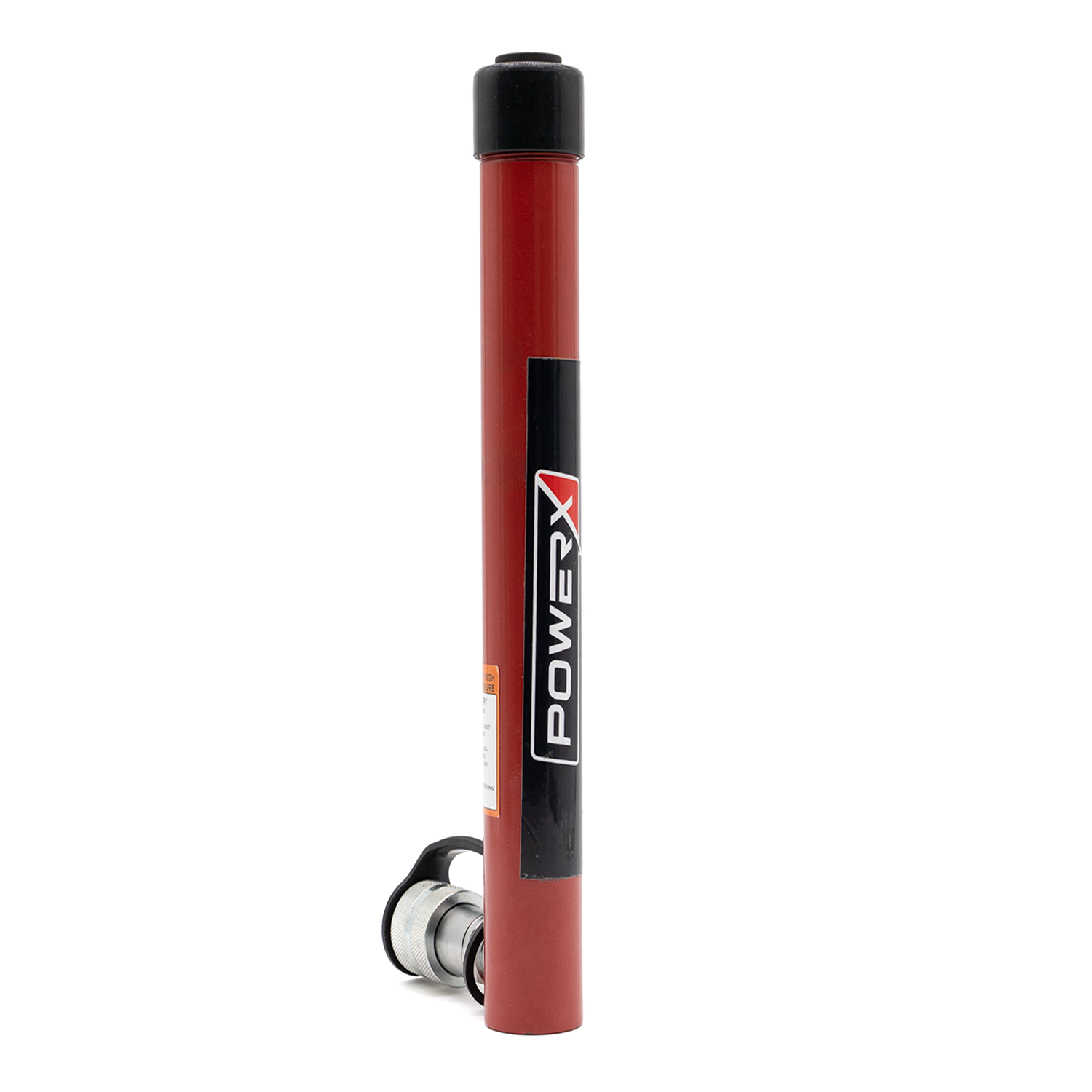

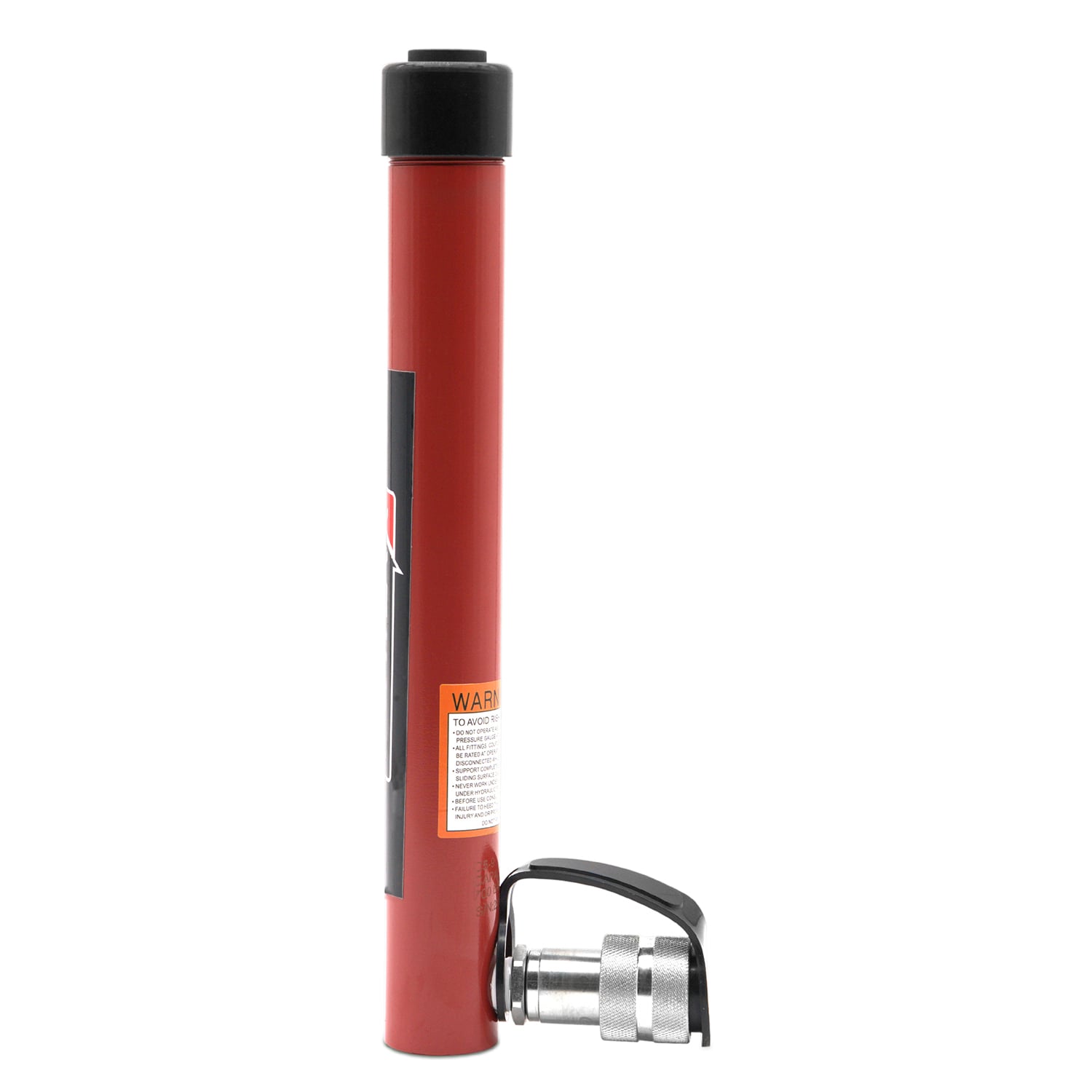

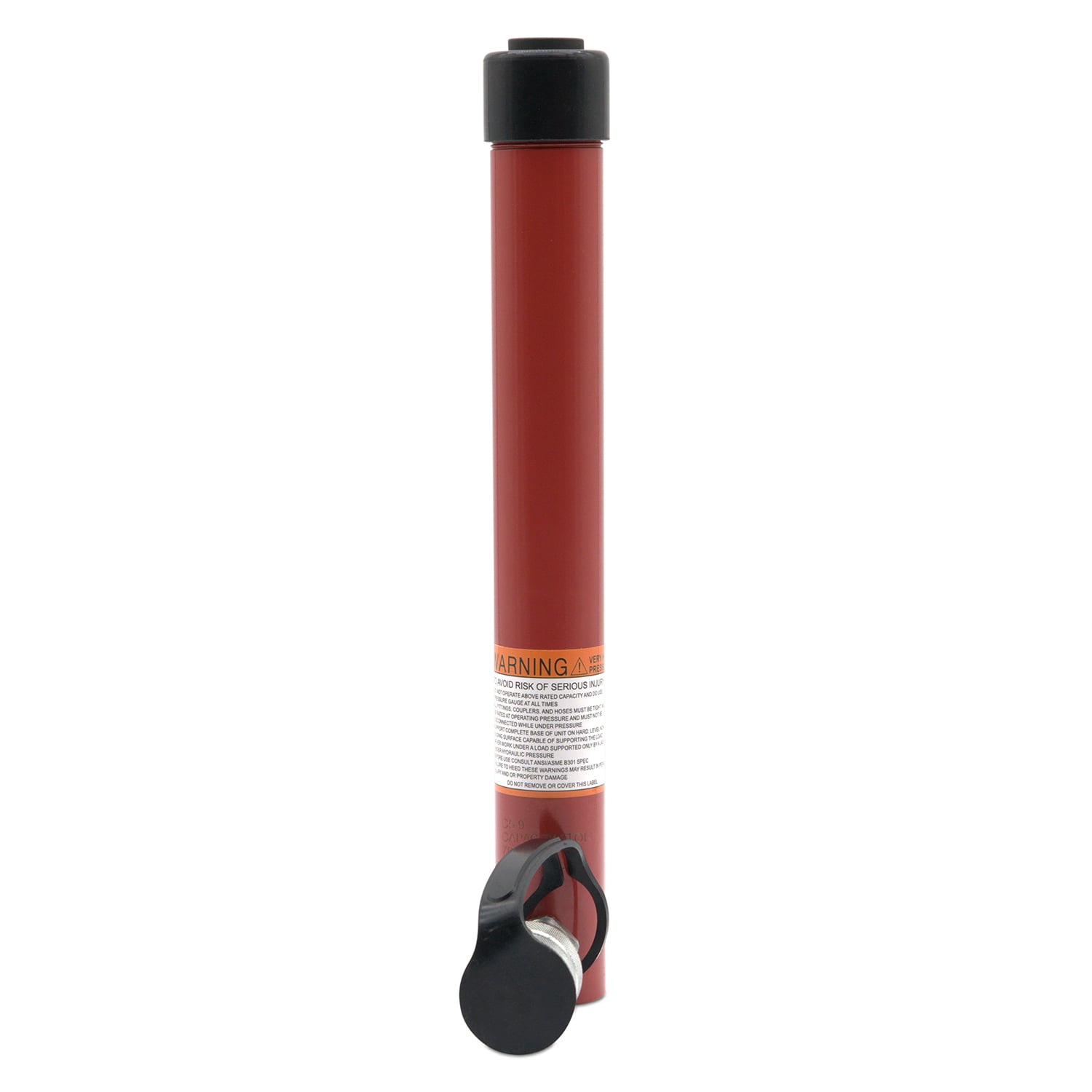

Compact, precise, and built for performance, the PowerX C5-9 delivers dependable 10,000 PSI force in a high-pressure hydraulic ram designed for pushing, lifting, aligning, or holding loads up to 5 tons. This single acting hydraulic cylinder, also known as a hydraulic jack or lifting ram, provides smooth, controlled motion for a wide range of industrial, construction, and maintenance applications.

Constructed from heavy-duty steel and equipped with a precision chrome-plated rod plunger, the C5-9 ram is engineered for durability and repeatable performance under demanding conditions. The spring return design allows quick retraction, while roll-burnished cylinder walls extend seal life and maintain efficiency over time. Featuring collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with protective dust caps, this hydraulic jack is ANSI B30.1 compliant and ready for the field.

Ideal for machine shops, equipment service bays, fabrication facilities, construction projects, and maintenance crews, the PowerX C5-9 delivers the perfect balance of strength, control, and reliability wherever compact power is required.

Pair this 5 ton single acting cylinder with any PowerX high-pressure hydraulic pump or power unit, including our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps, to create a complete, high-efficiency lifting system.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 5 Tons
• Stroke: 9″
• Oil Capacity: 9.07 in3
• Effective Area: 0.99 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 12.75″
• Extended Height: 21.93″
• Outside Diameter: 1.5″
• Bolt Circle: 1″
• Thread Depth: 0.56″

Thread & Port Details:

• Collar Thread: 1-1/2”–16
• Thread Length: 1.13″
• Base to Advance Port: 0.75″
• Rod Internal Thread: 3/4”–16
• Rod Thread Length: 0.56″
• Thread: 1/4”–20

Component Sizes:

• Rod Diameter: 1″
• Bore Diameter: 1.13″
• Saddle Diameter: 1″
