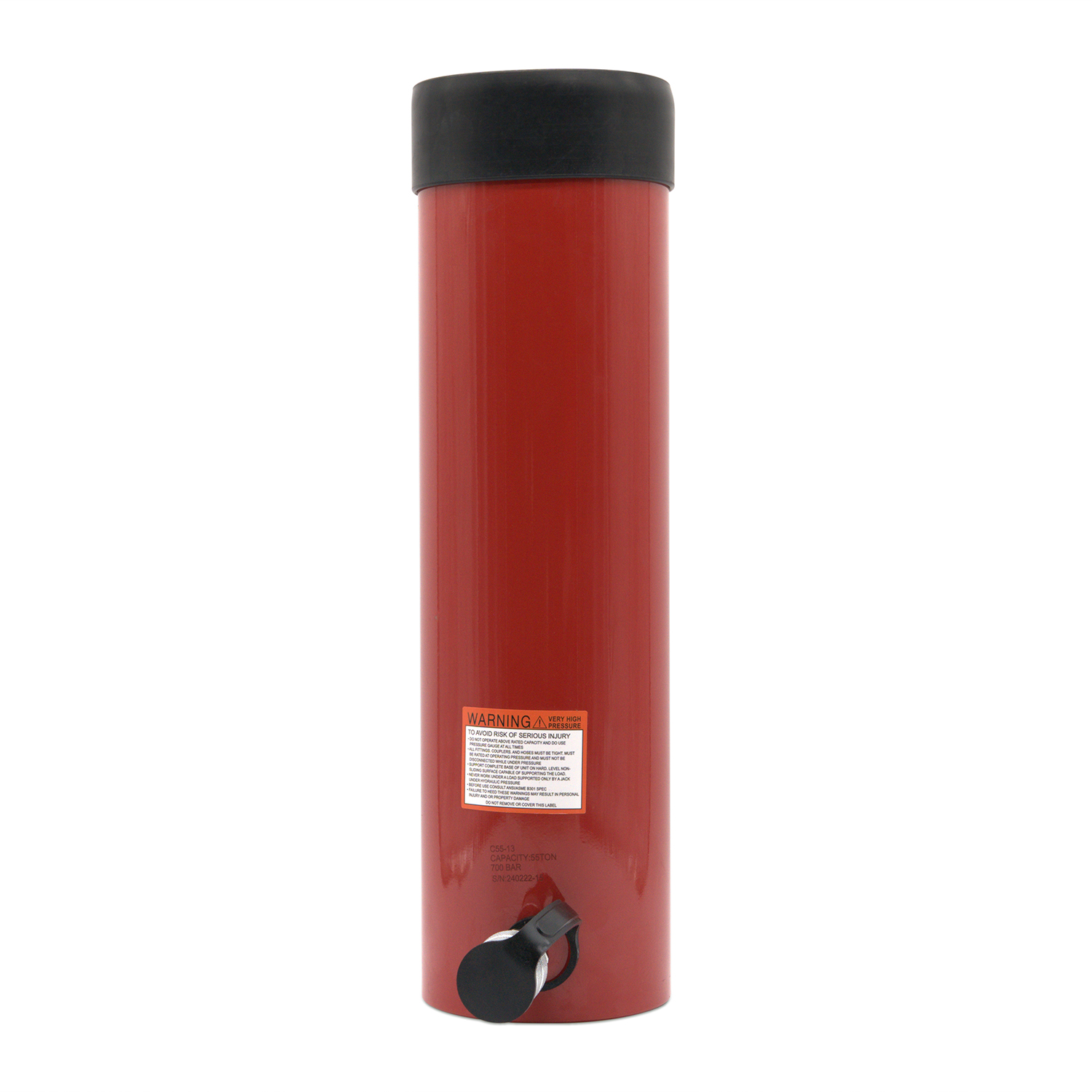

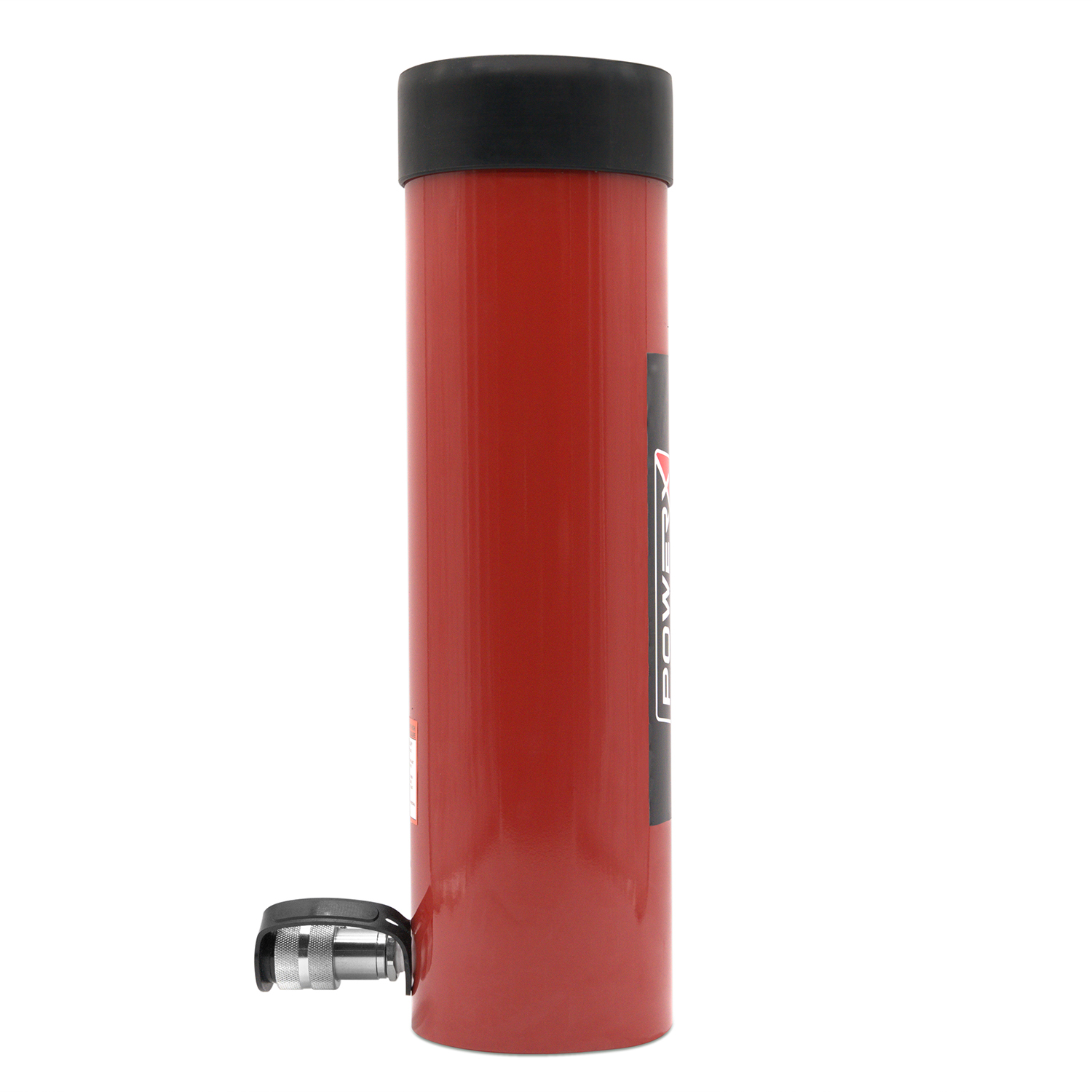

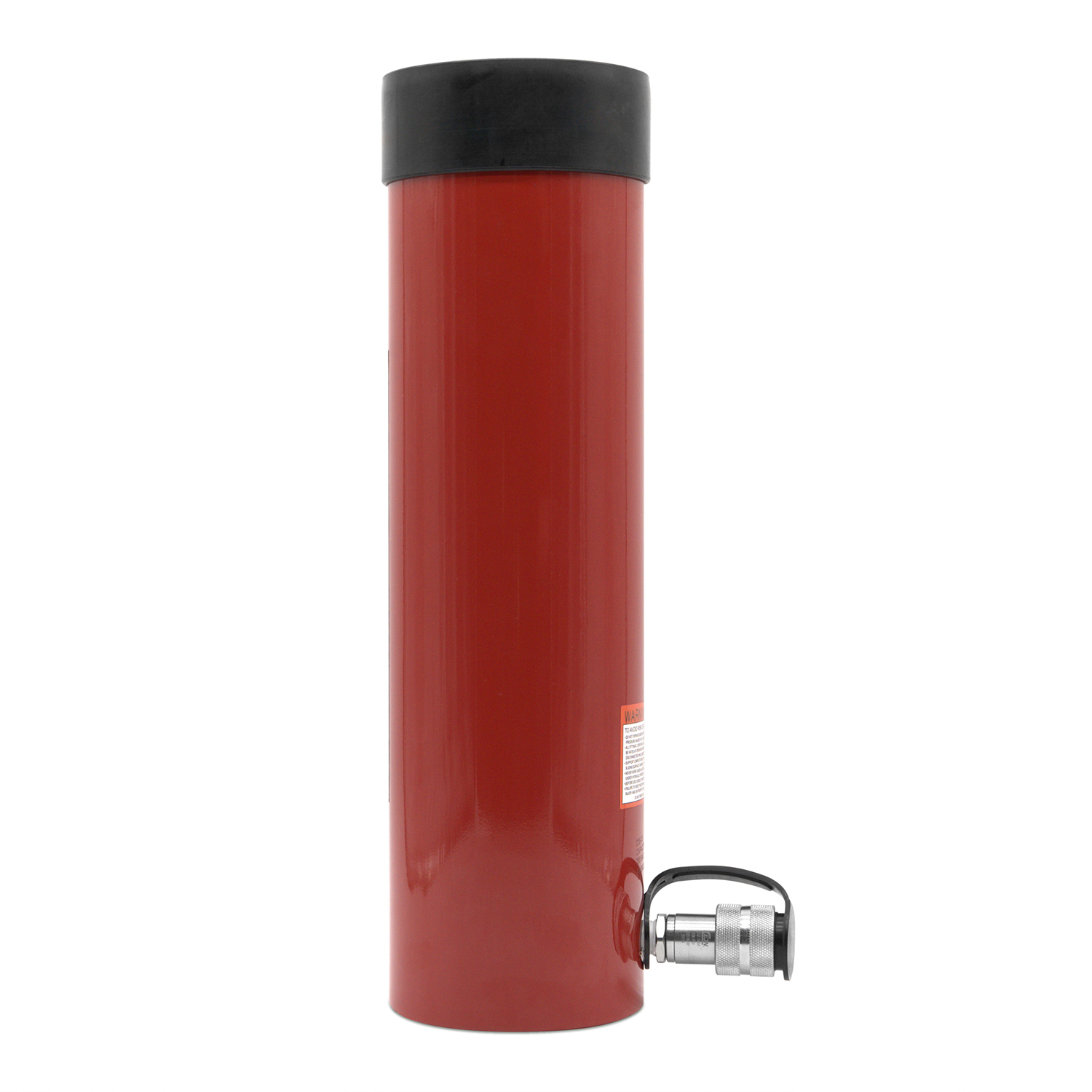

55 Ton cylinder, single acting, 13″ stroke
$2,649.95
55 Ton cylinder, single acting, 13″ stroke
In stock
SKU: C55-13 Category: Hydraulic Single Acting Cylinders
The 55 ton 13″ stroke cylinders are designed for pushing, lifting, or holding applications.
PowerX single acting cylinders are designed to meet your bending, pushing, and holding application needs. Designed to handle some of the most vigorous applications, these high-quality cylinders come in multiple sizes, stroke lengths, and lifting capacities.
- Single Acting, steel construction, and chrome plated plungers
- 1” to 14” stroke with heavy duty spring return
- Collar threads with protection cover & base mounting holes
- 3/8” NPTF high flow coupler with dust caps
- Roll Burnished Cylinder extends seal life
- Durable exterior finish and ANSI B30.1 compliant
*Contact us for higher tonnage or longer stroke cylinders.
| Weight | 88 lbs |
|---|---|
| Dimensions | 11 × 11 × 22 in |
| Capacity (Tons) | |
| Stroke (in) | 13 |
| Minimum Height (in) | 18.17 |
| Maximum Height (in) | 31.38 |
Cross Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| PowerX | C55-13 |
| BVA | H5513 |
| Ram-Pac | – |
| Simplex | R5513 |
| Power Team | C5513C |
| Enerpac | RC-5013 |
