55 Ton High-Pressure Hydraulic Cylinder, Single Acting, 4″ Stroke, General Purpose

55 Ton High-Pressure Single Acting General Purpose Hydraulic Cylinder – 4″ Stroke

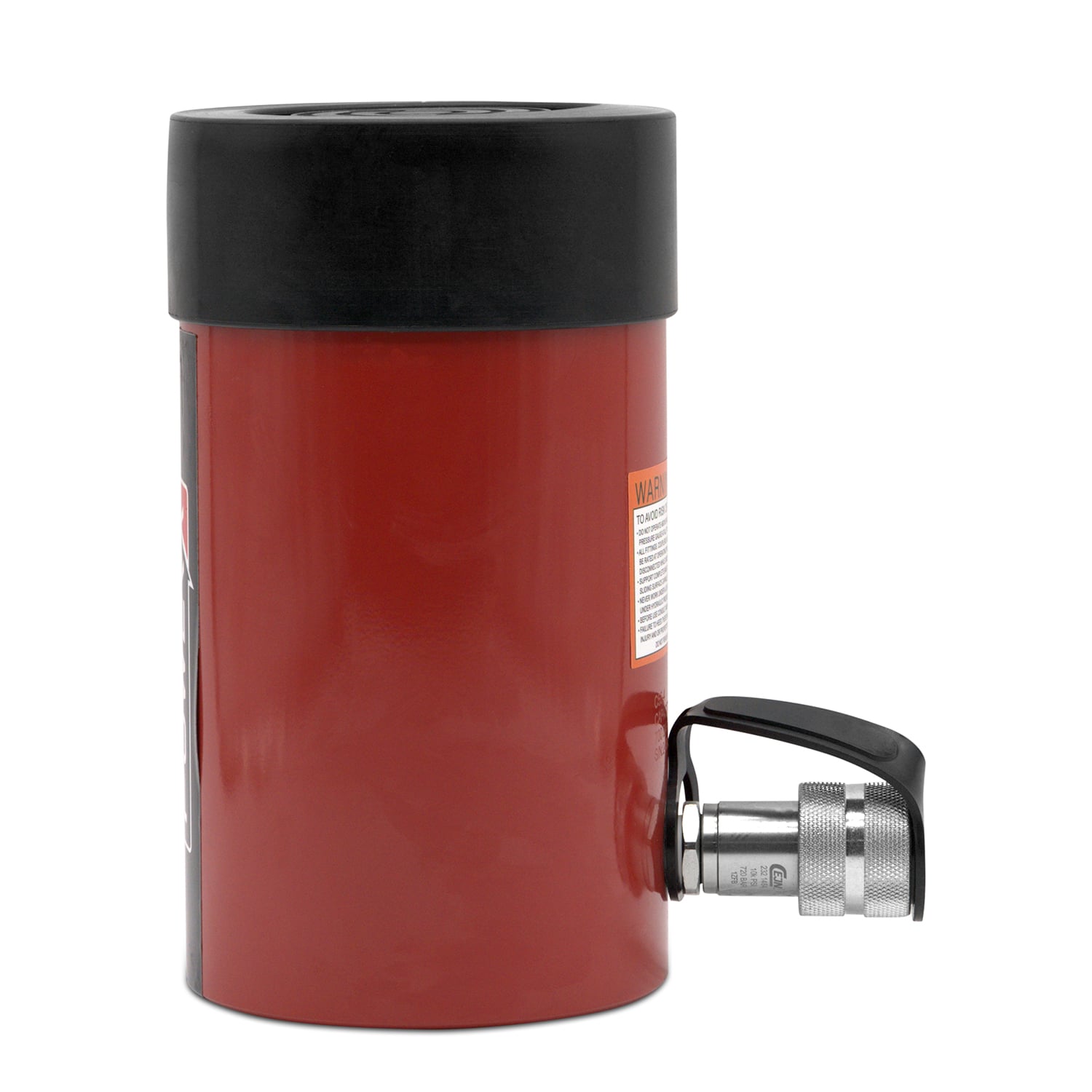

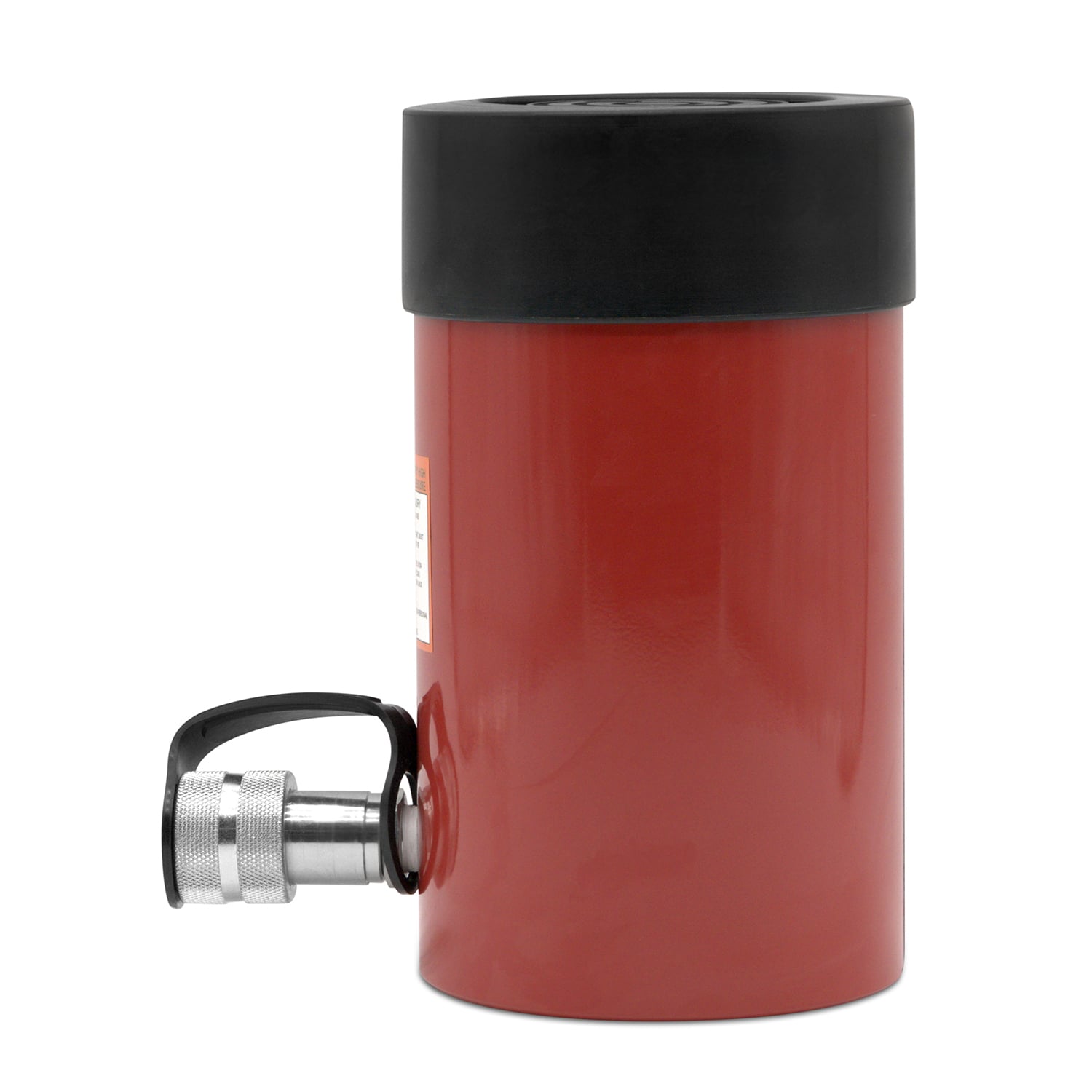

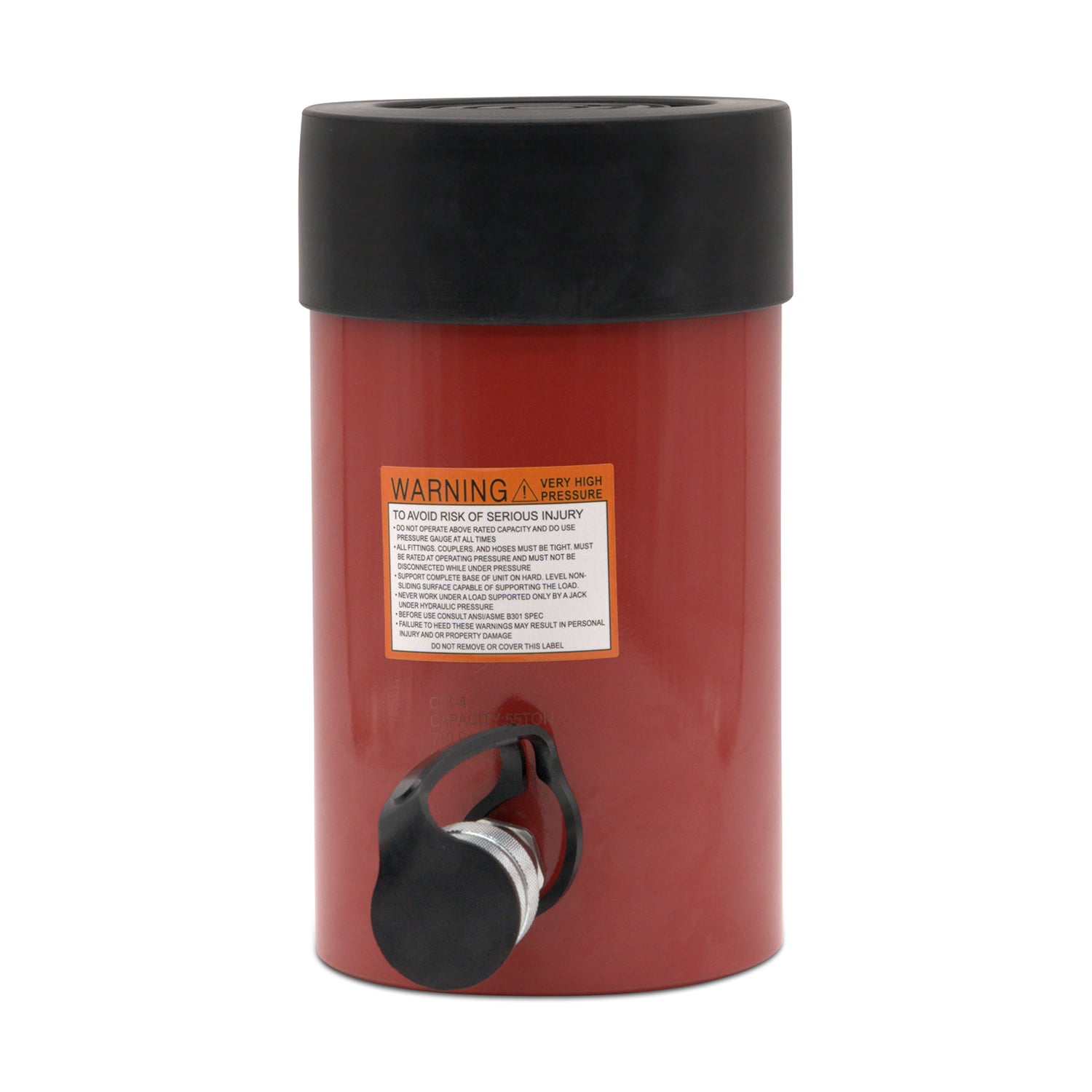

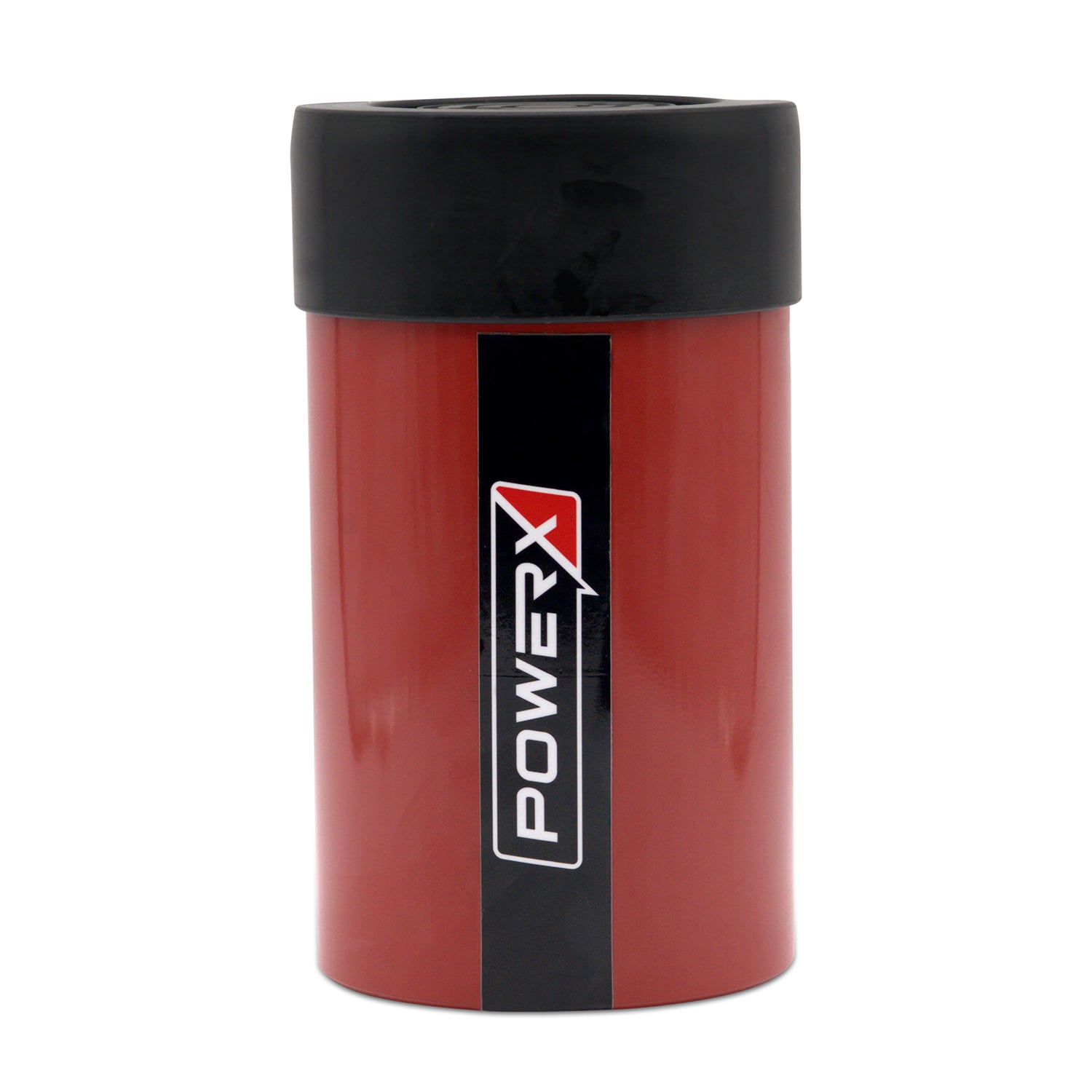

Engineered for serious power and precision, the PowerX C55-4 55 Ton, 4″ Stroke High-Pressure Single Acting General Purpose Hydraulic Cylinder delivers an impressive 55 tons of force at 10,000 PSI. This single-acting high-pressure hydraulic ram is built to bend, push, lift, and hold heavy loads with smooth, controlled performance, ideal for demanding industrial, construction, and maintenance applications.

Constructed from heavy-duty steel with a precision chrome-plated plunger, the C55-4 hydraulic ram is designed for continuous use under extreme conditions. Its spring return design ensures fast retraction, while roll-burnished cylinder walls reduce wear and extend seal life for long-term reliability. Equipped with collar threads, base mounting holes, and a 3/8” NPTF high-flow coupler with dust caps, this high-pressure hydraulic jack is field-ready and ANSI B30.1 compliant.

Perfect for shipyards, steel mills, mining operations, construction projects, and heavy-equipment maintenance, the PowerX C55-4 delivers unmatched strength, safety, and performance when every lift counts.

Pair it with our high-pressure Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for maximum control and efficiency.

Features:

• Single Acting with heavy duty spring return
• Steel construction and chrome plated rod plungers
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
• Roll burnished for extended seal life
• Rated at 10,000 psi (700 bar).

Performance:

• Capacity: 55 Tons
• Stroke: 4″
• Oil Capacity: 44.18 in3
• Effective Area: 11.04 in2
• Pressure Rating: 10,000 PSI

Dimensions:

• Collapsed Height: 8.96″
• Extended Height: 12.94″
• Outside Diameter: 5″
• Bolt Circle: 3.75″
• Thread Depth: 0.75″

Thread & Port Details:

• Collar Thread: 5”–12
• Thread Length: 1.75″
• Base to Advance Port: 1.38″
• Rod Internal Thread: N/A
• Rod Thread Length: N/A
• Thread: 1/2”–13

Component Sizes:

• Rod Diameter: 3.13″
• Bore Diameter: 3.75″
• Saddle Diameter: 3.15″
