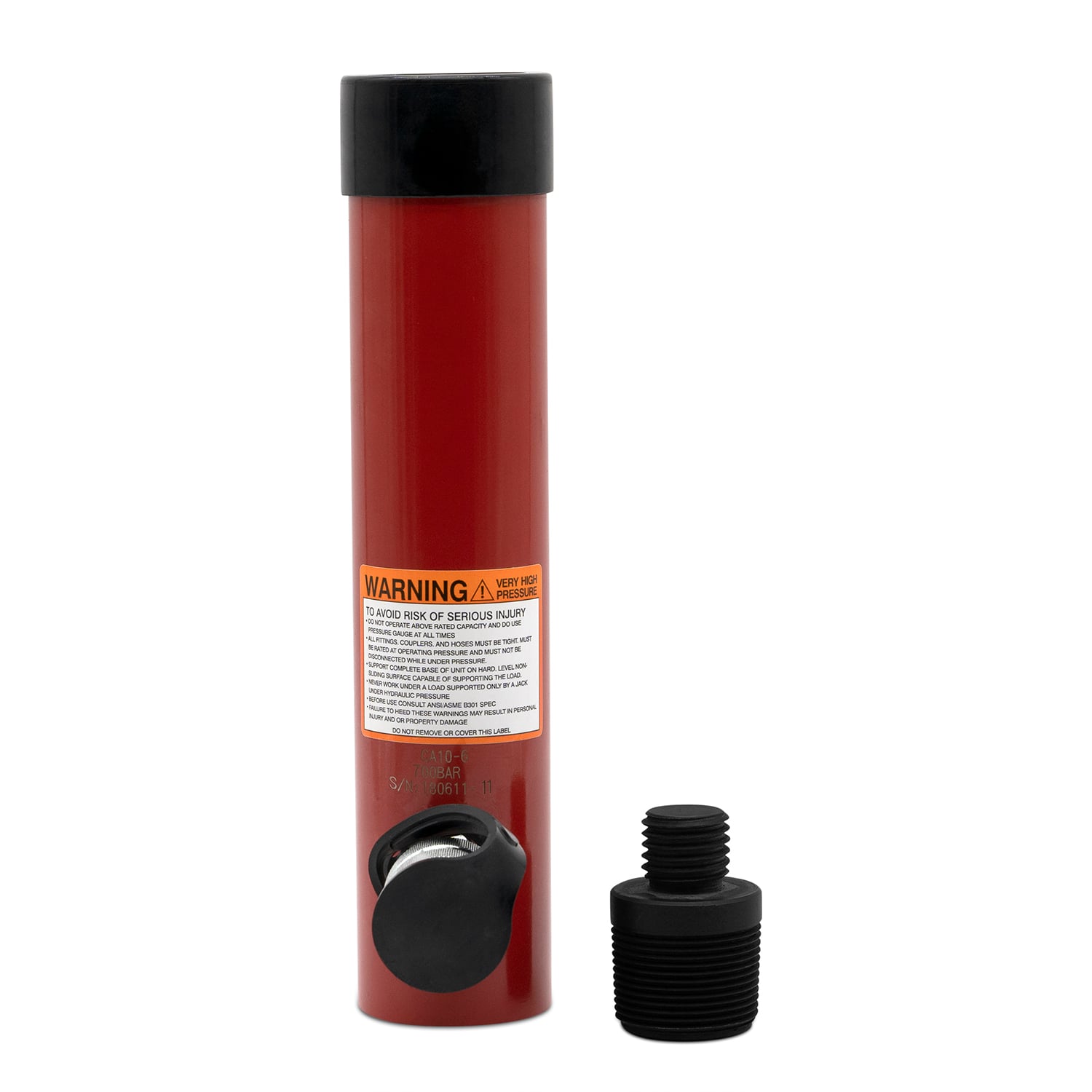

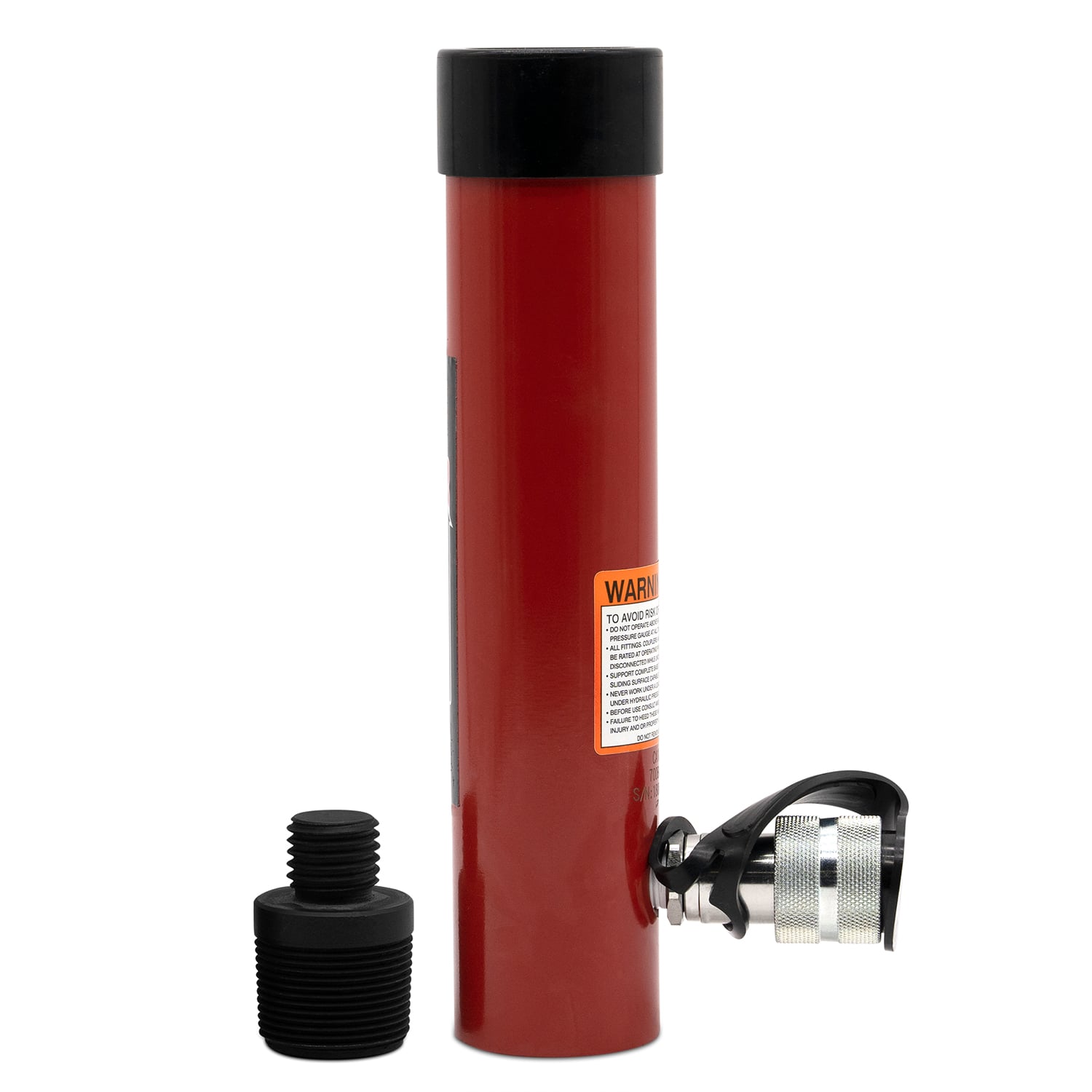

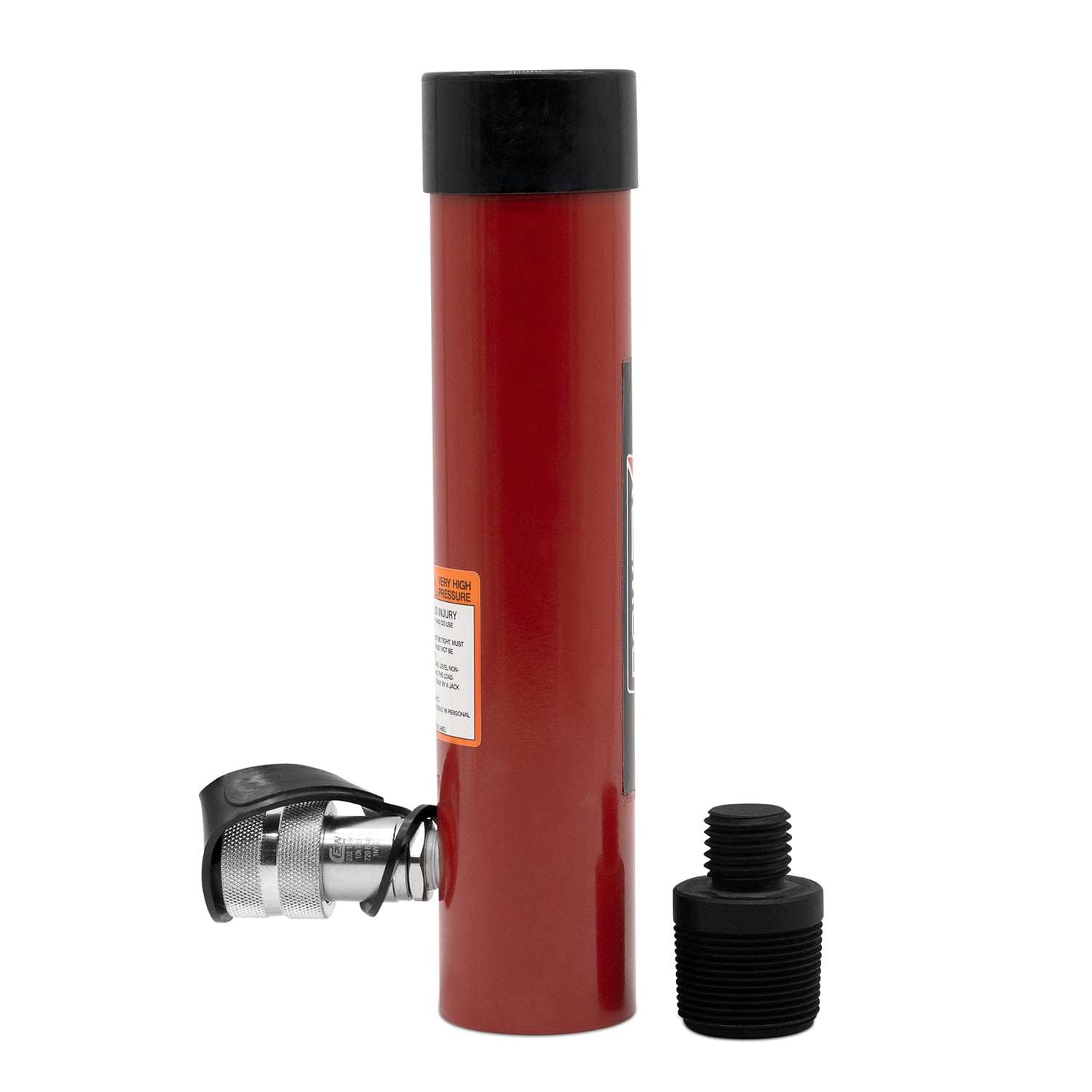

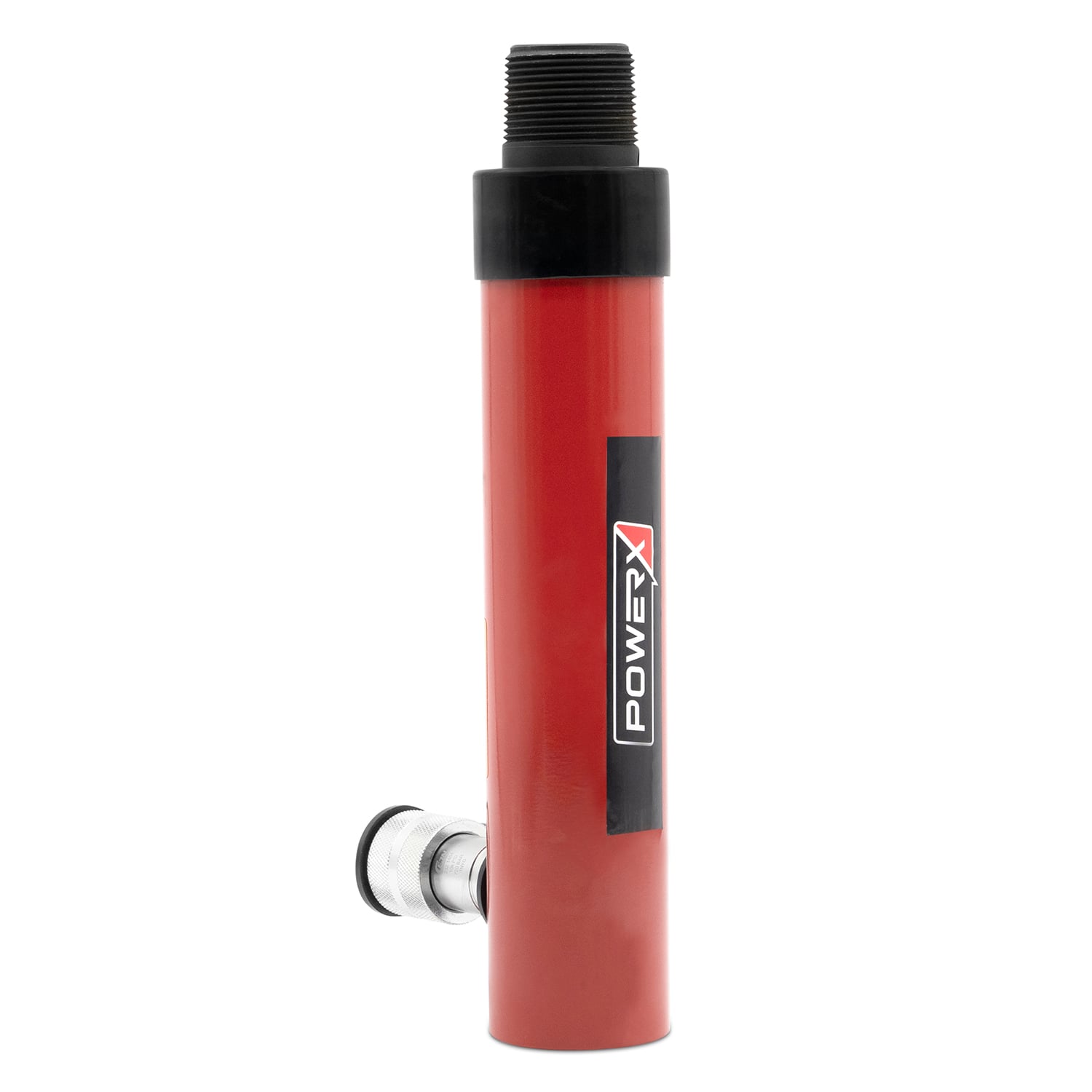

10 Ton cylinder, single acting, 6″ stroke – threaded rod end and base
$574.95
10 Ton cylinder, single acting, 6″ stroke – threaded rod end and base
In stock
10 Ton cylinder, single acting, 6″ stroke – threaded rod end and base
PowerX automotive cylinders are designed to meet your bending, pushing, and holding application needs. These robust, high quality cylinders are designed with collar and base threads that allow for easy customization for your specific application.
- Single Acting with spring return
- Collar and base threads accommodate accessories and adapters
- 3/8” NPTF high flow coupler with dust caps
- Roll Burnished Cylinder increases seal life
- Durable exterior finish and ANSI B30.1 compliant
- Rod end saddle, available as an option
*Contact us for higher tonnage or longer stroke cylinders.
| Weight | 9.8 lbs |
|---|---|
| Dimensions | 13 × 6 × 3 in |
| Base Thread | 1-1/4 – 11-1/2 NPT |
| Rod Thread | 8-Jan |
| Minimum Height (in) | 9.75 |
| Capacity (Tons) | |
| Maximum Height (in) | 15.88 |
| Stroke (in) | 6 |
Cross Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| PowerX | CA10-6 |
| BVA | HT1006 |
| Ram-Pac | RC-10-SA-6A |
| Simplex | - |
| Power Team | C106CBT |
| Enerpac | - |
