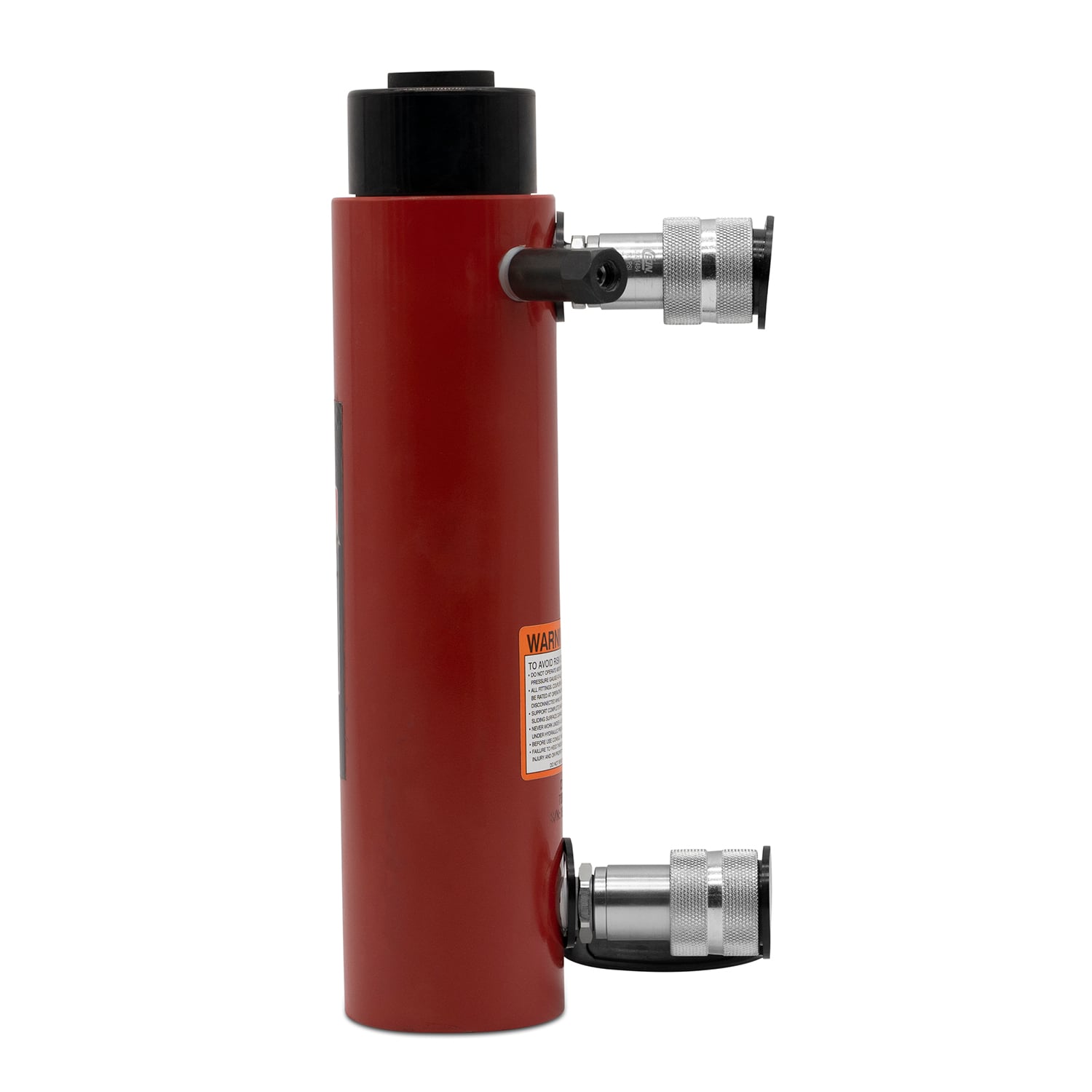

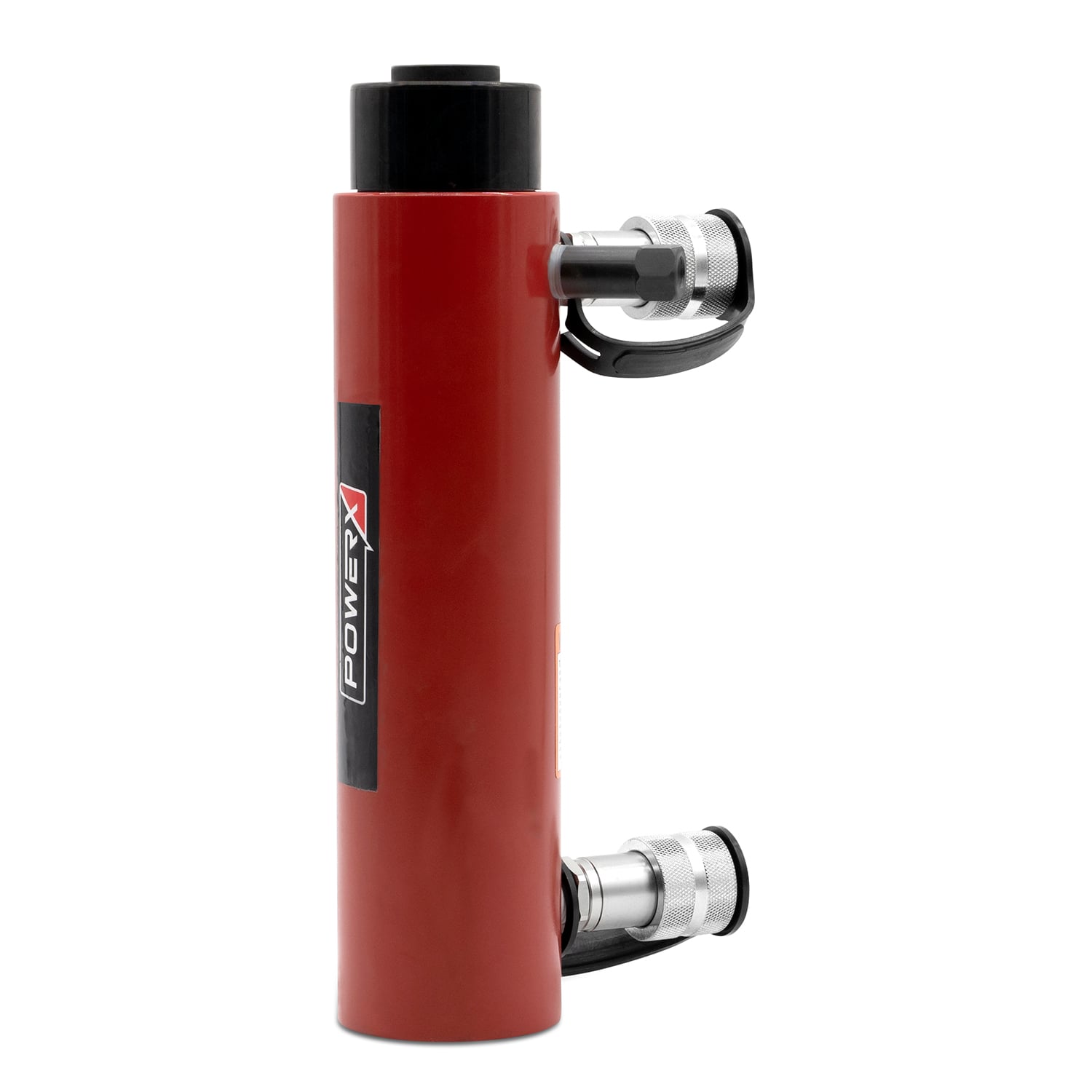

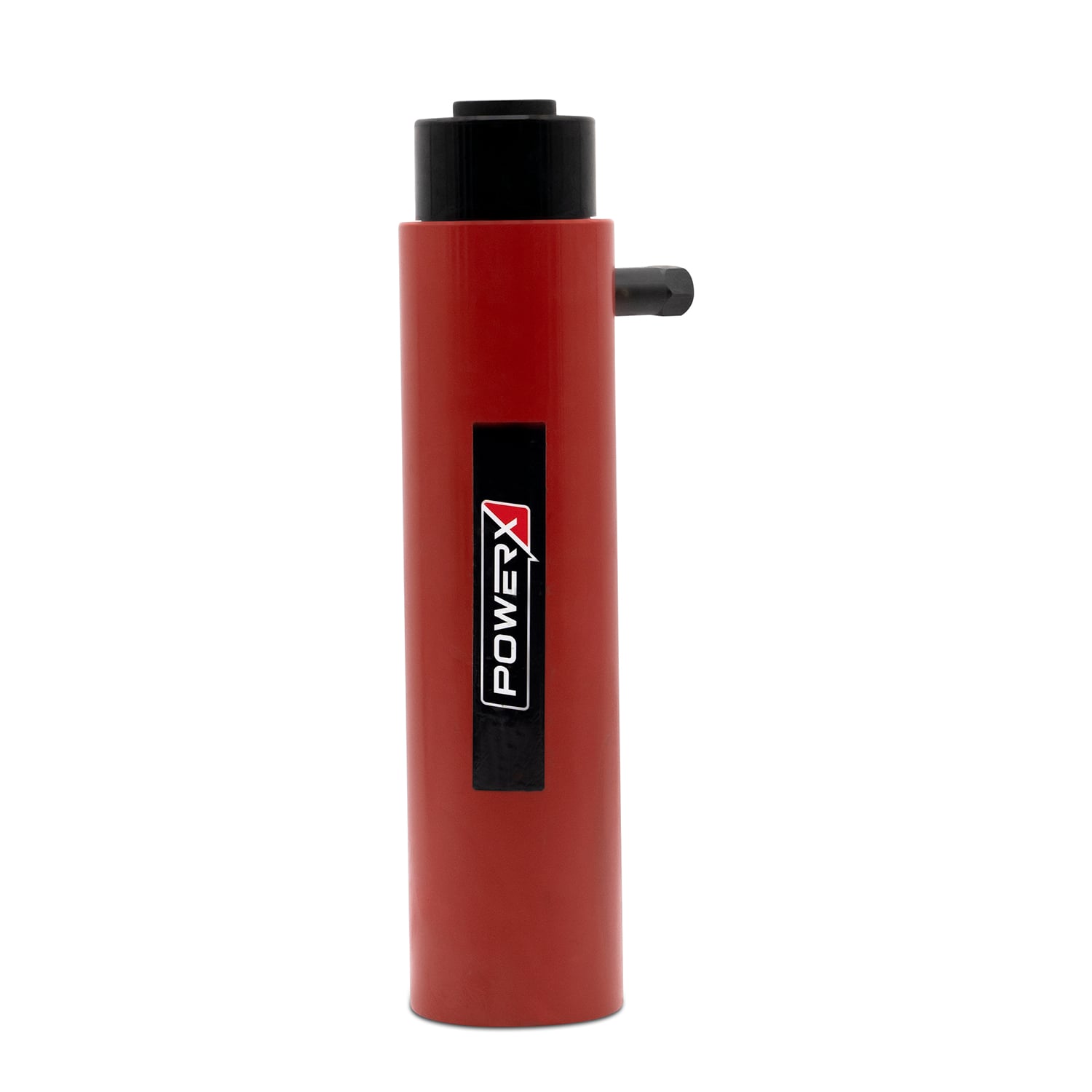

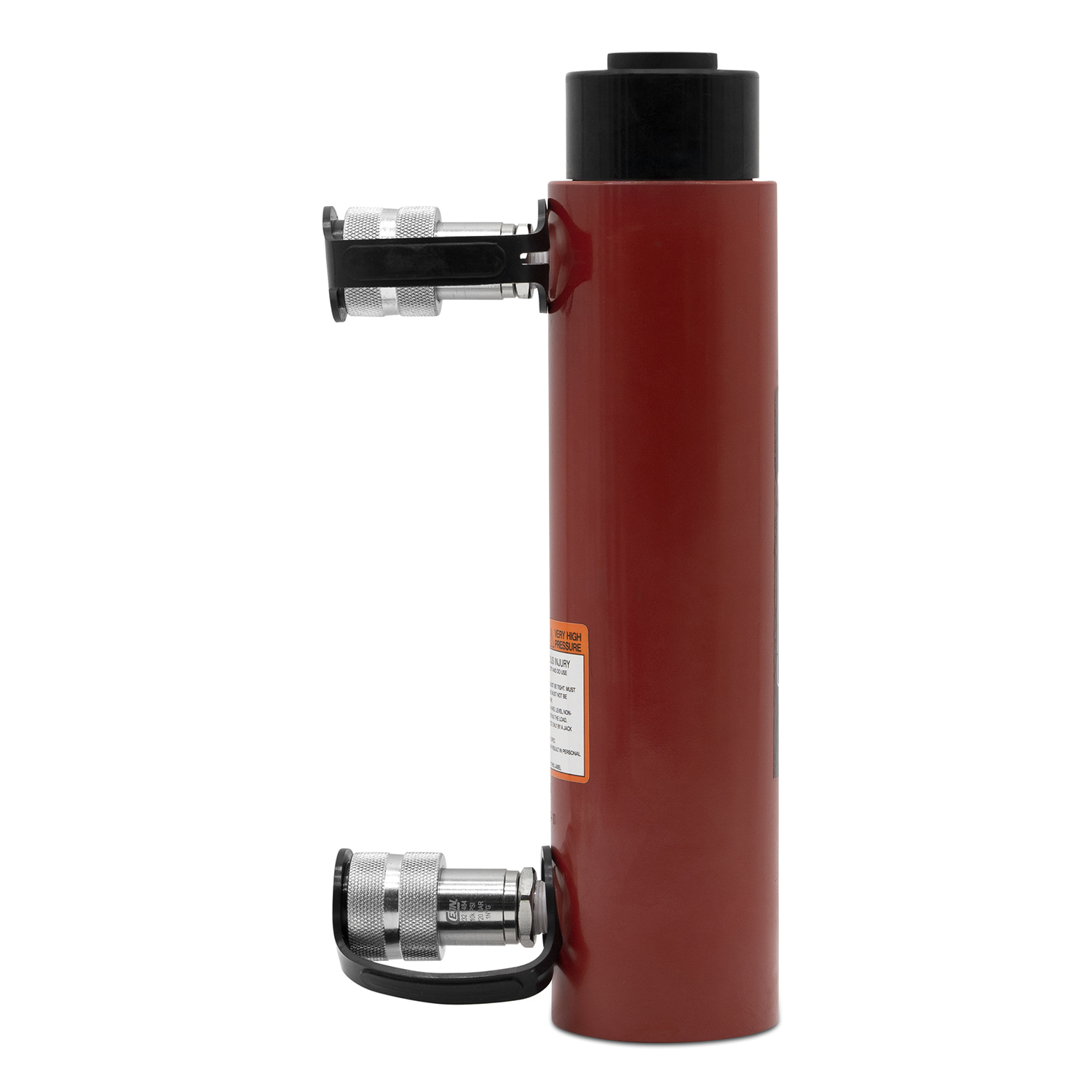

10 Ton cylinder, double acting, 6″ stroke
$1,399.95
10 Ton cylinder, double acting, 6″ stroke
In stock
SKU: CD10-6 Category: Hydraulic Double Acting Cylinders
PowerX double acting cylinders are designed to meet your bending, pushing, and holding application needs. Designed to handle some of the most vigorous applications, these high-quality cylinders come in multiple sizes, stroke lengths, and lifting capacities.
• Double acting, allows for both push and pull forces
• Ability to control cylinder speed in both extension and retraction (additional components required)
• Steel construction and chrome plated plunger
• Available in 10T to 100T capacity with 6″ to 14-1/2″ stroke
• Collar threads for easy fixturing
• 3/8″ NPTF high flow coupler with dust caps
• Durable exterior finish and ANSI B30.1 compliant
| Weight | 20 lbs |
|---|---|
| Dimensions | 13.5 × 4 × 7 in |
| Capacity (Tons) | |
| Stroke (in) | 6 |
| Minimum Height (in) | 12.1 |
| Maximum Height (in) | 18.1 |
Cross Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| PowerX | CD10-6 |
| BVA | - |
| Ram-Pac | RC-10-DA-6 |
| Simplex | - |
| Power Team | RD106 |
| Enerpac | - |
