10 Ton Flat Body High-Pressure Hydraulic Cylinder, 0.44″ Stroke, Single Acting, Low Height, 10,000 PSI

CF10 Flat Body Hydraulic Cylinder – 10 Ton, 0.44″ Stroke, Single Acting – PowerX CF-Series

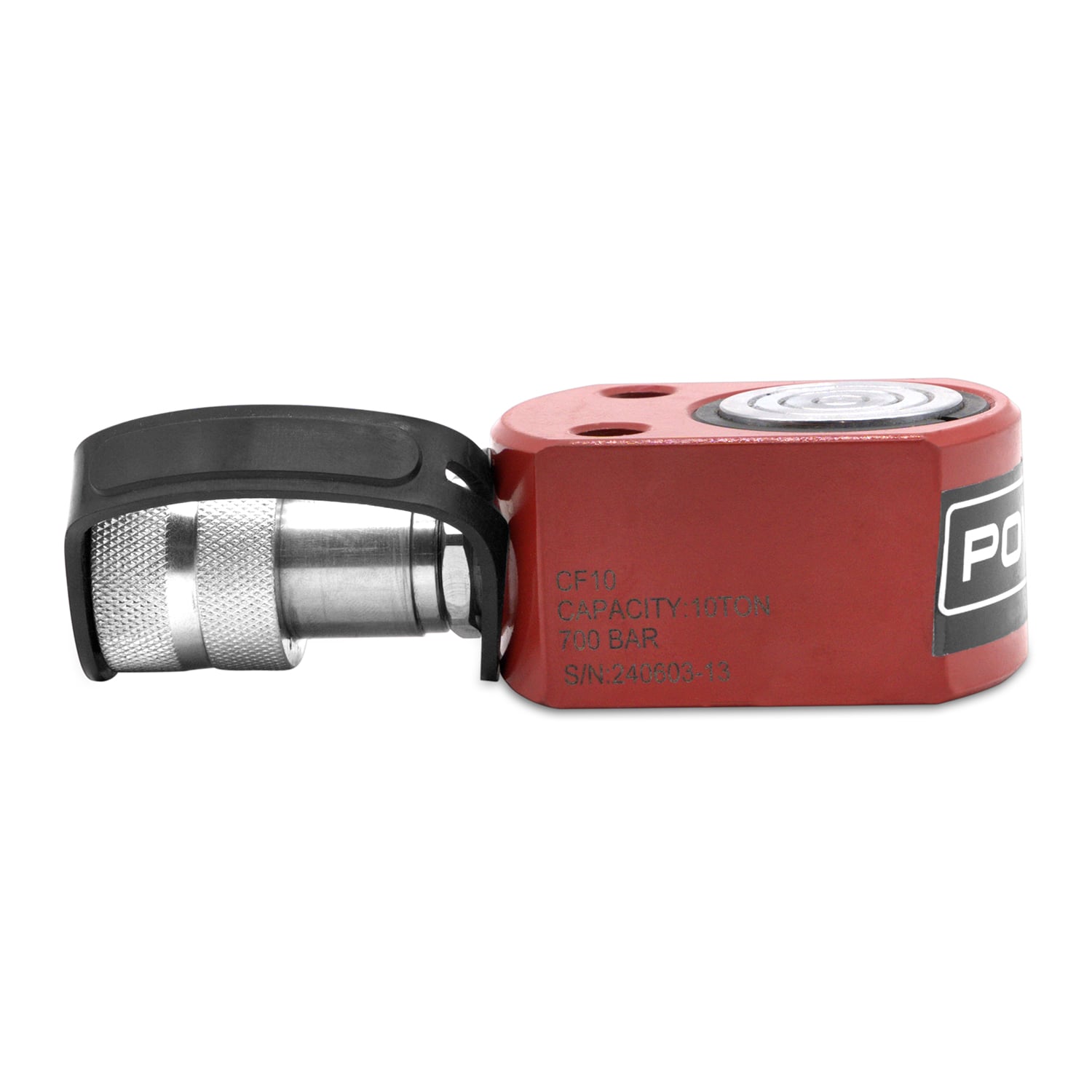

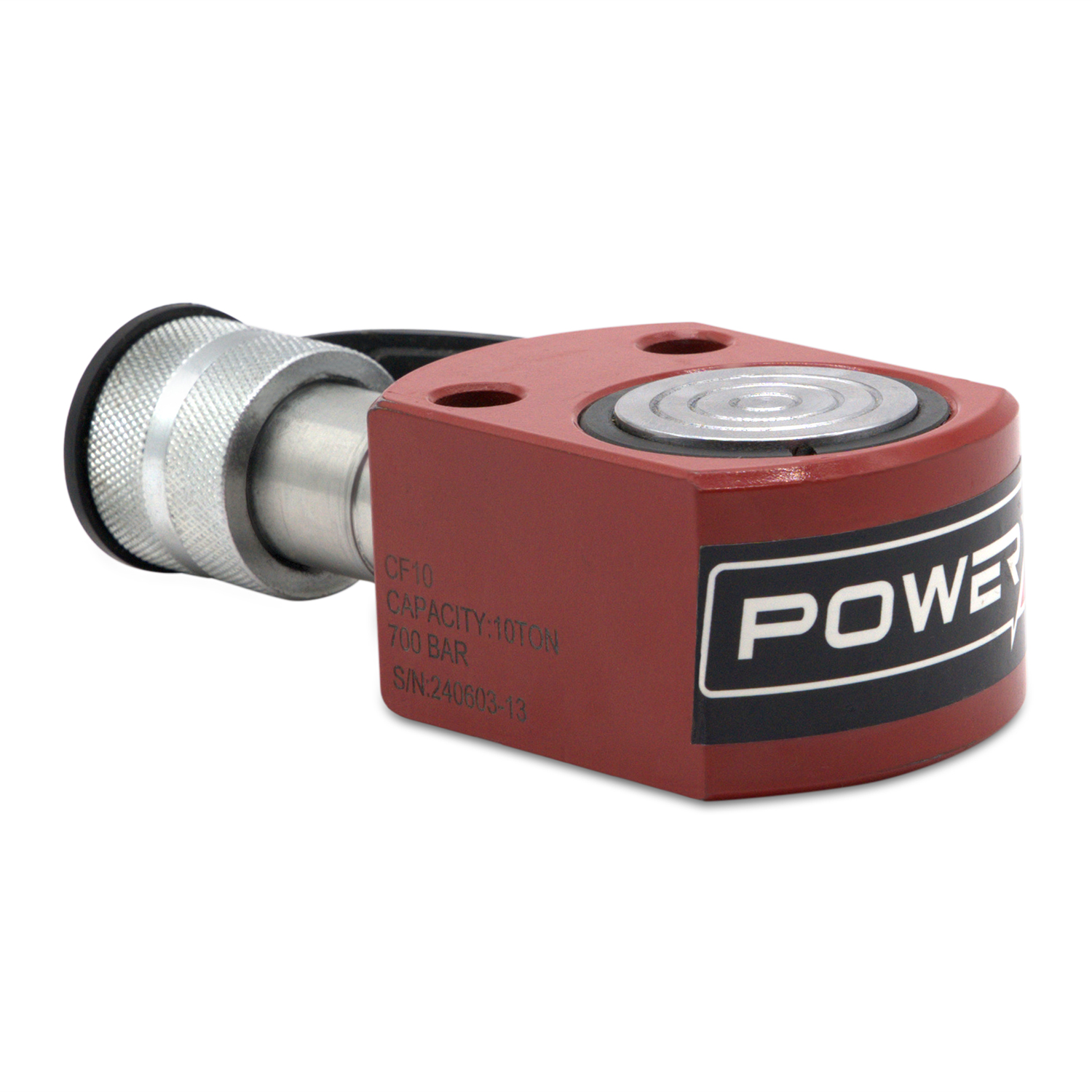

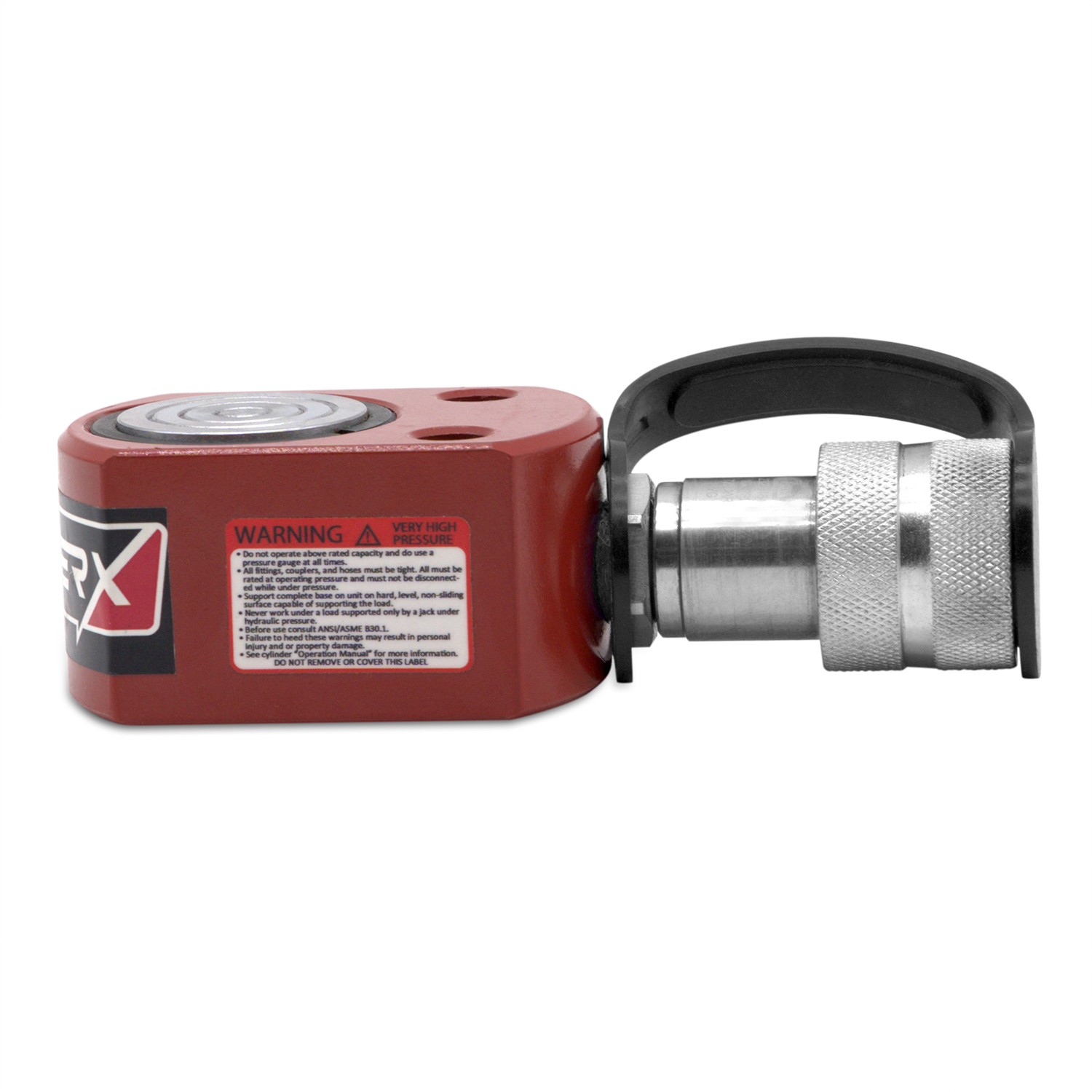

Compact, durable, and built for confined lifting applications, the PowerX CF10 10 Ton 0.44″ Stroke Flat Body Cylinder delivers 10 tons of lifting and pushing force in a low-profile, single-acting spring-return design. Engineered for tight-clearance jobs, this pancake-style cylinder provides full 10,000 PSI performance in a compact form factor. This low height design works well for lifting, pressing, aligning, or leveling heavy equipment and structures where vertical space is limited.

Constructed from high-strength steel and finished with a durable baked enamel coating, the CF10 Hydraulic Low Height Cylinder ensures stability, corrosion resistance, and long service life. Its chrome-plated, grooved plunger eliminates the need for a saddle while providing smooth, consistent motion under load. The spring-return mechanism enables quick retraction after pressure release, improving operational efficiency in repetitive applications.

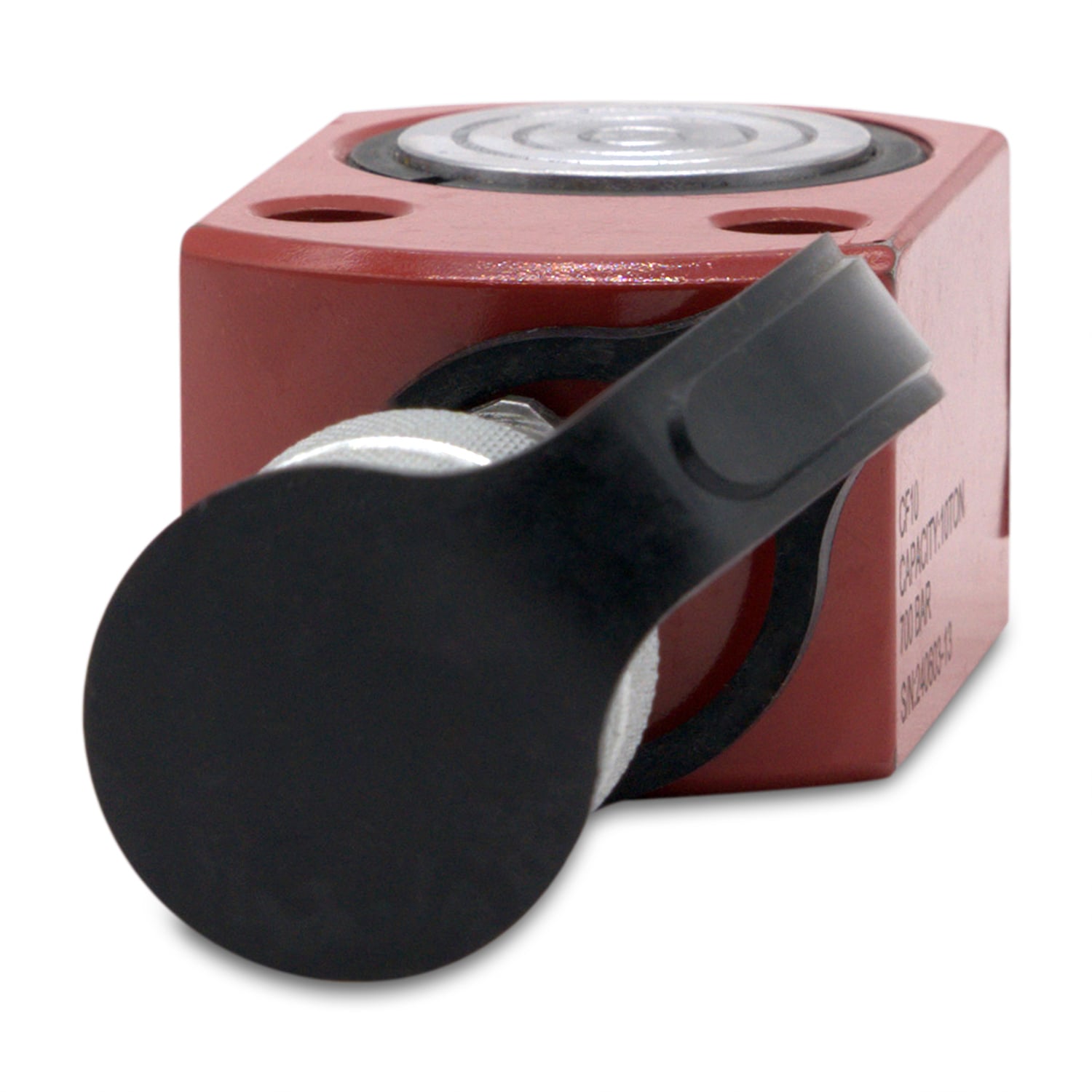

The wide, flat base ensures stability during operation, while mounting holes simplify fixture installation. A 3/8″ NPTF high-flow coupler with protective dust cap allows fast, leak-free connection to any PowerX 10,000 PSI hydraulic pump.

Compact yet powerful, the CF10 delivers professional-grade lifting performance wherever space, safety, and reliability matter most.

Power this high-pressure 10 Ton 0.44″ Stroke Flat Body Cylinder with PowerX high-pressure hydraulic pumps and power units. This includes Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for consistent, reliable 10,000 PSI performance.

Features:

• Low-profile, high-tonnage flat body design ideal for tight-clearance lifting applications
• Single-acting, spring-return operation for fast, automatic retraction
• High-strength steel body resists distortion and heavy side loading
• Chrome-plated grooved plunger ensures smooth motion and eliminates need for saddle
• Mounting holes for secure fixture integration
• 3/8″ NPTF high-flow coupler with dust cap for leak-free hydraulic connection
• Durable baked enamel finish resists corrosion and wear
• ANSI B30.1 compliant for safety and quality assurance

Performance:

• Capacity: 10 Tons
• Stroke: 0.44″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 0.98 in³
• Operation Type: Single Acting, Spring Return

Dimensions:

• Collapsed Height: 1.69″
• Extended Height: 2.13″
• Outside Diameter: 3.25″ × 2.19″
• Rod Diameter: 1.5″
• Mount Hole Diameter: 0.28″
• Weight: 4 lbs

Applications:

• Lifting and alignment in low-clearance areas
• Machine setup, die separation, and fixturing
• Structural and heavy-equipment positioning
• Industrial maintenance and precision leveling
• Manufacturing, fabrication, and repair operations
