20 Ton Flat Body High-Pressure Hydraulic Cylinder, 0.44″ Stroke, Single Acting, Low Height, 10,000 PSI
$899.95
20 Ton Flat Body High-Pressure Hydraulic Cylinder, 0.44″ Stroke, Single Acting, Low Height, 10,000 PSI
In stock
SKU: CF20 Categories: Hydraulic Cylinders, Hydraulic Flat Body Cylinders

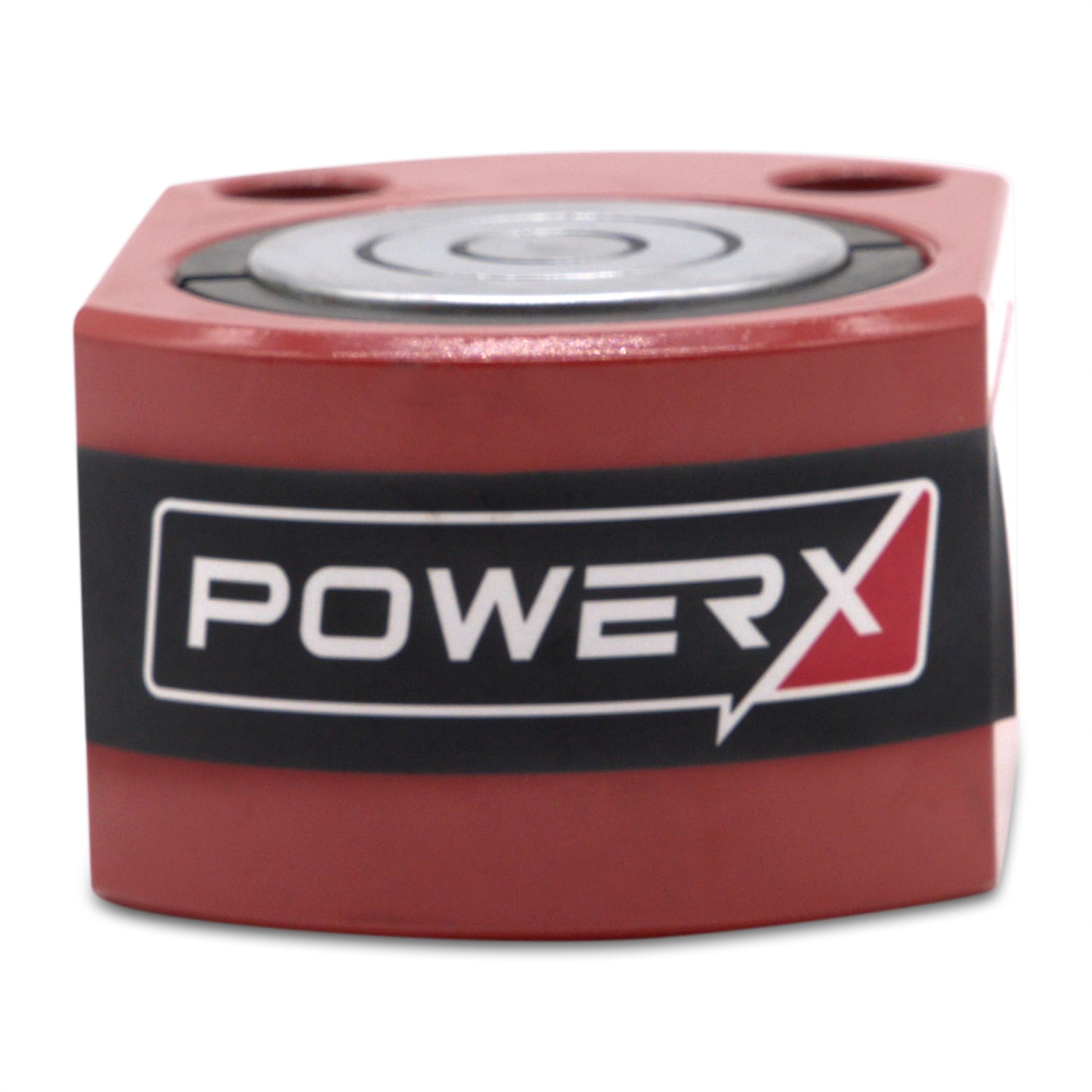

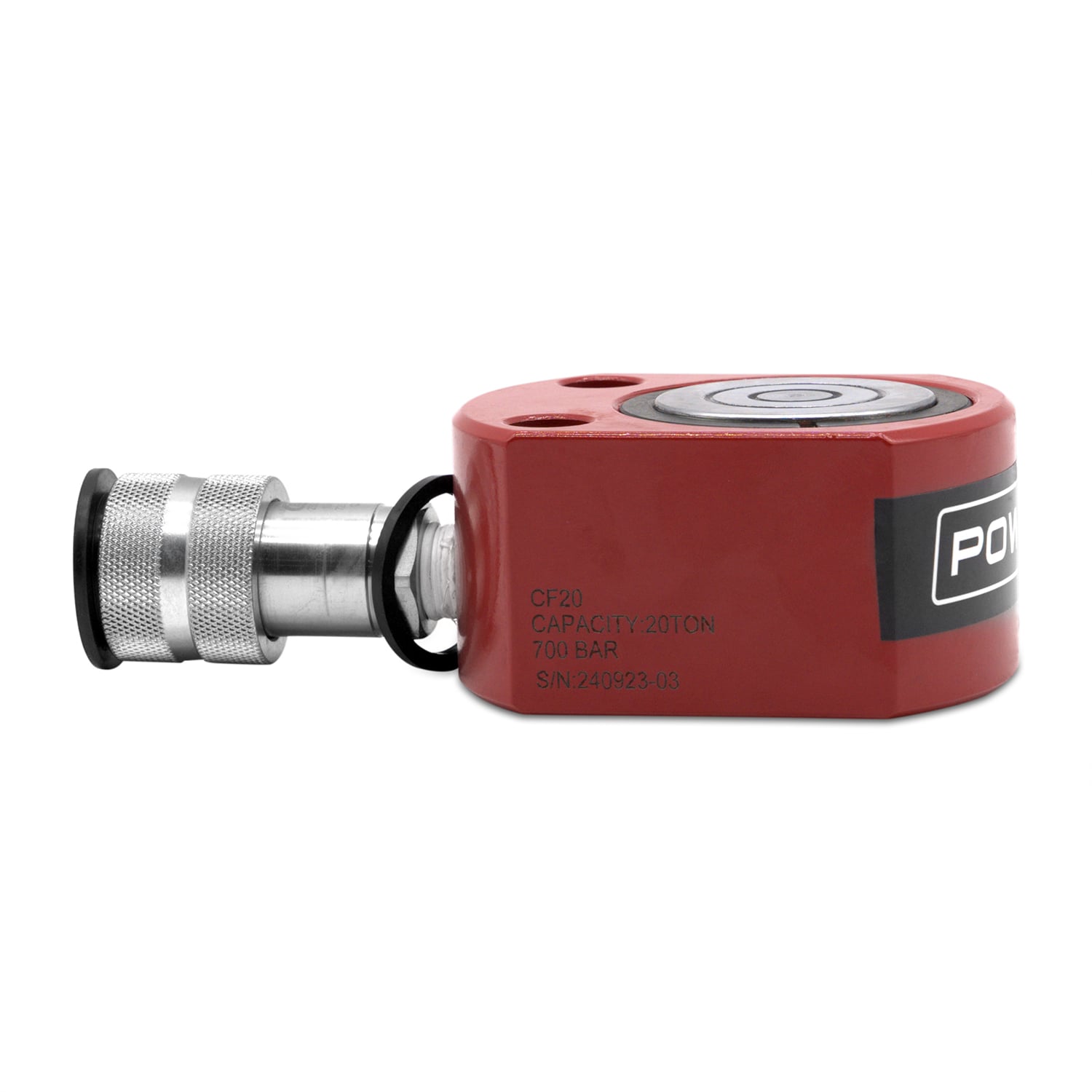

CF20 Flat Body Hydraulic Cylinder – 20 Ton, 0.44″ Stroke, Single Acting – PowerX CF-Series
The PowerX CF20 Flat Body Hydraulic Cylinder delivers 20 tons of lifting power in a low-profile, single-acting design engineered for tight spaces and heavy-duty performance. Ideal for lifting, pressing, pushing, or positioning applications where vertical clearance is limited, this pancake-style hydraulic cylinder combines high force output with precision control and proven PowerX durability.
Built from hardened alloy steel and rated for 10,000 PSI (700 bar), the CF20 high-pressure hydraulic pancake cylinder provides unmatched strength and stability in compact form. The short stroke and wide base ensure safety and balance during high-force operation, while the chrome-plated, grooved plunger resists corrosion and allows smooth, stable movement.
Unlike load-return designs, the CF20 Low Height Cylinder features a heavy-duty spring return for fast, automatic retraction, improving productivity and reducing downtime between cycles. Two base mounting holes enable secure fixturing on equipment or structures, and the 3/8″ NPTF high-flow coupler with dust cap ensures quick, leak-free hydraulic connections to high-pressure hydraulic pumps.
Designed for maximum power in minimal space, the CF20 Flat Body Cylinder is a trusted solution for construction, manufacturing, shipbuilding, mining, and maintenance applications that demand compact, high-tonnage lifting capability.
Power this cylinder with PowerX Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for consistent, reliable 10,000 PSI performance.
Features:
- Low-profile, high-tonnage flat body design ideal for confined lifting applications
- Single-acting, spring-return operation for faster, more efficient retraction
- Hardened steel body resists distortion under full load
- Chrome-plated plunger with grooved end eliminates need for a saddle
- Two base mounting holes for secure attachment or fixture integration

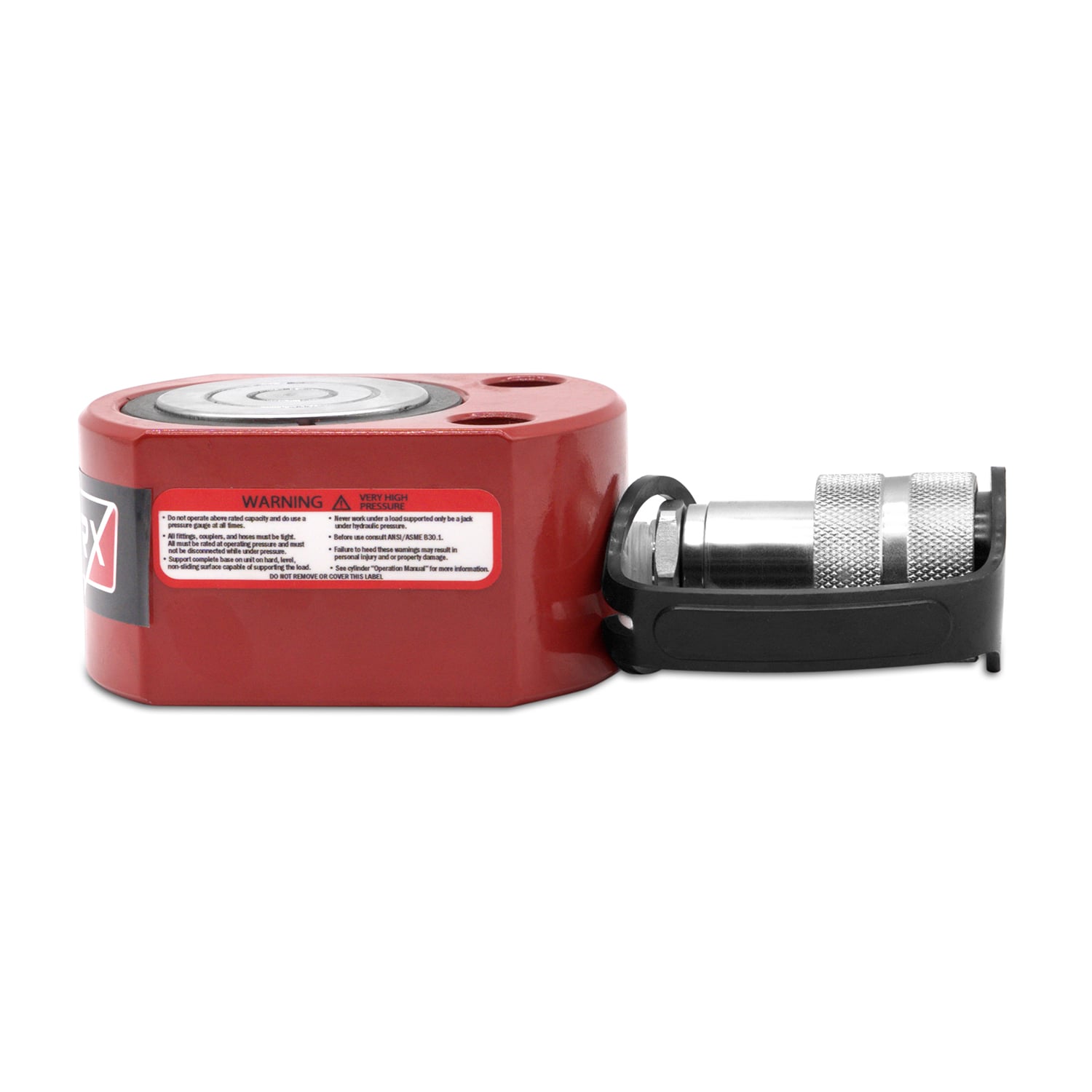

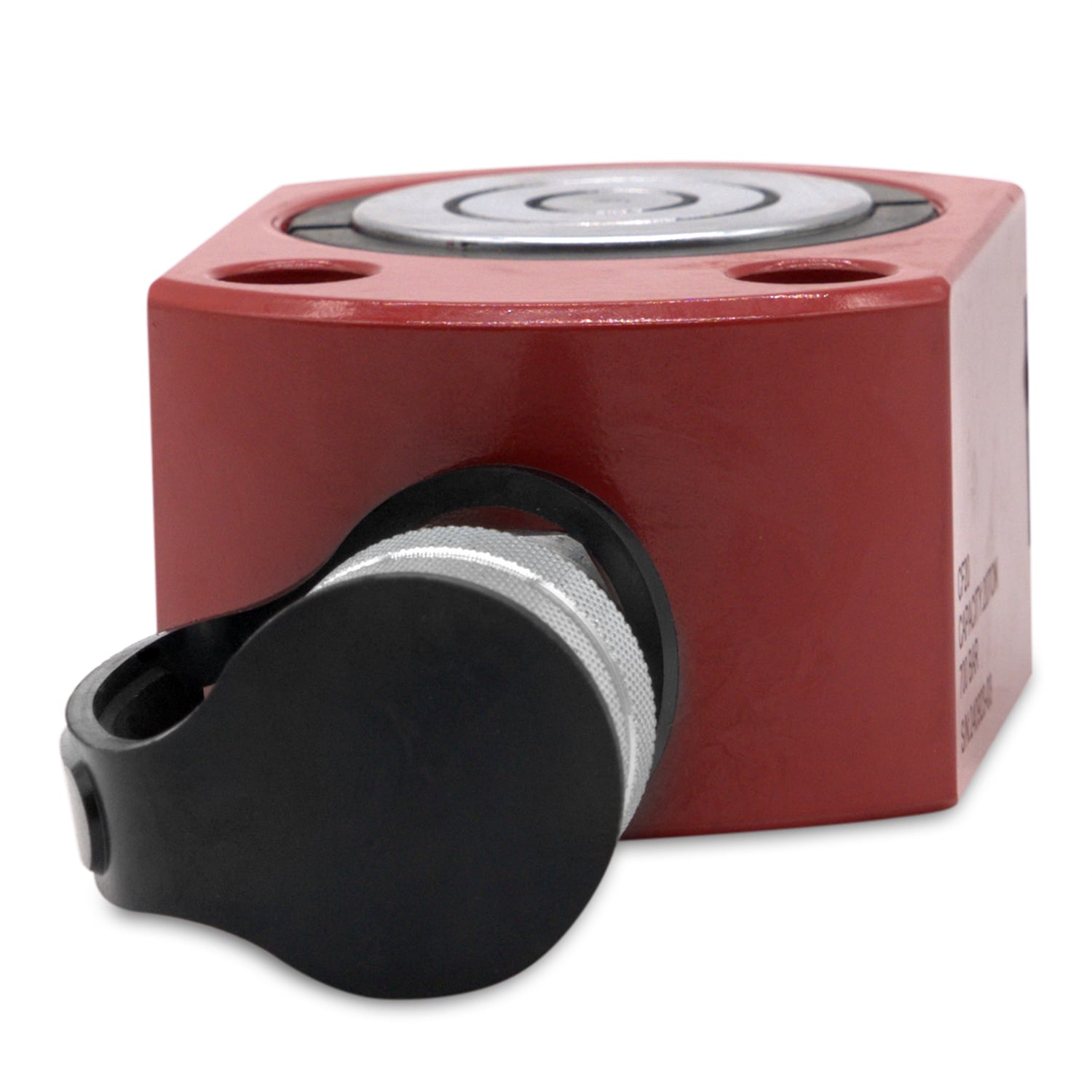

- 3/8″ NPTF high-flow coupler with dust cap included
- Durable baked enamel finish for corrosion resistance
- ANSI B30.1 compliant and engineered for long service life
Performance:
- Capacity: 20 Tons
- Stroke: 0.44″
- Maximum Pressure: 10,000 PSI (700 Bar)
- Oil Capacity: 1.95 in³
- Operation Type: Single Acting, Spring Return
Dimensions:
- Collapsed Height: 2.03″
- Extended Height: 2.47″
- Outside Diameter: 4.00″ × 3.00″
- Rod Diameter: 2.00″
- Base to Adv. Port: 0.75″
- Rod to Mount Hole: 1.56″
- Hole Diameter: 0.40″
- Weight: 7 lbs
Applications:
- Low-clearance lifting and leveling
- Structural and equipment alignment
- Machinery setup and press applications
- Die separation and fixture clamping
- Heavy construction and fabrication environments
Need Help Choosing the Right Cylinder?
Check out our guide, How to Choose the Right Hydraulic Cylinder, Jack, or Ram for Lifting Applications. It covers tonnage, stroke, cylinder types, and safety factors to help you choose confidently.
Don’t see your exact fit?
PowerX designs and manufactures custom-built hydraulic cylinders for construction, mining, industrial, transportation, mobile equipment or oil & gas industries. Use our Custom Cylinder Configurator Tool to request a quote today.
| Weight | 7 lbs |
|---|---|
| Dimensions | 7.25 × 4 × 2.5 in |
| Capacity (Tons) | |
| Stroke (in) | 0.44 |
| Minimum Height (in) | 2.03 |
| Maximum Height (in) | 2.47 |
Cross Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| PowerX | CF20 |
| BVA | HF2005 |
| Ram-Pac | RC-20-LP-.5 |
| Simplex | RFS20 |
| Power Team | RLS200 |
| Enerpac | RSM-200 |
