50 Ton Flat Body High-Pressure Hydraulic Cylinder, 0.63″ Stroke, Single Acting, Low Height, 10,000 PSI

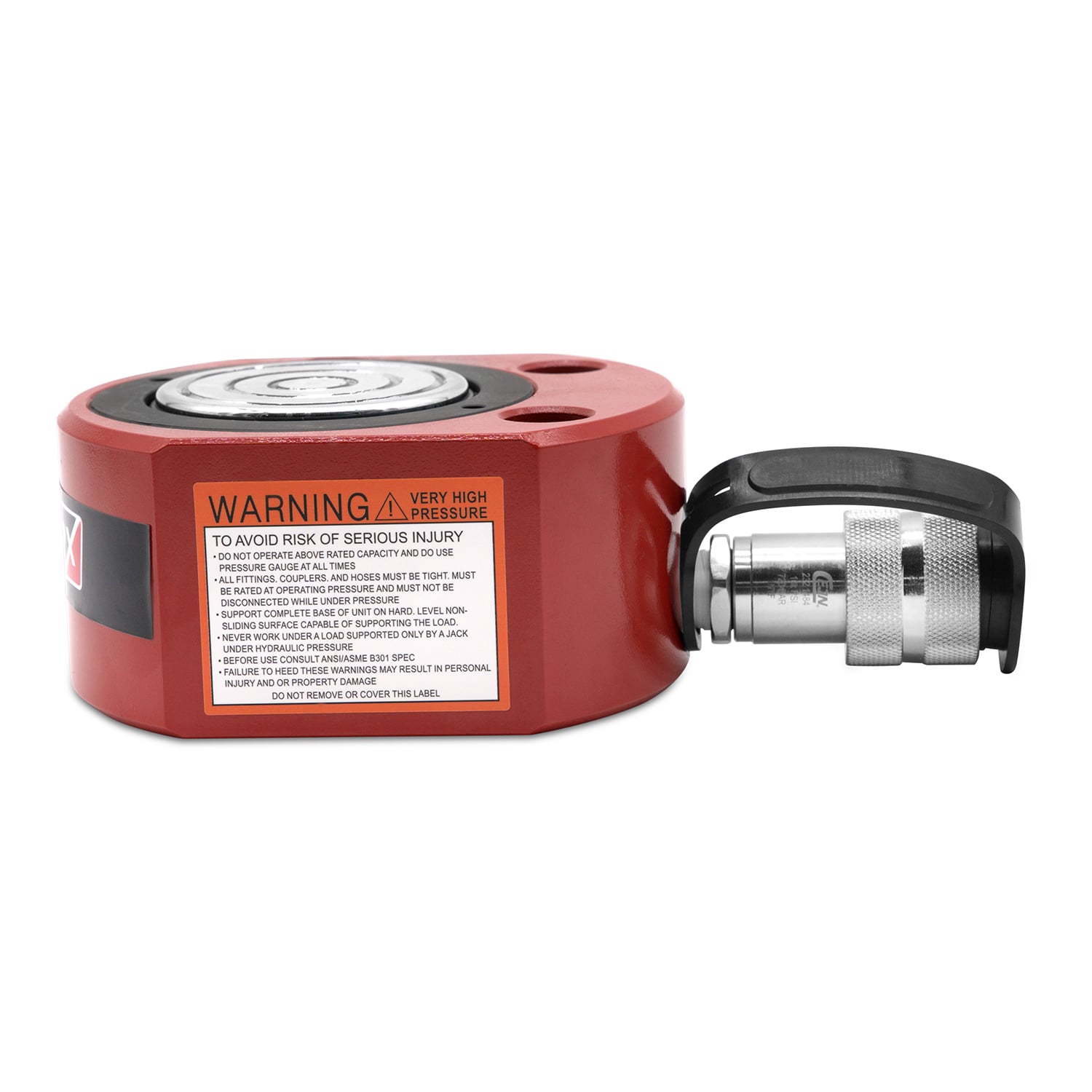

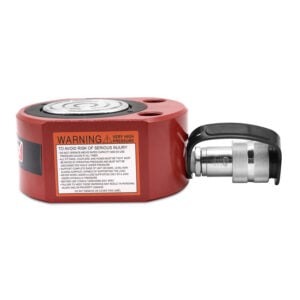

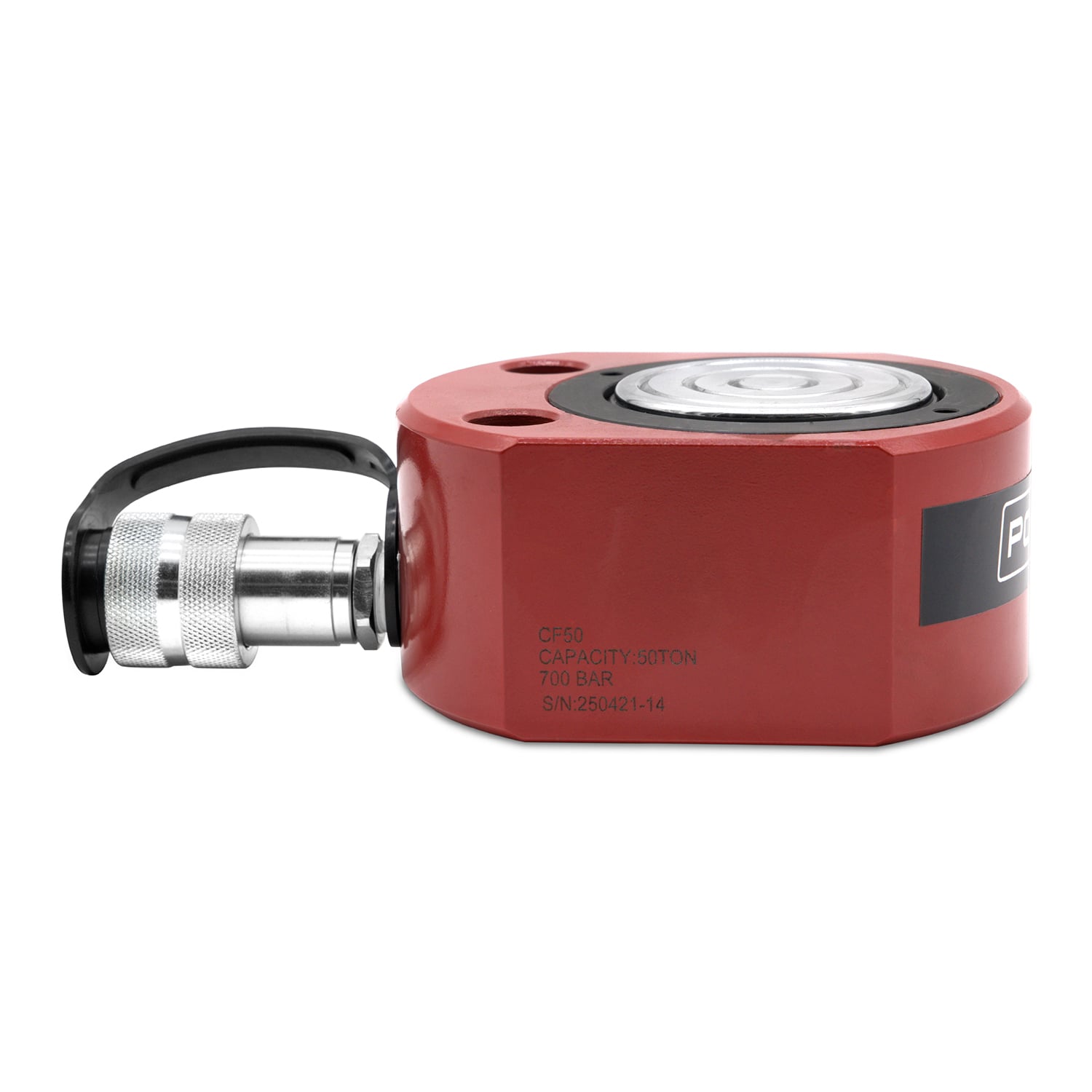

CF50 Flat Body Hydraulic Cylinder – 50 Ton, 0.63″ Stroke, Single Acting – PowerX CF-Series

High tonnage meets low height in the PowerX CF50 Flat Body Hydraulic Cylinder, delivering 50 tons of lifting force in a compact, single-acting spring-return design. Built for tight-clearance applications that demand high-pressure performance, this low-profile hydraulic cylinder (also known as a pancake jack or ram) is perfect for lifting, leveling, pressing, and alignment tasks across construction, mining, industrial, and heavy-equipment maintenance environments.

Rated to 10,000 PSI (700 bar), the CF50 Low Height Cylinder provides smooth, consistent power and superior stability under heavy load. Its hardened alloy-steel body resists distortion, while the chrome-plated, grooved plunger ensures smooth movement without the need for a saddle. A built-in spring-return system allows fast and reliable retraction after pressure release, boosting productivity and efficiency in repetitive cycles.

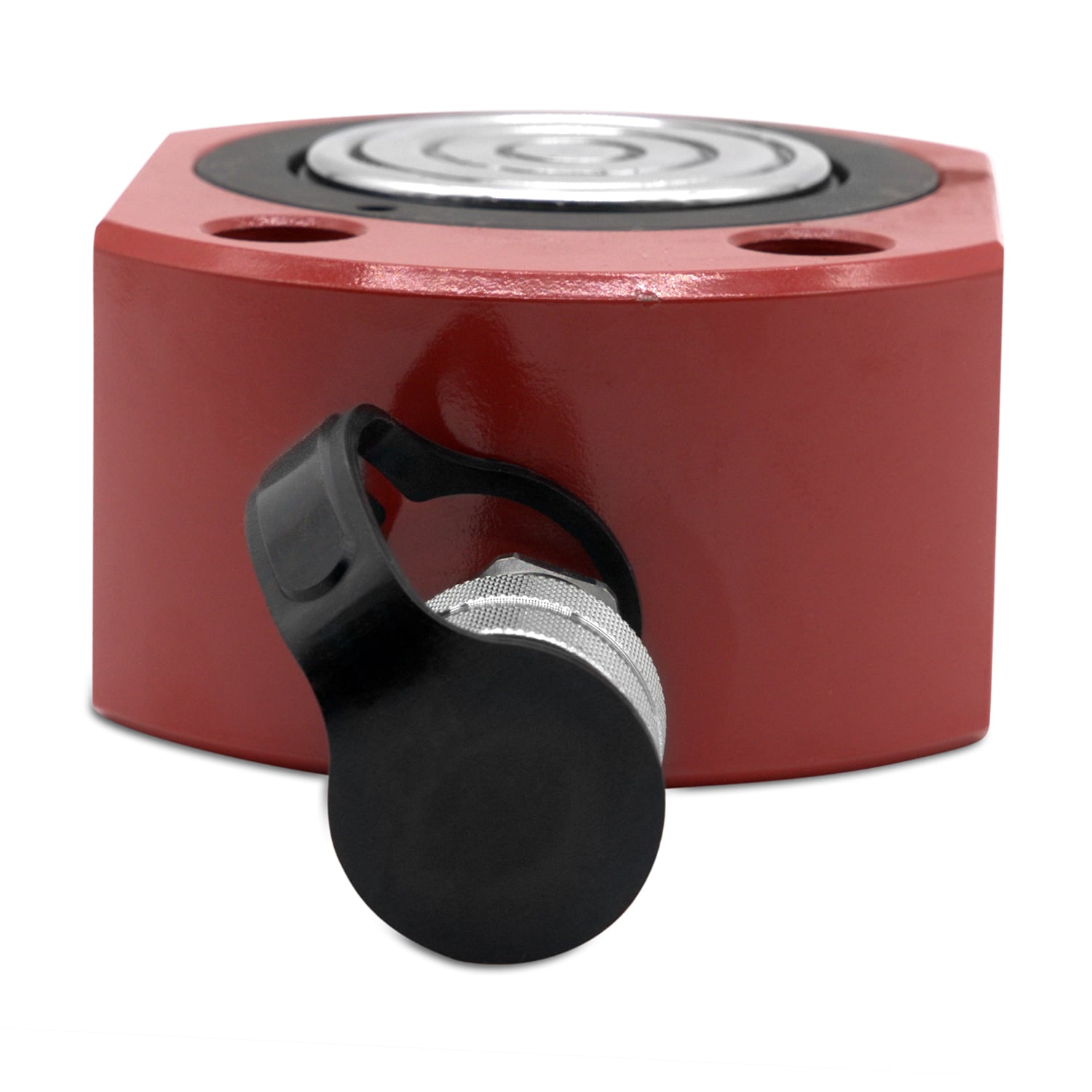

The wide, flat base delivers stability during high-tonnage lifting, and dual mounting holes enable secure attachment for fixture or press integration. The 3/8″ NPTF high-flow coupler with protective dust cap ensures quick, leak-free connection to PowerX hydraulic pumps for dependable operation in demanding environments.

Engineered for strength, precision, and longevity, the CF50 combines PowerX reliability with compact, high-pressure performance you can count on.

Power this cylinder with PowerX high-pressure hydraulic pumps and power units, including Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for consistent, reliable 10,000 PSI performance.

Features:

• Low-profile, high-tonnage flat body design ideal for confined lifting and pressing applications
• Single-acting, spring-return operation for fast retraction and increased productivity
• Hardened steel body ensures durability and resistance to side loading
• Chrome-plated, grooved plunger eliminates need for a saddle and resists corrosion
• Two base mounting holes for secure fixture integration
• 3/8″ NPTF high-flow coupler with dust cap included
• Durable baked enamel finish for corrosion resistance
• ANSI B30.1 compliant for safety and quality assurance

Performance:

• Capacity: 50 Tons
• Stroke: 0.55″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 6.07 in³
• Operation Type: Single Acting, Spring Return

Dimensions:

• Collapsed Height (A): 2.63″
• Extended Height (B): 3.25″
• Outside Diameter (D): 5.5″ × 4.5″
• Rod Diameter (E): 2.75″
• Mount Hole Diameter (G): 0.47″
• Weight: 15 lbs

Applications:

• Low-clearance lifting, leveling, and pressing
• Bridge, structure, and equipment alignment
• Machinery setup and maintenance
• Manufacturing, fabrication, and repair operations
• Confined-space heavy-lift and high-force positioning tasks
