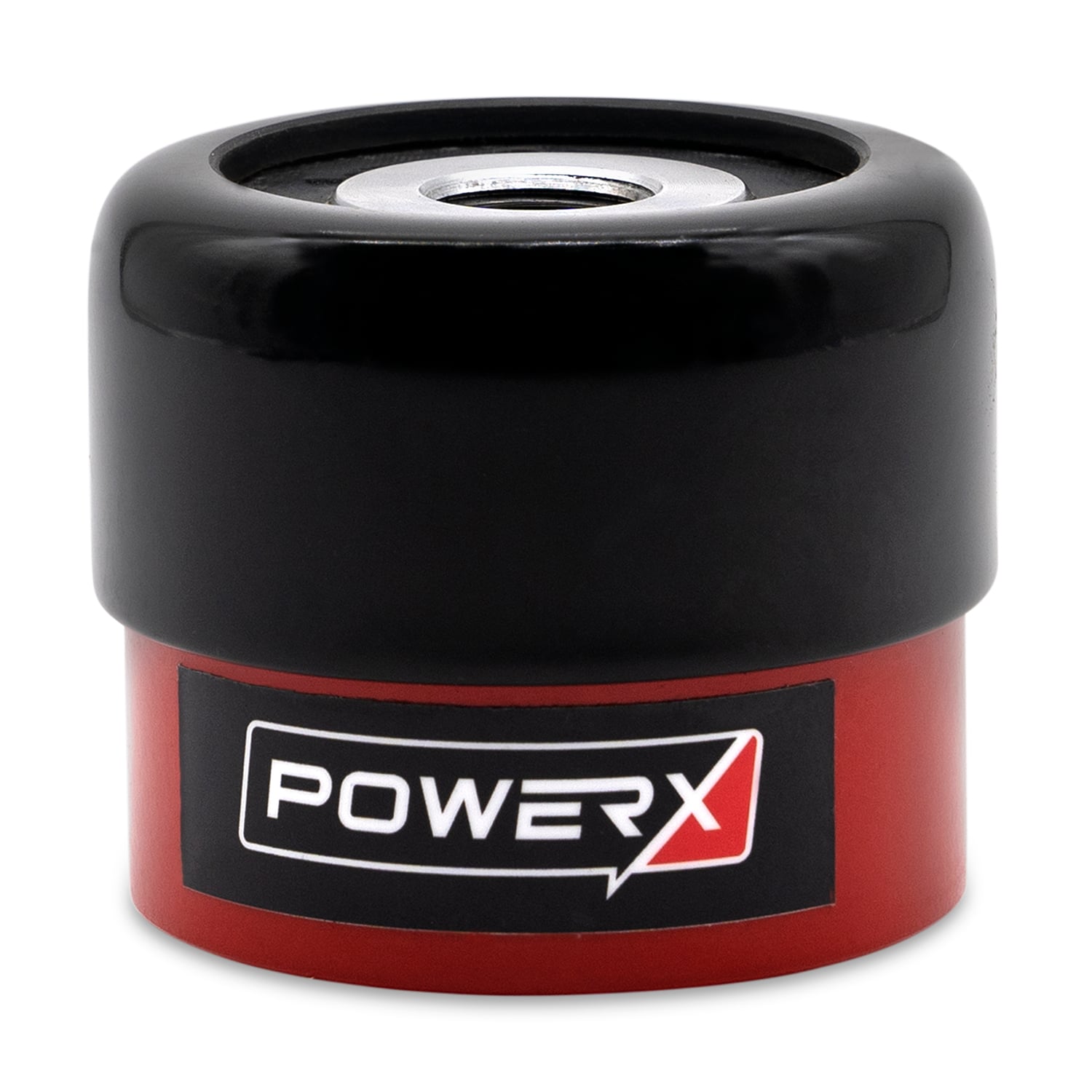

Product Photo of CH12-0

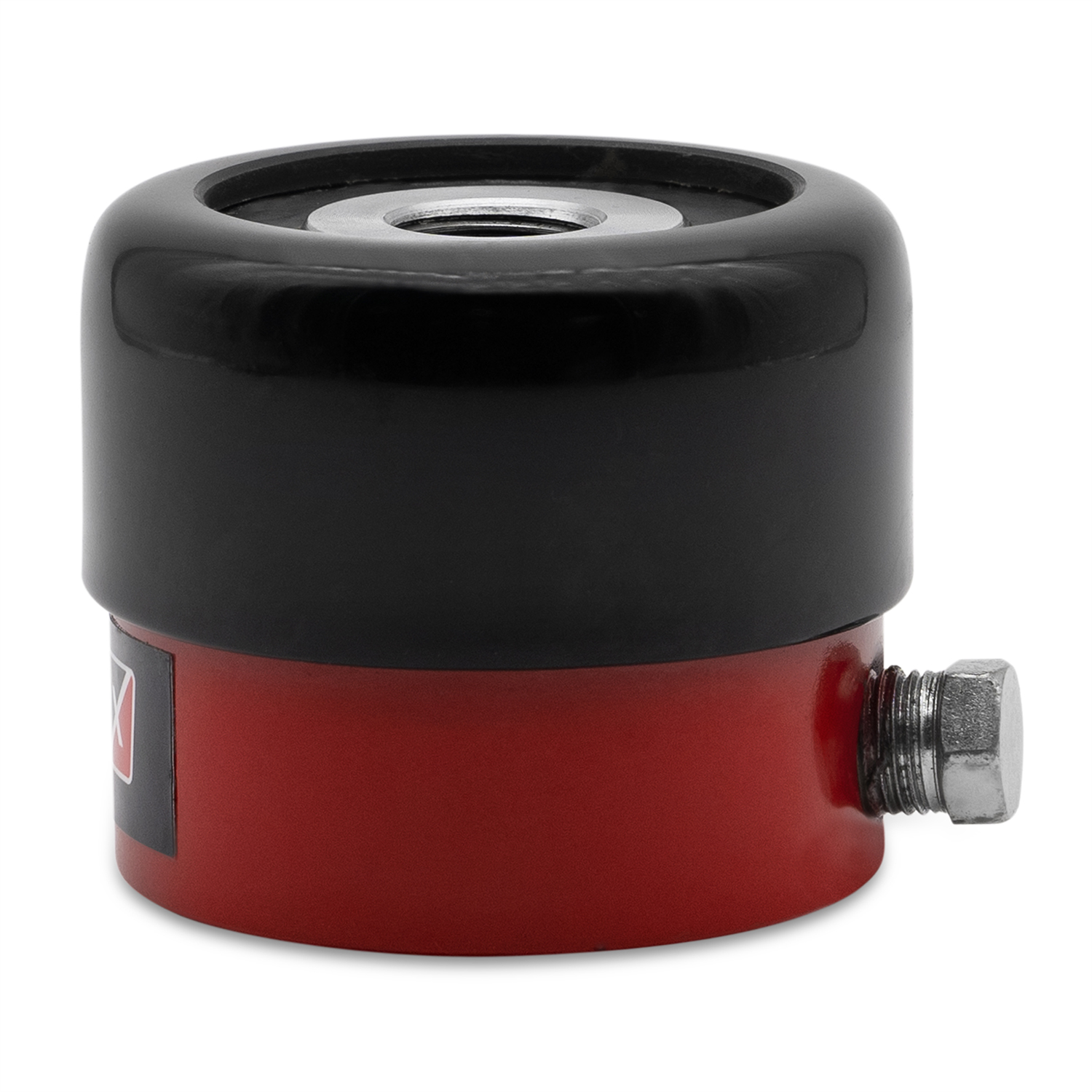

12 Ton center hole cylinder, single acting, 1.63 stroke - Image 2

12 Ton center hole cylinder, single acting, 1.63 stroke

$939.95

12 Ton center hole cylinder, single acting, 1.63 stroke

In stock

SKU: CH12-2 Categories: Hydraulic Center Hole Cylinders, Hydraulic Cylinders

Description
Additional information

<span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span><span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>

12 Ton cylinder, single acting, 2″ stroke

PowerX center hole cylinders are designed to perform both push and pull applications. These high quality, durable cylinders come in various sizes, stroke lengths, and lifting/pulling capacities.

Single Acting, steel construction, spring return
Threaded collar, threaded plunger & base mounting holes for easy fixturing
3/8” NPTF high flow coupler with dust caps
Durable exterior finish and ANSI B30.1 compliant
Hollow chrome plated plunger design allows for both, push and pull forces

*Contact us for higher tonnage or longer stroke cylinders.

Download Catalog Page

Weight	6 lbs
Dimensions	5.5 × 3 × 5 in
Capacity (Tons)	12 Tons
Stroke (in)	2
Minimum Height (in)	4.8
Maximum Height (in)	6.38
Center Hole Diameter (in)	0.77

Cross Reference Part Numbers

Manufacturer	Part Number
PowerX	CH12-2
BVA	HC1202T
Ram-Pac	–
Simplex	RC121A
Power Team	RH121
Enerpac	RCH-121
