Center Hole High-Pressure Hydraulic Cylinder, 20 Ton, 2″ Stroke, Single Acting, Hollow Plunger, 10,000 PSI

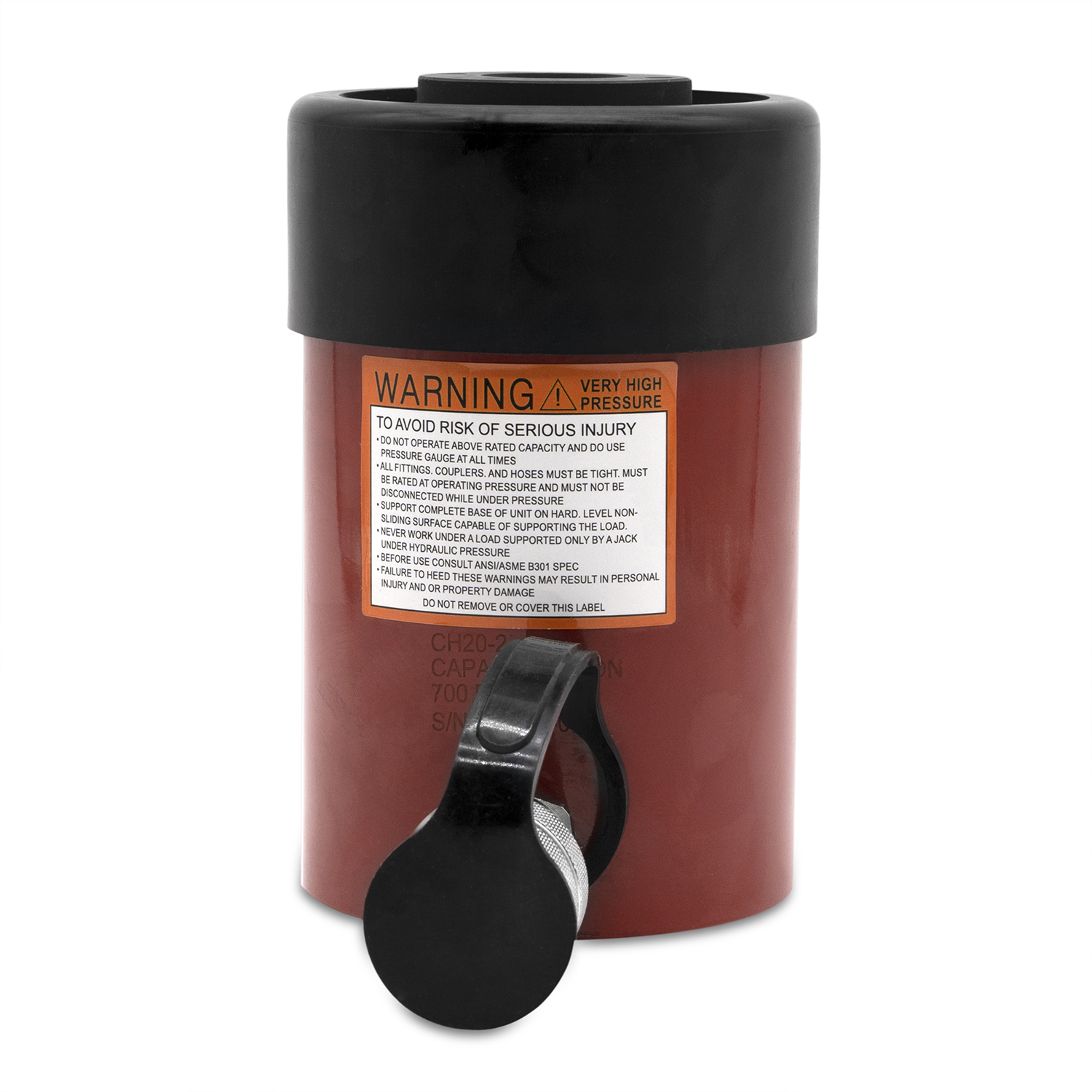

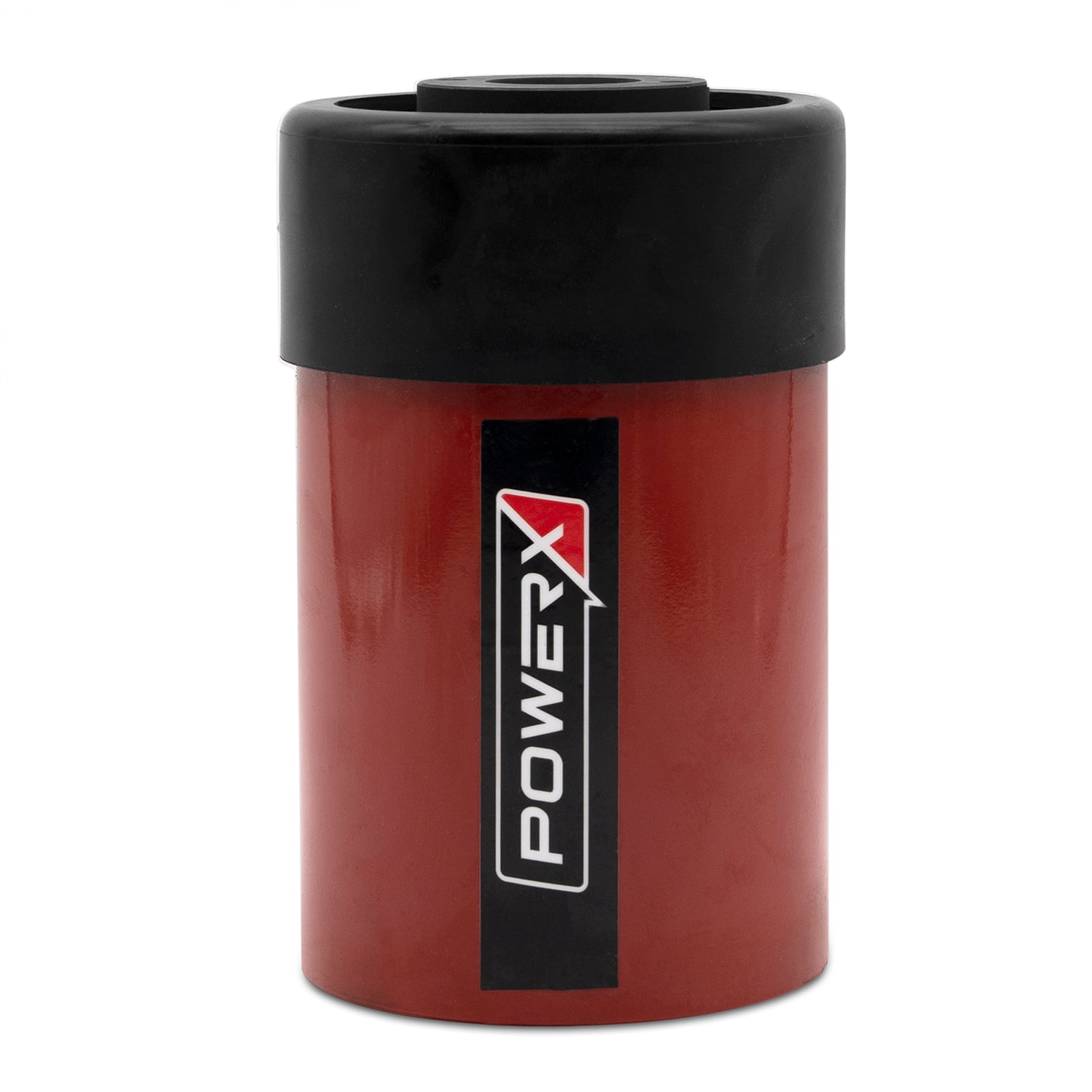

CH20-2 Center Hole Hydraulic Cylinder – 20 Ton, 2″ Stroke, Single Acting – PowerX CH-Series

Compact, durable, and engineered for precision, the PowerX CH20-2 Center Hole Hydraulic Cylinder delivers 20 tons of pulling or pushing force in a single-acting, spring-return design. Its hollow plunger (center-hole) construction allows both tension and compression operations, making it ideal for bolt tensioning, bearing removal, cable pulling, and precision lifting where direct center-line force is required.

Rated for 10,000 PSI (700 bar), the CH20-2 Hollow Plunger Hydraulic Cylinder provides smooth, controlled performance under high pressure while maintaining long-term reliability. Its heat-treated steel body withstands heavy side loads, and the chrome-plated hollow piston combined with roll-burnished cylinder walls ensures minimal friction, reduced wear, and extended seal life.

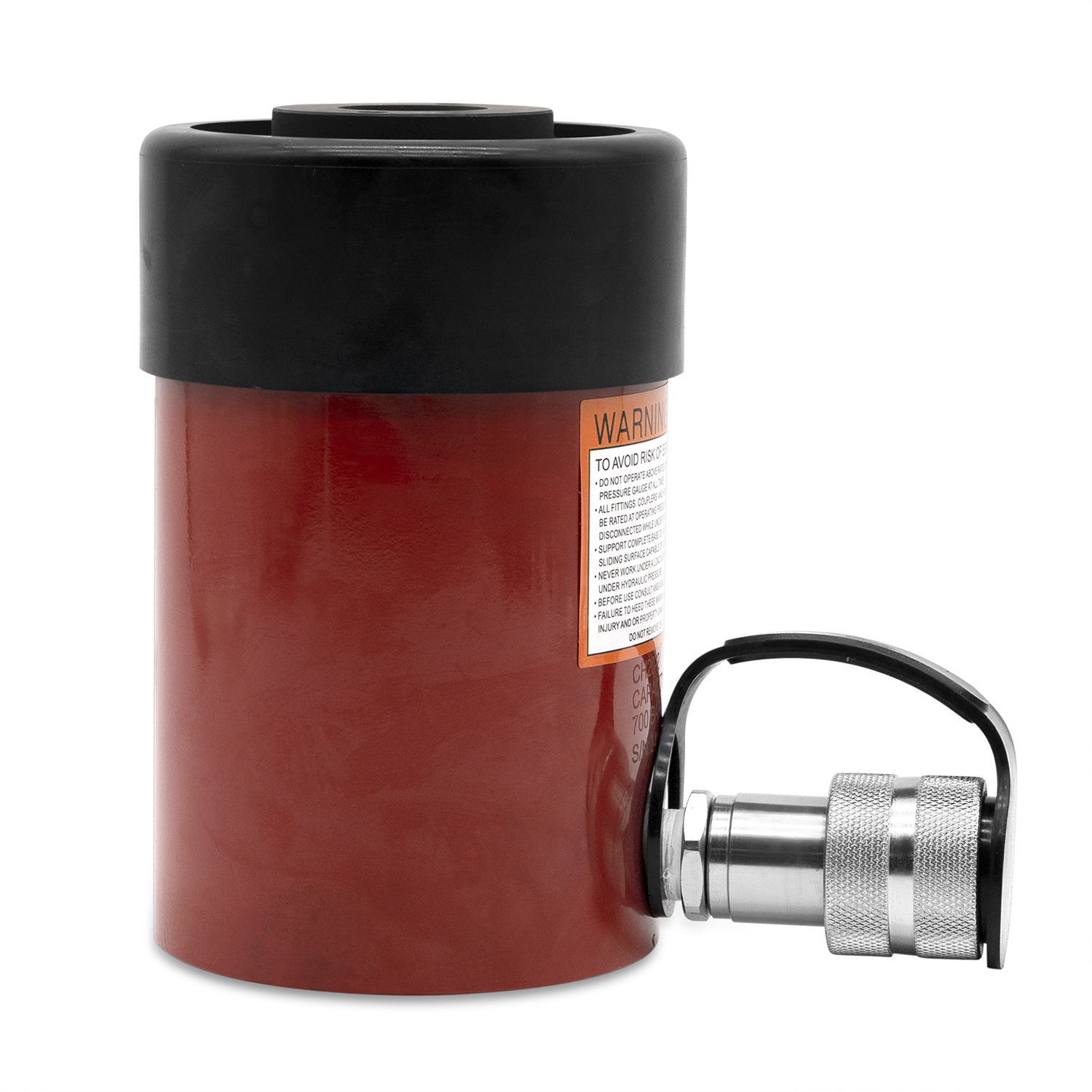

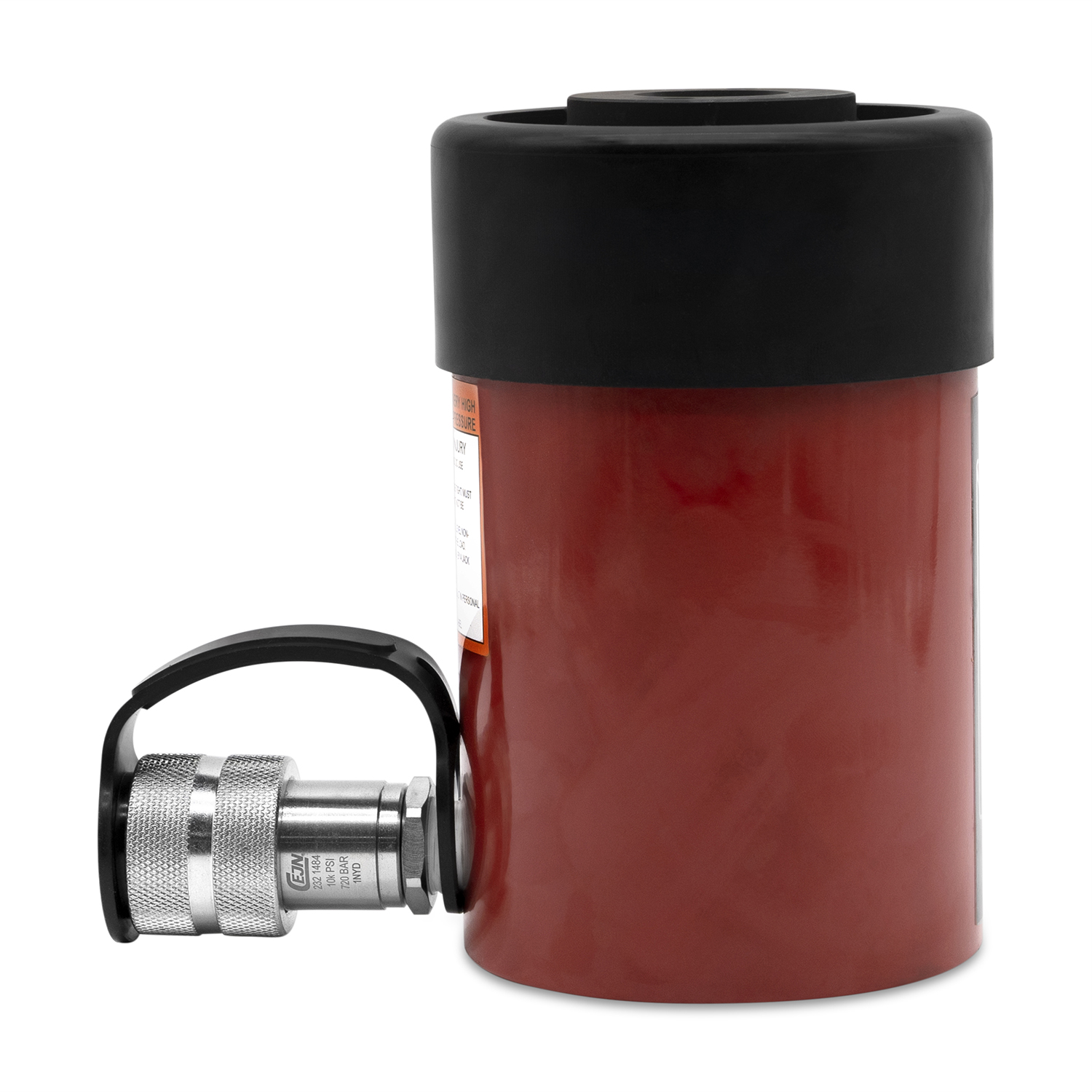

A spring-return mechanism enables fast plunger retraction after pressure release for improved efficiency. The threaded collar and base mounting holes make setup secure and adaptable in any position, while a 3/8″ NPTF high-flow coupler with dust cap ensures quick, leak-free connections to PowerX hydraulic pumps.

Built for rugged performance and precision control, the CH20-2 20 Ton 2″ Stroke Center Hole Cylinder is trusted across industries including construction, manufacturing, shipbuilding, and equipment maintenance for jobs that demand reliable, high-force operation in compact spaces.

Power this cylinder with PowerX high-pressure pumps and power units, including Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for full 10,000 PSI performance.

Need Help Choosing the Right Cylinder?

Check out our detailed guide, How to Choose the Right Hydraulic Cylinder, Jack, or Ram for Lifting Applications. It explains tonnage, stroke, cylinder type, and safety factors to help you choose the right fit for your equipment.

Don’t see exactly what you need?

PowerX designs and manufactures custom-engineered hydraulic cylinders tailored to your construction, mining, industrial, transportation, mobile equipment or oil & gas applications. Use our Custom Cylinder Configurator Tool to request a quote today.
