Center Hole High-Pressure Hydraulic Cylinder, 30 Ton, 2″ Stroke, Single Acting, Hollow Plunger, 10,000 PSI
$2,099.95
Center Hole High-Pressure Hydraulic Cylinder, 30 Ton, 2″ Stroke, Single Acting, Hollow Plunger, 10,000 PSI
In stock
SKU: CH30-2 Categories: Hydraulic Center Hole Cylinders, Hydraulic Cylinders

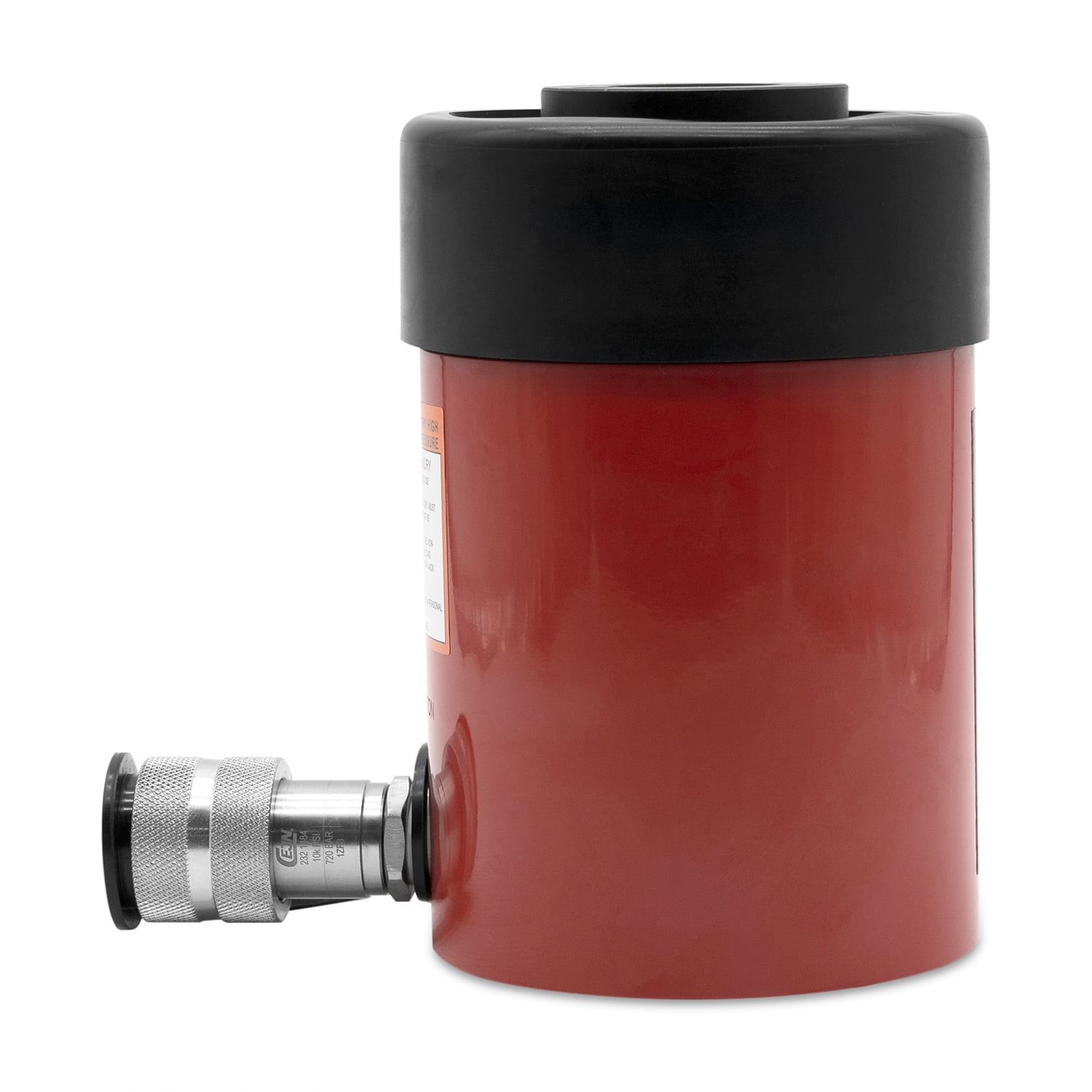

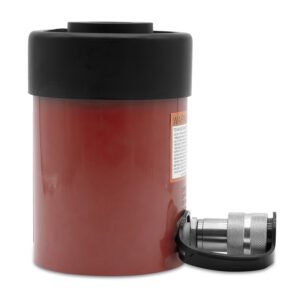

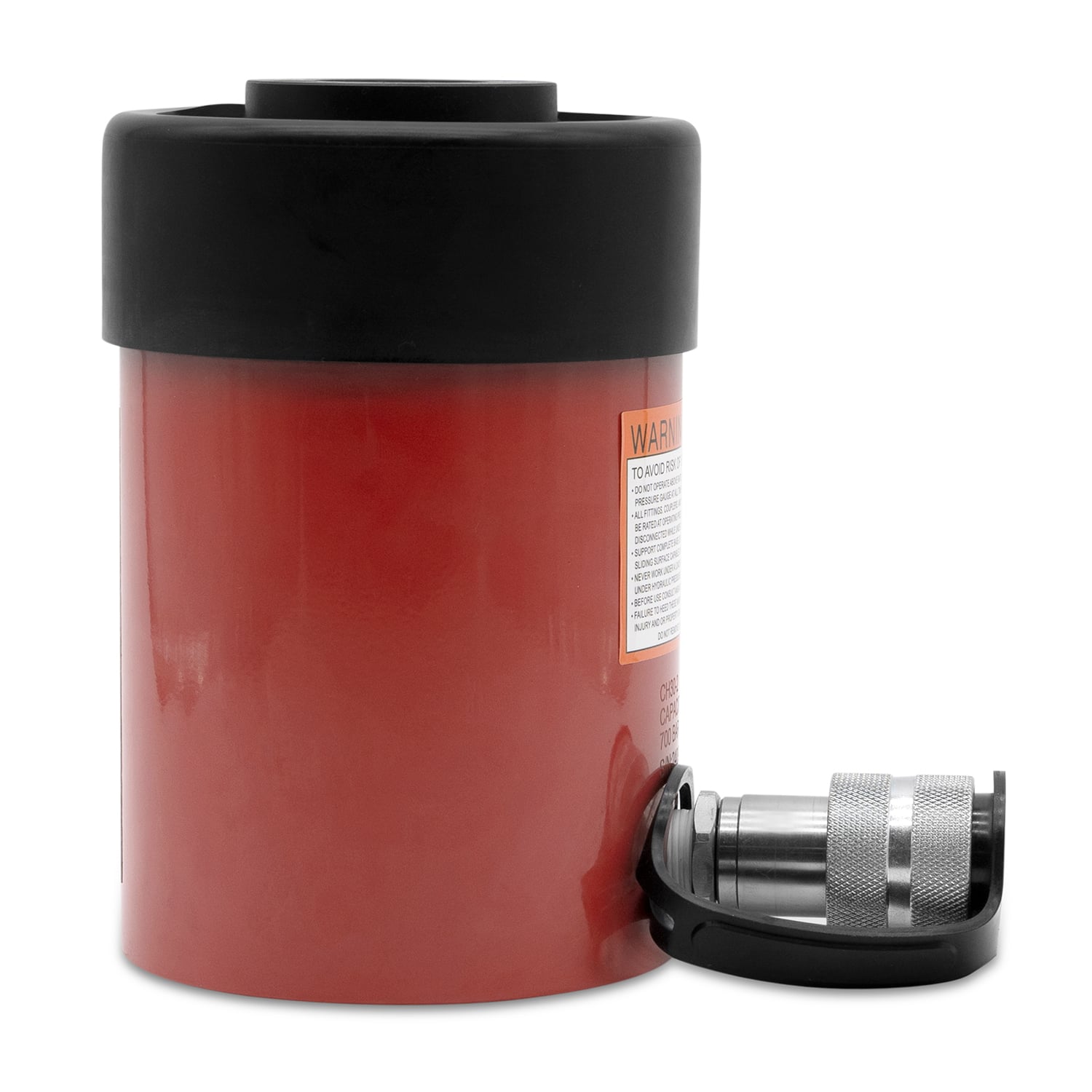

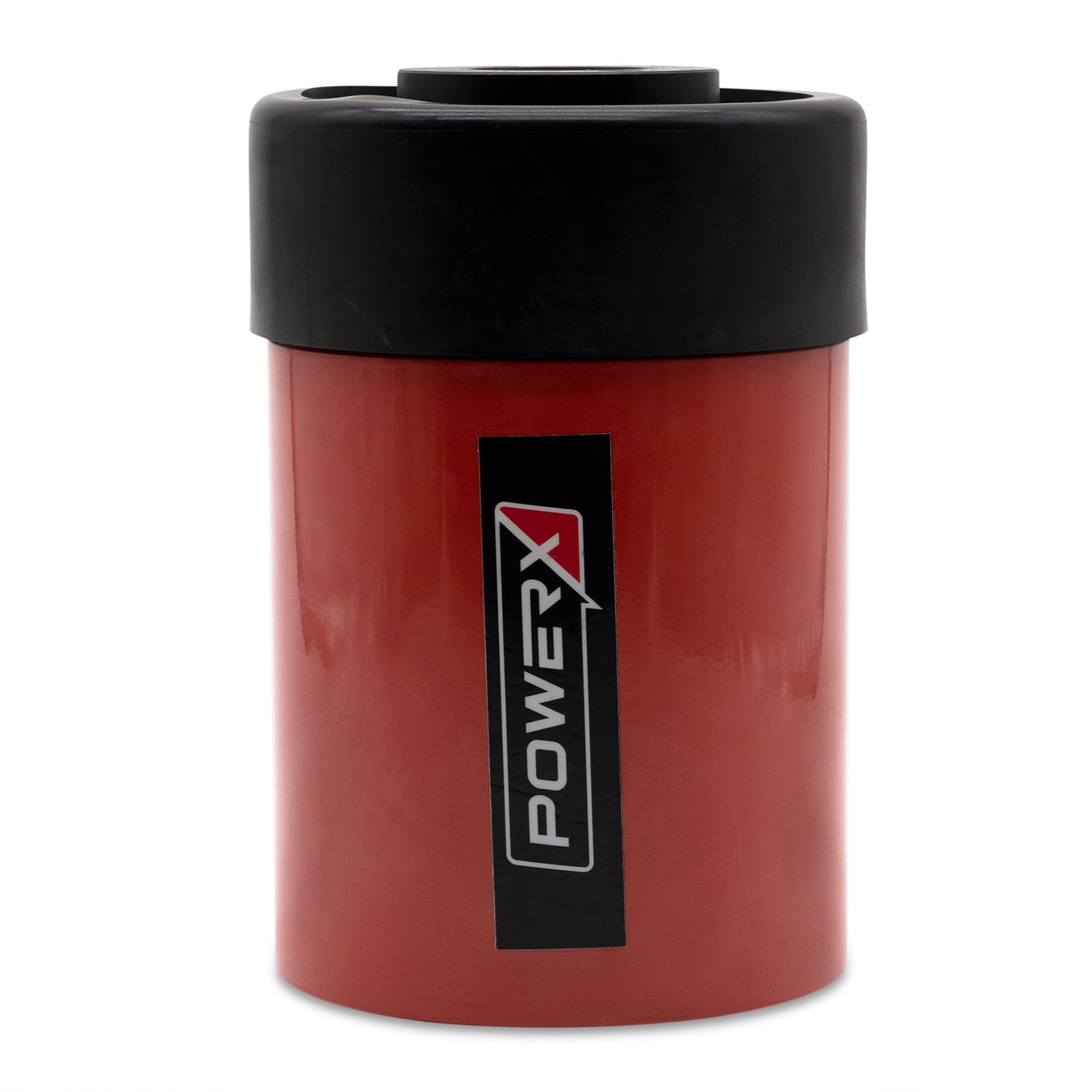

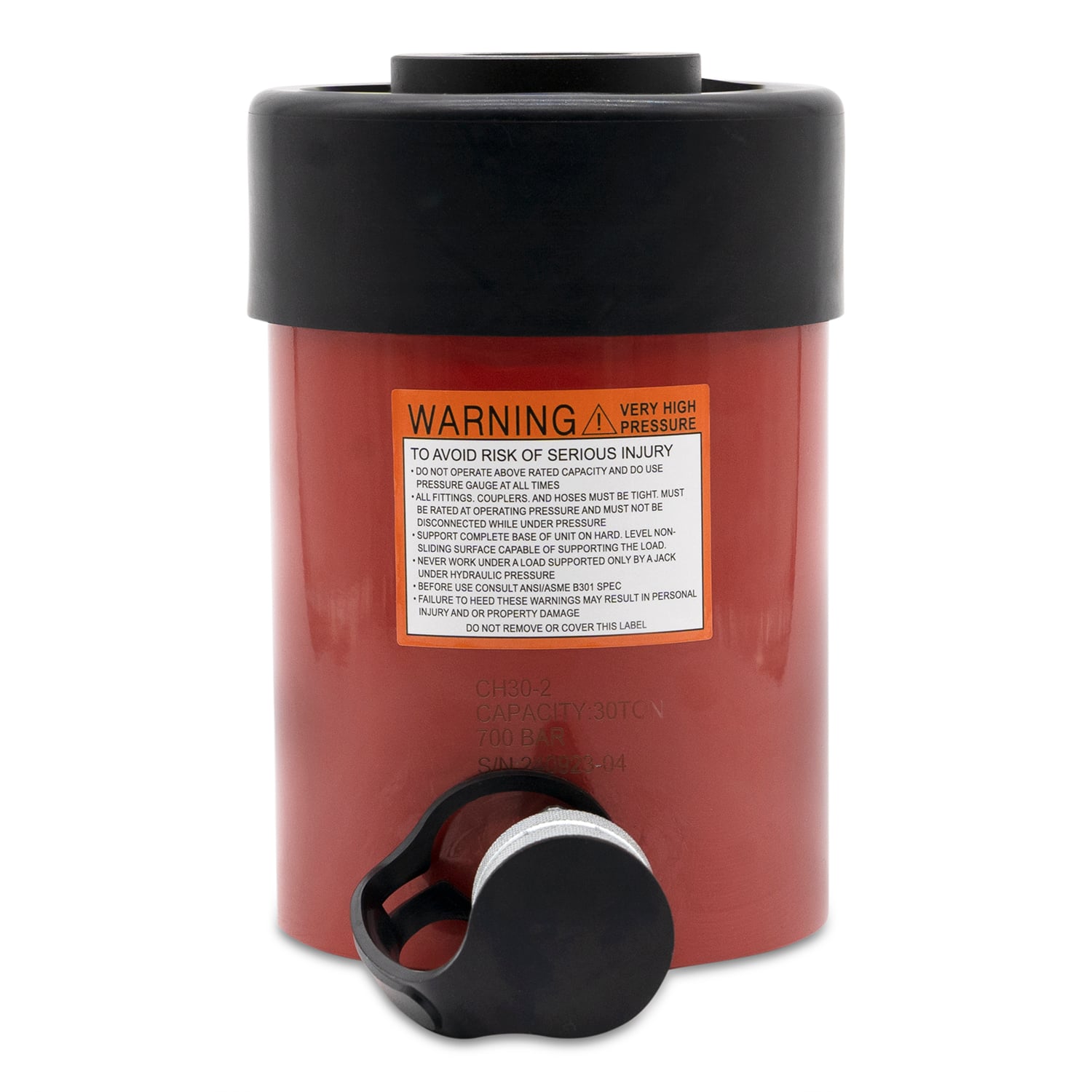

CH30-2 Center Hole Hydraulic Cylinder – 30 Ton, 2″ Stroke, Single Acting – PowerX CH-Series
Compact, strong, and built for precision, the PowerX CH30-2 Center Hole Hydraulic Cylinder delivers 30 tons of pulling or pushing force in a rugged single-acting, spring-return design. The hollow plunger (center-hole) configuration enables both tension and compression operations, making it ideal for anchor-bolt tensioning, bearing removal, cable pulling, and bushing installation where direct, center-line force is critical.
Rated for 10,000 PSI (700 bar), the CH30-2 Hollow Plunger Hydraulic Cylinder delivers smooth, controlled movement and durable performance under high pressure. Its heat-treated steel body resists distortion and side-loading, while the chrome-plated hollow piston and roll-burnished cylinder bore maximize seal life and resist corrosion for long-term use.
The spring-return mechanism ensures automatic retraction after each cycle, improving speed and productivity. Threaded collar and base mounting holes simplify fixture setup, while a 3/8″ NPTF high-flow coupler with dust cap ensures fast, leak-free connection to PowerX hydraulic pumps or power units.
Durable, accurate, and ANSI B30.1 compliant, the CH30-2 30 Ton 2″ Stroke Center Hole Cylinder is ideal for construction, shipyard, mining, and heavy-equipment maintenance applications that demand high force in a low-profile package.
Power this cylinder with PowerX high-pressure pumps and power units, including Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for reliable 10,000 PSI operation.
Features:
- Single-acting, spring-return hollow plunger design for push and pull applications
- High-strength steel body resists fatigue and side loading under pressure
- Chrome-plated piston and burnished bore for extended seal life and corrosion protection
- Threaded collar and base mounting holes for secure setup and easy integration
- 3/8″ NPTF high-flow coupler with dust caps for quick, clean connections
- Durable exterior finish protects against abrasion and contaminants
- ANSI B30.1 compliant for safety and reliability
Performance:
- Capacity: 30 Tons
- Stroke: 2.00″
- Maximum Pressure: 10,000 PSI (700 Bar)
- Oil Capacity: 25.3 in³
- Operation Type: Single Acting, Spring Return
Dimensions:
- Collapsed Height: 7.01″
- Extended Height: 9.53″
- Outside Diameter: 4.5″
- Rod Diameter: 2.50″
- Center Hole Diameter: 1.31″
- Bolt Circle: 3.62″
- Thread Length: 1.65″
- Weight: 24 lbs
Need Help Choosing the Right Cylinder?
Explore our guide, How to Choose the Right Hydraulic Cylinder, Jack, or Ram for Lifting Applications. It covers tonnage, stroke, and safety factors to help you find the perfect fit for your system.
Don’t see the exact model you need?
PowerX offers custom-built hydraulic cylinders tailored to your construction, mining, industrial, transportation, mobile equipment or oil & gas applications. Use our Custom Cylinder Configurator Tool to request a quote today.
Cross Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| PowerX | CH30-2 |
| BVA | HC3002T |
| Ram-Pac | RC-30-CH-2.5 |
| Simplex | RC302A |
| Power Team | RH302 |
| Enerpac | RCH-302 |
