Center Hole High-Pressure Hydraulic Cylinder, 30 Ton, 6″ Stroke, Single Acting, Hollow Plunger, 10,000 PSI

CH30-6 Center Hole Hydraulic Cylinder – 30 Ton, 6″ Stroke, Single Acting – PowerX CH-Series

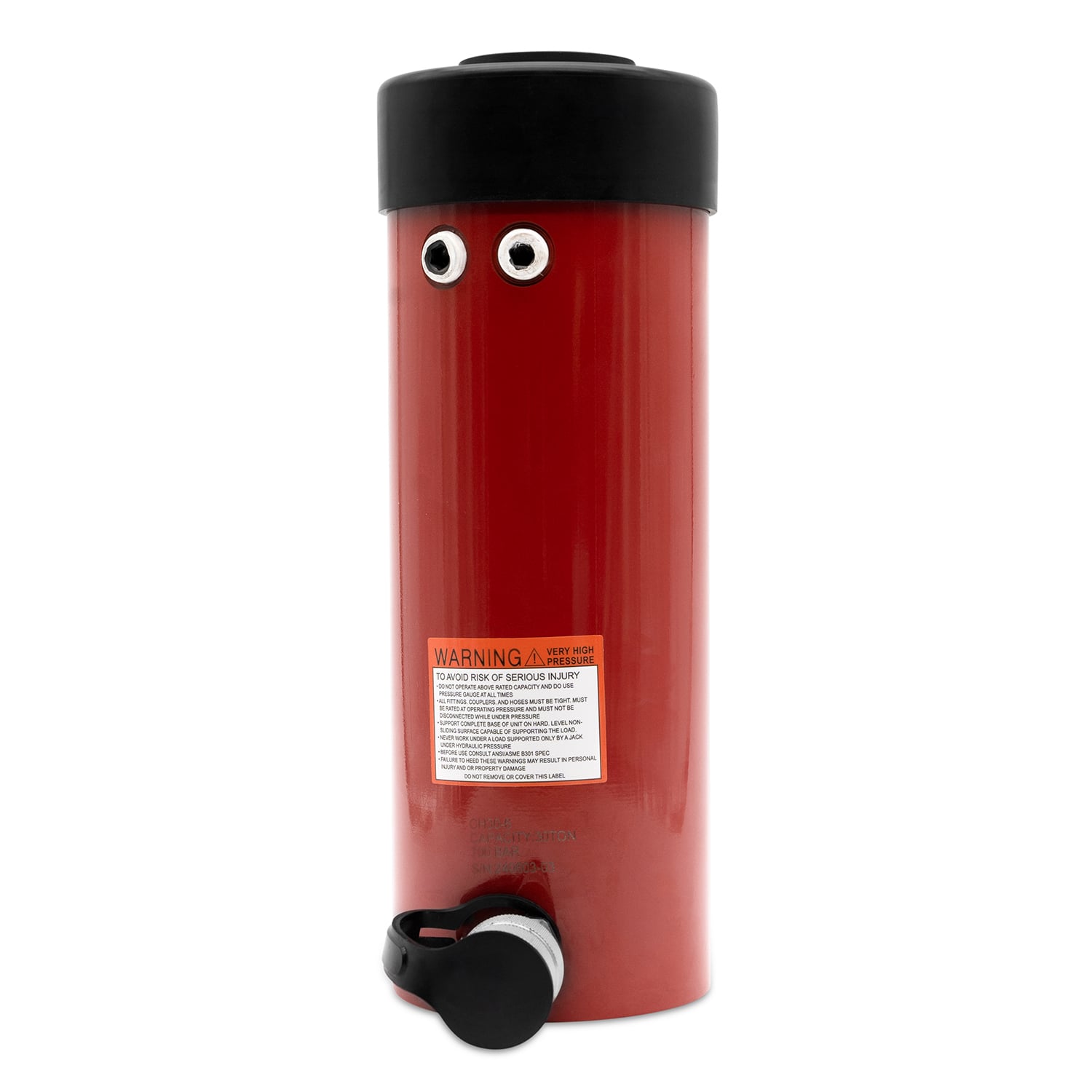

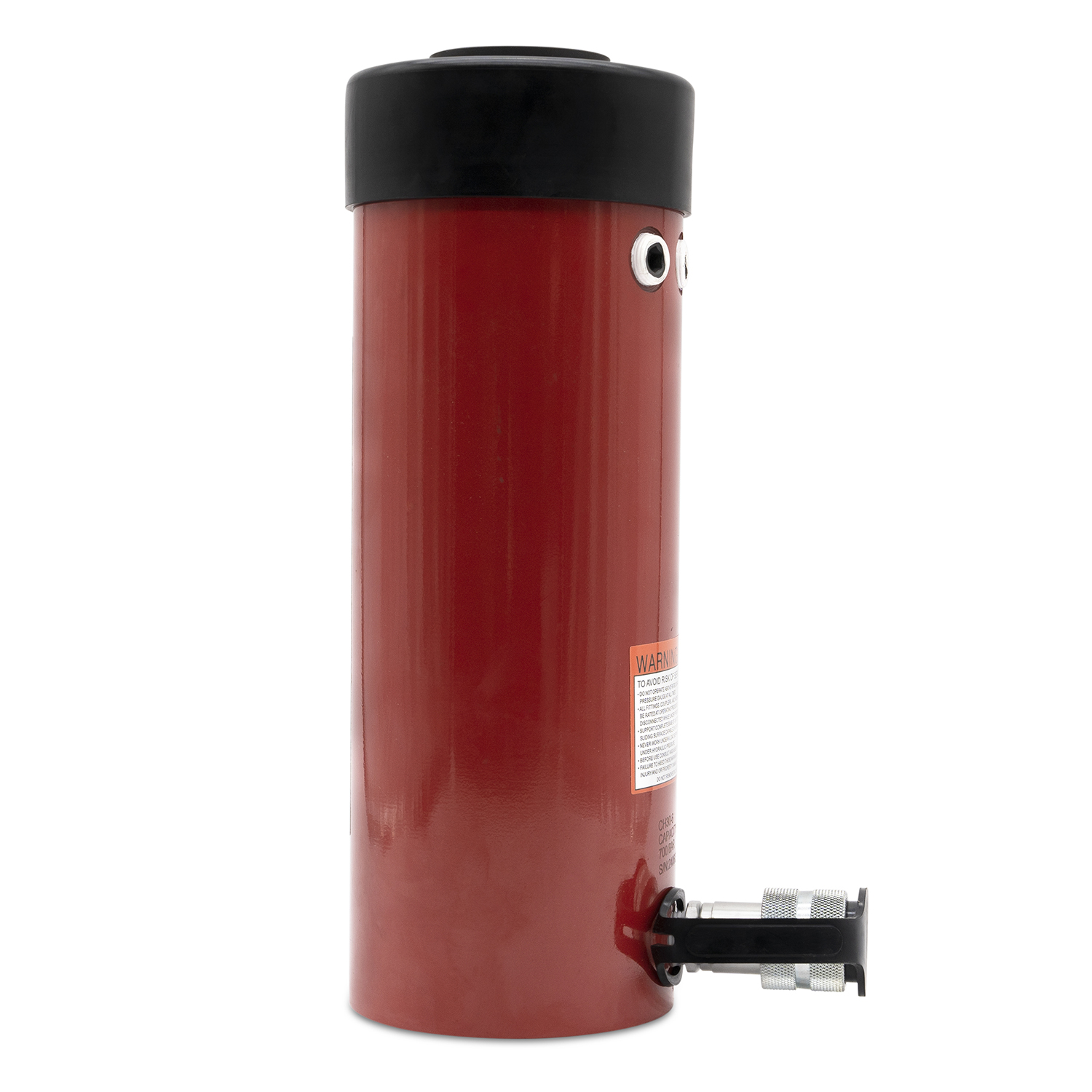

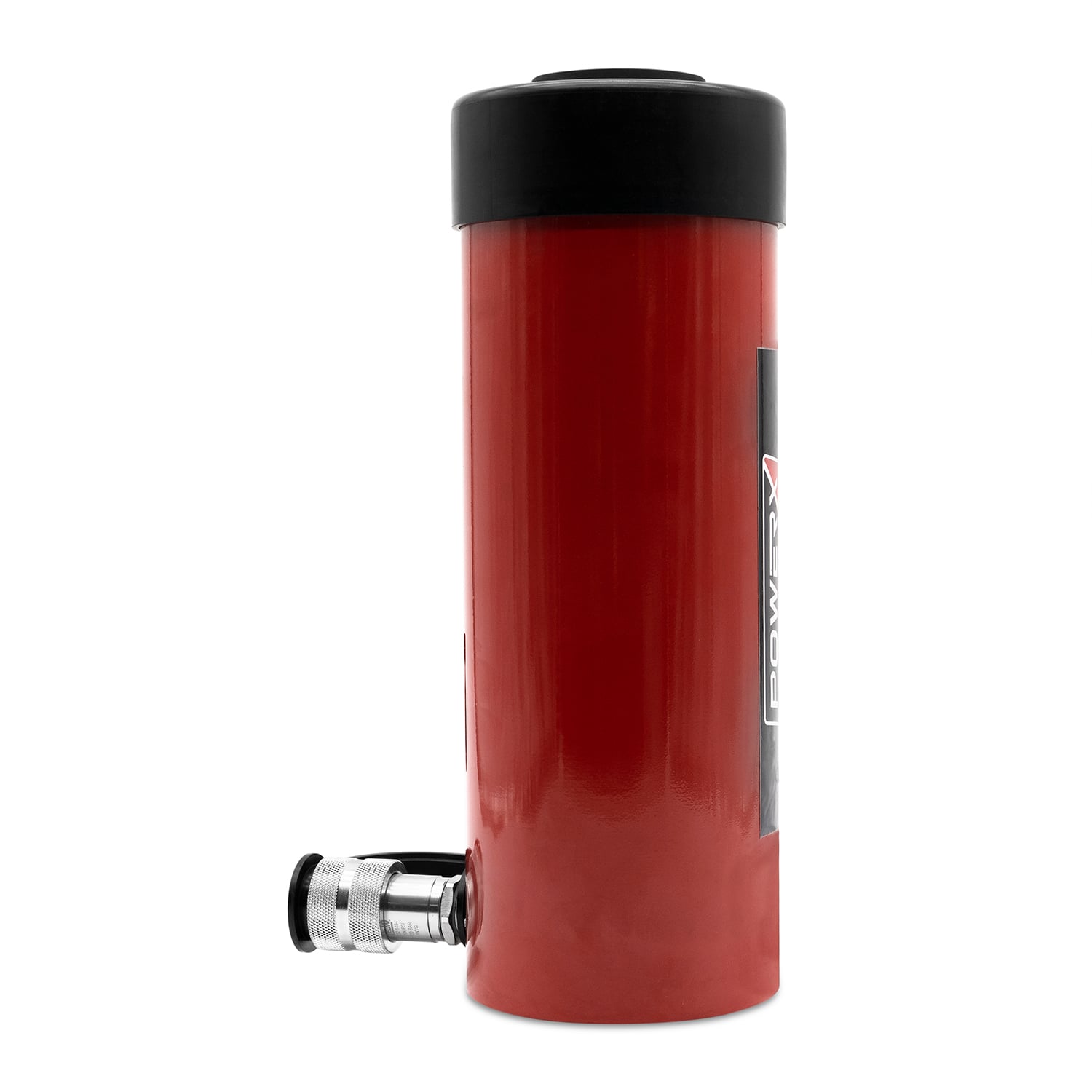

Compact, powerful, and built for precision, the PowerX CH30-6 Center Hole Hydraulic Cylinder delivers 30 tons of pulling or pushing force in a versatile, single-acting spring-return design. Its hollow plunger (center hole) design allows both tension and compression operations, making it ideal for cable tensioning, anchor bolt pulling, bearing removal, and other applications that require direct center-line force.

Rated to 10,000 PSI (700 bar), the CH30-6 30 Ton 6″ Stroke Center Hole Cylinder provides smooth, controlled hydraulic motion and reliable performance in demanding industrial, construction, and maintenance environments. The high-strength steel body withstands side loading and repeated high-pressure use, while the chrome-plated hollow piston and precision burnished cylinder walls extend seal life and maintain internal surface integrity.

The spring-return system ensures fast, automatic retraction after each cycle, increasing productivity and reducing downtime. Equipped with threaded collar and base mounting holes, the CH30-6 Through Hole Cylinder allows secure setup in any position. A 3/8″ NPTF high-flow coupler with dust cap ensures fast, leak-free connection to PowerX hydraulic pumps for reliable 10,000 PSI operation.

Engineered for durability and precision, the PowerX CH-Series hollow plunger cylinders deliver dependable performance across construction, shipbuilding, manufacturing, and heavy-equipment maintenance applications.

Pair this cylinder with a PowerX high-pressure hydraulic pump or power unit; choose from Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps for reliable 10,000 PSI performance.

Need Help Choosing the Right Cylinder?

Explore our detailed guide, How to Choose the Right Hydraulic Cylinder, Jack, or Ram for Lifting Applications, covering tonnage, stroke length, cylinder types, and safety factors to help you choose the perfect fit for your system.

Can’t find the exact model you need?

PowerX specializes in custom-engineered hydraulic cylinders tailored to your unique application. Use our Custom Cylinder Configurator Tool to request a quote for your construction, mining, industrial, transportation, mobile equipment or oil & gas needs today.
