10 Ton Low Profile Hydraulic Cylinder, Single Acting, 1.5″ Stroke

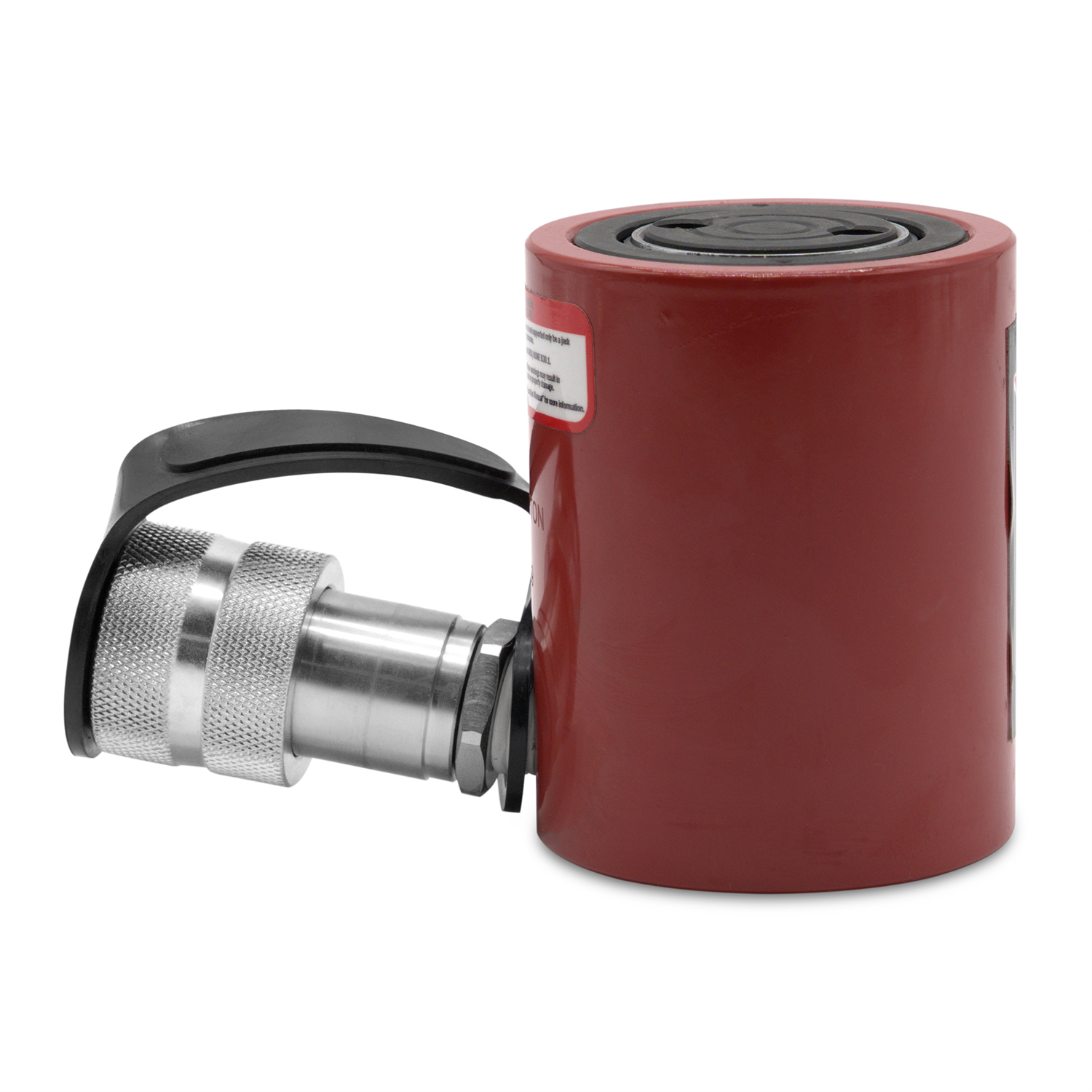

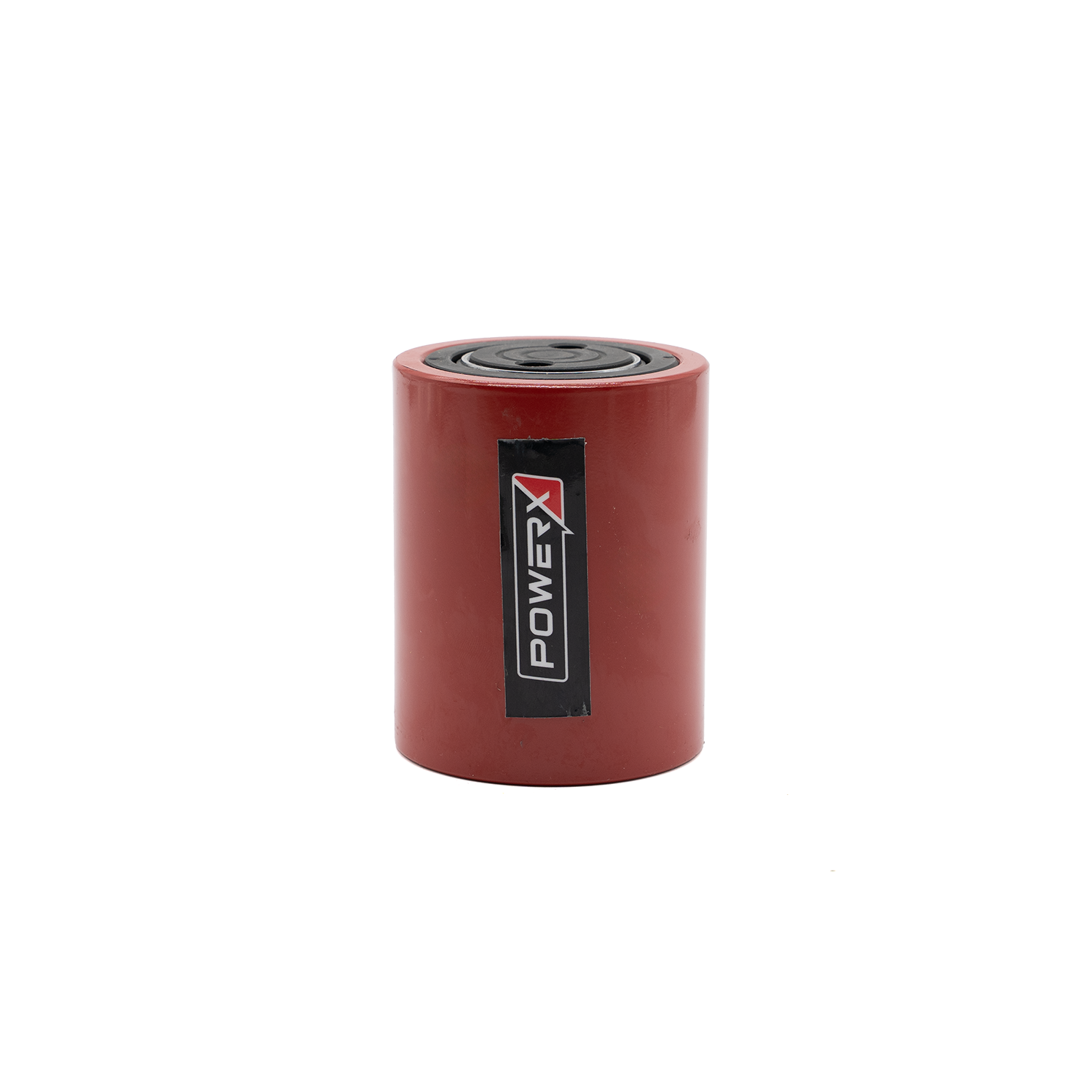

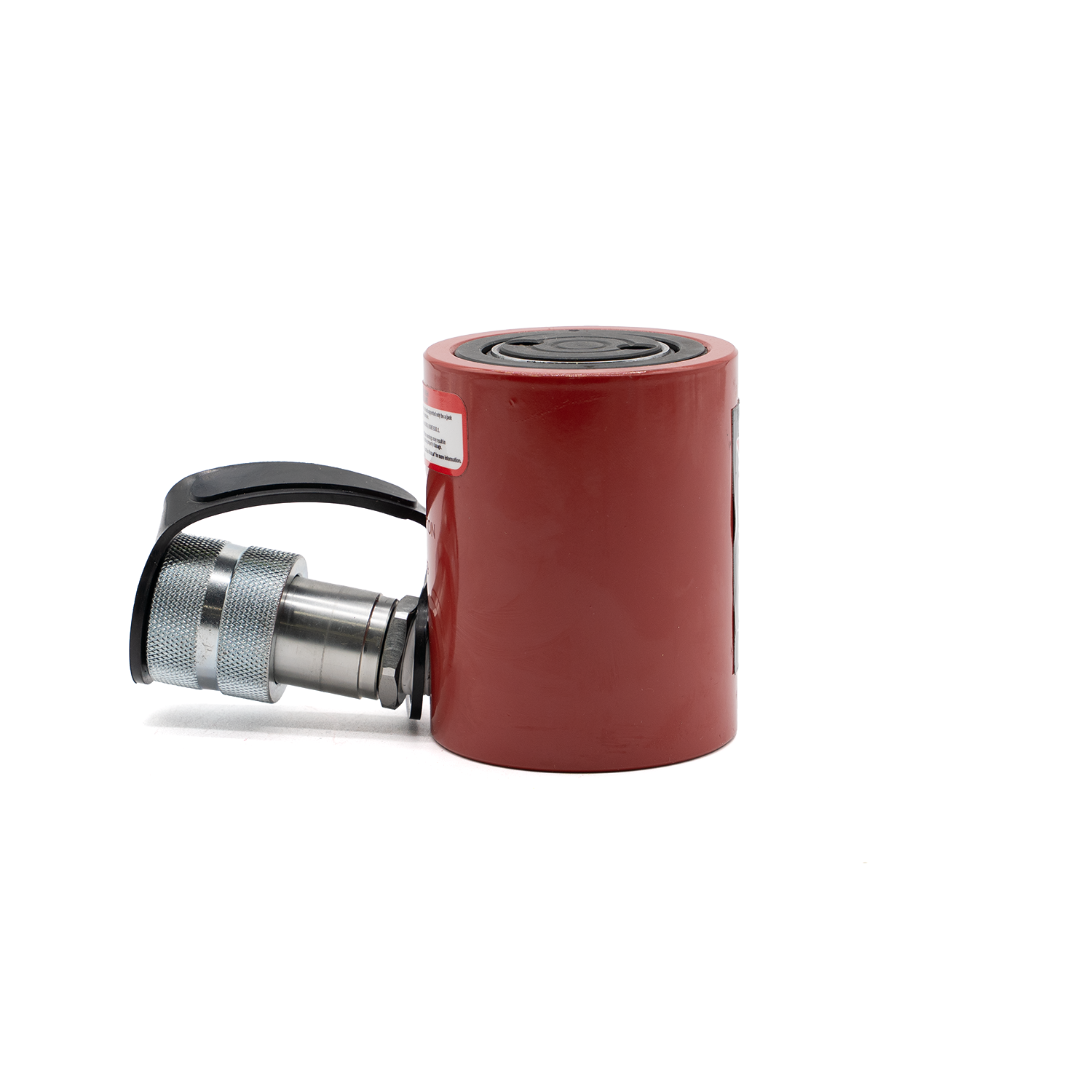

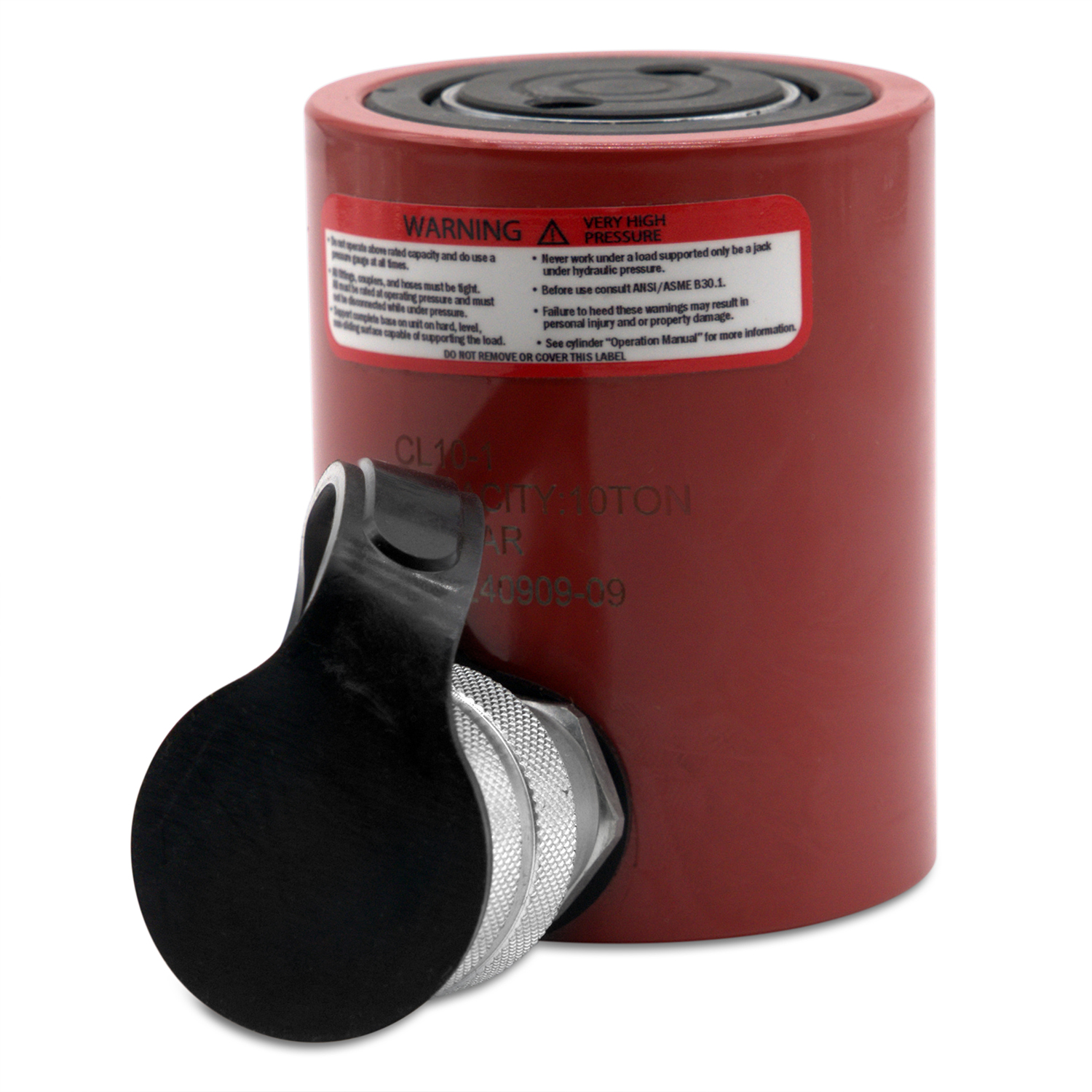

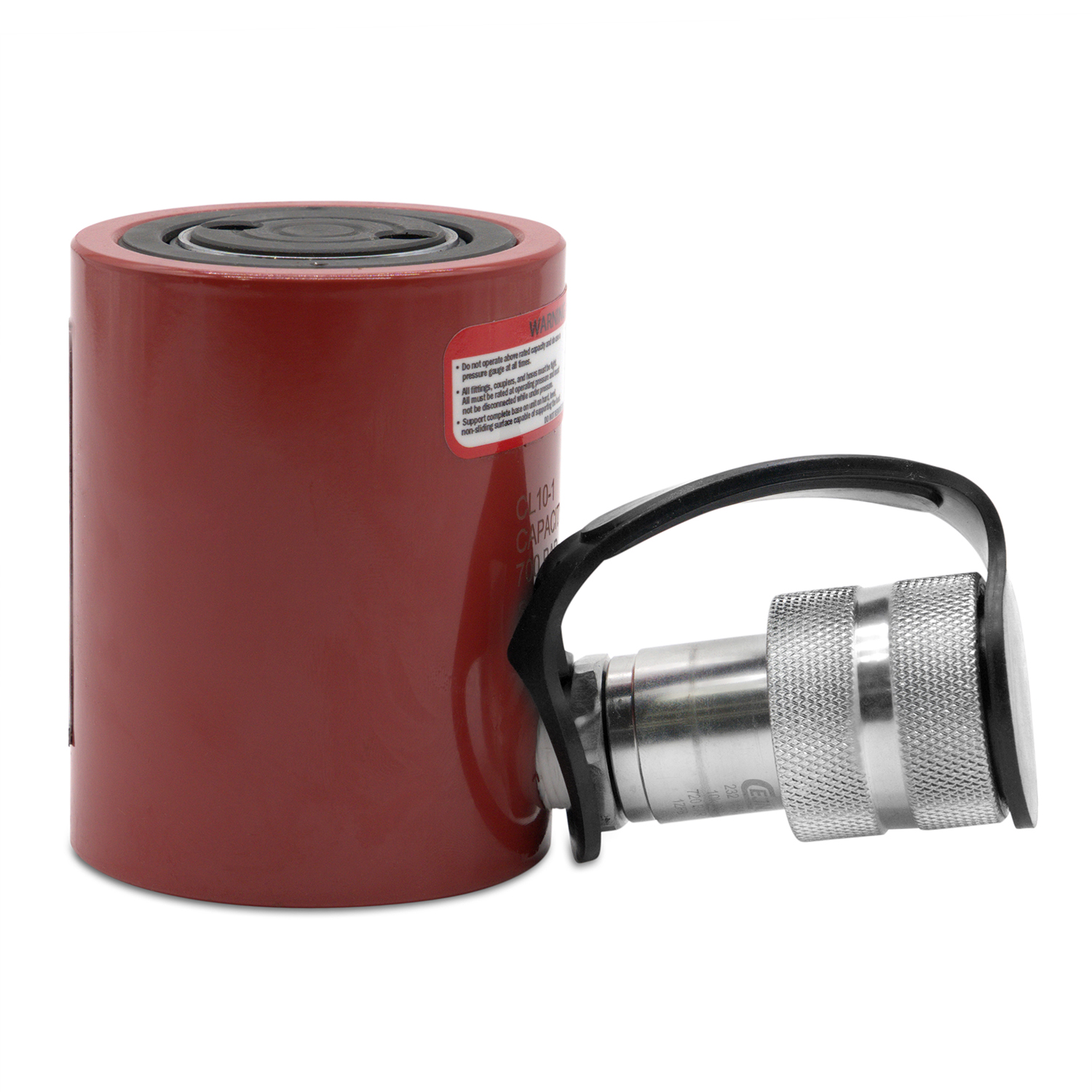

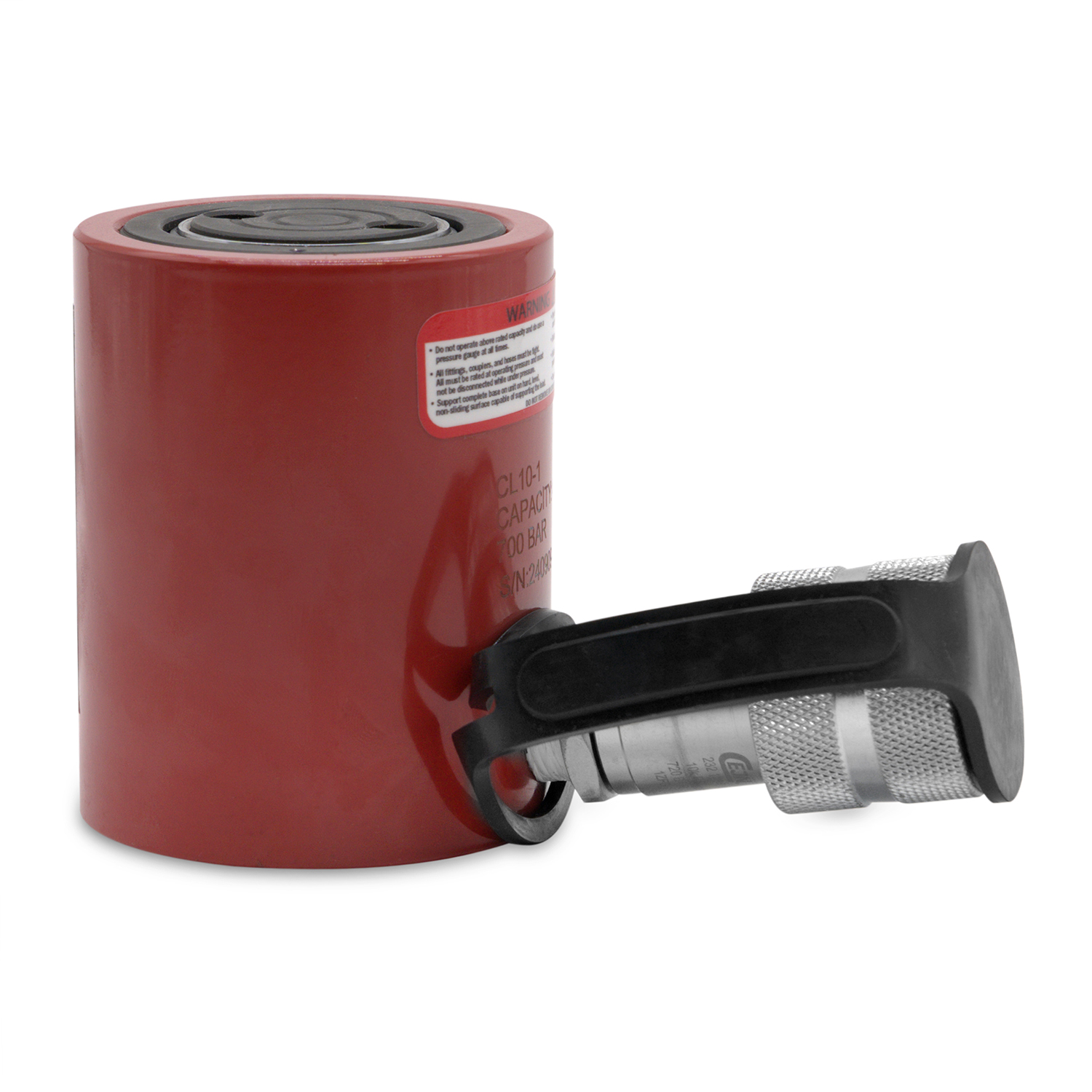

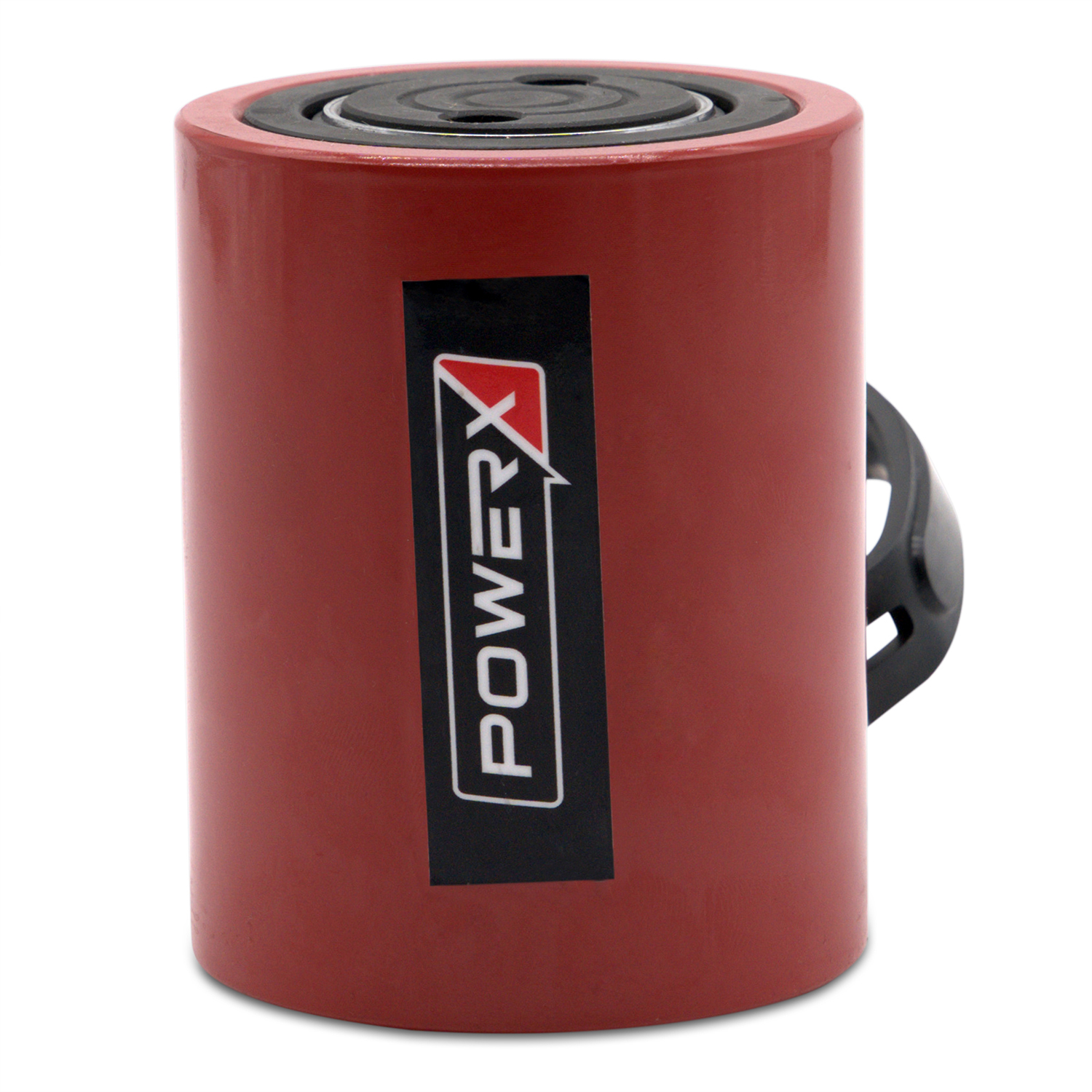

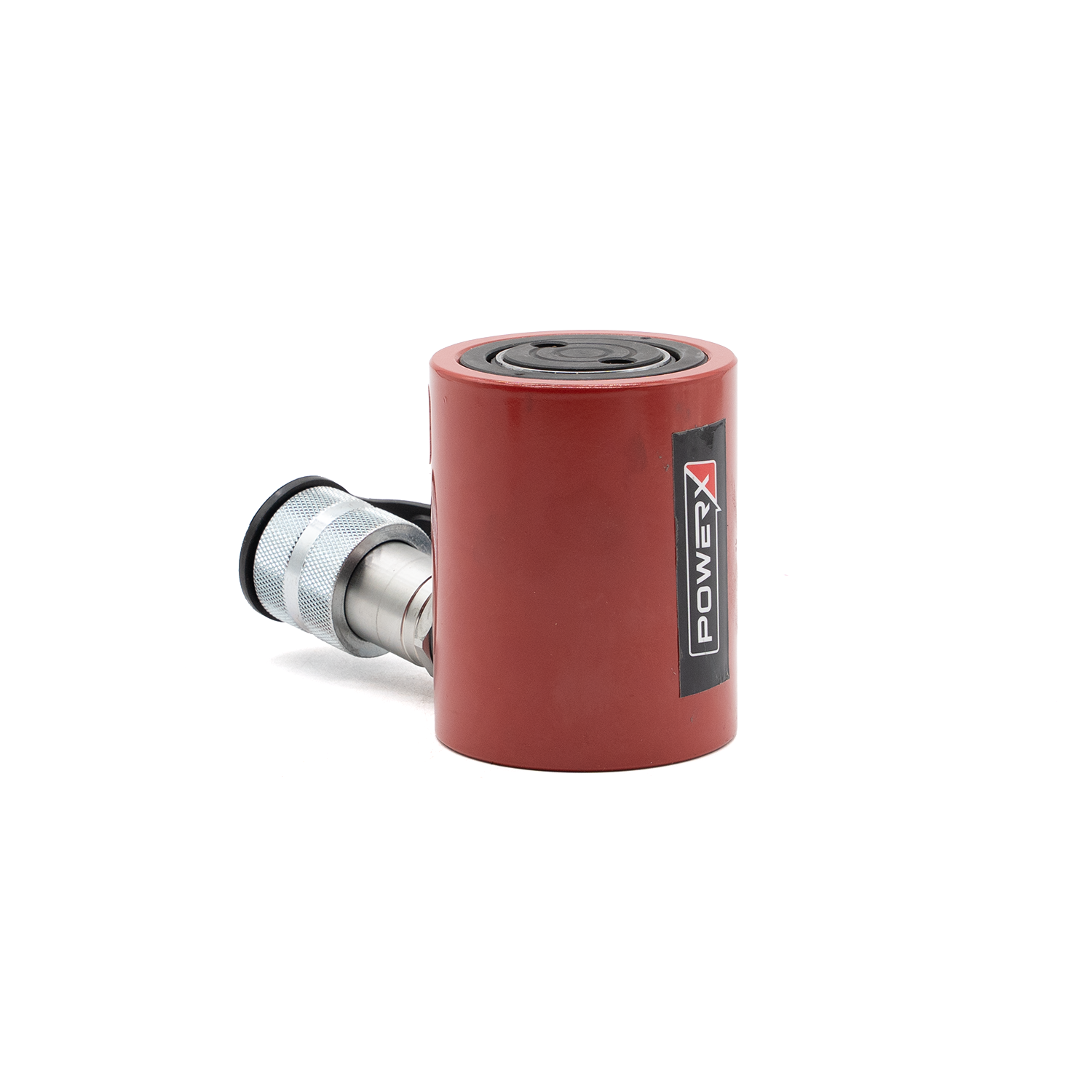

CL10-1 Low Profile Hydraulic Cylinder – 10 Ton, 1.5 Inch Stroke, Single Acting – PowerX CL-Series

Compact but strong, the PowerX CL10-1 delivers 10 tons of lifting capacity in a low-profile hydraulic cylinder engineered for precision work in the tightest spaces. Rated for 10,000 PSI (700 bar), this single-acting, spring-return hydraulic ram provides dependable, controlled force for maintenance, fabrication, construction, and repair applications where compact power is critical.

The flat, low-height design of the CL10-1 makes it ideal for use in confined areas where standard cylinders can’t fit. Built from high-strength steel, it withstands heavy-duty use while resisting side-load stress during lifting and pressing operations. The chrome-plated piston and hardened bearing surfaces ensure smooth movement, corrosion resistance, and long seal life under continuous pressure. The integrated return spring allows quick, automatic retraction for efficient, repeatable operation.

Each PowerX CL-Series low height cylinder is built for field-ready durability, featuring a threaded collar and base mounting holes for secure positioning and easy system integration. The 3/8-inch NPTF high-flow coupler ensures fast, leak-free connection to PowerX hand pumps or power units, delivering consistent performance across the PowerX 10,000 PSI hydraulic system.

Compact, portable, and built to perform, the CL10-1 Low Profile Hydraulic Jack is perfect for machine maintenance, equipment installation, structural adjustment, and precision lifting tasks where accuracy and reliability matter most.

Pair this cylinder with any PowerX high-pressure hydraulic pump, such as our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps, to create a complete 10,000 PSI system designed for compact, controlled lifting in any environment.

Features:

• Single Acting, steel construction, spring return
• Compact low profile design
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Roll burnished for extended seal life
• Durable exterior finish and ANSI B30.1 compliant

Performance:

• Capacity: 10 Tons
• Stroke: 1.5″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 3.35 in³
• Effective Area: 2.43 in²
• Pressure Rating: 10,000 PSI (700 Bar)
• Operation Type: Single Acting, Spring Return

Dimensions:

• Collapsed Height: 3.5″
• Extended Height: 4.97″
• Outside Diameter: 2.75″
• Bolt Circle: 1.03″
• Thread Depth: 0.32″
• Bore Diameter: 1.69″
• Rod Diameter: 1.50″

Thread & Port Details:

• Port Type: 3/8″ NPTF High-Flow Port
• Thread Size: M4
• Base Mounting Holes: Included for secure setup
• Return Type: Built-in Spring Return
• Pressure Connection: Standard 10,000 PSI quick-connect compatible
