100 Ton Low Profile Hydraulic Cylinder, Single Acting, 2.5″ Stroke

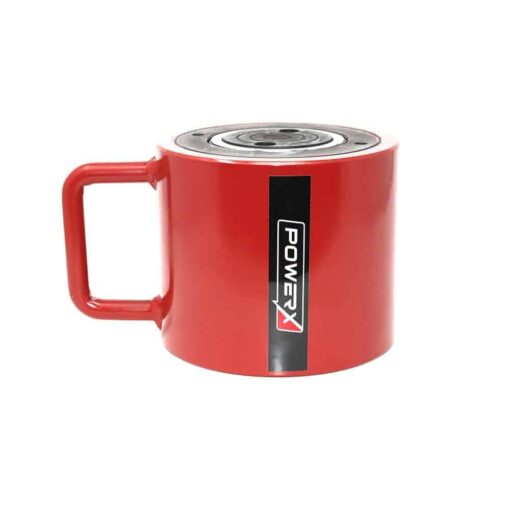

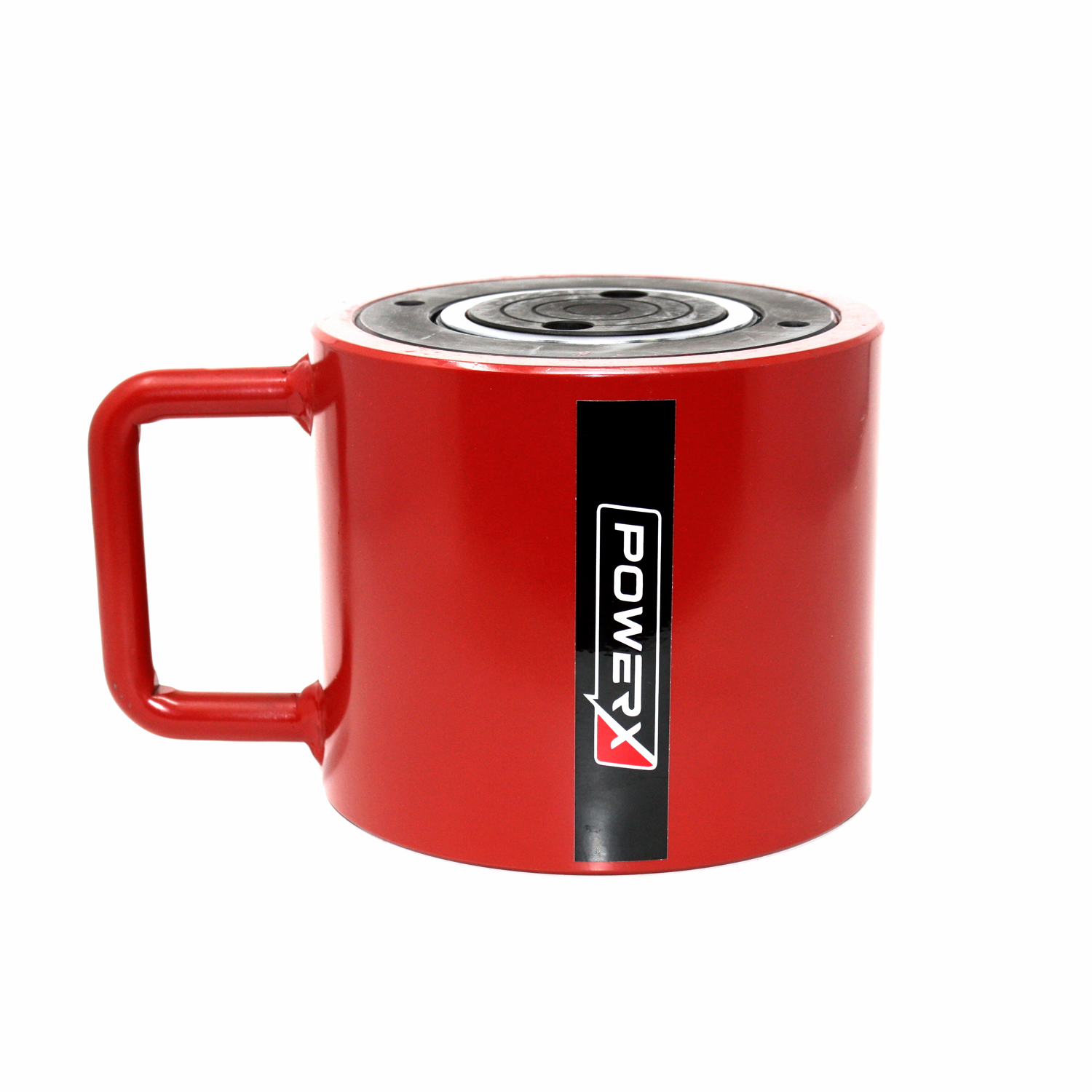

CL100-2 Low Profile Hydraulic Cylinder – 100 Ton, 2.5 Inch Stroke, Single Acting – PowerX CL-Series

Heavy-duty force meets compact design in the PowerX CL100-2, delivering an impressive 100 tons of lifting capacity in a low-profile hydraulic cylinder engineered for powerful performance where clearance is limited. Rated for 10,000 PSI (700 bar), this single-acting, spring-return hydraulic ram provides reliable, controlled force for construction, industrial maintenance, and heavy-equipment repair applications requiring high tonnage in tight spaces.

The flat, low-height design of the CL100-2 makes it perfect for confined lifting, pressing, and pushing tasks. Its high-strength steel body resists heavy side-loads and distortion under extreme pressure, while the precision chrome-plated piston and hardened internal bearing surfaces ensure smooth movement and extended seal life. A built-in return spring enables fast retraction after pressure release, improving efficiency and productivity during repetitive operations.

Every PowerX CL-Series low height cylinder is built to withstand the toughest environments, featuring a threaded collar and base mounting holes for secure positioning and simple system integration. The 3/8-inch NPTF high-flow coupler ensures fast, leak-free connection to PowerX hydraulic pumps or power units for a seamless 10,000 PSI setup.

Compact in height but unmatched in strength, the CL100-2 Low Profile Hydraulic Jack delivers dependable performance and precision control — ideal for construction sites, fabrication facilities, machinery repair, and industrial heavy-lifting applications.

Power this cylinder with any PowerX high-pressure hydraulic pump, such as our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps, to build a complete 10,000 PSI lifting system that performs where it matters most.

Features:

• Single Acting, steel construction, spring return
• Compact low profile design
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Roll burnished for extended seal life
• Durable exterior finish and ANSI B30.1 compliant

Performance:

• Capacity: 100 Tons
• Stroke: 2.5″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 44.25 in³
• Effective Area: 19.67 in²
• Pressure Rating: 10,000 PSI (700 Bar)
• Operation Type: Single Acting, Spring Return

Dimensions:

• Collapsed Height: 5.56″
• Extended Height: 7.81″
• Outside Diameter: 6.5″
• Bolt Circle: 2.19″
• Thread Depth: 0.4″
• Bore Diameter: 5″
• Rod Diameter: 3.63″

Thread & Port Details:

• Port Type: 3/8″ NPTF High-Flow Port
• Thread Size: M8
• Base Mounting Holes: Included for secure setup
• Return Type: Built-in Spring Return
• Pressure Connection: Standard 10,000 PSI quick-connect compatible
