20 Ton Low Profile Hydraulic Cylinder, Single Acting, 1.75″ Stroke

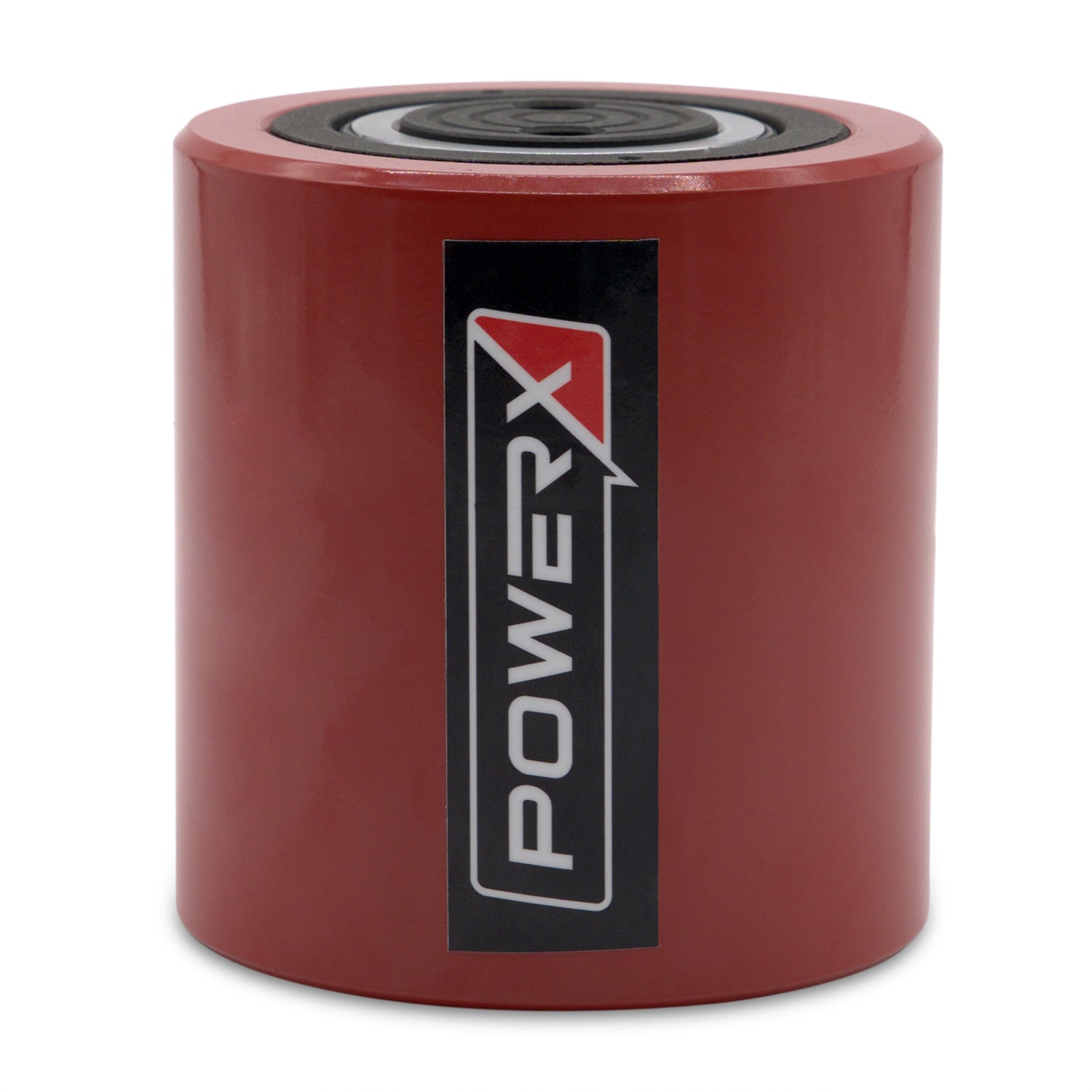

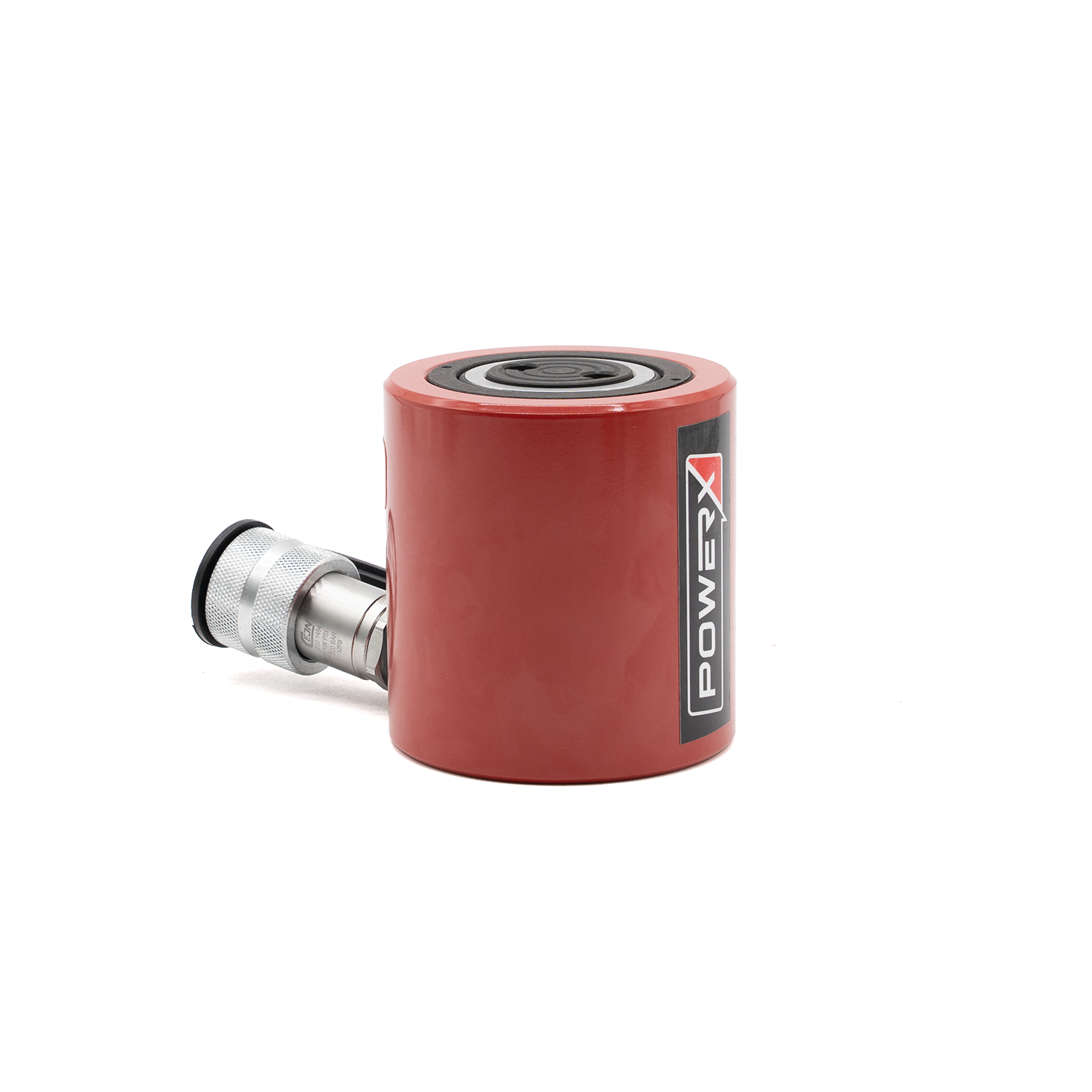

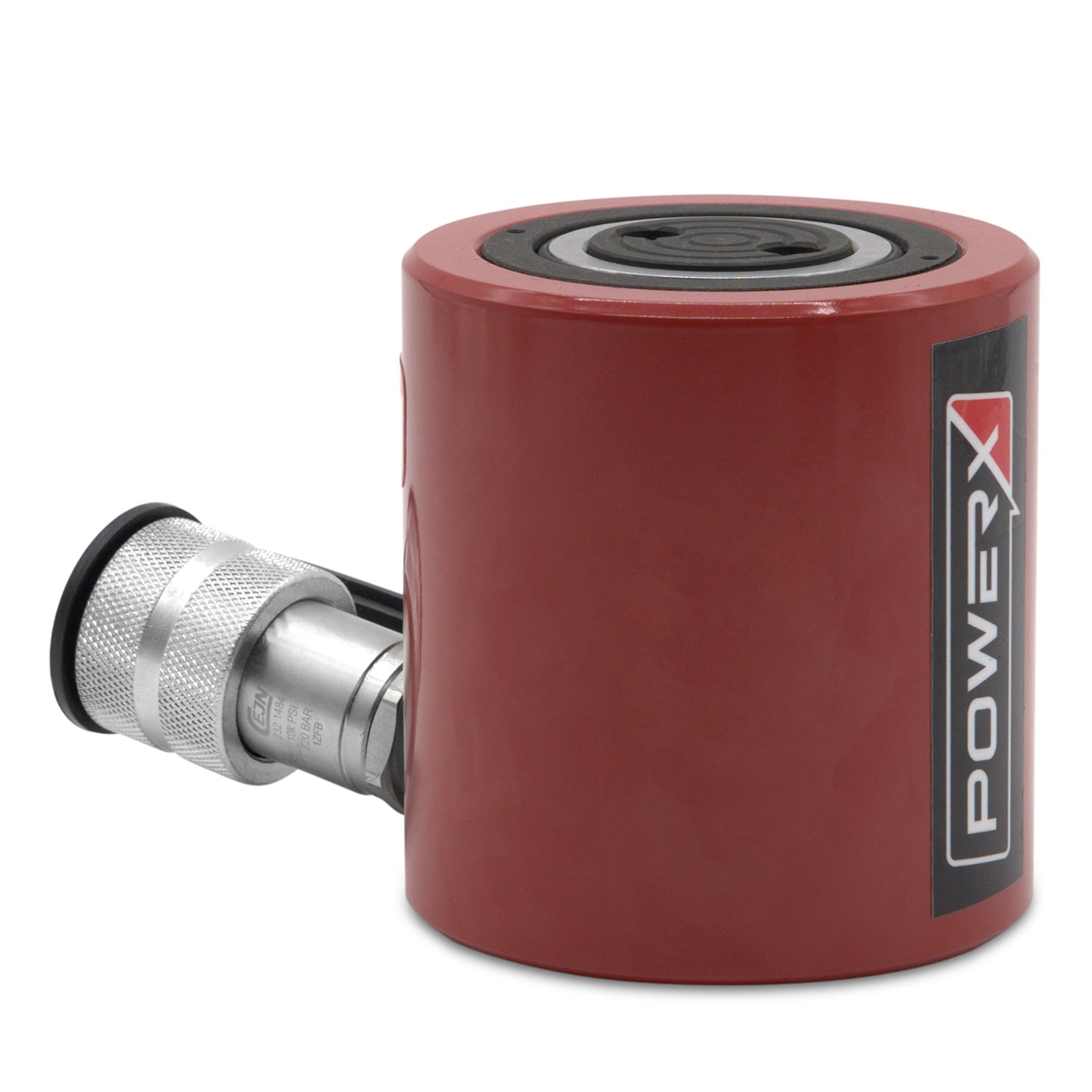

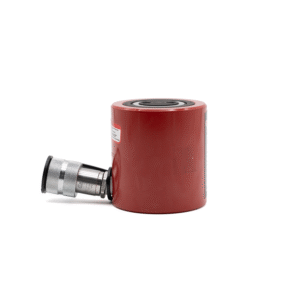

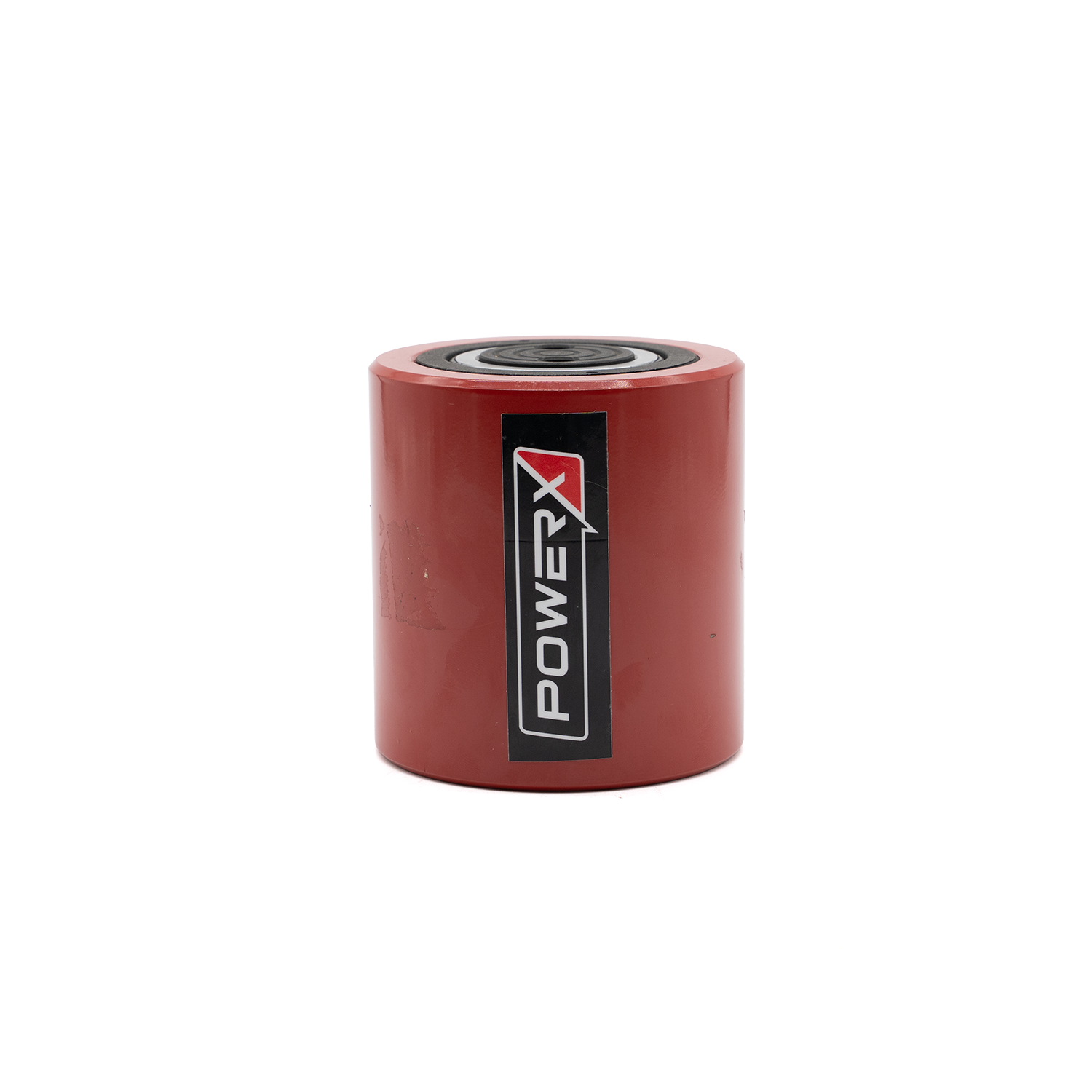

CL20-2 Low Profile Hydraulic Cylinder – 20 Ton, 1.75 Inch Stroke, Single Acting – PowerX CL-Series

Compact, reliable, and engineered for precision, the PowerX CL20-2 delivers 20 tons of lifting power in a low-profile hydraulic cylinder designed for tight-clearance lifting and pressing applications. Rated for 10,000 PSI (700 bar), this single-acting, spring-return hydraulic ram provides dependable force and smooth control for maintenance, construction, and industrial equipment repair where space is limited but performance is critical.

The flat, low-height design of the CL20-2 allows it to fit easily into confined spaces while still delivering powerful lifting capability. Its high-strength steel body resists side-load stress under full capacity, and the precision chrome-plated piston ensures long-term durability, smooth operation, and corrosion resistance. Hardened bearing surfaces extend seal life, while the built-in return spring enables fast retraction after load release for efficient, repeatable cycles.

Every PowerX CL-Series low-height cylinder is built for industrial durability and easy system integration, featuring a threaded collar and base mounting holes for stable positioning. The 3/8-inch NPTF high-flow coupler allows quick, leak-free connection to PowerX hand pumps or hydraulic power units, ensuring full compatibility with all PowerX 10,000 PSI hydraulic systems.

Compact in size yet strong in performance, the CL20-2 Low Profile Hydraulic Jack offers reliable power and precision for machine maintenance, construction projects, heavy-equipment service, and manufacturing applications where efficiency and control matter most.

Power this cylinder with any PowerX high-pressure hydraulic pump, including our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps, to create a complete 10,000 PSI lifting system designed for dependable, high-force operation in confined spaces.

Features:

• Single Acting, steel construction, spring return
• Compact low profile design
• Collar threads with protection cover & base mounting holes

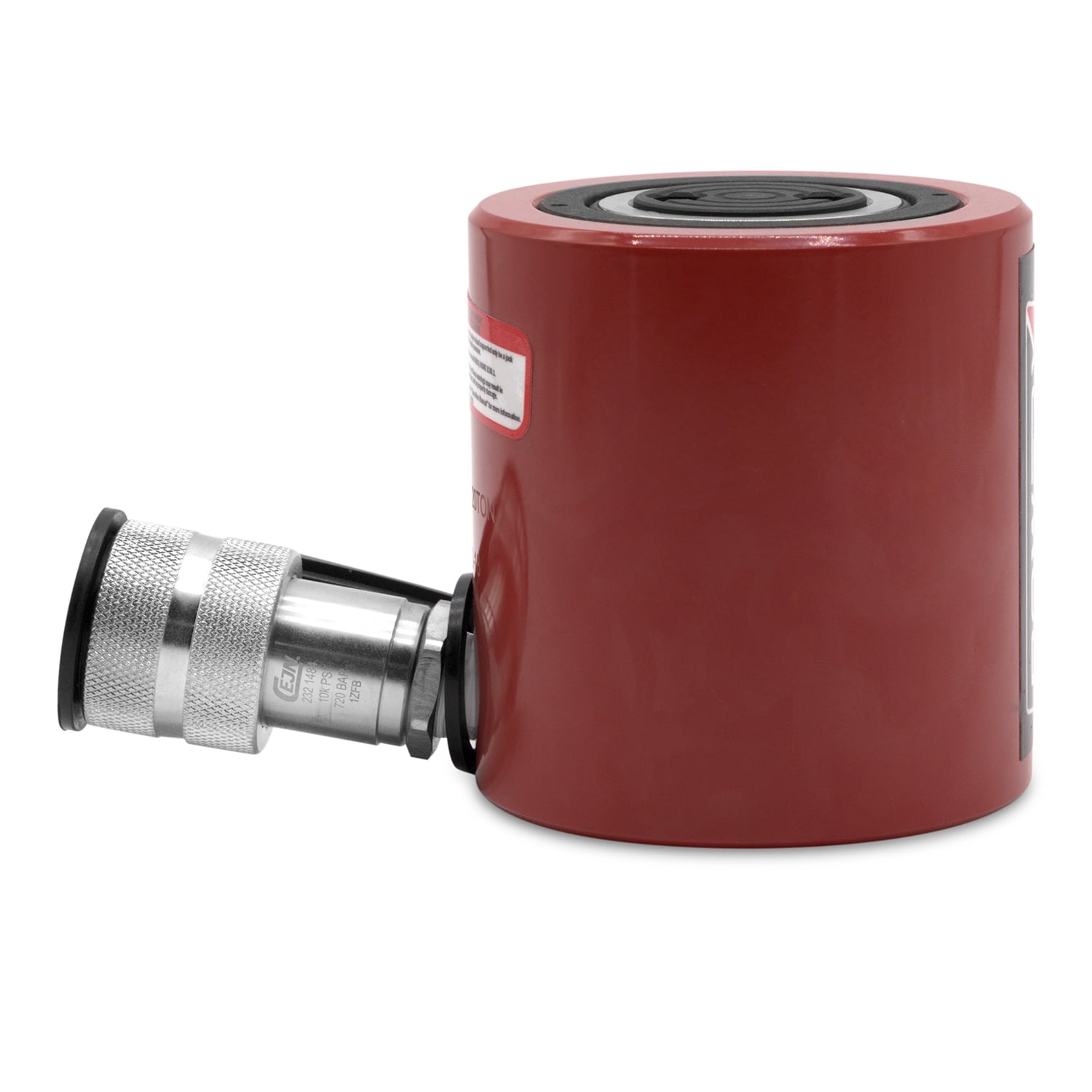

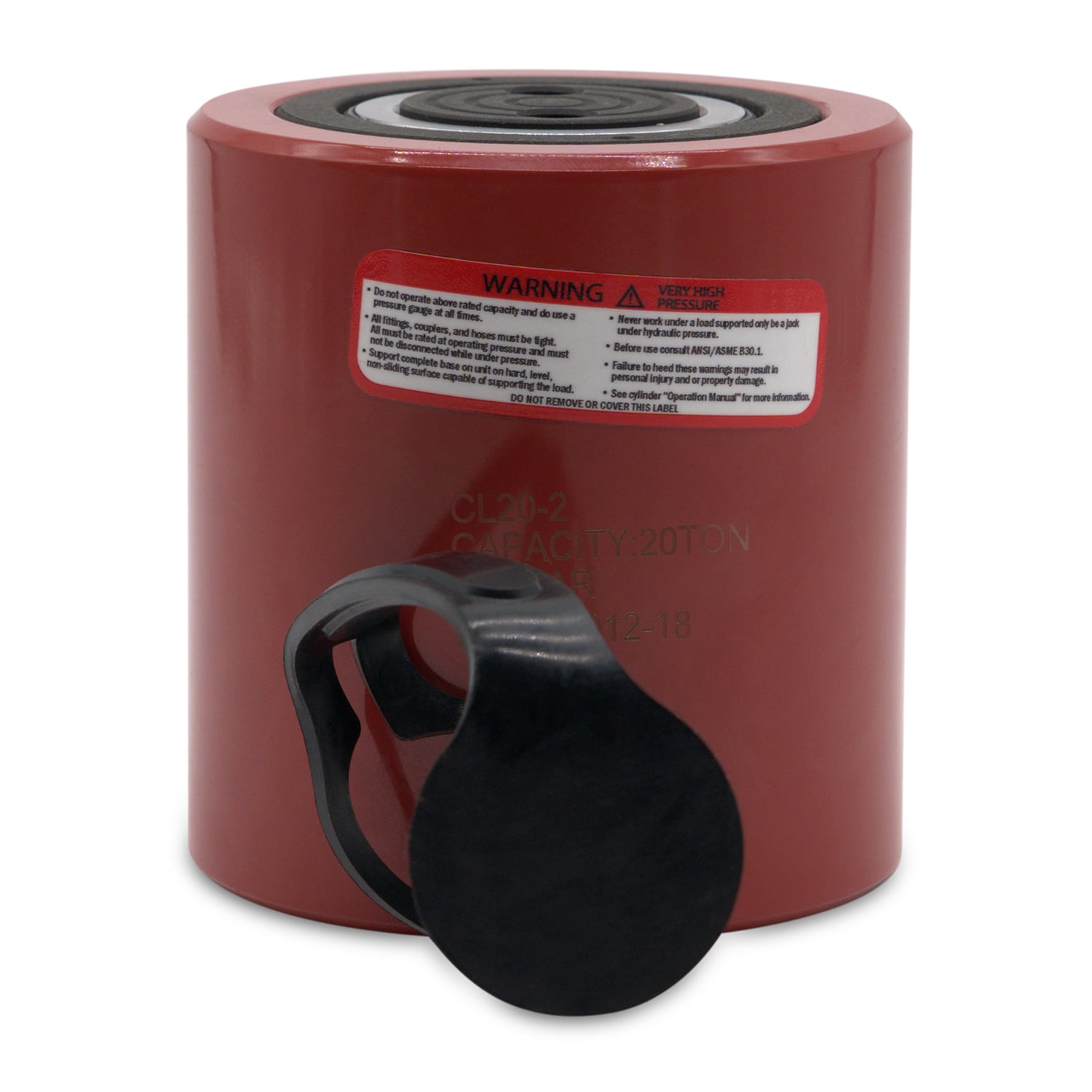

• 3/8” NPTF high flow coupler with dust caps
• Roll burnished for extended seal life
• Durable exterior finish and ANSI B30.1 compliant

Performance:

• Capacity: 20 Tons
• Stroke: 1.75″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 7.77 in³
• Effective Area: 4.44 in²
• Pressure Rating: 10,000 PSI (700 Bar)
• Operation Type: Single Acting, Spring Return

Dimensions:

• Collapsed Height: 3.88″
• Extended Height: 5.63″
• Outside Diameter: 3.63″
• Bolt Circle: 0.94″
• Thread Depth: 0.32″
• Bore Diameter: 2.38″
• Rod Diameter: 2″

Thread & Port Details:

• Port Type: 3/8″ NPTF High-Flow Port
• Thread Size: M5
• Base Mounting Holes: Included for secure setup
• Return Type: Built-in Spring Return
• Pressure Connection: Standard 10,000 PSI quick-connect compatible
