30 Ton Low Profile Hydraulic Cylinder, Single Acting, 2.44″ Stroke

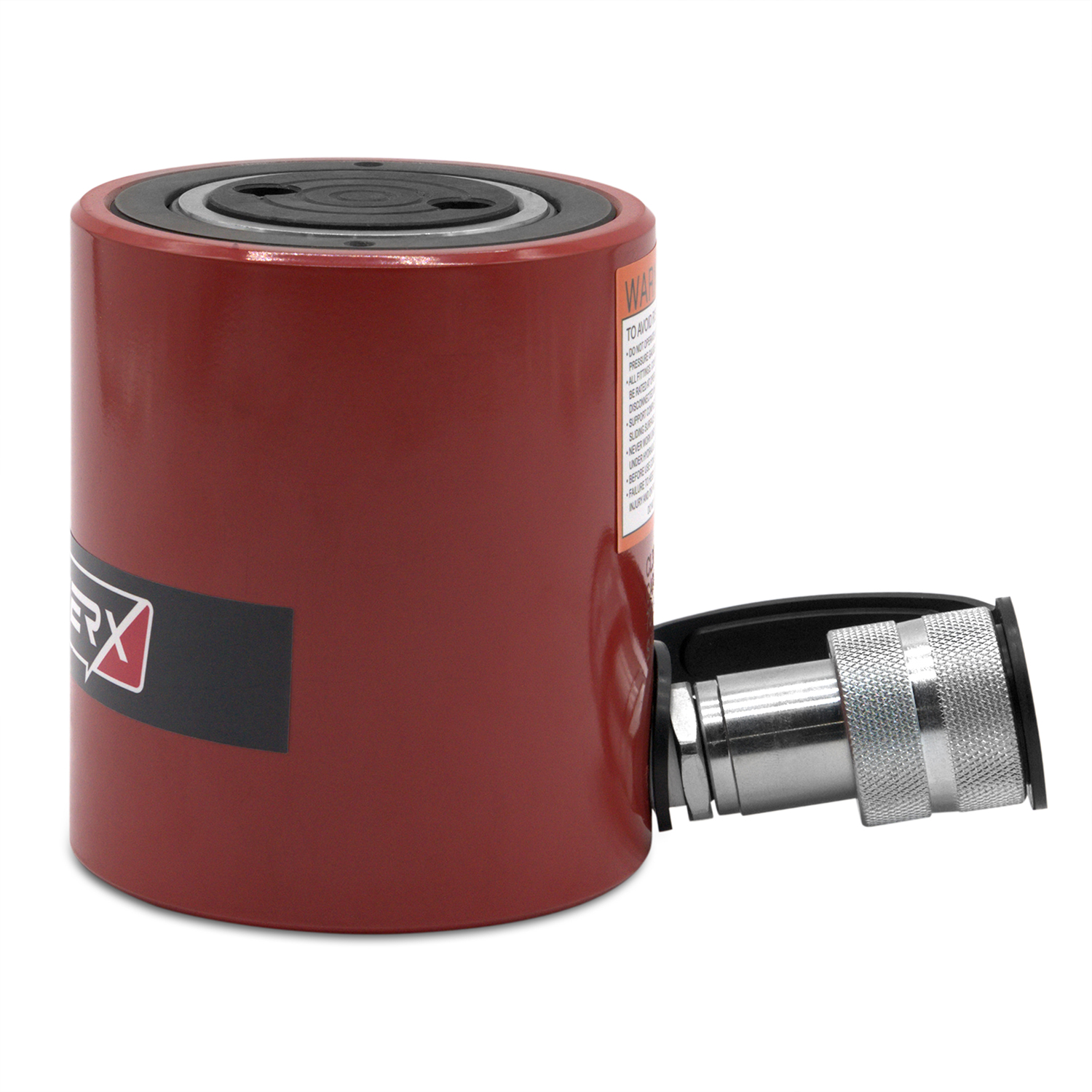

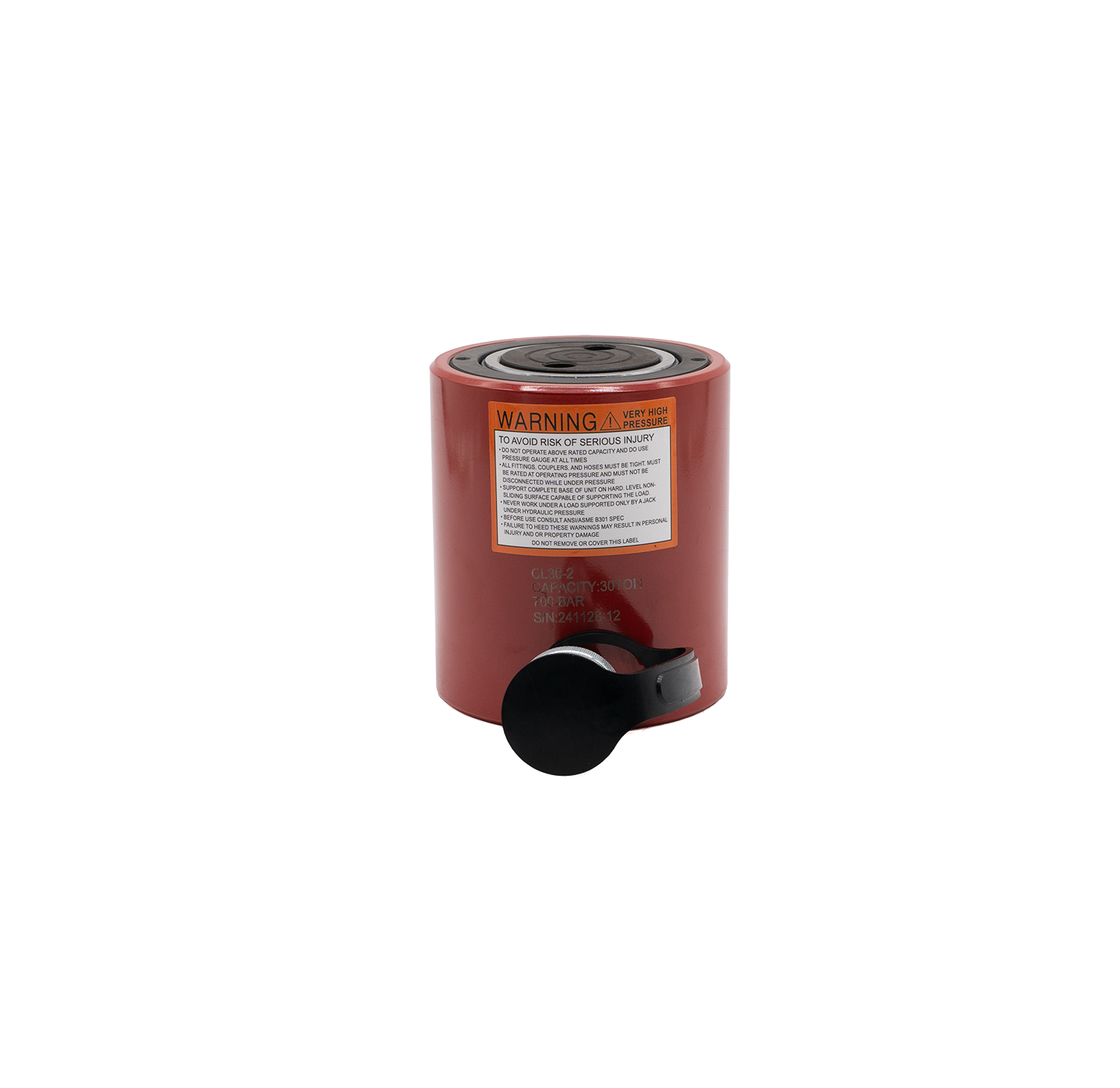

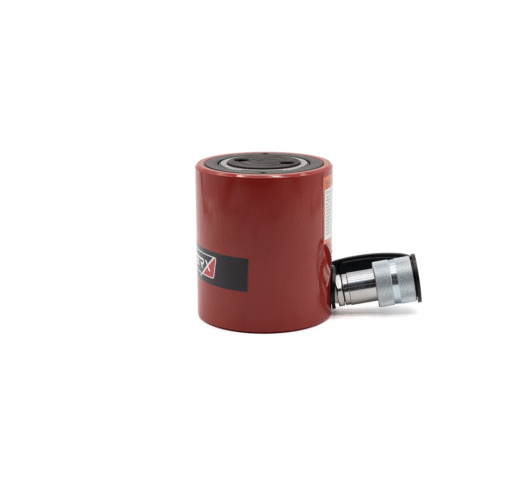

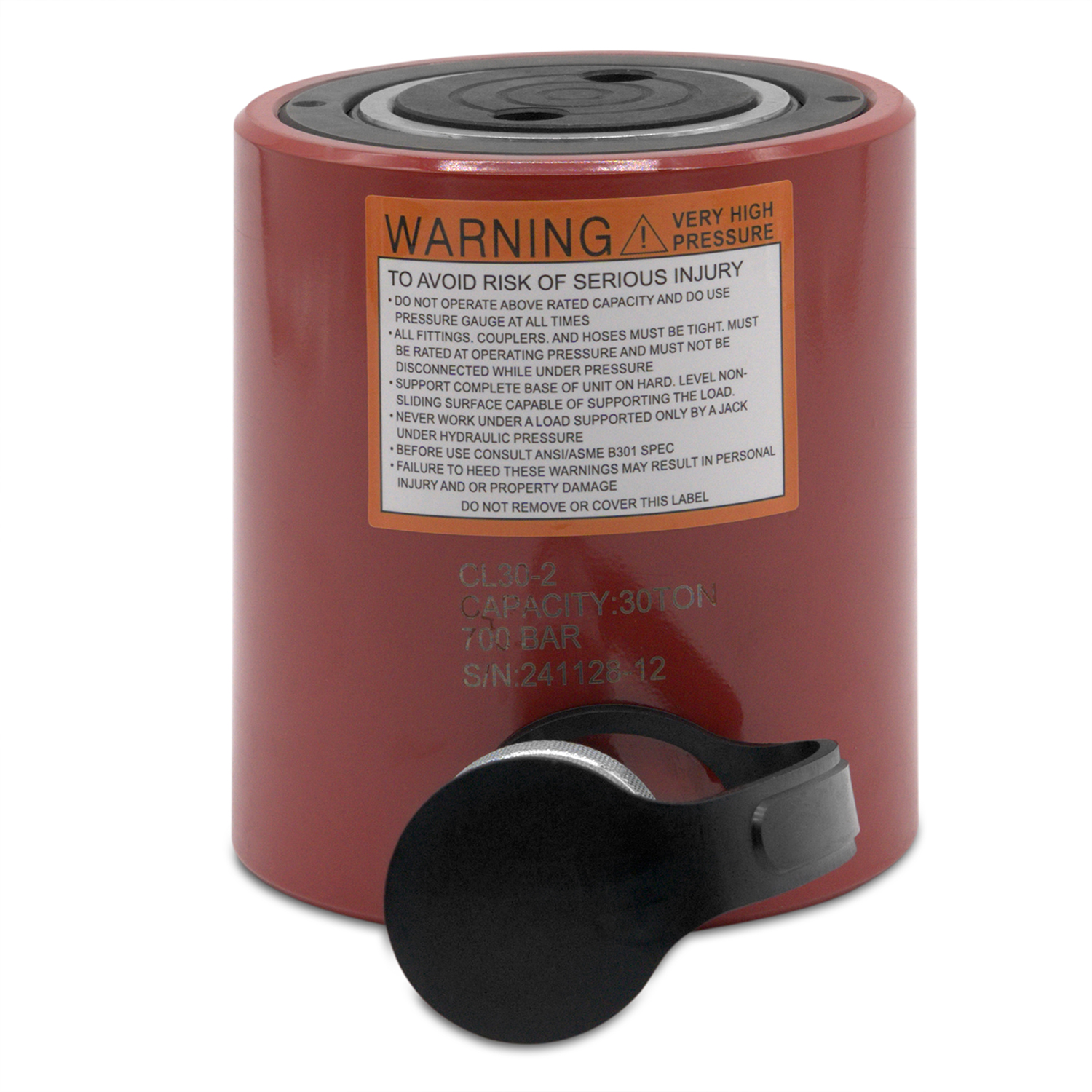

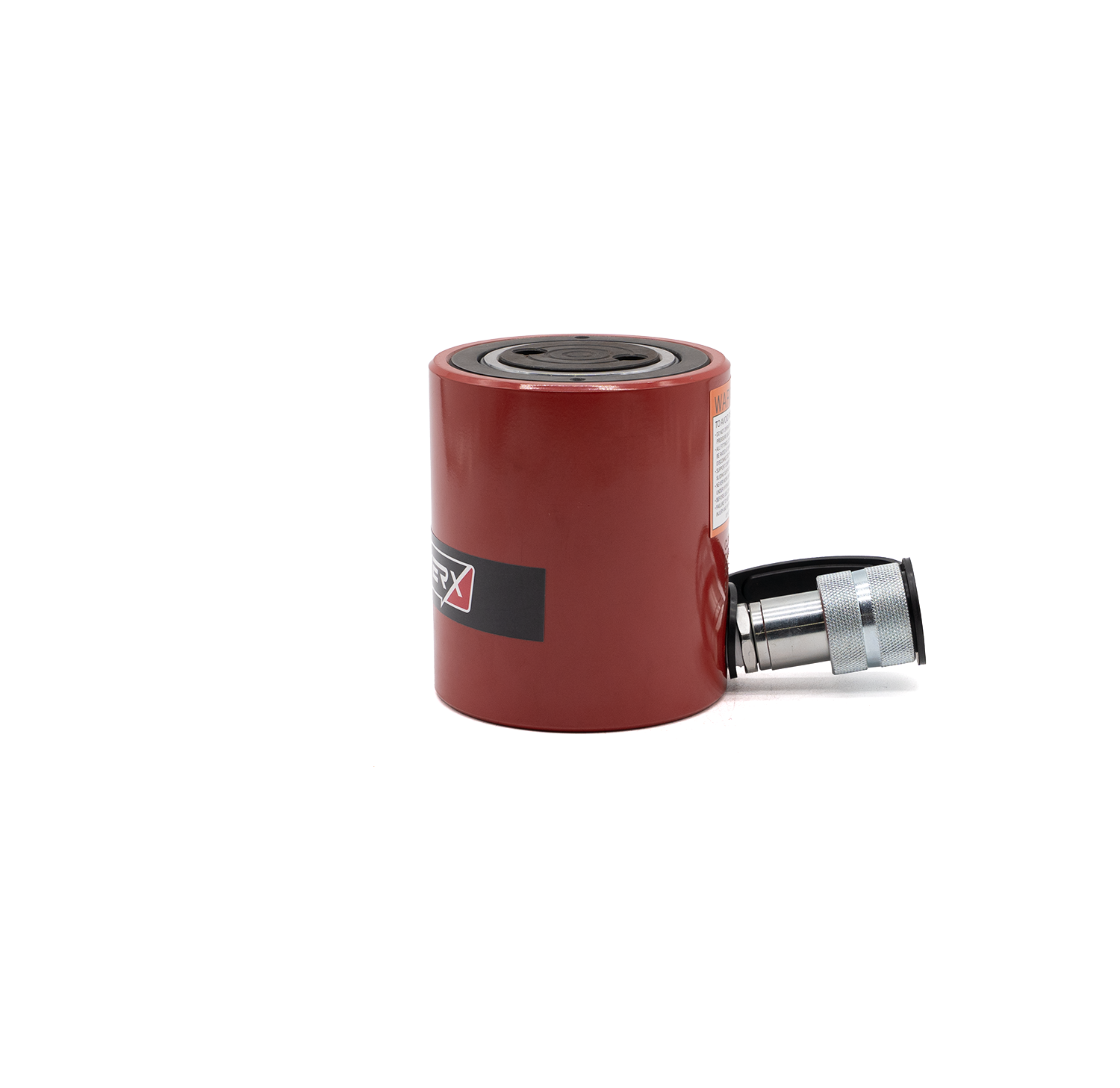

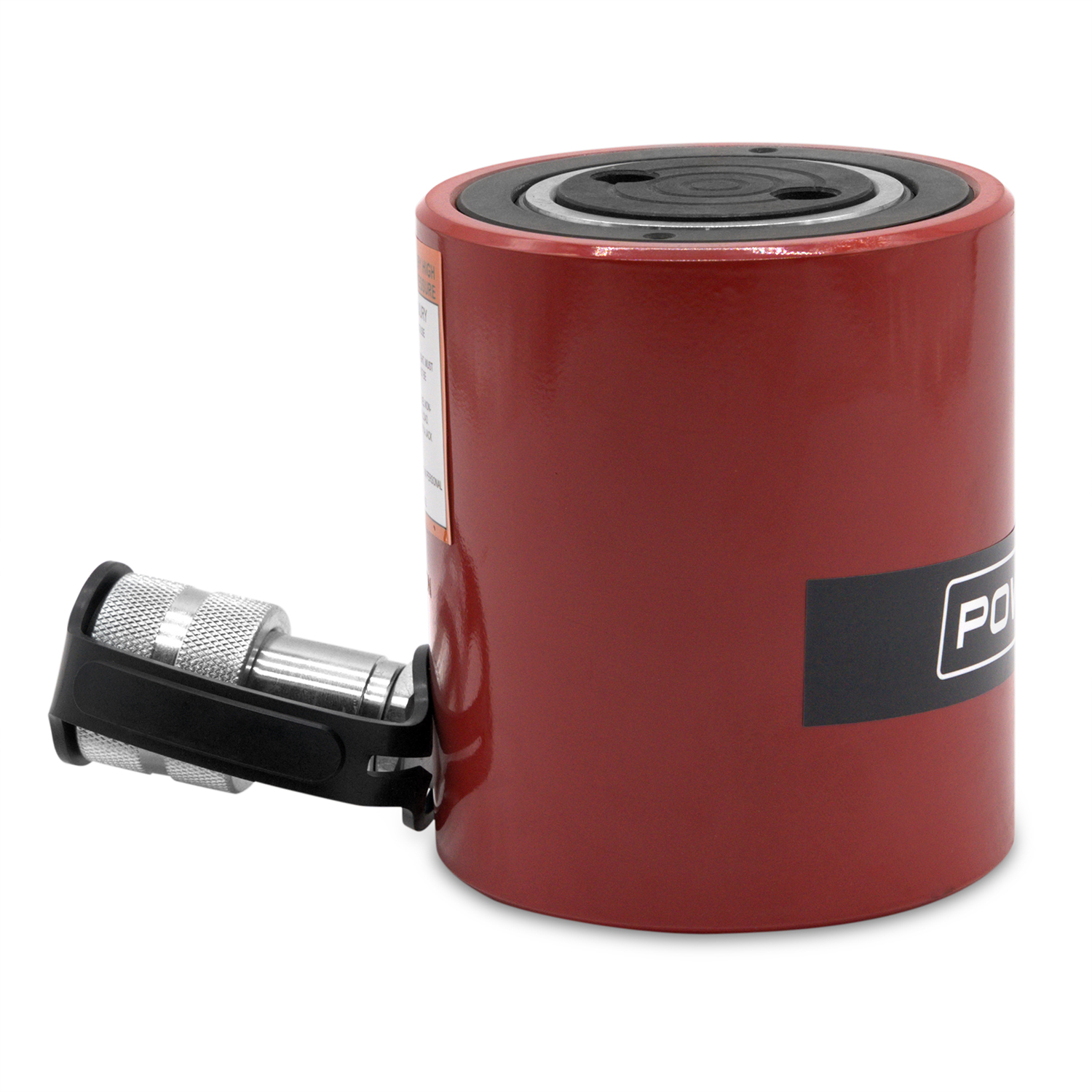

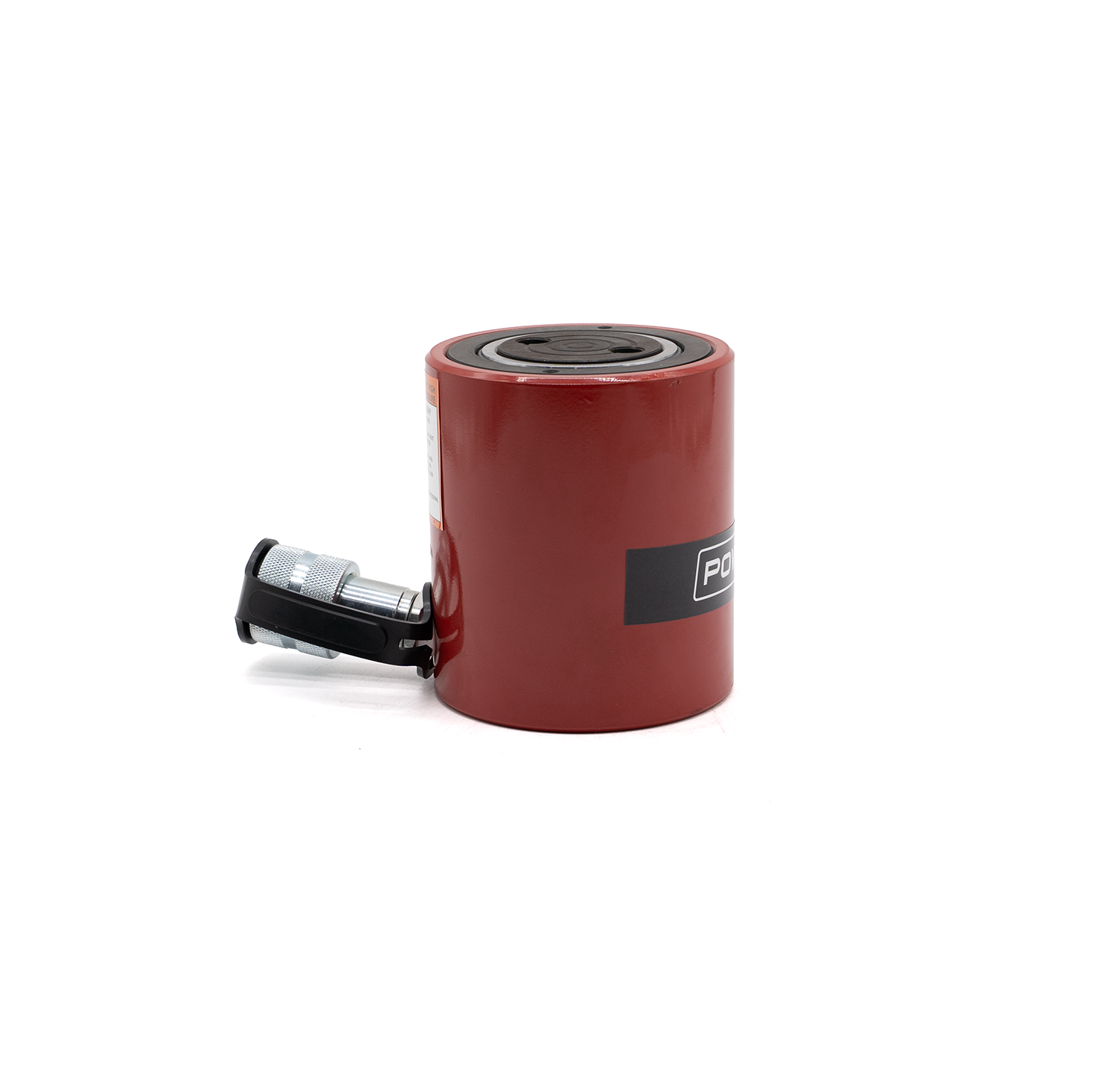

CL30-2 Low Profile Hydraulic Cylinder – 30 Ton, 2.44 Inch Stroke, Single Acting – PowerX CL-Series

Compact, powerful, and built for precision, the PowerX CL30-2 delivers 30 tons of lifting capacity in a low-profile hydraulic cylinder designed for applications where space is limited but force is essential. Rated for 10,000 PSI (700 bar), this single-acting, spring-return cylinder, also known as a hydraulic ram or jack, provides reliable performance for maintenance, construction, and heavy-equipment repair operations that demand high tonnage in tight clearances.

Engineered with a flat, low-height design, the CL30-2 easily fits into confined areas for lifting, pushing, or pressing tasks. The high-strength steel body resists side-load stress, while the precision chrome-plated piston and hardened internal bearing surfaces extend seal life under full load. A built-in return spring ensures fast retraction after pressure release, increasing speed and efficiency during repetitive jobs.

Each PowerX CL-Series low height cylinder is built for durability and field-ready performance, featuring a threaded collar and base mounting holes for secure positioning and easy integration into lifting systems. The 3/8-inch NPTF high-flow coupler allows quick connection to PowerX power units.

Compact enough for confined workspaces yet strong enough for demanding jobs, the CL30-2 low profile jack provides consistent force and long-term reliability—ideal for construction sites, machinery maintenance, industrial plants, and fabrication facilities.

Power this cylinder with our high-pressure hydraulic pumps or power units, like the Air Over Hydraulic Pumps, Electric Hydraulic Pumps, and Hydraulic Hand Pumps.

Features:

• Single Acting, steel construction, spring return
• Compact low profile design
• Collar threads with protection cover & base mounting holes
• 3/8” NPTF high flow coupler with dust caps
• Roll burnished for extended seal life
• Durable exterior finish and ANSI B30.1 compliant

Performance:

• Capacity: 30 Tons
• Stroke: 2.44″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 15.85 in³
• Effective Area: 6.50 in²
• Pressure Rating: 10,000 PSI (700 Bar)
• Operation Type: Single Acting, Spring Return

Dimensions:

• Collapsed Height: 4.63″
• Extended Height: 7.06″
• Outside Diameter: 4.00″
• Bolt Circle: 1.42″
• Thread Depth: 0.38″
• Bore Diameter: 2.88″
• Rod Diameter: 2.50″

Thread & Port Details:

• Port Type: 3/8″ NPTF High-Flow Port
• Thread Size: M5
• Base Mounting Holes: Included for secure setup
• Return Type: Built-in Spring Return
• Pressure Connection: Standard 10,000 PSI quick-connect compatible

Need help finding the right hydraulic cylinder for your lift?

Explore our in-depth guide, How to Select a Hydraulic Cylinder, Jack, or Ram for Lifting Applications, where we cover tonnage, stroke length, cylinder types, and safety factors to help you choose the perfect setup for your equipment.

Can’t find your exact fit?

PowerX builds custom hydraulic cylinders engineered for construction, mining, industrial, transportation, mobile equipment and oil & gas  applications. Use our Custom Cylinder Configurator Tool to request a quote tailored to your specific needs.
