50 Ton Low Profile Hydraulic Cylinder, Single Acting, 2.38″ Stroke

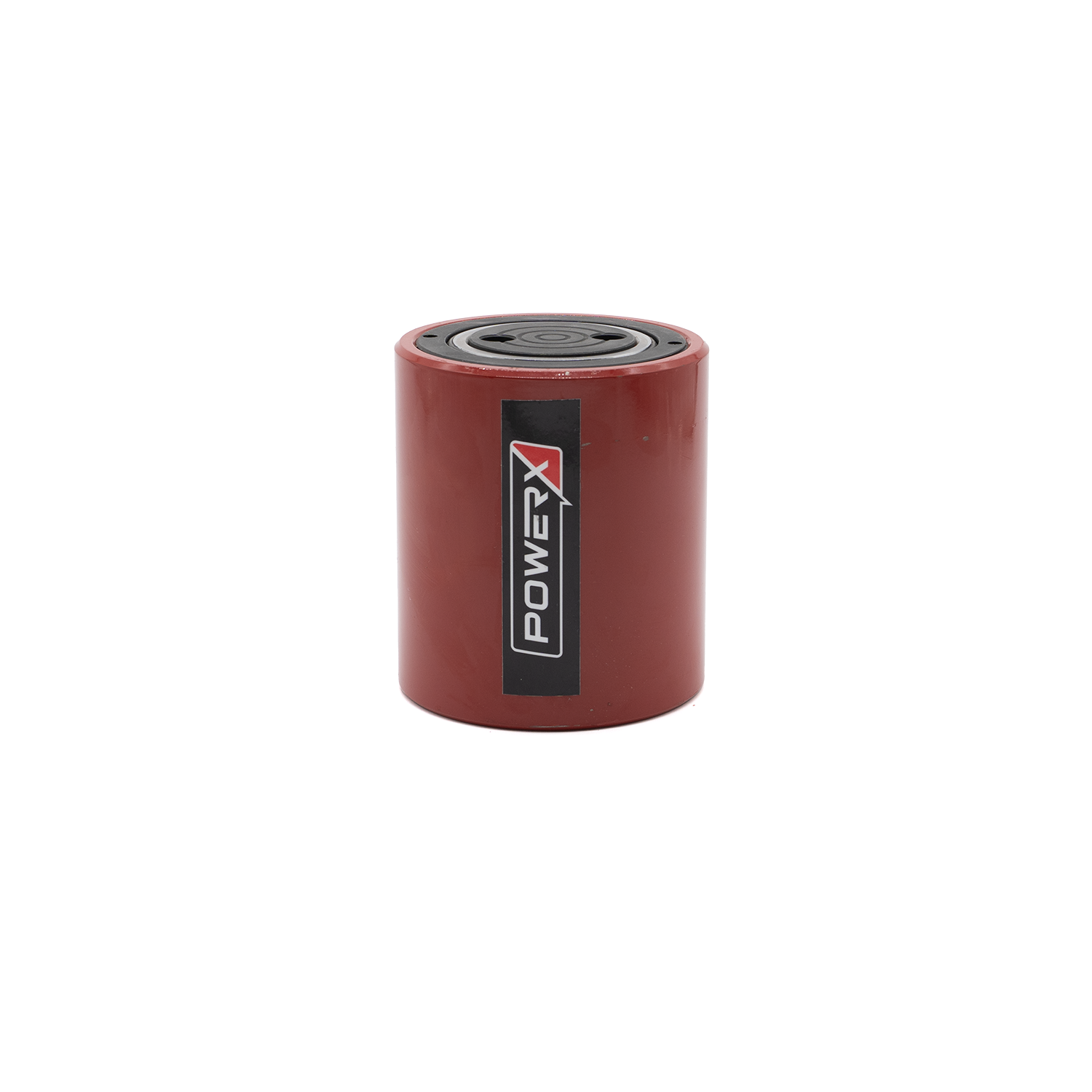

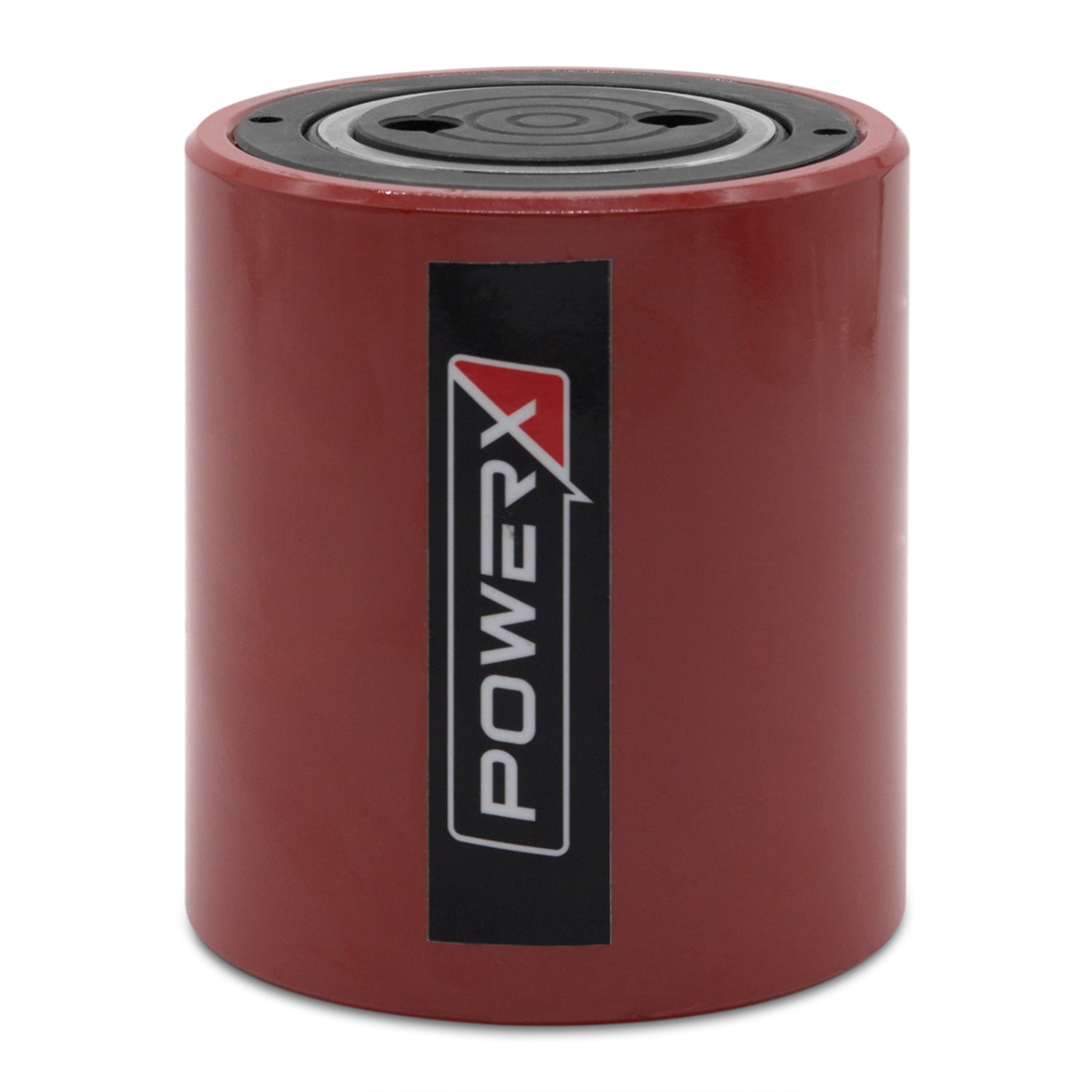

CL50-2 Low Profile Hydraulic Cylinder – 50 Ton, 2.38 Inch Stroke, Single Acting – PowerX CL-Series

Compact, durable, and engineered for performance, the PowerX CL50-2 delivers 50 tons of lifting power in a low-profile hydraulic cylinder built for high-force applications where space is tight. Rated for 10,000 PSI (700 bar), this single-acting, spring-return hydraulic ram provides smooth, controlled motion for maintenance, construction, and industrial lifting jobs that require strength and reliability in confined spaces.

The flat, low-height design of the CL50-2 makes it ideal for lifting, pushing, and pressing operations under heavy loads. Its high-strength steel body resists side-load stress, while the precision chrome-plated piston and hardened bearing surfaces extend seal life and ensure consistent performance under maximum pressure. The built-in return spring allows fast retraction once pressure is released, improving cycle times and overall efficiency.

Like all PowerX CL-Series low-height cylinders, the CL50-2 is designed for field-ready durability with a threaded collar and base mounting holes for stable positioning and easy integration into existing hydraulic setups. The 3/8-inch NPTF high-flow coupler enables quick, leak-free connection to PowerX pumps and power units, providing seamless operation across the full 10,000 PSI hydraulic system.

Compact in design yet powerful in output, the CL50-2 Low Profile Hydraulic Jack is the dependable choice for construction sites, manufacturing plants, equipment repair bays, and heavy industrial projects where power and precision are equally essential.

Power this cylinder with any PowerX high-pressure hydraulic pump, including our Air Over Hydraulic Pumps, Electric Hydraulic Pumps, or Hydraulic Hand Pumps, to build a complete 10,000 PSI lifting system that performs flawlessly in even the most confined spaces.

Features:

• Single Acting, steel construction, spring return
• Compact low profile design
• Collar threads with protection cover & base mounting holes

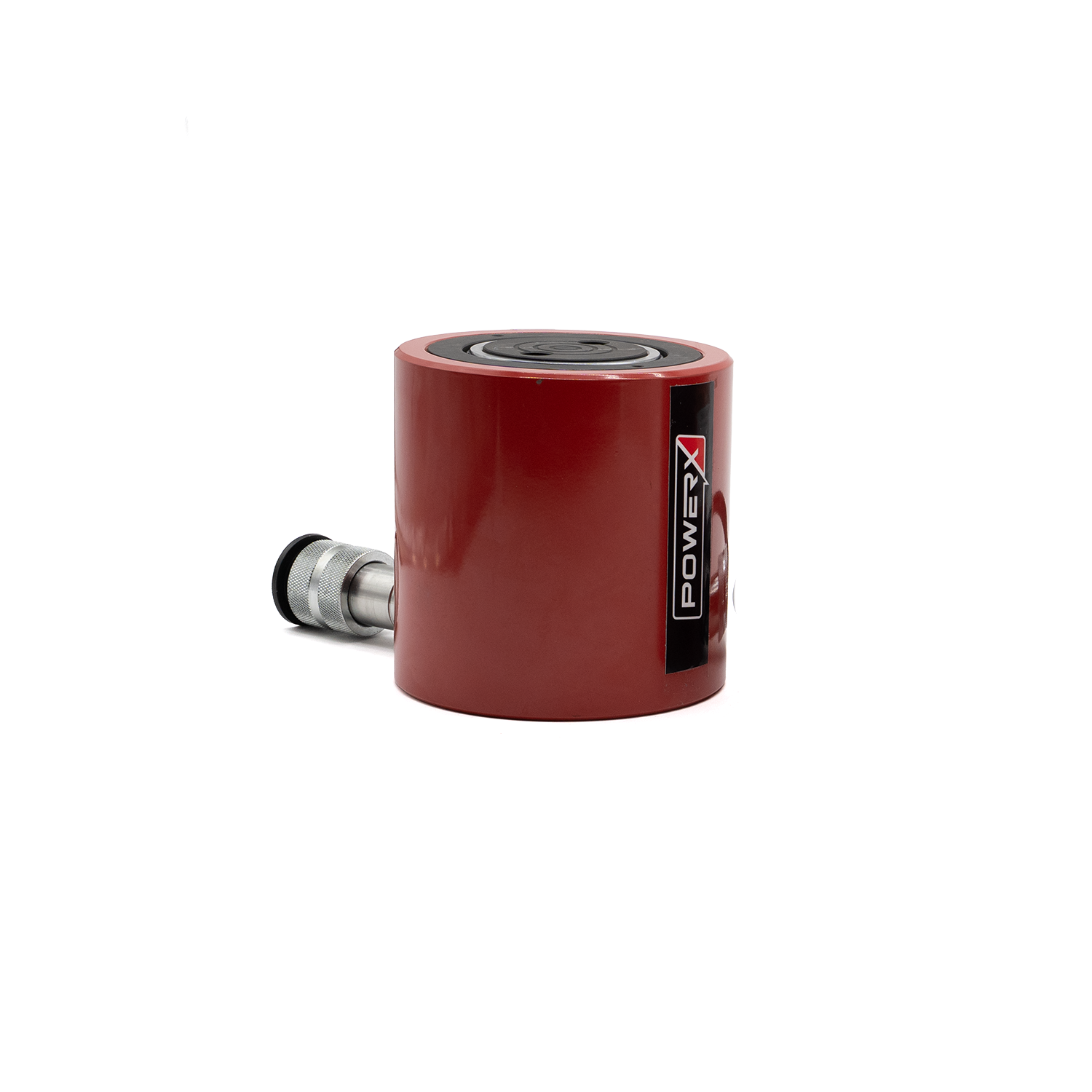

• 3/8” NPTF high flow coupler with dust caps
• Roll burnished for extended seal life
• Durable exterior finish and ANSI B30.1 compliant

Performance:

• Capacity: 50 Tons
• Stroke: 2.38″
• Maximum Pressure: 10,000 PSI (700 Bar)
• Oil Capacity: 22.91 in³
• Effective Area: 9.62 in²
• Pressure Rating: 10,000 PSI (700 Bar)
• Operation Type: Single Acting, Spring Return

Dimensions:

• Collapsed Height: 5.02″
• Extended Height: 7.19″
• Outside Diameter: 4.88″
• Bolt Circle: 1.56″
• Thread Depth: 0.38″
• Bore Diameter: 3.5″
• Rod Diameter: 2.75″

Thread & Port Details:

• Port Type: 3/8″ NPTF High-Flow Port
• Thread Size: M6
• Base Mounting Holes: Included for secure setup
• Return Type: Built-in Spring Return
• Pressure Connection: Standard 10,000 PSI quick-connect compatible

Need help finding the right hydraulic cylinder for your lift?

Explore our in-depth guide, How to Select a Hydraulic Cylinder, Jack, or Ram for Lifting Applications, where we cover tonnage, stroke length, cylinder types, and safety factors to help you choose the perfect setup for your equipment.

Can’t find your exact fit?

PowerX builds custom hydraulic cylinders engineered for construction, mining, industrial, transportation, mobile equipment and oil & gas applications. Use our Custom Cylinder Configurator Tool to request a quote tailored to your specific needs.
