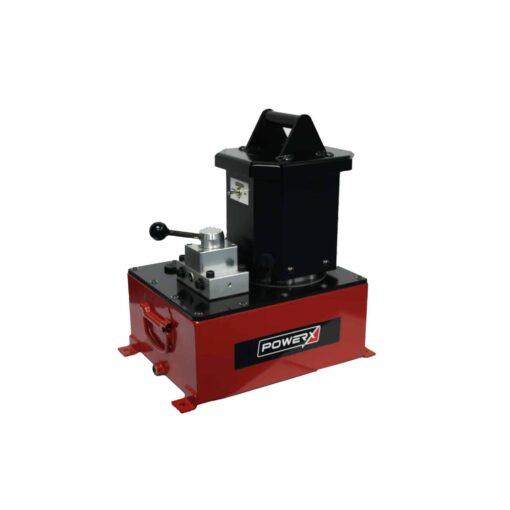

PE283 | Single Acting 3 Way 3 Position Manual Valve 28 in3 flow/minute
Call for availability: 414-988-6202
- Designed, manufactured and assembled in the USA. Low noise level meets OSHA standards (83 dba)
- Two stage hydraulic system – 10,000 PSI/700 Bar capacity – first stage geroter pump, second stage radial piston pump
- Interchangeable control valves (2, 3, or 4-way) and reservoirs (1, 2, 3, 5, and 10 gallon usable oil capacities)
- One piece motor and valve mounting plate with an integral high flow unloading system
- External adjustable relief valve for pre-setting maximum operation pressure (2,000 PSI – 10,000 PSI range)
- Standard motors are universal type, 50/60 Hz 115v/230v. These motors can start under load with clean or dirty power. Other motors available on request.
* Contact us with your voltage and cycle electric motor requirement.
** Contact us with your remote shifting requirement of your control valve (pendant and/or solenoid control)
*** Contact us with the reservoir size required
| Weight | 85 lbs |
|---|---|
| Dimensions | 17.5 × 11.25 × 19.5 in |
| Reservoir Capacity (gal) | 2 |
| Cylinder Compatibility | Single Acting Cylinder |
| Valve Type | 3W3P Manual |
| Motor Size (hp) | 1.6 |
| Single Stage Oil/Vol Stroke | 350 |
| Two Stage Oil/Volume Stroke (in3) | 28 |
