Square Drive Torque Wrench, 525-5,480 ft-lbs Torque
$7,449.00
Square Drive Torque Wrench, 525-5,480 ft-lbs Torque
Call for Tiered Pricing
In Stock
SKU: PXTW-SD5 Category: Torque Wrenches

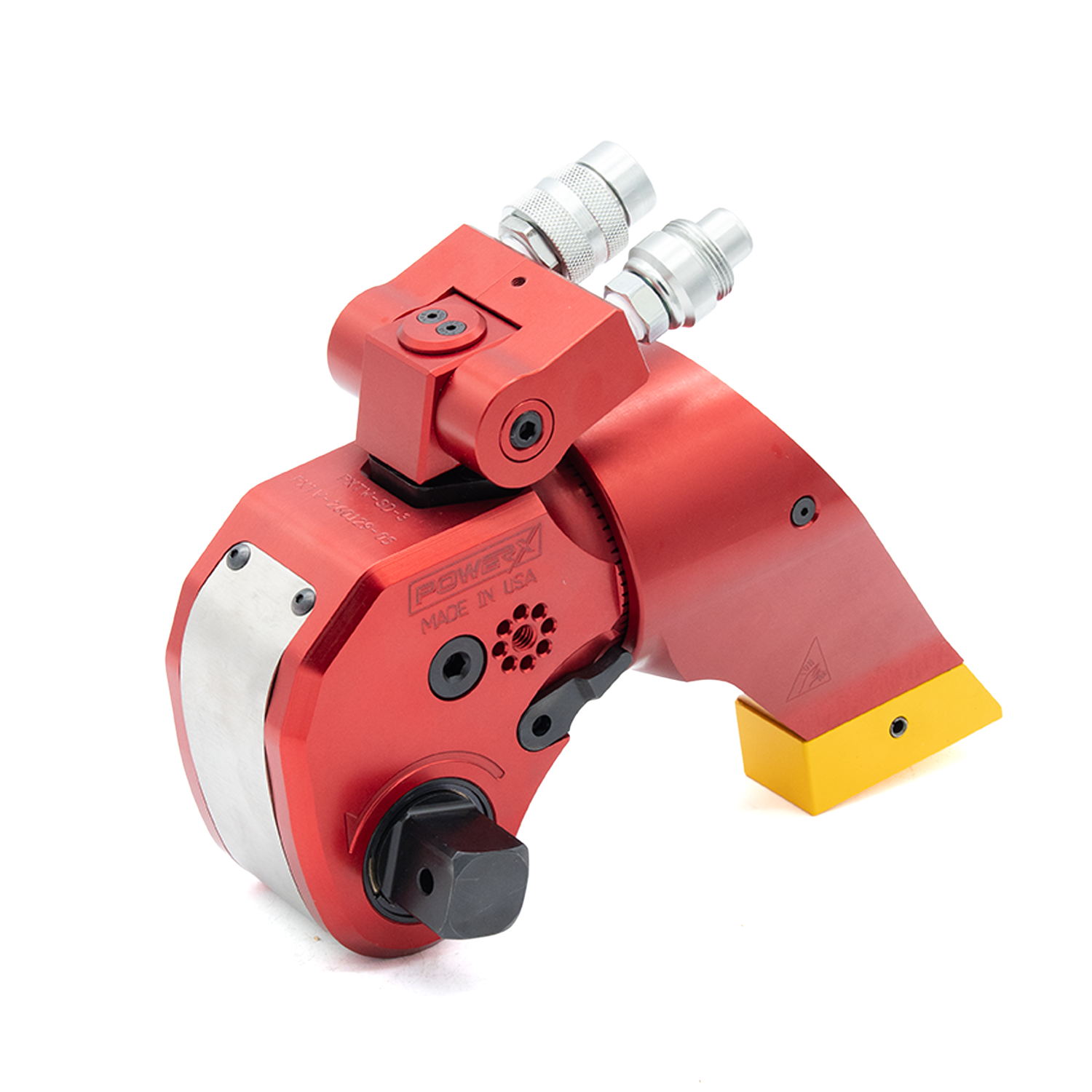

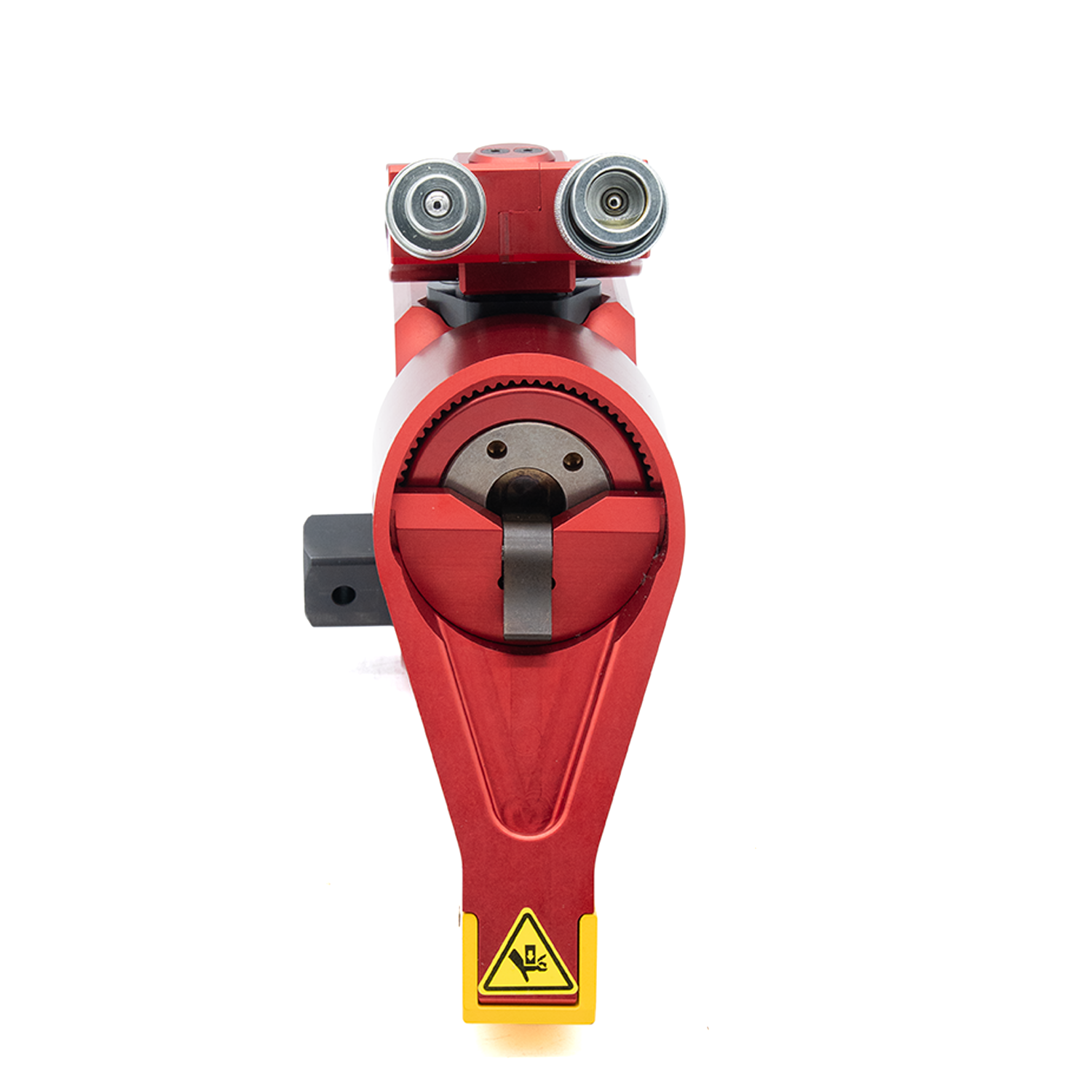

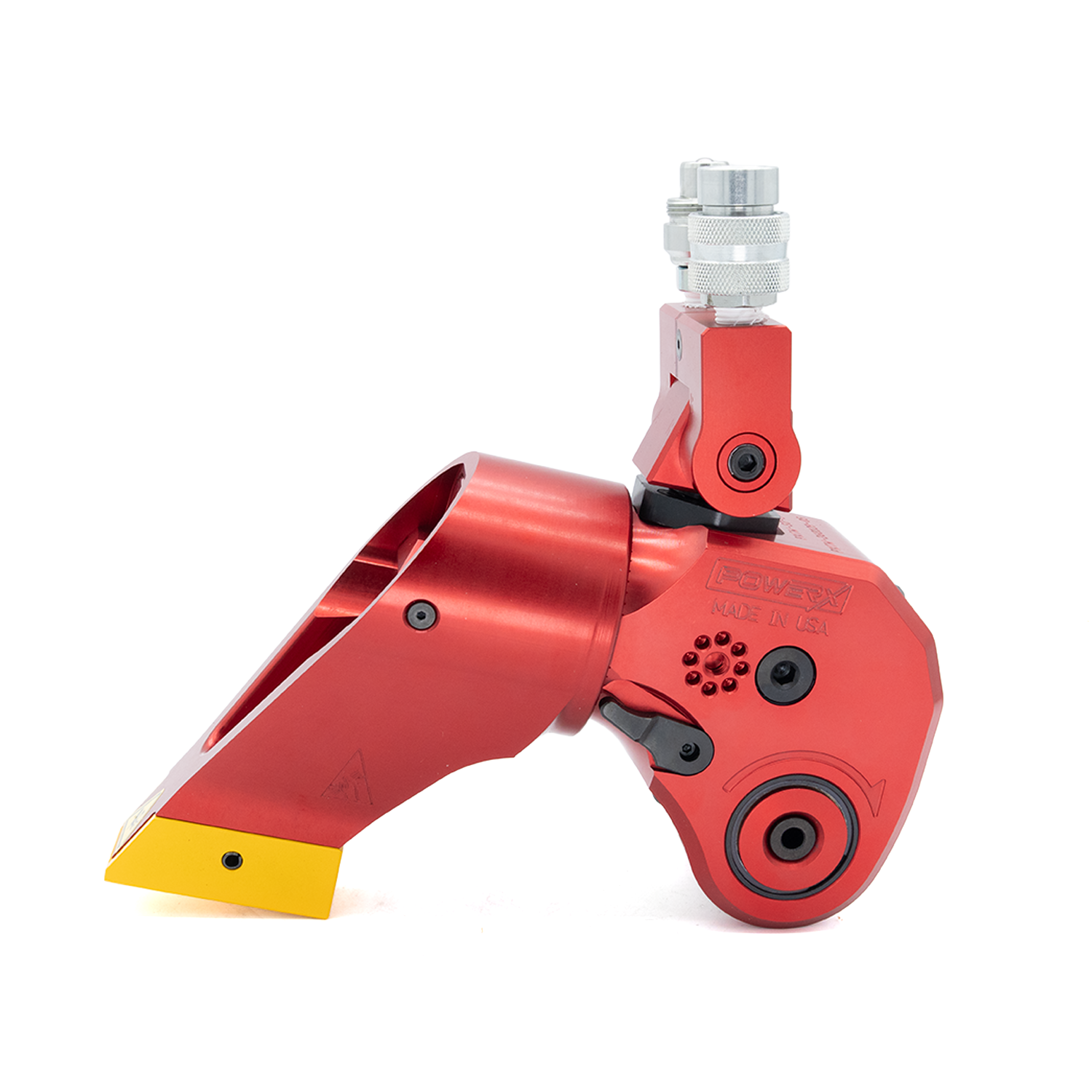

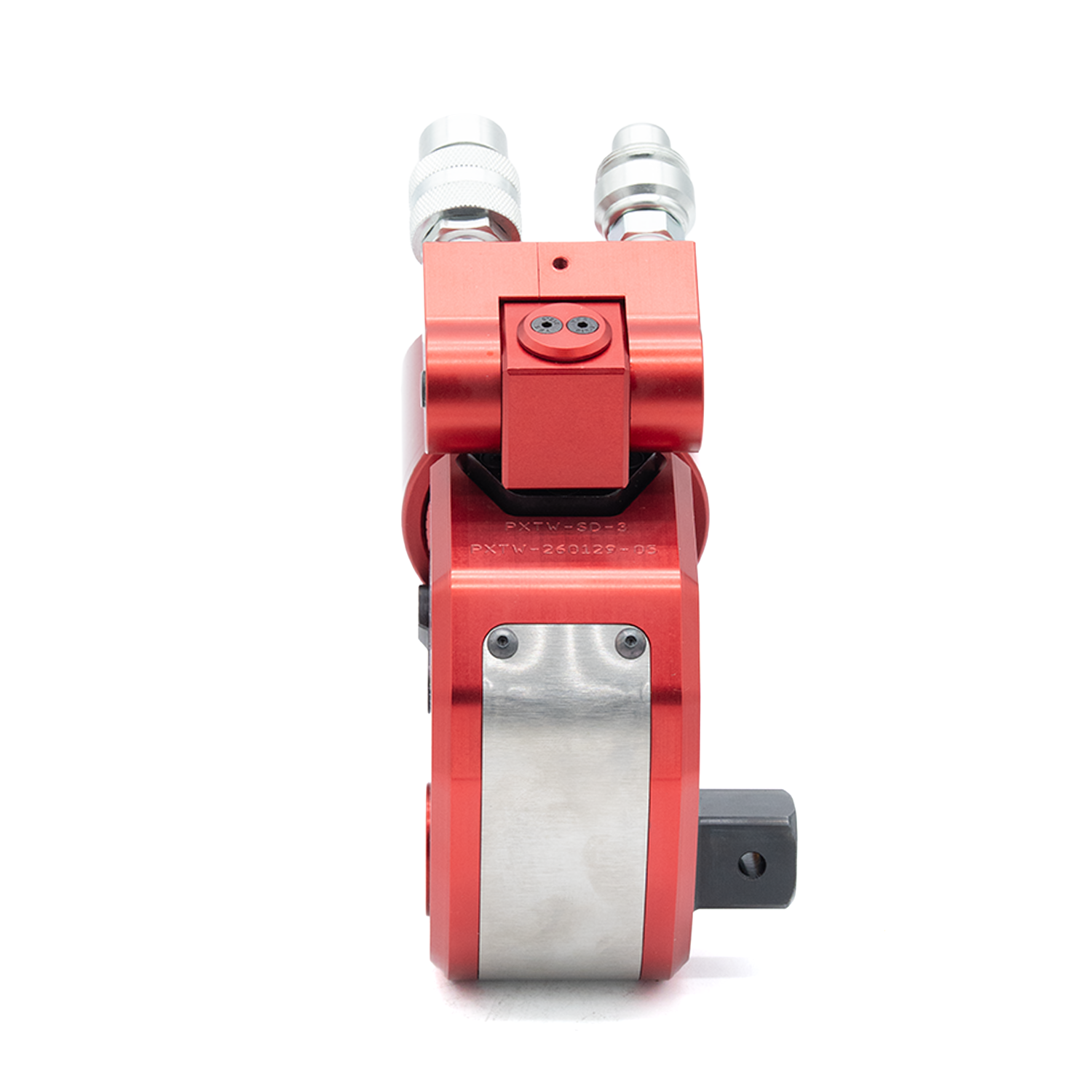

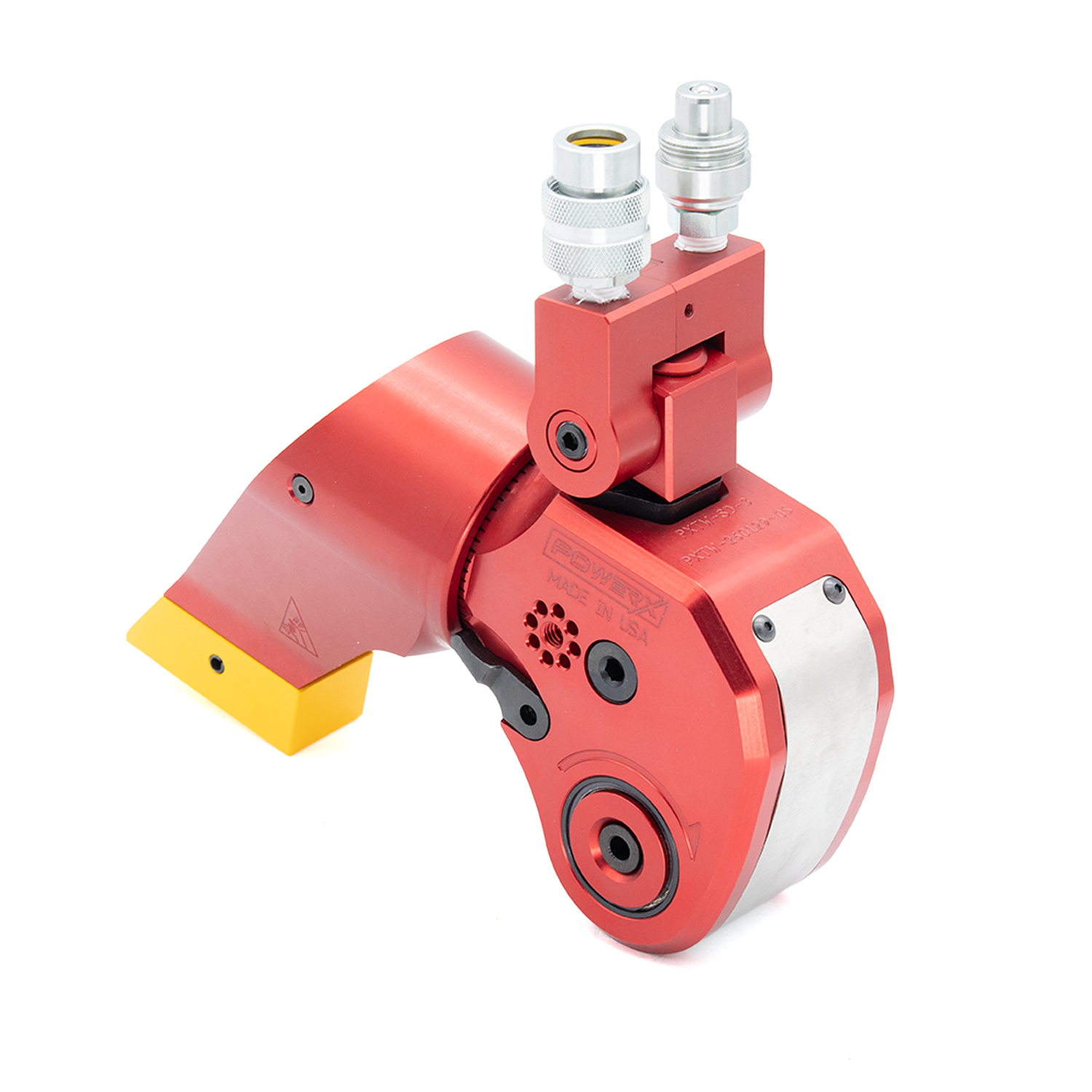

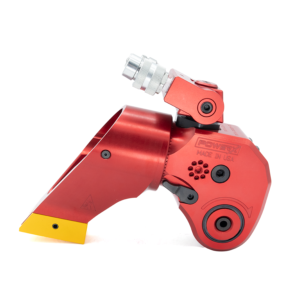

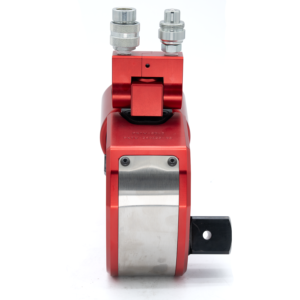

PowerX Square Drive Hydraulic Torque Wrench, 525-5,480 ft-lbs Torque
The PowerX Hydraulic Torque Wrench is a compact, high-output industrial torque wrench engineered for controlled bolting, maintenance, and heavy equipment service. The Square Drive Torque Wrench delivers precise, repeatable torque for critical joints in demanding industrial environments.
Designed for industrial maintenance, manufacturing, power generation, oil & gas, mining, construction, and heavy equipment service, this torque wrench combines exceptional torque density with durability and jobsite ergonomics. This hydraulic torque wrench is ideal for technicians and maintenance teams requiring repeatable torque, safety, and reliability in mission-critical bolting operations.
Please see our torque conversion chart below, allowing operators to accurately set torque based on hydraulic pressure. This ensures consistent clamp load and repeatability across industrial bolting applications where accuracy matters.
To power our torque wrenches, pair it with one of our torque wrench pumps!
Features:
- Hydraulic Square Drive Torque Wrench for controlled tightening and high-torque breakout
- Torque Range: 525– 5,480 ft-lbs (712– 7,430 Nm) — ideal for high-pressure industrial bolting applications
- 1.5″ Square Drive compatible with standard industrial impact sockets
- High Strength-to-Weight Ratio reduces operator fatigue during repetitive bolting tasks
- Uni-Body Aluminum & Alloy Steel Construction for durability in harsh industrial environments

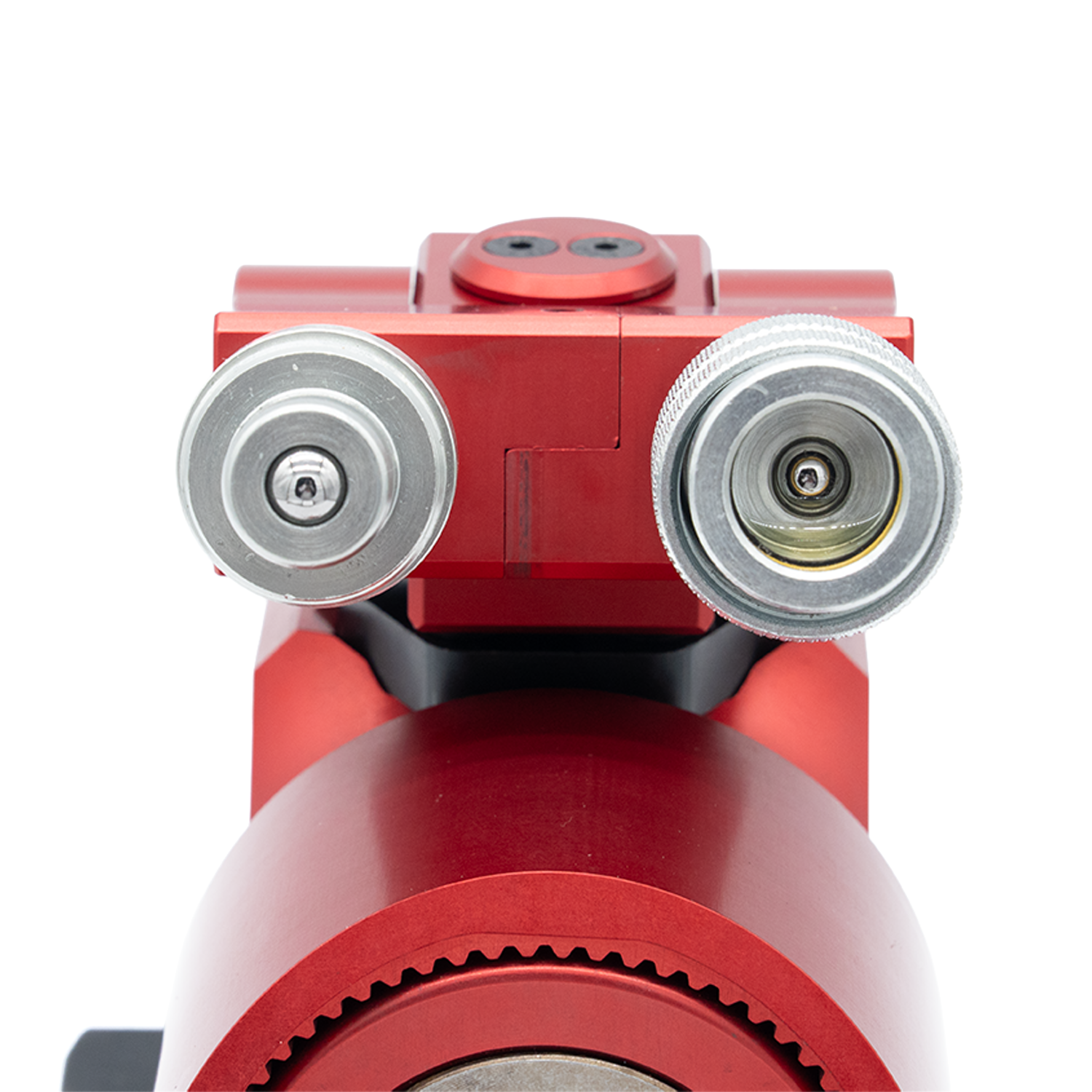

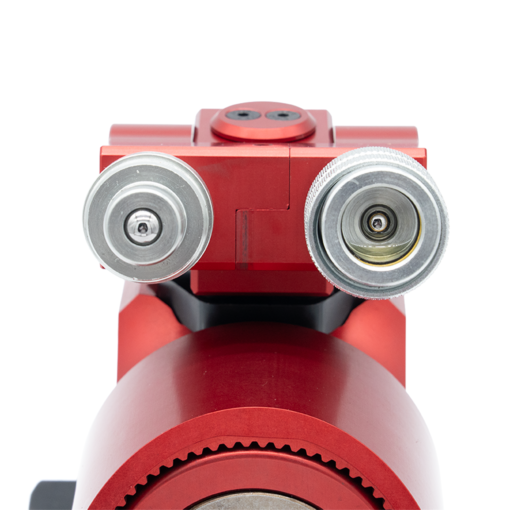

- Multi-Axis Swivel Coupling improves hose routing and tool positioning in confined spaces
- Extended Reaction Arm provides secure reaction points on flanges, structural steel, and machinery
- Anti-Jam Release Lever minimizes downtime and improves jobsite efficiency
- Calibrated Torque Output using pressure-to-torque conversion for consistent results
Specs:
| Specification | Details |
| Model | PowerX PXTW-SD5 |
| Drive Type | Square Drive Hydraulic Torque Wrench |
| Drive Size | 1.5″ Square |
| Torque Range | 525– 5,480 ft-lbs (712– 7,430 Nm) |
| Construction | Aluminum Alloy & High-Strength Steel Alloy |
| Operation | Hydraulic |
| Reaction Arm | Extended |
| Calibration | See Pressure-to-Torque Conversion Chart Below |
Pressure-to-Torque Conversion Chart:
| PRESSURE (PSI) | FT. LBS. | NM |
| 1000 | 525 | 712 |
| 1200 | 635 | 861 |
| 1400 | 745 | 1010 |
| 1600 | 845 | 1146 |
| 1800 | 1000 | 1356 |
| 2000 | 1060 | 1437 |
| 2200 | 1165 | 1580 |
| 2400 | 1270 | 1722 |
| 2600 | 1395 | 1891 |
| 2800 | 1505 | 2041 |
| 3000 | 1600 | 2169 |
| 3200 | 1715 | 2325 |
| 3400 | 1825 | 2474 |
| 3600 | 1935 | 2624 |
| 3800 | 2050 | 2779 |
| 4000 | 2170 | 2942 |
| 4200 | 2270 | 3078 |
| 4400 | 2380 | 3227 |
| 4600 | 2490 | 3376 |
| 4800 | 2615 | 3545 |
| 5000 | 2735 | 3708 |
| 5200 | 2840 | 3851 |
| 5400 | 2950 | 4000 |
| 5600 | 3060 | 4149 |
| 5800 | 3175 | 4305 |
| 6000 | 3285 | 4454 |
| 6200 | 3395 | 4603 |
| 6400 | 3515 | 4766 |
| 6600 | 3620 | 4908 |
| 6800 | 3740 | 5071 |
| 7000 | 3840 | 5206 |
| 7200 | 3955 | 5362 |
| 7400 | 4065 | 5511 |
| 7600 | 4175 | 5661 |
| 7800 | 4285 | 5810 |
| 8000 | 4400 | 5966 |
| 8200 | 4495 | 6094 |
| 8400 | 4610 | 6250 |
| 8600 | 4725 | 6406 |
| 8800 | 4820 | 6535 |
| 9000 | 4935 | 6691 |
| 9200 | 5050 | 6847 |
| 9400 | 5145 | 6976 |
| 9600 | 5265 | 7138 |
| 9800 | 5380 | 7294 |
| 10000 | 5480 | 7430 |
| Weight | 18 lbs |
|---|
