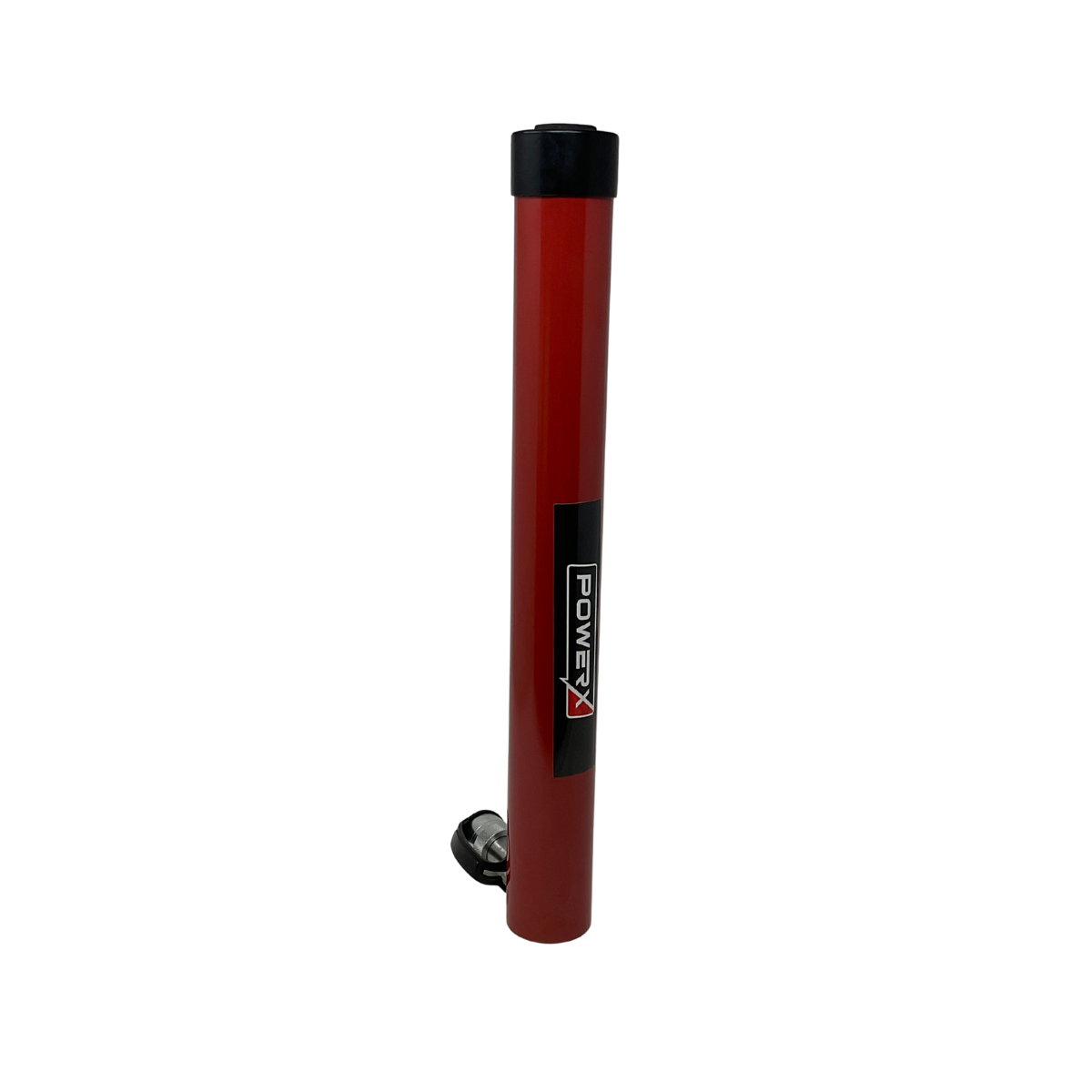

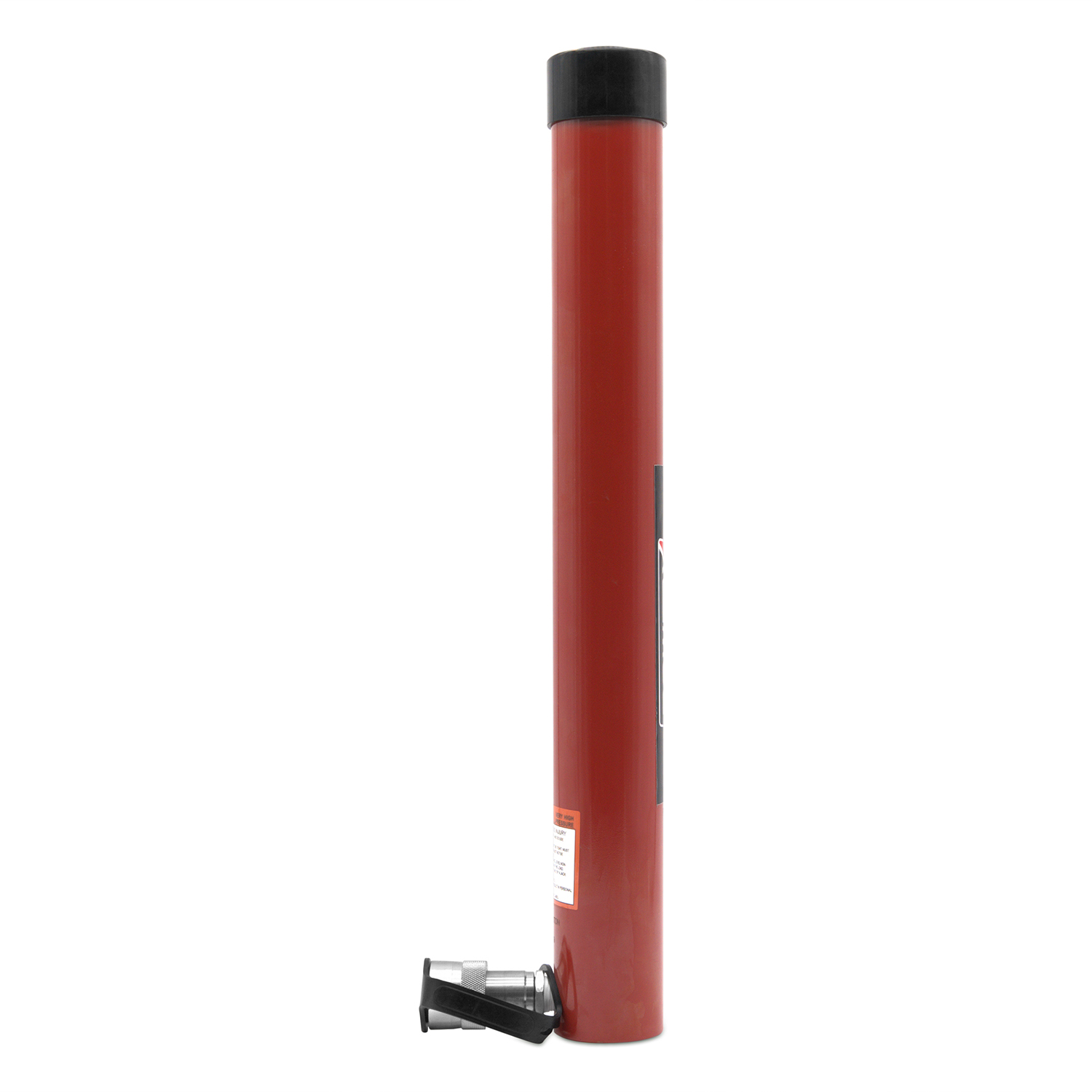

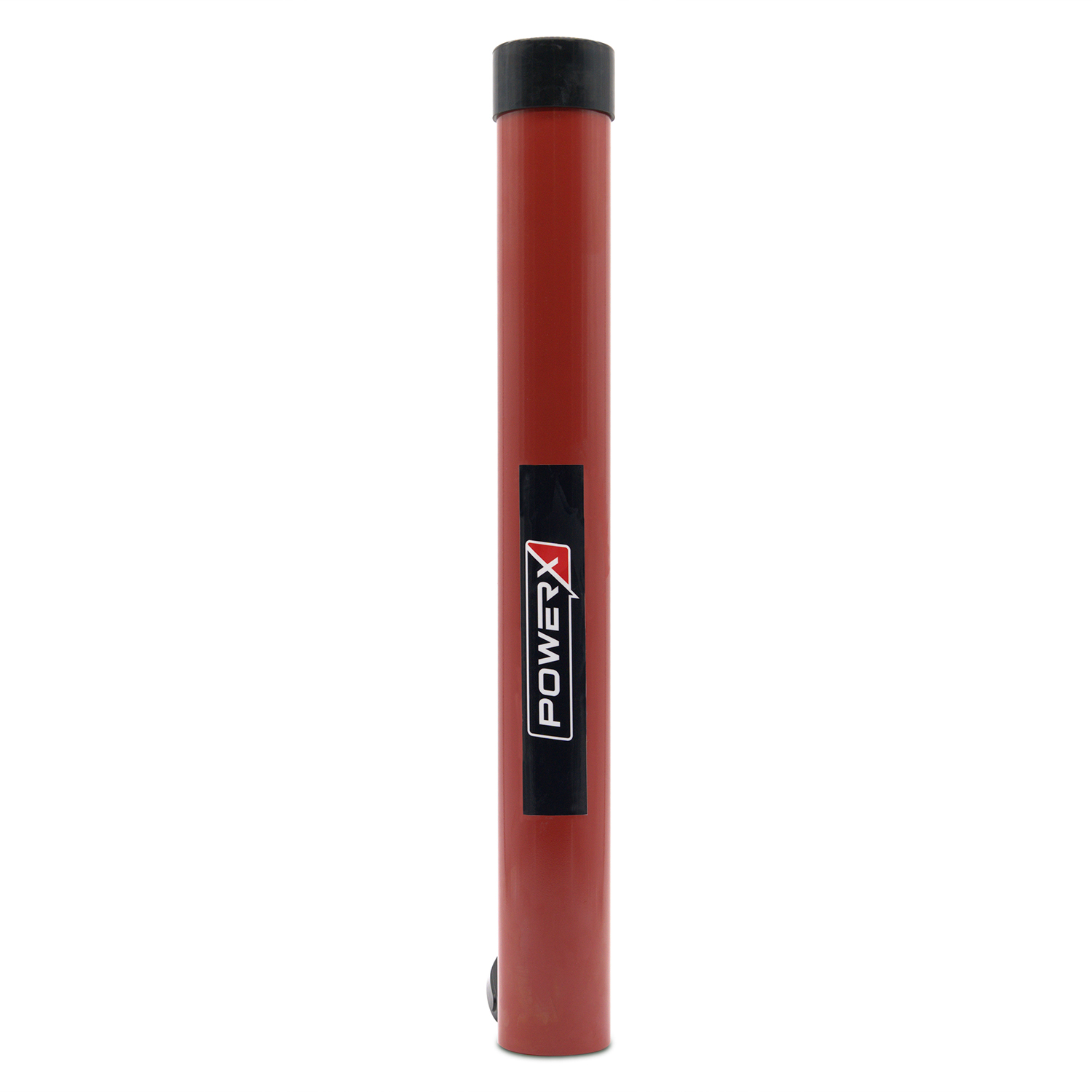

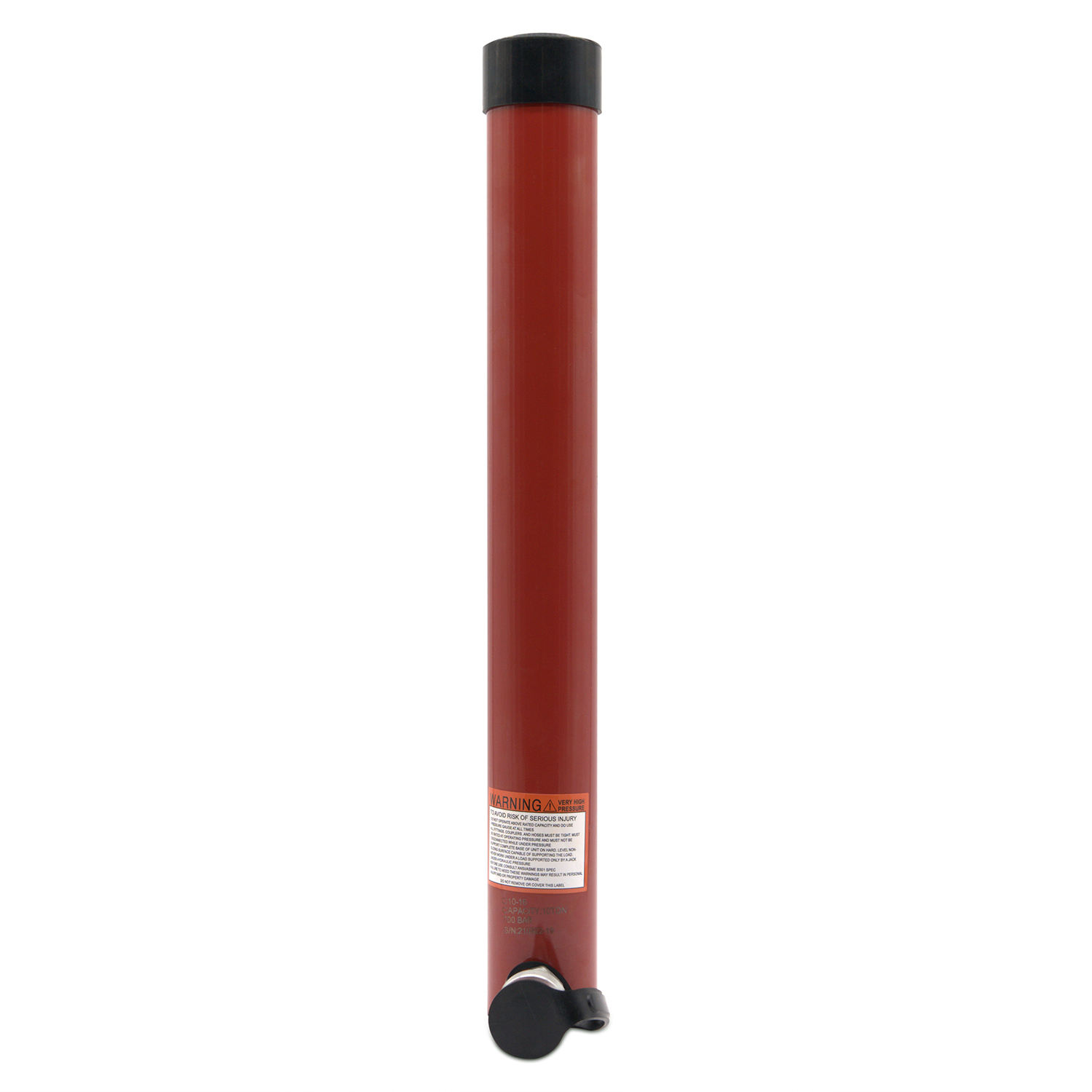

10 Ton cylinder, single acting, 16″ stroke
$1,099.95
10 Ton cylinder, single acting, 16″ stroke
In stock
The 10-ton, 16″ stroke PowerX single acting cylinders are built for demanding pushing, lifting, bending, or holding applications. Engineered for durability, they deliver reliable performance across multiple stroke lengths and lifting capacities.
- Single acting with heavy-duty spring return
- Rugged steel construction with chrome-plated plungers
- Collar threads with protection cover and base mounting holes
- 3/8” NPTF high-flow coupler with dust caps
- Durable exterior finish, ANSI B30.1 compliant
*Contact us for higher tonnage or longer stroke cylinders.
| Weight | 19 lbs |
|---|---|
| Dimensions | 21 × 6 × 4 in |
| Capacity (Tons) | |
| Stroke (in) | 14 |
| Minimum Height (in) | 17.72 |
| Maximum Height (in) | 31.75 |
Cross Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| PowerX | C10-14 |
| BVA | H1014 |
| Ram-Pac | RC-10-SA-14 |
| Simplex | R1014 |
| Power Team | C1014C |
| Enerpac | RC-1014 |
