Air Over Hydraulic Pump 10k PSI Double Action 122 in³ Reservoir Foot Treadle Operated PA6-122D

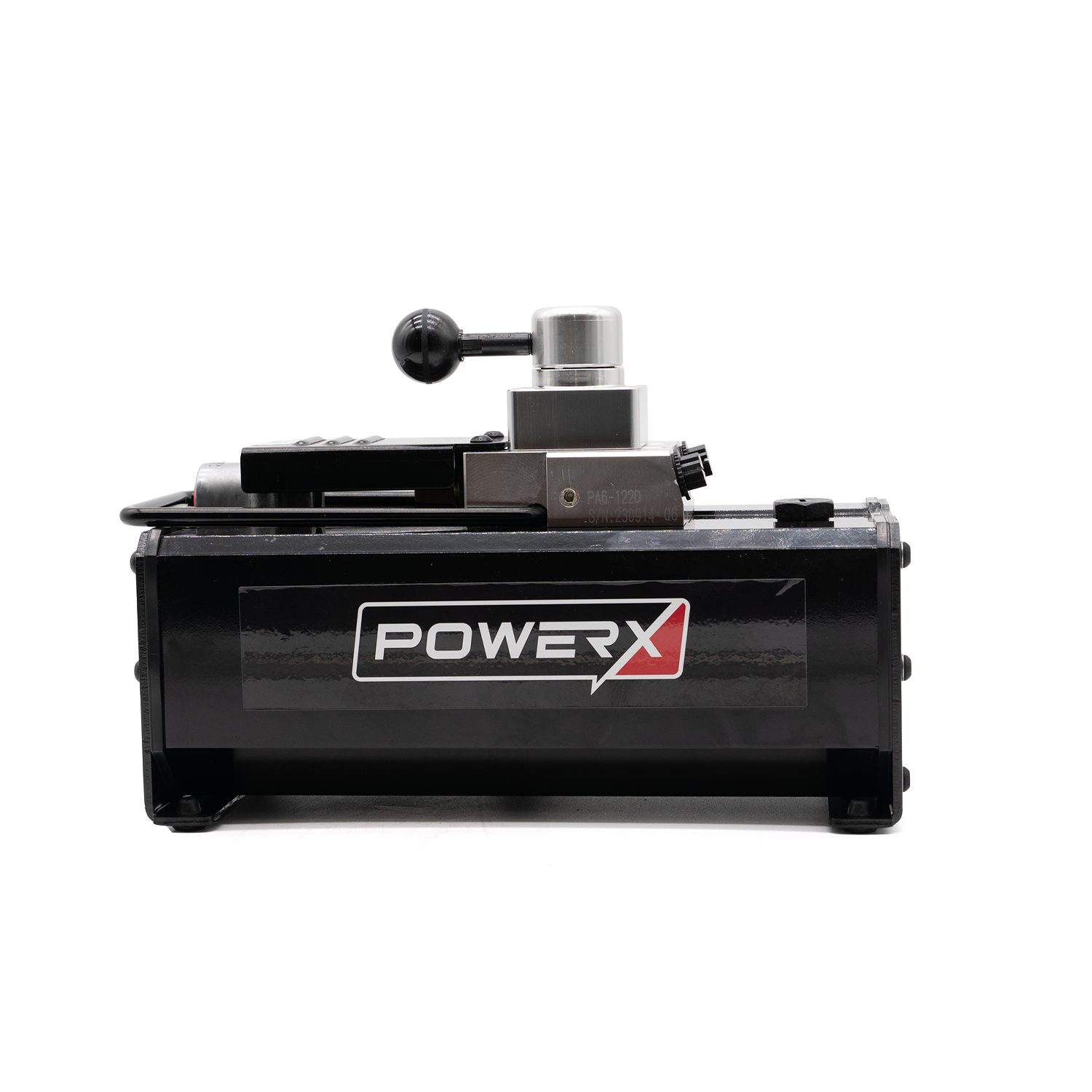

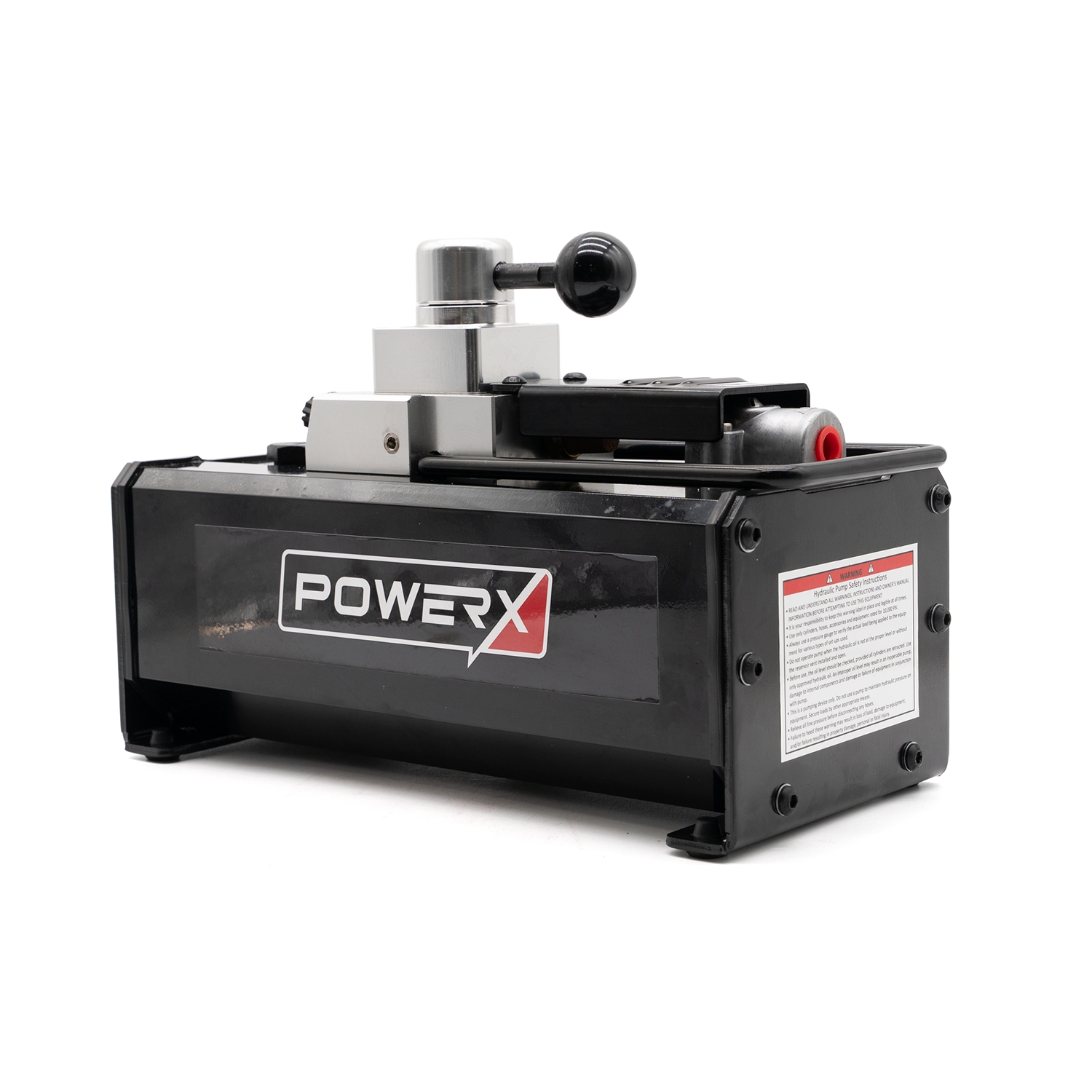

PA6-122D Air Over Hydraulic Pump – 10,000 PSI Double Acting – PowerX

Compact, efficient, and built for performance, the PowerX PA6-122D Air Over Hydraulic Pump 10k PSI Double Action 122 in³ Reservoir Foot Treadle Operated delivers dependable 10,000 PSI (700 bar) operation in a rugged, air over hydraulic design engineered for double-acting systems. This foot-operated pump provides fast, smooth, and controlled power for demanding industrial, construction, and maintenance applications that require extension and retraction under load.

Featuring turbo-speed air over hydraulic operation, the high-pressure PA6-122D air hydraulic pump produces 82 in³/min flow at no load and 13 in³/min at full pressure, ensuring rapid tool actuation and precise control during high-pressure cycles. Its reinforced aluminum-alloy reservoir holds 122 in³ of usable oil, providing ample capacity for most double-acting cylinders and tools while maintaining a compact footprint.

Lightweight yet strong, the corrosion-resistant construction stands up to harsh environments and heavy-duty use. A built-in pressure relief valve safeguards against overload, while the 3-position, 4-way valve provides precise directional control. The foot treadle design enables hands-free operation for safety, speed, and efficiency in field or shop environments.

Compact and powerful, the PA6-122D Air Over Hydraulic Pump is ideal for powering double-acting hydraulic cylinders, presses, pullers, and heavy-equipment lifting tools, delivering professional-grade control, reliability, and performance wherever high-pressure power is required.

Features:

• 10,000 PSI double-acting operation for extension and retraction control
• Turbo-speed flow for faster cycling under load
• 122 in³ aluminum-alloy reservoir for lightweight durability
• Foot treadle operation for hands-free precision and safety
• Built-in pressure relief valve for overload protection
• Corrosion-resistant design for use in demanding environments
• Compatible with PowerX double-acting hydraulic cylinders and tools

Performance:

• Maximum Pressure: 10,000 PSI (700 Bar)
• Usable Oil Capacity: 122 in³
• Flow Rate at No Load: 82 in³/min
• Flow Rate at Load: 13 in³/min
• Pump Type: Air Over Hydraulic, Double Acting
• Valve Operation: 3-Position / 4-Way Foot Treadle Control
• Weight: 22 lbs

Air Supply:

• Air Pressure Range: 40–170 PSI
• Air Inlet Port: ¼″–18 NPTF
• Startup Pressure: Operates efficiently even at low inlet pressures

Reservoir & Construction:

• Reservoir Material: Aluminum Alloy (Lightweight and Corrosion-Resistant)
• Reservoir Capacity: 122 in³ usable oil volume
• Integrated pressure relief valve ensures safety and long service life
• Compact, portable design ideal for mobile and shop-based applications
