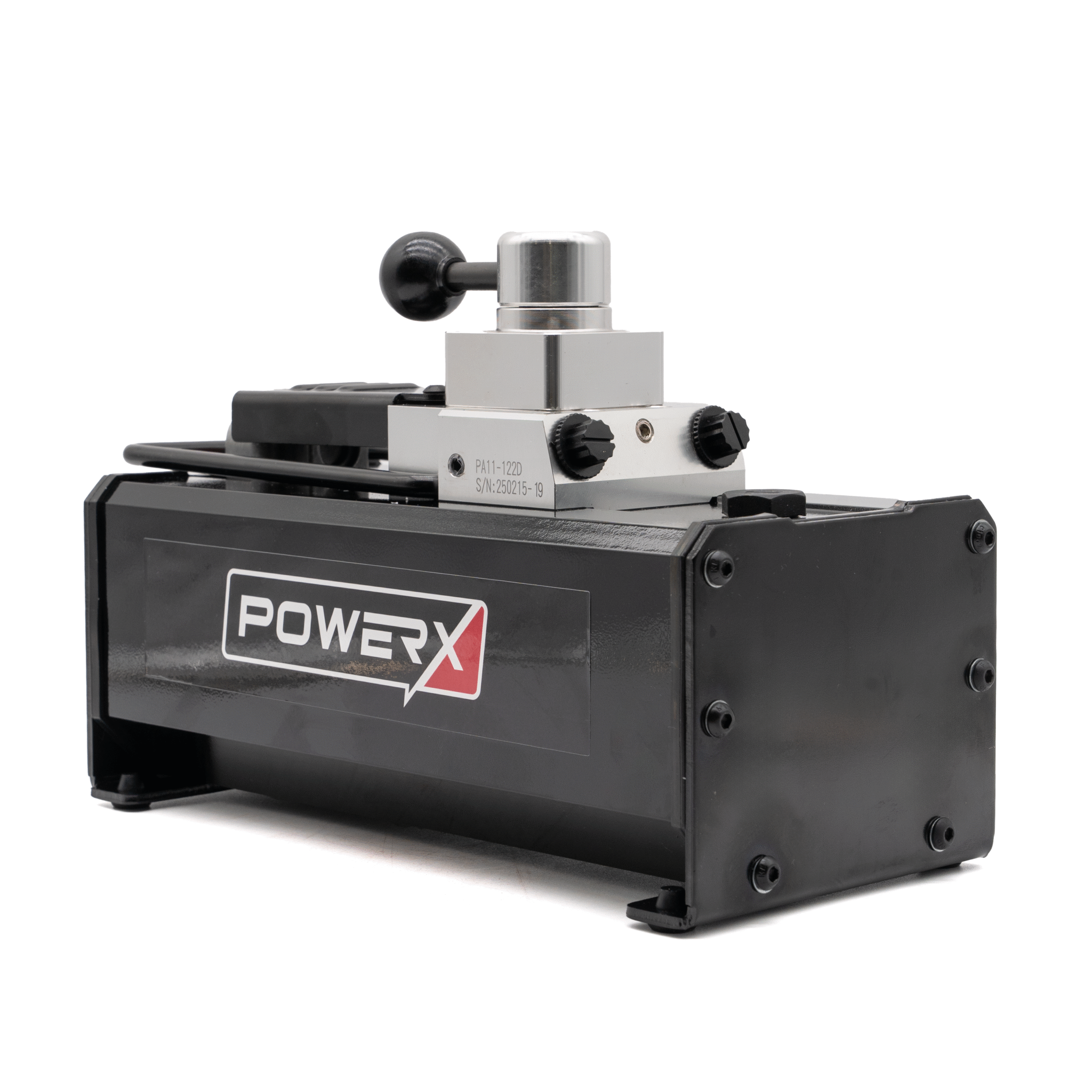

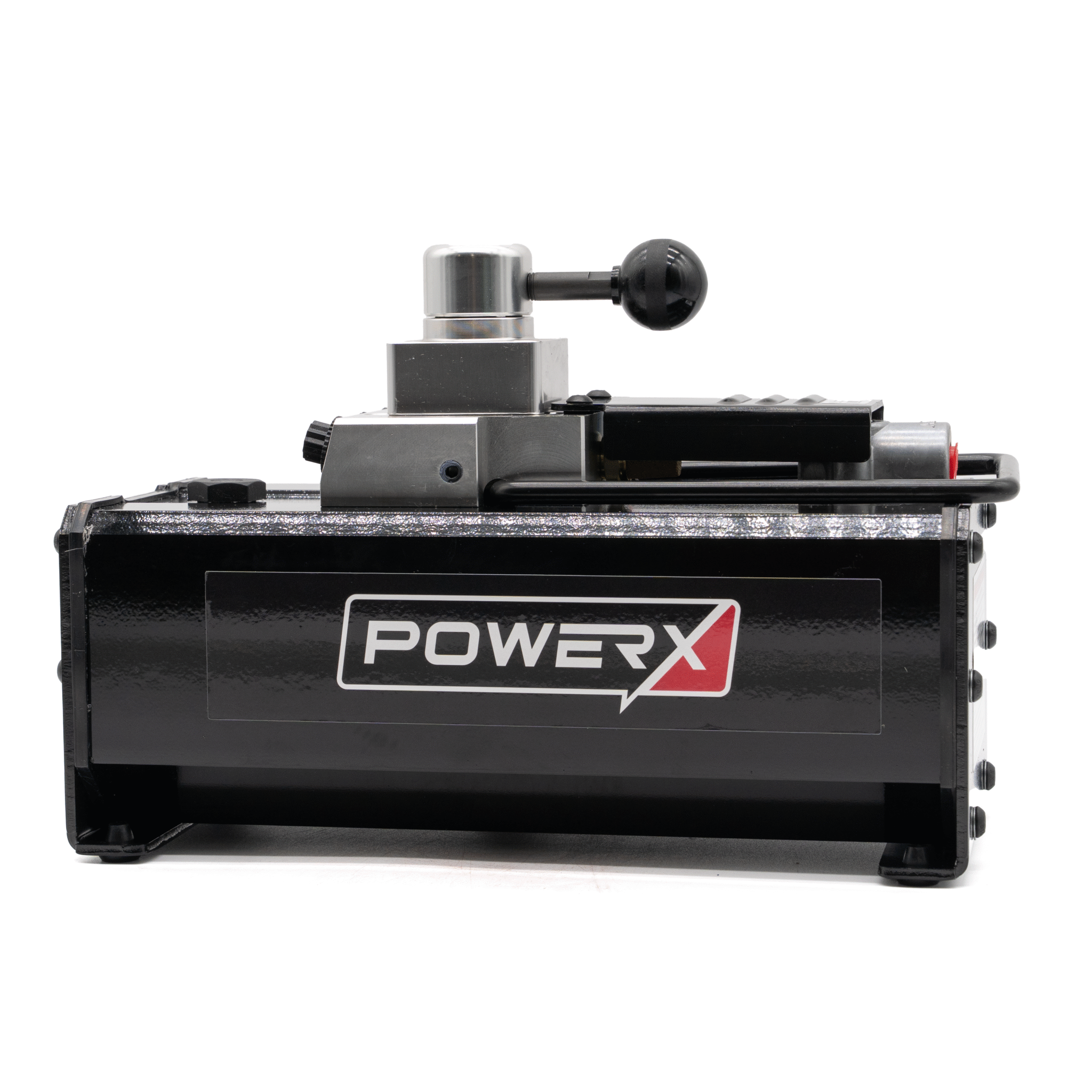

Air Over Hydraulic Pump 3,200 PSI Double Acting 122 in³ Reservoir Foot Treadle Operated PA11-122D

Air Over Hydraulic Pump 3,200 PSI Double Action 122in³ Reservoir Foot Treadle Operated PA11-122D

Precision control meets dependable performance in the PowerX PA11-122D, a double-acting air over hydraulic pump engineered for industrial, construction, and maintenance applications that require smooth, balanced power in both directions. Rated for 3,200 PSI (220 bar), this 3-position, 4-way hydraulic pump delivers turbo-speed, high-flow performance with the strength and efficiency needed to operate double-acting cylinders and tools under demanding conditions.

The reinforced aluminum-alloy reservoir provides 122 in³ of usable oil capacity, supporting longer run times and consistent output through extended-duty cycles. Lightweight yet rugged, its corrosion-resistant construction ensures durability in harsh environments, while the one-piece air piston design minimizes air consumption and operating cost. A built-in pressure-relief valve adds overload protection for safe operation at maximum output.

Operating on 40–170 PSI of shop air, the PA11-122D foot pump starts easily even at low inlet pressures and runs quietly with minimal vibration. The anti-slip foot treadle provides hands-free control for precise operation, while the 3-position, 4-way valve allows smooth directional control of double-acting cylinders—making it an excellent choice for applications that require both extension and retraction power.

Compact, efficient, and engineered for productivity, the PA11-122D Air Over Hydraulic Pump is ideal for powering double-acting hydraulic cylinders, presses, pullers, and lifting tools in construction, mining, manufacturing, and heavy-equipment service environments that demand reliability and control.

Pair the PA11-122D with PowerX Double-Acting Cylinders or compatible hydraulic tools to build a complete 3,200 PSI system designed for balanced power, smooth performance, and maximum operating efficiency.

Features:

• Turbo-speed, high-flow output for faster operation under load
• Rugged aluminum alloy air motor and reservoir for reduced air consumption and long service life
• Built-in pressure relief valve for overload protection
• Foot treadle operation allows hands-free precision and safety
• Lightweight, corrosion-resistant construction for portability in tough environments
• Compatible with double-acting hydraulic cylinders

Performance:

• Maximum Pressure: 3,200 PSI (700 Bar)
• Usable Oil Capacity: 122 in³
• Flow at No Load: 143 in³/min
• Flow at Load: 44 in³/min
• Acting Type: Double Acting
• Operation: 3-Position / 4-Way valve design

Air Supply:

• Air Pressure Range: 40 – 170 PSI
• Air Inlet Port: ¼″ – 18 NPTF
• Startup Pressure: Operates reliably even at extremely low air pressure

Reservoir & Construction:

• Reservoir Material: Aluminum alloy (corrosion-resistant and lightweight)
• Reservoir Capacity: 122 in³ usable oil volume
• Reinforced reservoir walls for increased durability in harsh conditions
• Integrated return-to-tank port for remote valve or system applications
