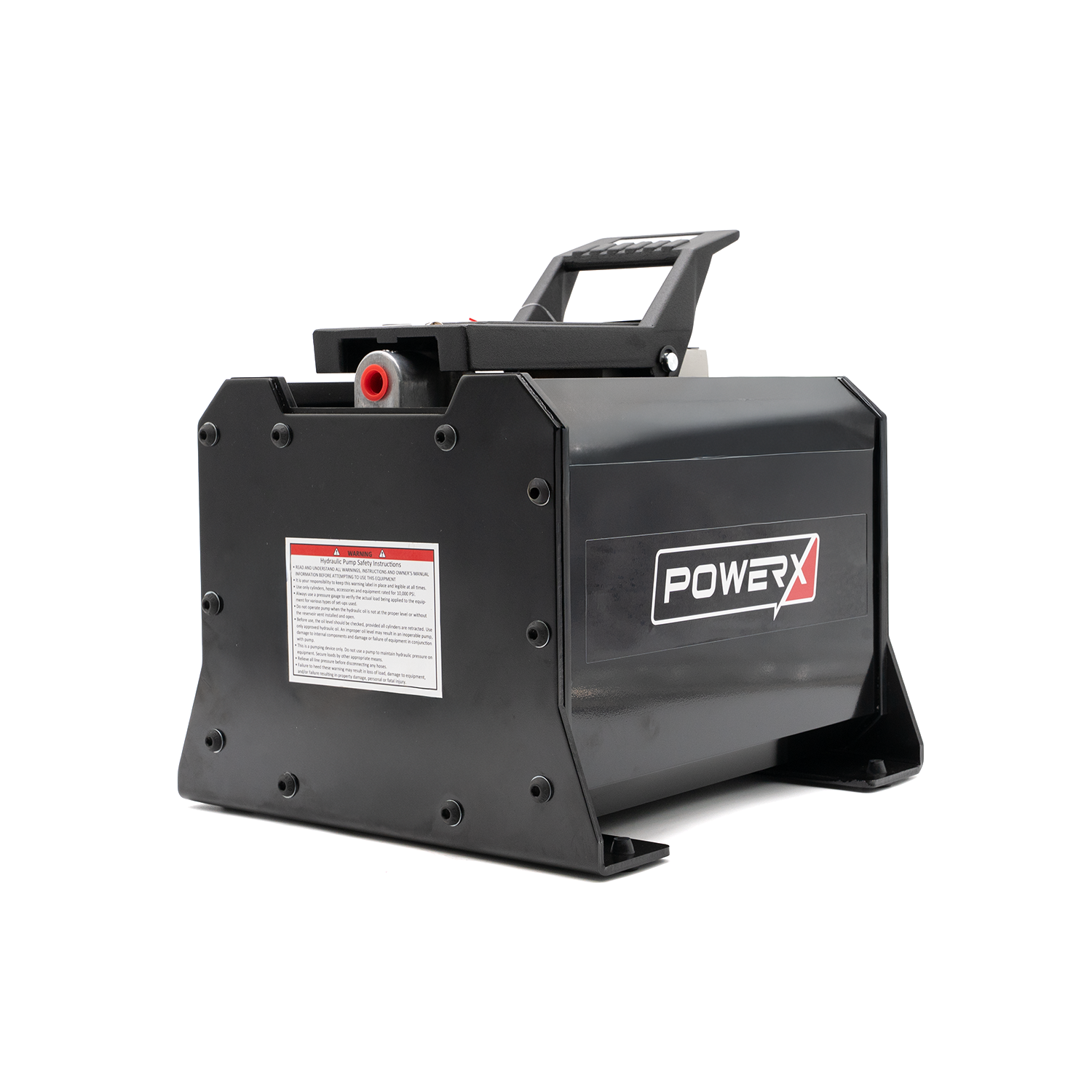

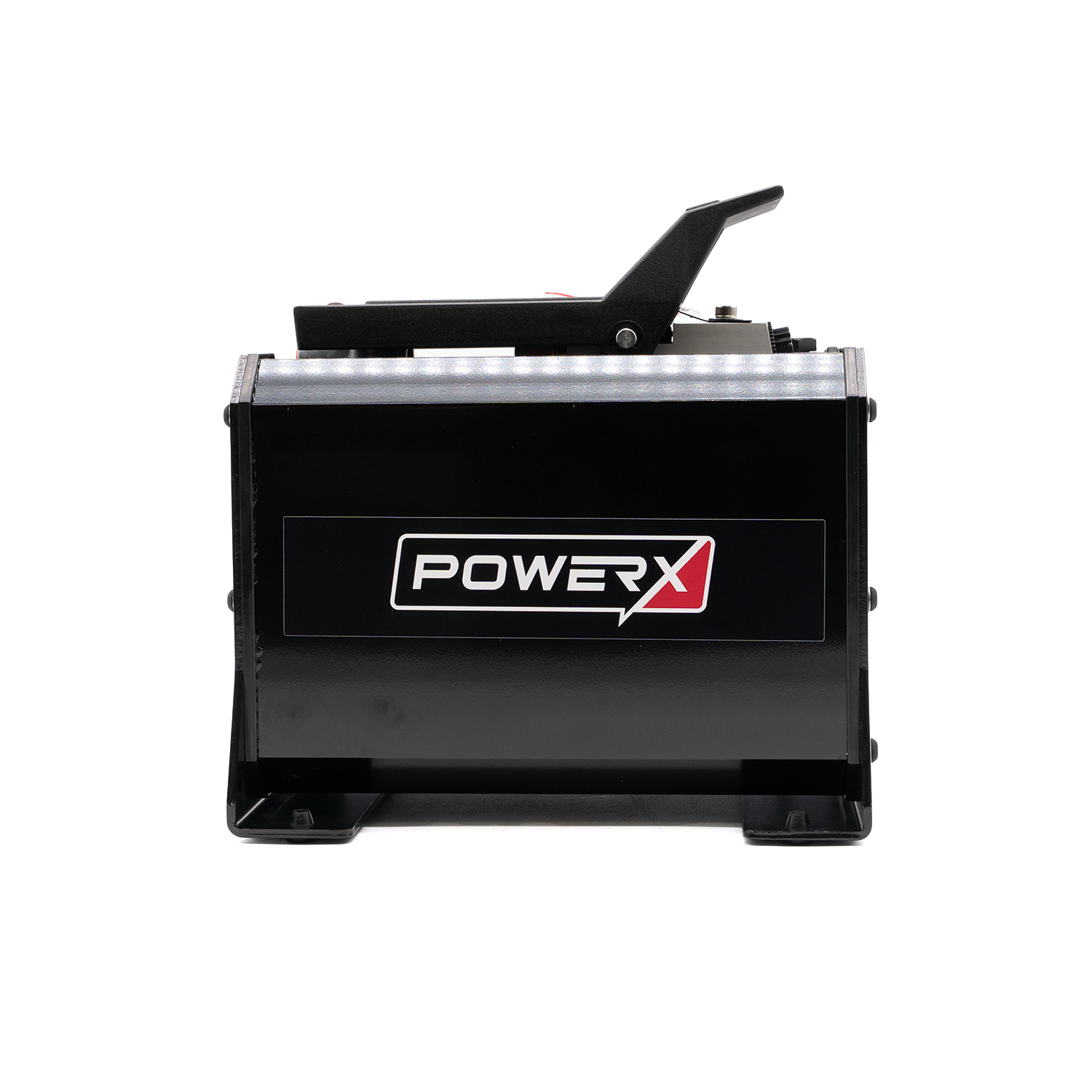

Air Over Hydraulic Pump 3,200 PSI Single Action 231 in³ Reservoir PA11-231

Air Over Hydraulic Pump 3,200 PSI Single Action 231in³ Reservoir Foot Treadle Operated PA11-231

High efficiency meets high capacity in the PowerX PA11-231, a single-acting air over 2P/3W hydraulic pump engineered for industrial, construction, and maintenance applications that require reliable performance. Rated for 3,200 PSI (220 bar), this air-driven hydraulic pump delivers turbo-speed output with high flow at high pressure, outperforming competitors in both speed and durability.

The reinforced aluminum-alloy reservoir provides a generous 231 in³ of usable oil capacity, allowing extended run time between refills while maintaining consistent flow during long-cycle operations. The corrosion-resistant body keeps weight low without sacrificing strength, and the rugged one-piece air piston minimizes air consumption and operating costs. A built-in pressure-relief valve adds overload protection for safer operation under demanding conditions.

Operating on 40 – 170 PSI of shop air, the PA11-231 starts easily even at low air pressure and runs quietly with minimal vibration. The anti-slip foot treadle offers precise, hands-free control for added safety and efficiency in workshop and field environments.

Compact, efficient, and built to last, the PA11-231 Air Over Hydraulic Pump is ideal for powering single-acting hydraulic cylinders, presses, pullers, and tools used in manufacturing, construction, mining, and heavy-equipment maintenance.

Pair the PA11-231 with PowerX Automotive Cylinders, Flat Body Cylinders, Low Profile Cylinders and select Center Hole Cylinders to build a complete 3,200 PSI hydraulic system that delivers dependable performance, long cycle life, and superior control.

Features:

• Turbo-speed, high-flow output for faster operation under load
• Rugged aluminum alloy air motor and reservoir for reduced air consumption and long service life
• Built-in pressure relief valve for overload protection
• Foot treadle operation allows hands-free precision and safety
• Lightweight, corrosion-resistant construction for portability in tough environments
• Compatible with most single-acting hydraulic cylinders

Performance:

• Maximum Pressure: 3,200 PSI
• Usable Oil Capacity: 231 in³
• Flow at No Load: 143 in³/min
• Flow at Load: 44 in³/min
• Acting Type: Single Acting
• Operation: 2-Position / 3-Way valve design

Air Supply:

• Air Pressure Range: 40 – 170 PSI
• Air Inlet Port: ¼″ – 18 NPTF
• Startup Pressure: Operates reliably even at extremely low air pressure

Reservoir & Construction:

• Reservoir Material: Aluminum alloy (corrosion-resistant and lightweight)
• Reservoir Capacity: 231 in³ usable oil volume
• Reinforced reservoir walls for increased durability in harsh conditions
• Integrated return-to-tank port for remote valve or system applications

Not sure which hydraulic pump best fits your setup?

Explore our comprehensive guide, How to Choose the Correct Hydraulic Pump for Your Application, where we cover pressure range, oil volume, speed type, and cylinder compatibility. You’ll also learn how flow rate, handle design, and material construction impact efficiency and control, so you can make the right choice for your hydraulic system.
