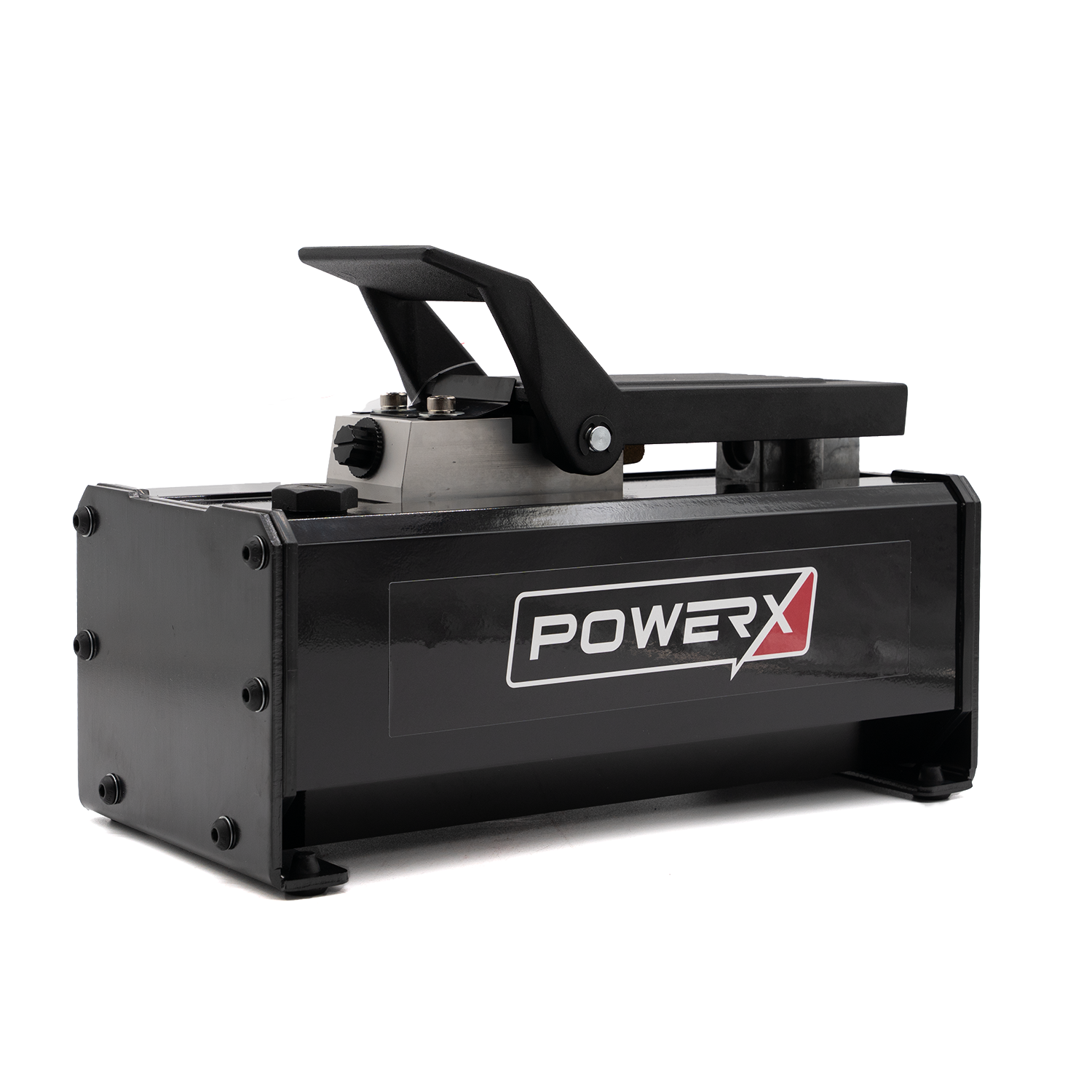

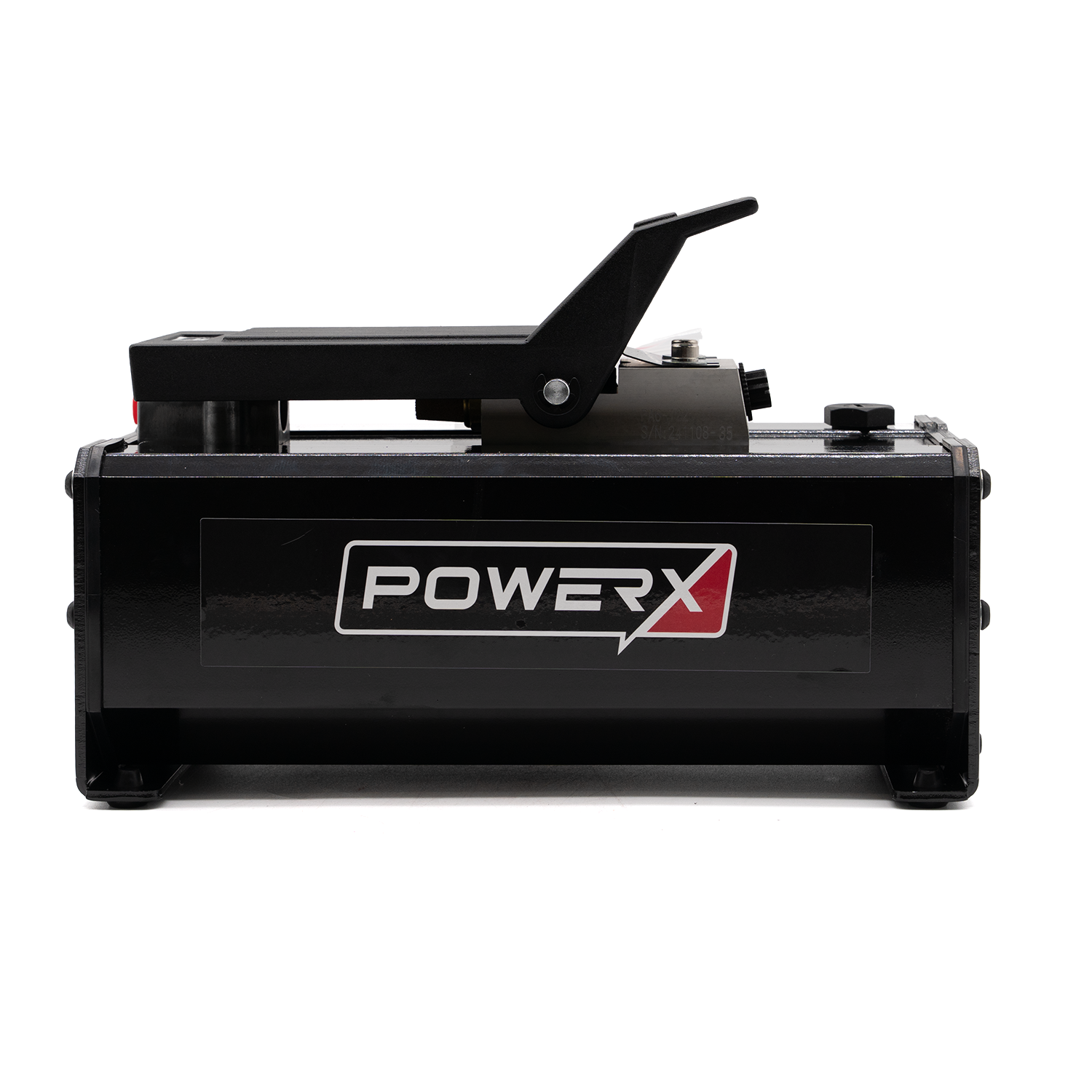

Air Over Hydraulic Pump 10k PSI Single Action 122 in³ Reservoir Foot Treadle Operated PA6-122

Air Over Hydraulic Pump 10k PSI Single Action 122in³ Reservoir Foot Treadle Operated PA6-122

High-flow power meets extended oil capacity in the PowerX PA6-122 PA6-98C 98 in³ Reservoir Foot Treadle Operated, 3P/3W, 10,000 psi max, a single-acting air over hydraulic pump engineered for heavy-duty lifting, pressing, and maintenance operations. Rated to 10 000 PSI (700 bar), this unit delivers smooth, high-pressure output with up to 15% faster cylinder extension than comparable air-powered pumps—thanks to its larger-diameter piston that moves more fluid per stroke for greater turbo speed and efficiency.

The reinforced aluminum alloy reservoir provides 122 in³ usable oil capacity, giving longer run-time between refills while keeping overall weight low. Its corrosion-resistant construction stands up to tough industrial and field environments, while the rugged one-piece air piston reduces air consumption and operating costs. A built-in overload relief valve protects against system over-pressure for safer operation.

Operating on 40 – 170 PSI of shop air, the PA6-122 starts easily even at low inlet pressures and runs quietly with minimal vibration. The anti-slip foot treadle enables precise, hands-free control—yet the pump can also be operated manually by hand when needed.

Compact, efficient, and designed for durability, the PA6-122 Air Over Hydraulic Pump is ideal for powering single-acting hydraulic cylinders, presses, pullers, and lifting tools across construction, mining, manufacturing, and heavy-equipment service sectors.

Pair this pump with PowerX Automotive Cylinders, Flat Body Cylinders, Low Profile Cylinders and select Center Hole Cylinders to create a complete 10,000 PSI high-performance hydraulic system built for maximum speed and reliability.

Features:

• 15% faster cylinder extension than competitor’s pumps due to larger piston design
• Turbo-speed, high-flow output for faster operation under load
• Rugged aluminum alloy air motor and reservoir for reduced air consumption and long service life
• Built-in pressure relief valve for overload protection
• Foot treadle operation allows hands-free precision and safety
• Operates quietly (approx. 76 dBA) with minimal vibration
• Lightweight, corrosion-resistant construction for portability in tough environments
• Compatible with most single-acting hydraulic cylinders

Performance:

• Maximum Pressure: 10,000 PSI (700 Bar)
• Usable Oil Capacity: 122 in³
• Flow at No Load: 82 in³/min
• Flow at Load: 13 in³/min
• Acting Type: Single Acting
• Operation: 3-Position / 3-Way valve design

Air Supply:

• Air Pressure Range: 40 – 170 PSI
• Air Inlet Port: ¼″ – 18 NPTF
• Air Consumption: 12 scfm (typical at 100 PSI)
• Startup Pressure: Operates reliably even at extremely low air pressure

Reservoir & Construction:

• Reservoir Material: Aluminum alloy (corrosion-resistant and lightweight)
• Reservoir Capacity: 122 in³ usable oil volume
• Reinforced reservoir walls for increased durability in harsh conditions
• Integrated return-to-tank port for remote valve or system applications
