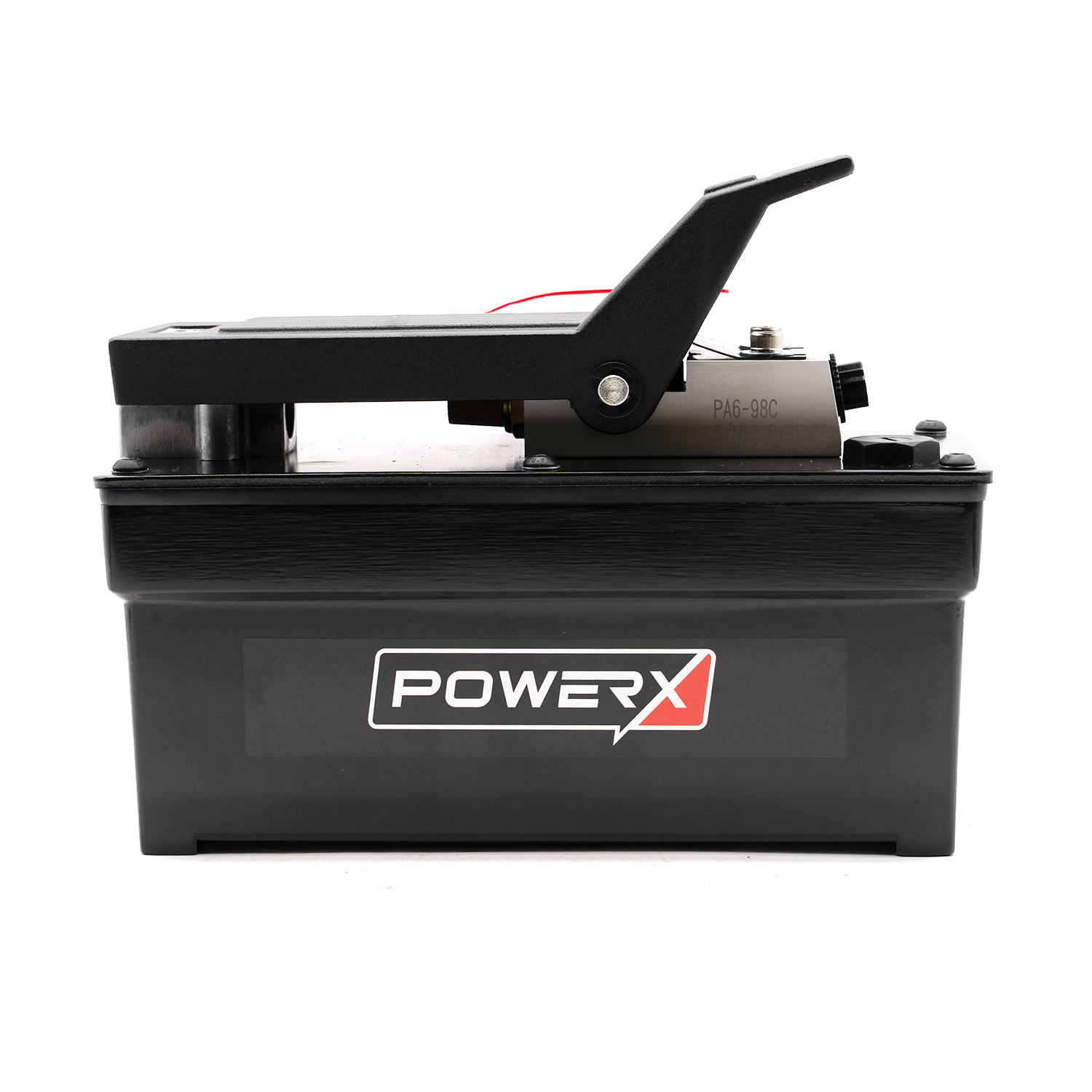

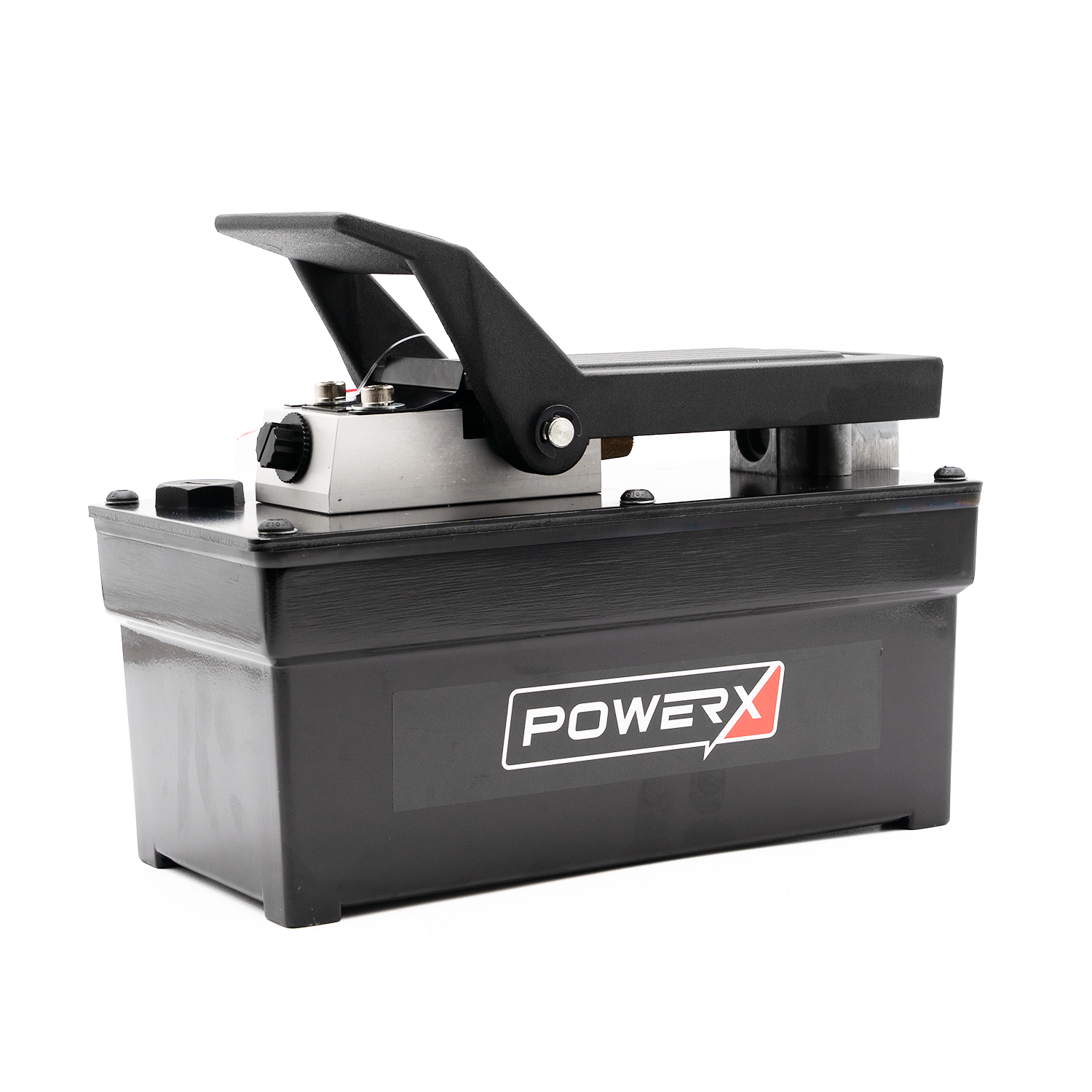

Air Over Hydraulic Pump 10k PSI Single Action 98 in³ Reservoir Foot Treadle Operated PA6-98C

Air Over Hydraulic Pump 10k PSI Single Action 98 in³ Reservoir Foot Treadle Operated PA6-98C

Fast, efficient, and built for high-pressure performance, the PowerX PA6-98C 98 in³ Reservoir Foot Treadle Operated, 2P/3W, 10,000 psi max pump delivers professional-grade results in a single-acting air over hydraulic pump rated to 10,000 PSI (700 bar). Designed for demanding industrial, construction, and maintenance environments, this hydraulic-driven hydraulic pump provides precise control and smooth, high-flow output — all while operating up to 15% faster than other pumps. This faster turbo speed is accomplished because of the pump’s larger piston, which allows for faster fluid flow. You can expect reduced air consumption and operating costs due to the rugged one-piece piston.

Our air hydraulic pump features a rugged cast aluminum reservoir. This offers 98 in³ usable oil capacity, delivering the perfect balance of lightweight portability and long-cycle performance. This tough reservoir material increases life in tough environments and reduces air consumption. The integrated overload relief valve protects against system over-pressure.

With an air pressure range of 40–170 PSI, this high-pressure air over pump operates quietly with minimal vibration. The foot pump can start at low pressure ranges. The anti-slip foot treadle enables hands-free control for added safety and precision. The pump can be operated with either your hand or foot.

Built to outperform in speed and reliability, the PA6-98C is ideal for powering single-acting hydraulic cylinders, presses, and lifting tools in construction, mining, manufacturing, and heavy-equipment service. Compact, durable, and easy to maintain, it’s the go-to choice for technicians who need power on demand.

Pair this foot pump with our single-acting Automotive Cylinders, Flat Body Cylinders, Low Profile Cylinders and select Center Hole Cylinders.

Features:

• 15% faster cylinder extension than competitor’s pumps due to larger piston design
• Turbo-speed, high-flow output for faster operation under load
• Rugged cast-aluminum air motor and reservoir for reduced air consumption and long service life
• Built-in pressure relief valve for overload protection
• Foot treadle operation allows hands-free precision and safety
• Operates quietly (approx. 76 dBA) with minimal vibration
• Lightweight, corrosion-resistant construction for portability in tough environments
• Compatible with most single-acting hydraulic cylinders

Performance:

• Maximum Pressure: 10,000 PSI (700 Bar)
• Usable Oil Capacity: 98 in³
• Flow at No Load: 82 in³/min
• Flow at Load: 13 in³/min
• Acting Type: Single Acting
• Operation: 2-Position / 3-Way valve design

Air Supply:

• Air Pressure Range: 40 – 170 PSI
• Air Inlet Port: ¼″ – 18 NPTF
• Air Consumption: 12 scfm (typical at 100 PSI)
• Startup Pressure: Operates reliably even at extremely low air pressure

Reservoir & Construction:

• Reservoir Material: Cast Aluminum (corrosion-resistant and lightweight)
• Reservoir Capacity: 98 in³ usable oil volume
• Reinforced reservoir walls for increased durability in harsh conditions
• Integrated return-to-tank port for remote valve or system applications

Need help choosing the right hydraulic pump for your system?

Explore our detailed guide, How to Choose the Correct Hydraulic Pump for Your Application—covering pressure ratings, oil capacity, pump speed, and compatibility with both single- and double-acting cylinders. Learn how handle effort, body material, and flow rate influence performance so you can choose the ideal pump for your system with confidence.
